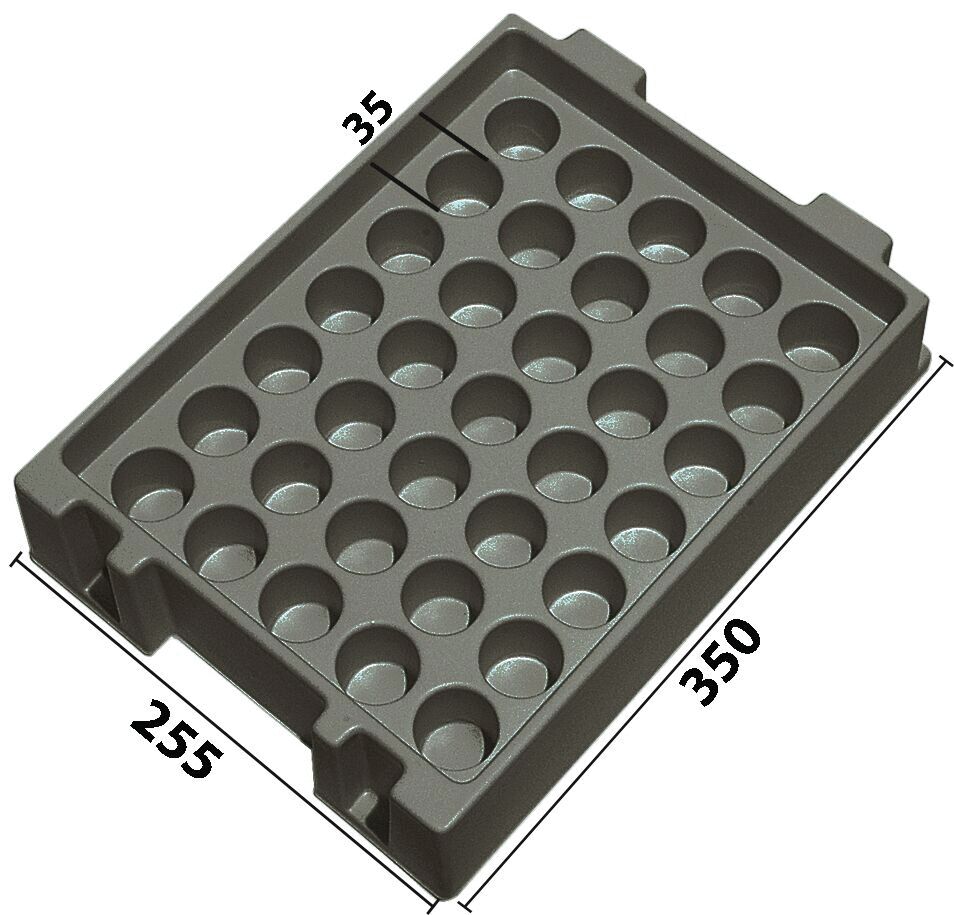

The image displays a gray plastic mold with 36 round indentations in three rows. The dimensions are 350 mm in length and 255 mm in width. There are two handles on one side.
Vacuum-formed insert T-2112 350 x 255 x 73 mm, 35 compartments ESD
(Product No.: 032.T-2112)

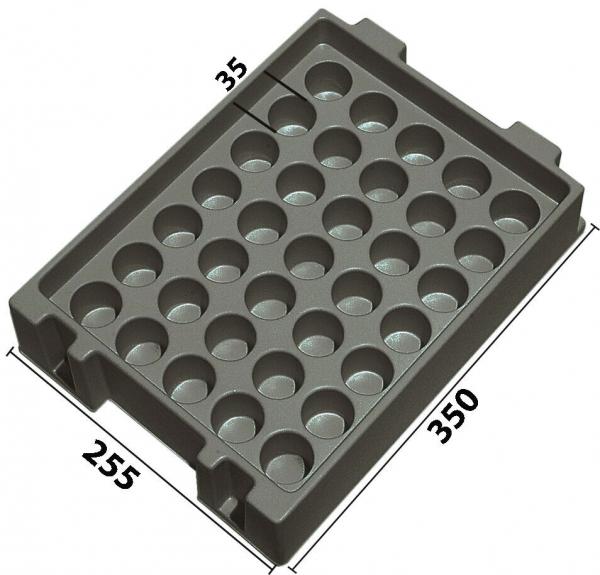

The image displays a gray plastic mold with 36 round indentations in three rows. The dimensions are 350 mm in length and 255 mm in width. There are two handles on one side.

Vacuum-formed insert T-2112 350 x 255 x 73 mm, 35 compartments ESD

dpvlink:
18988
Length :
350 mm
Width :
255 mm
Height :
73 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now



Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-2112 350 x 255 x 73 mm, 35 compartments ESD

The deep-drawing insert T-2112 from Licefa, specifically designed for the protection and storage of sensitive electronic components, is characterized by its electrical conductivity and complies with the standards of DIN EN 61340-5-1. With dimensions of 350 x 255 x 73 mm and 35 compartments, each with a diameter of 35x37 mm, this insert offers optimal protection and organization. The material Liastat guarantees the required conductivity with a surface resistance between 10^3 and 10^5 Ohm, to prevent electrostatic discharges.
The deep-drawing insert is suitable for containers of size 400x300 mm and features a grip recess as well as the possibility for reverse stacking, which simplifies handling and storage. With a minimum order quantity of 50 pieces, this product is ideal for technical buyers who value efficiency and safety.
Length
Length
350 mm
Width
Width
255 mm
Height
Height
73 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
35
Dimensions cavities
Dimensions cavities
35x37 mm
Suitable for containers
Suitable for containers
400x300 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 320
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Vacuum-formed inserts T-2112

Article image
Article description
Length
Width
Height
Price
Compare
032.T-2112 - Vacuum-formed insert T-2112 350 x 255 x 73 mm, 35 compartments ESD
032.T-2112
Vacuum-formed insert T-2112 350 x 255 x 73 mm, 35 compartments ESD
350 mm
255 mm
73 mm
-
