EPApack® – ESD packaging solutions
With our own EPApack® brand, we offer comprehensive packaging solutions that integrate dissipative, conductive and shielding elements to ensure that your components can be processed, stored and transported in a controlled and protected environment.
Dissipative, conductive and shielding packaging differ mainly in their ability to handle electrostatic charges. The DryShield class also offers reliable protection against moisture.
Our tip:
Even "non-ESD-compliant" parts that could become charged should be transported with ESD Packaging in the EPA. This prevents existing charges from being transported into the protected area, which could jump over to the ESDS components and damage them.
Our ESD vacuum packaging machines from KOMET!
The optimum solution for demanding environments where electrostatic discharge must be avoided.
Safely packaged for every application
Reliable protection against ESD and moisture with EPApack® DRY-SHIELD bags
The moisture-impermeable, metallized barrier bags with a special multilayer made of dissipative polyethylene and polyester as well as aluminium-vaporized polyester film offer excellent protection against moisture and electrostatic charge. This packaging is essential for ESD safety during transportation and storage. In combination with the desiccants and Moisture indicators from EPApack®, ESD-sensitive electronic components are reliably protected even under the harshest outdoor conditions.
EPApack® DPV-2000
Properties:
- Shielding / barrier Bag with moisture protection according to DIN EN 61340-5-1
- Electrostatic shielding of <15nJ (Energy test)
- Complies with MIL-PRF-81705 and ANSI / ESD STM11.31
- Moisture protection through multilayer made of dissipative polyethylene
- Aluminum-coated polyester film
- Amine-free, lead-free
- Standard imprint: ESD warning symbol, moisture symbol, type designation, recycling symbol, LOT no., RoHS symbol
Areas of application:
- Packaging inside and outside the EPA
- ESD-safe transport packaging, even in damp conditions
- Packaging for long-term storage of ESD-sensitive components
Closure variants:
- Sealable
- Vacuum sealable
Dimensions:
- Film thickness 0.09 mm
- 14 different standard sizes available from 76 x 127 mm to 457 x 609 mm
EPApack® Moisture Protection
Features:
- Wide range of measuring ranges in various gradations
- Choice of cobalt-free or cobalt-containing
- Longer shelf life and storability
- Complies with IPC/JEDEC J-STD-33
Measuring ranges:
- Wide range of measuring ranges in various gradations from 5 % to 60 %
Packaging:
- Various container sizes
- Airtight sealed metal can
- Packed per 25 units in vacuum-sealed ESD bags
Desiccant
- Non-woven Bag Tyvek®
- Non-conductive
- Desiccant: natural alumina
- High absorption capacity at a relative humidity of 40%
- Shelf life: 3 years, if stored properly
- Complies with DIN 55473: dust-tight for highly sensitive products
- Bag made of ESD-compliant non-woven fabric
- Antistatic, conductive
- Desiccant: clay
- Absorption capacity at a relative humidity of over 50%
- Shelf life: 3 years, if stored properly
- Complies with DIN 55473: dust-tight for highly sensitive Products
- Complies with the ESD standard DIN EN 61340-5-1
Do you need desiccant for your transport?
With just a few clicks, we can calculate the exact amount of desiccant you need. Either according to the MIL-P-116 specification or the German DIN standard 55474.
EPApack® DPV-1000: A wide range of variants for individual requirements
The metallized shielding bags in this series have a multi-layer structure and are available in numerous different sizes as standard bags for sealing or resealable with a zip closure. Other closure variants and special solutions are also available.
ESD gusseted bags or covers are ideal for the disposal or short-term storage of small parts, granulates, etc.
DPV-1000 / 1000-Zip (resealable)
Properties:
- Electrostatic shielding of <10nJ (Energy Test)
- High shielding against field induction, lowest triboelectric charge
- Controlled dissipation of existing charges without spontaneous discharge
- Suitable for assemblies with batteries and rechargeable batteries
- Semi-transparent appearance - internal components are visible
- Standard imprint: ESD warning symbol, type designation, recycling symbol, RoHS conformity, LOT no.
Areas of application:
- ESD-safe transport packaging inside and outside the EPA (dry)
- For long-term storage of ESD-sensitive components
Versions:
- Available in numerous sizes and designs
- Film thickness 0.078 mm
EPApack® DPV-3000 / 3006 Zip (resealable)
Properties:
- Dissipative packaging bags
- Dissipative / antistatic (DIN EN 61340-5-1)
- Standard imprint: Type designation, ESD warning symbol and LOT no.
- Cost-effective
- Pink, transparent
- Amine-free, recyclable
Areas of application:
- Suitable for ESD-insensitive components within the EPA (Electrostatic Protected Area)
- Assemblies with batteries / rechargeable batteries do not discharge
Versions:
- Extensive standard sizes from 80 x 120 mm to 400 x 600 mm
- Film thickness 0.06 mm or 0.1 mm
Versions:
- Available with adhesive seal on request
ESD gusseted bags
Characteristics
- Dissipative transport packaging
- Dissipative / antistatic
- Complies with the ESD standard DIN EN 61340-5-1
- Without print
- Cost-effective
- Pink, transparent
- Amine-free, recyclable
Areas of application:
- For the disposal or short-term storage of small parts, granulates, etc.
- 3-year shelf life when stored properly
Versions:
- Wide range of standard sizes for all common transport containers
- Film thickness 0.05 mm to 0.1 mm
- Other versions available on request
EPApack® air bubble films and bags offer perfect protection during transportation and storage
ESD air bubble films on rolls and bags offer a range of benefits that help to protect sensitive electronic components from electrostatic discharge. Thanks to their antistatic properties, they prevent ESD damage to electronic components. In addition, the films offer excellent protection against impacts, scratches and moisture thanks to their three-layer structure..
EPApack® air bubble bags
Properties:
- Dissipative Air bubble bags
- Color pink, without print
- Made from approx. 35 % PIR recyclate
- Recyclable polyethylene
- Amine-free
- Heat-sealable
- Complies with the ESD standard DIN EN 61340-5-1
Areas of application:
- ESD-safe transport packaging
- Suitable for long-term storage of ESDS products
Versions:
- Six different standard sizes from 100 x 150 mm to 300 x 400 mm
- Standard version with 50 mm flap
- Customized sizes with and without flap available on request
ESD air bubble films (rolls) dissipative
ESD air-bubble films (rolls) dissipative
Properties:
- Dissipative Air bubble film
- Color pink, without print
- Made from approx. 35% PIR recyclate
- Recyclable polyethylene
- Amine-free
- Heat-sealable
- Complies with the ESD standard DIN EN 61340-5-1
Areas of application:
- ESD-safe transport packaging
- Suitable for long-term storage of ESDS products
Versions:
- Roll length: 100 m
- Available in various widths from 300 to 1200 mm
ESD air bubble films (rolls) conductive
ESD air bubble films (rolls) conductive
Properties:
- Permanently volume conductive copolymer film
- Surface and volume resistance Rs = 104Ohm
- Color black, without imprint
- Unlimited shelf life when stored properly
- Recyclable
- Heat-sealable
- Available in two film thicknesses: 100 µ and 160 µ
- Complies with DIN EN 61340-5-1
Areas of application:
- Environments with higher electrostatic risks
Versions:
- Roll length: 100 m
- Available in various widths from 300 to 1200 mm
ESD air bubble films (rolls) shielding
ESD air bubble films (rolls) shielding
Properties:
- Metallized shielding HIGHSHIELD Air bubble film, without print
- Shielding film on the outside
- Inside PERMASTAT® film
- Electrostatic shielding < 15 nJ (Energy test)
- Surface and volume resistance Rs = 109 – 1010 Ohm
- Heat-sealable, recyclable
- Complies with DIN EN 61340-5-1 + IEC
Areas of application:
- Environments exposed to electromagnetic radiation
Versions:
- Roll length: 100 m
- Available in various widths from 300 to 1200 mm
Reliable all-round protection with EPApack® foam films and foams
These ESD foam foils and ESD foams offer the advantage of protecting sensitive electronic components from electrostatic discharge and thus preventing potential damage. They also provide good cushioning and shock absorption to protect the components from external mechanical damage during transportation or storage.
EPApack® PE foam film
Properties:
- Material: closed PE foam, amine-free
- Complies with the ESD standard DIN EN 61340-5-1
- Color pink, without imprint
- Antistatic, surface resistanceRS 1011 Ohm
- Recyclable
Areas of application:
- ESD-safe transport packaging
- Packaging for long-term storage of ESDS Products
- Shelf life: 2 years when stored properly
Versions:
- Thickness: 1.5 mm
- Roll length 150 m
- Available in various widths from 300 to 1200 mm
- Other thicknesses, perforations, cuttings, bags and covers are available on request

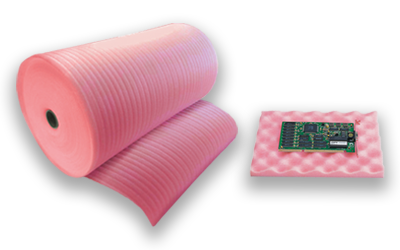

EPApack® PU foams
Raster foam for shipping boxes
Properties:
- ESD foam made from polyurethane
- Open-cell and soft
- Suitable as an insert for shipping boxes
- Electrostatic dissipative / dissipative, typical resistance RS 1010 Ohm
- Complies with the ESD standard DIN EN 61340-5-1
- Shelf life: 2 years when stored properly
- Over 20 different standard sizes
Versions:
- Napped foam
- Smooth foam
- Gridded foam
- Special thicknesses, cutings, punched parts or plates and rolls are available on request
Everything summarized!
All information on our comprehensive range of individual packaging solutions with EPApack® can also be found clearly summarized in the current brochure and in the separate overview flyer on our DPV-1000 shielding bags. Available as an online catalog, as a download or request your free print copy (only in German).
