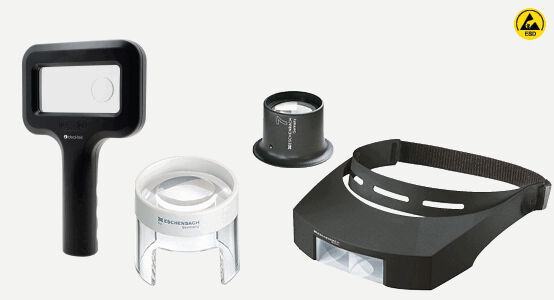

Magnifiers

Magnifiers are used in electronics production for the precise inspection of components and PCBs. They enable detailed, eye-friendly inspection of solder joints, SMD components and conductor tracks that are difficult to see with the naked eye.

There are various magnifier models that are tailored to specific requirements: They offer different magnification factors to enable precise inspection of even the smallest components.

For longer inspection times and more comfort at work, magnifiers are available with eyeglass/head mounts or stands that allow hands-free inspection.

In addition, many magnifiers are equipped with lighting that ensures uniform and focused illumination of the areas to be inspected in order to avoid shadows and reflections.

The digital handheld magnifier Cam BETA (Cam β) is a special feature. It enables dimensioning and simple measuring using a calibrated grid or virtual measuring lines. The caliper is used to measure distances between parallel lines on the X and Y axes. It can be connected to an HDMI monitor for live display of the image. The handheld magnifier can also store up to 20,000 images in its internal memory so that they can be downloaded to a PC later if required.

The image shows a black magnifying glass with a rectangular lens and a round auxiliary window. The handle is ergonomically designed, and there are two buttons at the lower end.
NEW
NEW

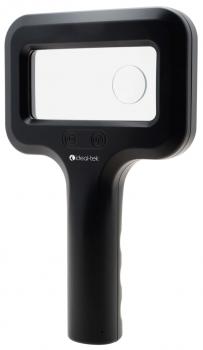

Wide-angle hand-held magnifier LED/UV
ESD / Magnification: 2.25x/4x
Wide-angle handheld magnifier LED + UV, ESD,
5 Dioptr. with 4x spot lens,
UV (365 nM) + white LEDs (6500 K)
++ideal-tek++

Product No.: I-LE-HHUVWE
150.00 CHF
excl. 8.1% tax
Show product

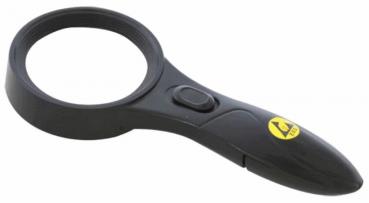

The image shows a black magnifying glass lamp. It has a large, round glass area and an elongated handle with a button. A yellow symbol is attached to the handle.

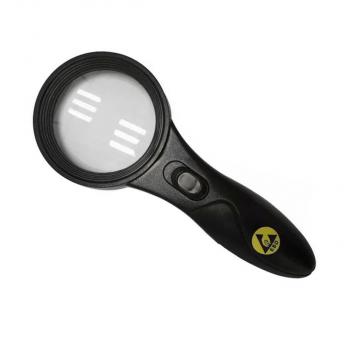

LED hand magnifier ESD
ESD / Magnification: 5x
ESD LED Handheld magnifier 5x magnification
Magnifier diameter 62mm, length 200 mm
5x LED white, 1x LED UV
ESD coating

Delivery without batteries

Product No.: 5825.1059
34.05 CHF
excl. 8.1% tax
Show product
The image shows a black magnifying glass with an ergonomic handle. The lens is large and transparent, with a button in the middle to activate the lighting. Ideal for enlarging small texts.
LED Hand magnifier 5x magnification
ESD
ESD LED hand magnifier 5x magnification
Magnfier diameter 62mm, length 200 mm
5x LED white, 1x LED UV
ESD coating

Delivery without batteries

Product No.: 2-298
43.05 CHF
excl. 8.1% tax
Show product
The image shows a black magnifying glass with highly curved glass. The base is round and has a matte finish. On the side, it reads
Preview: The image shows a black magnifying glass with a rounded base and a large, clear lens on top. On the side, it reads
Preview: The image shows a black, cylindrical magnifying glass. It has a smooth surface, a wide rim, and a clear lens in the center, inscribed with
Preview: The image shows a black magnifying glass with highly curved glass. The base is round and has a matte finish. On the side, it reads
Preview: The image shows a black magnifying glass with a sturdy, round base. The lens is clear and convex, and on the base it says

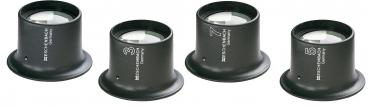

Watchmaker's magnifier plano-convex/biconvex, 3x/5x/7x/10x
Watchmaker's magnifier plano-convex 3-fold magnification
Magnification: 3x / Ø: 25 mm / Lens shape: plano-convex
Watchmaker's magnifier plano-convex 5-fold magnification
Magnification: 5x / Ø: 25 mm / Lens shape: plano-convex
Watchmaker's magnifier plano-convex 7-fold magnification
Magnification: 7x / Ø: 25 mm / Lens shape: plano-convex
Watchmaker's magnifier biconvex 10-fold magnification
Magnification: 10x / Ø: 25 mm / Lens shape: aspheric

4 Products
Product No.: ES-11247
from 21.00 CHF
excl. 8.1% tax
to the product family
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image

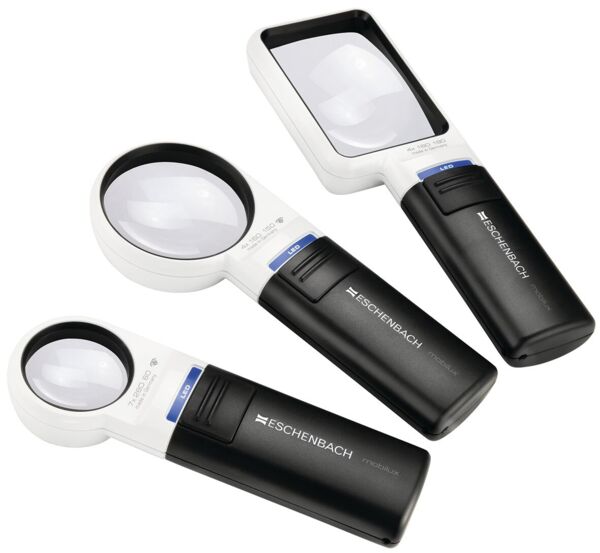

mobilux LED illuminated pocket magnifier 3x/3.5x/4x/5x/7x/10x/12.5x
mobilux LED illuminated pocket magnifier 3-fold magnification 60 mm
Magnification: 3x / Lens shape: aspheric
mobilux LED illuminated pocket magnifier 3-fold magnification 90x54mm
Magnification: 3x / Lens shape: aspheric
mobilux LED illuminated pocket magnifier 3.5-fold magnification 75x50 mm
Magnification: 3.5x / Diameter / dimension [mm]: 75 x 50 mm / Lens shape: aspheric
mobilux LED illuminated pocket magnifier 4-fold magnification 75x50mm
Magnification: 4x / Lens shape: aspheric
mobilux LED illuminated pocket magnifier 4-fold magnification 60mm
Magnification: 4x / Lens shape: aspheric
mobilux LED illuminated pocket magnifier 5-fold magnification 58 mm
Magnification: 5x / Lens shape: aspheric
mobilux LED illuminated pocket magnifier 6-fold magnification 58 mm
Magnification: 6x / Lens shape: aspheric
mobilux LED illuminated pocket magnifier 7-fold magnification 35 mm
Magnification: 7x / Lens shape: aspheric
mobilux LED illuminated pocket magnifier 10-fold magnification 35 mm
Magnification: 10x / Lens shape: aspheric
mobilux LED illuminated pocket magnifier 12.5-fold magnification 35 mm
Magnification: 12.5x / Lens shape: aspheric

10 Products
Product No.: ES-15116
from 82.15 CHF
excl. 8.1% tax
to the product family
The image shows a handheld digital magnification device with a screen displaying a green circuit diagram. It has a white handle and buttons for operation.
Cam BETA - Digital inspection magnifier
Magnification: 4x, 8x, 16x, 20x / Capture resolution: 1280 x 720 / Length : 283 mm / Width : 22 mm / Height : 88 mm
Digital hand magnifier Camß for portable
inspection, dimensioning and image storage
incl. 2-piece safety lanyard,
Cleaning cloth, charger, user manual
Description:
- 4.3" (86 mm) TFT LCD
- controllable LED lighting
- Magnification x4 - x20 (4 levels)
- 4GB internal image memory for up to 20,000 images
- Mini USB port for data transfer
- Mini HDMI connector incl. Mini-HDMI to HDMI cable
- Adjustable measuring lines (or 1mm pitch)
- Lithium-ion battery

Product No.: CMB002
1,138.80 CHF
excl. 8.1% tax
to the product family
Preview: Image
Preview: Image

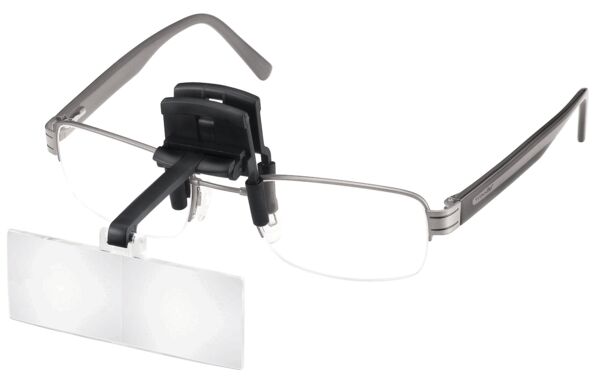

laboClip attachment magnifier 1.7x/2x/2.5x/3x/4x/7x
laboClip attachment magnifier 1.7x magnification
Magnification: 1.7x / Diopters: 2,5 / Lens shape: binocular / Working distance : 400 mm
laboClip attachment magnifier 2x magnification
Magnification: 2x / Diopters: 2,5 / Lens shape: binocular / Working distance : 250 mm
laboClip attachment magnifier 2.5x magnification
Magnification: 2.5x / Diopters: 5 / Lens shape: binocular / Working distance : 180 mm
laboClip attachment magnifier 3x magnification
Magnification: 3x / Diopters: 7,75 / Lens shape: binocular / Working distance : 130 mm
laboClip attachment magnifier 4x magnification
Magnification: 4x / Diopters: 16 / Lens shape: monocular / Working distance : 55 mm
laboClip attachment magnifier 7x magnification
Magnification: 7x / Diopters: 28 / Lens shape: monocular / Working distance : 32 mm

6 Products
Product No.: ES-164630
from 71.90 CHF
excl. 8.1% tax
to the product family

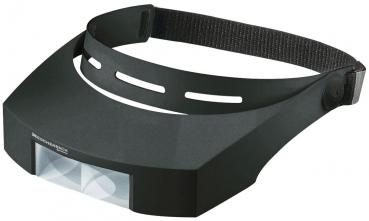

laboComfort headband magnifier 1.7x/2x/2.5x/3x
laboComfort headband magnifier 1.7x magnification
Magnification: 1.7x / Diopters: 2,5 / Lens shape: plano-convex / Working distance : 400 mm
laboComfort headband magnifier 2x magnification
Magnification: 2x / Diopters: 2,5 / Lens shape: plano-convex / Working distance : 250 mm
laboComfort headband magnifier 2.5x magnification
Magnification: 2.5x / Diopters: 5 / Lens shape: plano-convex / Working distance : 180 mm
laboComfort headband magnifier 3x magnification
Magnification: 3x / Diopters: 7,75 / Lens shape: plano-convex / Working distance : 130 mm

4 Products
Product No.: ES-164825
129.60 CHF
excl. 8.1% tax
to the product family
The image displays a handy magnifier with a rectangular, white casing. The lens is slightly convex and includes an integrated light. It is used to enhance the visibility of small texts or details.
Preview: The image shows a black, flat reading magnifier with a transparent magnifying glass on one side. The magnifier is lightweight and portable, with an integrated light source.
Preview: The image shows a practical magnifying glass in a compact, silver casing. The magnifying glass is foldable and has a clear, magnifying lens. It is suitable for better visibility of small text.
Preview: The image displays a compact, rectangular magnifier in a blue casing. The casing is closed and has the inscription
Preview: The image displays a handy magnifier with a rectangular, white casing. The lens is slightly convex and includes an integrated light. It is used to enhance the visibility of small texts or details.

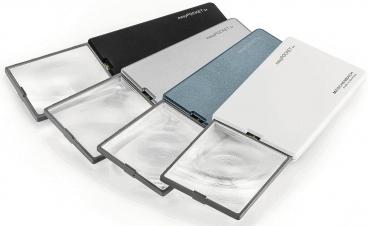

easyPocket illuminated pocket magnifier 3x/4x/6x
easyPocket illuminated pocket magnifier 3-fold magnification black
Magnification: 3x / Lens shape: aspheric / Color: black
easyPocket illuminated pocket magnifier 3-fold magnification silver
Magnification: 3x / Lens shape: aspheric / Color: silver
easyPocket illuminated pocket magnifier 4-fold magnification, blue
Magnification: 4x / Diameter / dimension [mm]: 86 x 54 mm / Lens shape: aspheric / Color: blue
easyPocket illuminated pocket magnifier 6-fold magnification, white
Magnification: 6x / Diameter / dimension [mm]: 86 x 54 mm / Lens shape: aspheric / Color: white

4 Products
Product No.: ES-152133
from 71.90 CHF
excl. 8.1% tax
to the product family
Mobilent LED folding magnifier, aspheric 4x/7x/10x
Mobilent LED folding magnifier 4x magnification
Magnification: 4x / Ø: 35 mm / Diopters: 16
Mobilent LED folding magnifier 7x magnification
Magnification: 7x / Ø: 35 mm / Diopters: 28
Mobilent LED folding magnifier 10x magnification
Magnification: 10x / Ø: 35 mm / Diopters: 38

3 Products
Product No.: ES-1520910
from 63.10 CHF
excl. 8.1% tax
to the product family
Preview: Image
Preview: Image
Preview: Image

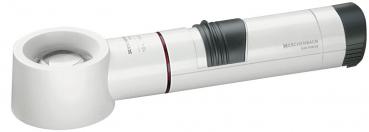

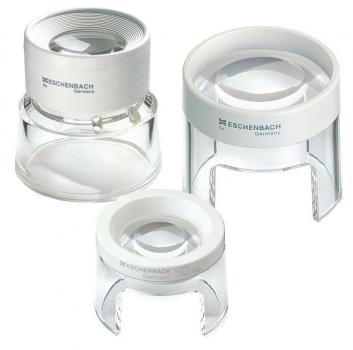

Stand magnifier aspheric/aplanatic 6x/8x/10x
Stand magnifier aspheric 6x magnification
Magnification: 6x / Ø: 50 mm / Lens shape: aspheric
Stand magnifier aplanatic 8x magnification
Magnification: 8x / Ø: 25 mm / Lens shape: aplanatic
Stand magnifier aspheric 10x magnification
Magnification: 10x / Ø: 35 mm / Lens shape: aspheric

3 Products
Product No.: ES-1153
from 38.55 CHF
excl. 8.1% tax
to the product family
powerlux illuminated magnifier 3.5x/5x/7x
powerlux illuminated magnifier 3.5x magnification 8000K
Magnification: 3.5x / Diopters: 14 / Light color: 8.000 K
powerlux illuminated magnifier 3.5x magnification 3000K
Magnification: 3.5x / Diopters: 14 / Light color: 3.000 K
powerlux illuminated magnifier 5x magnification 8000K
Magnification: 5x / Diopters: 20 / Light color: 8.000 K
powerlux illuminated magnifier 5x magnification 3000K
Magnification: 5x / Diopters: 20 / Light color: 3.000 K
powerlux illuminated magnifier 7x magnification 8000K
Magnification: 7x / Diopters: 28 / Light color: 8.000 K
powerlux illuminated magnifier 7x magnification 3000K
Magnification: 7x / Diopters: 28 / Light color: 3.000 K

6 Products
Product No.: ES-158628
from 134.35 CHF
excl. 8.1% tax
to the product family

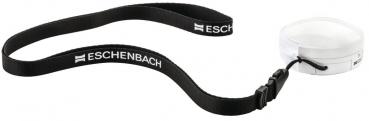

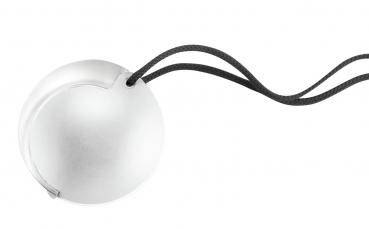

The image displays a round, flat object in soft, light colors. It has a slightly curved surface and a small indentation on the side. It might be a lid or a cover.
Preview: Image
Preview: Image
Preview: The image displays a round, flat object in soft, light colors. It has a slightly curved surface and a small indentation on the side. It might be a lid or a cover.

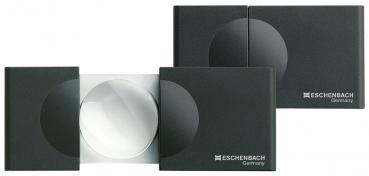

Mobilent folding magnifier, aspheric, 4x/7x/10x
Mobilent folding magnifier 4x magnification
Magnification: 4x / Ø: 35 mm / Diopters: 16
Mobilent folding magnifier 7x magnification
Magnification: 7x / Ø: 35 mm / Diopters: 28
Mobilent folding magnifier 10x magnification
Magnification: 10x / Ø: 35 mm / Diopters: 38

3 Products
Product No.: ES-1710910
from 30.15 CHF
excl. 8.1% tax
to the product family
This is a special pair of glasses with transparent lenses and a black temple. It has an ergonomic shape and should support vision.
maxDetail magnifying glasses
maxDetail magnifying glasses 1624511 Eschenbach
Field of view 13 / 40 cm, working distance 40 cm
Enlargement 2x / temples: black / incl. case
Diopter compensation +/- 3 dpt. right/left
(independently adjustable)

Product No.: ES-1624511
127.35 CHF
excl. 8.1% tax
Show product
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image

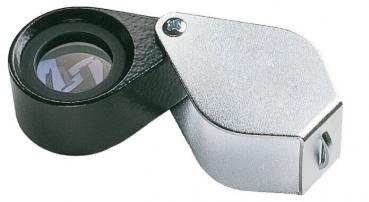

Precision folding magnifier brass, 6x/8x/10x/12x/20x
Precision folding magnifier 6-fold magnification
Magnification: 6x / Ø: 21 mm / Lens shape: aplanatic
Precision folding magnifier 8-fold magnification
Magnification: 8x / Ø: 21 mm / Lens shape: aplanatic
Precision folding magnifier 10-fold magnification
Magnification: 10x / Ø: 21 mm / Lens shape: aplanatic
Precision folding magnifier 10-fold magnification
Magnification: 4x/6x / Ø: 27 mm / Lens shape: biconvexe
Precision folding magnifier 10-fold magnification
Magnification: 10x / Ø: 15 mm / Lens shape: achromatic
Precision folding magnifier 12-fold magnification
Magnification: 12x / Ø: 15 mm / Lens shape: aplanatic
Precision folding magnifier 20-fold magnification
Magnification: 20x / Ø: 17 mm / Lens shape: achromatic

7 Products
Product No.: ES-117612
from 69.55 CHF
excl. 8.1% tax
to the product family
Preview: Image
Preview: Image

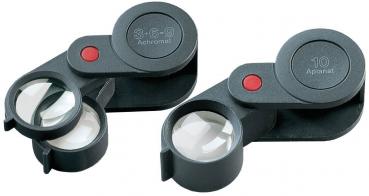

Precision folding magnifier plastic 9x/10x
Precision folding magnifier plastic 9-fold magnification
Magnification: 3x/6x / Lens shape: achromatic
Precision folding magnifier plastic 10-fold magnification
Magnification: 10x / Lens shape: aplanatic

2 Products
Product No.: ES-118210
from 69.55 CHF
excl. 8.1% tax
to the product family
1 to 16 (from a total of 25)
