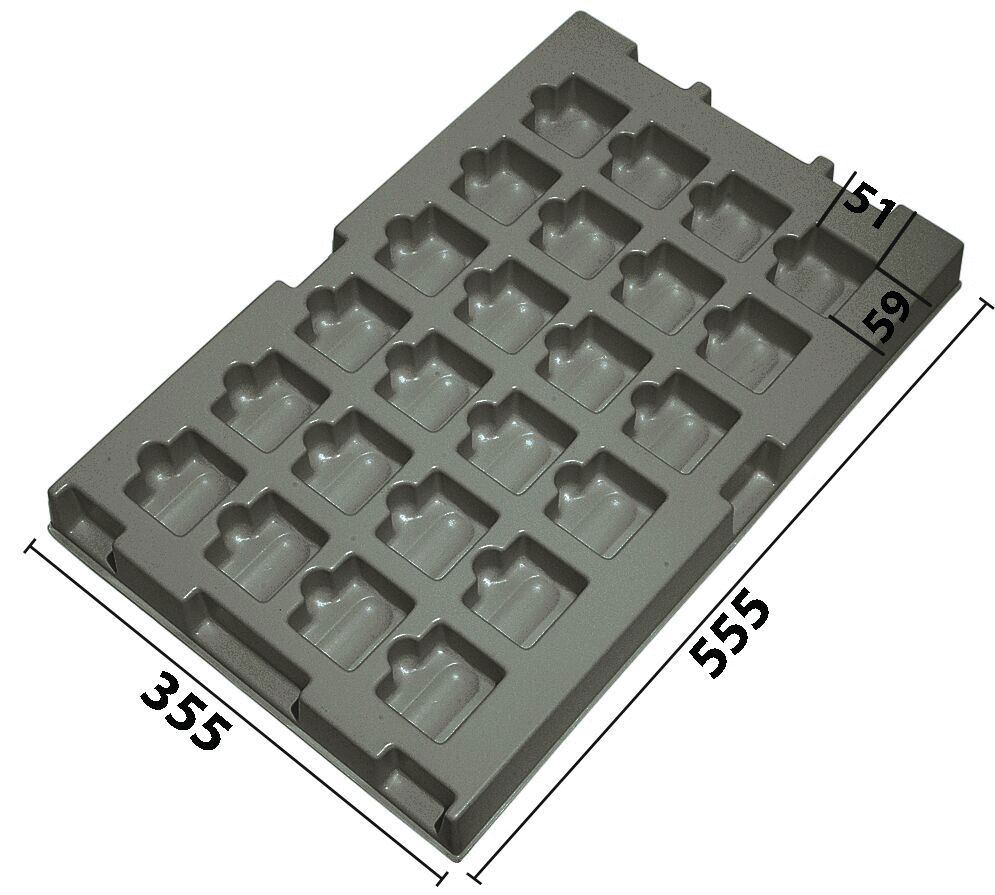

The image shows a gray plastic plate with several indentations where small objects can be placed. The plate measures 355 mm x 555 mm and is 51 mm high.
Vacuum-formed insert T-235 555 x 355 x 47 mm, 24 compartments ESD
(Product No.: 032.T-235)
The image shows a gray plastic plate with several indentations where small objects can be placed. The plate measures 355 mm x 555 mm and is 51 mm high.
Notice / Inquire

Vacuum-formed insert T-235 555 x 355 x 47 mm, 24 compartments ESD

dpvlink:
18906
Length :
555 mm
Width :
355 mm
Height :
47 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
10 PCE
24.10 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-235 555 x 355 x 47 mm, 24 compartments ESD

The ESD thermoformed insert T-235 from Licefa is specifically designed for the protection and storage of sensitive electronic components. With dimensions of 555 x 355 x 47 mm and 24 compartments, each measuring 59 x 51 x 34 mm, this insert offers optimal organization and security. The insert is made from electrically conductive plastic that complies with the standards DIN EN 61340-5-1, and ensures a surface resistance between 10^3 and 10^5 Ohm.
The thermoformed insert is also suitable for containers sized 600 x 400 mm and features a reversible stacking and a grip indentation, which simplifies handling. This makes it an ideal choice for use in storage and transport containers to secure the integrity of your electronic components.
Length
Length
555 mm
Width
Width
355 mm
Height
Height
47 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
24
Dimensions cavities
Dimensions cavities
59x51x34 mm
Suitable for containers
Suitable for containers
600x400 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 317
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Vacuum-formed inserts T-235

Article image
Article description
Length
Width
Height
Price
Compare
032.T-235 - Vacuum-formed insert T-235 555 x 355 x 47 mm, 24 compartments ESD
032.T-235
Vacuum-formed insert T-235 555 x 355 x 47 mm, 24 compartments ESD
555 mm
355 mm
47 mm
24.10 CHF
