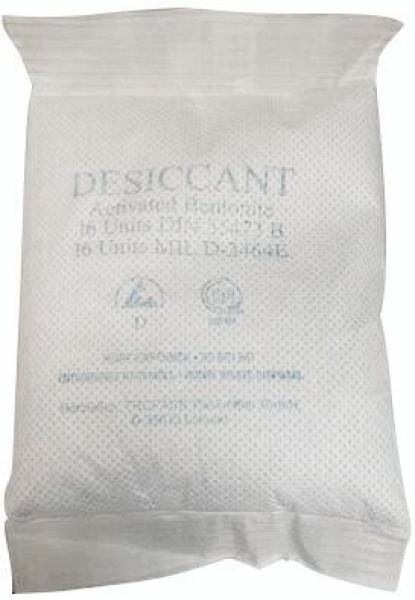

The image shows a small, rectangular pouch made of white material. It has the word "DESICCANT" written on it in blue letters, along with additional information. It is air-permeable and lightweight.
Desiccant VA-ESD bags 2/1
(Product No.: 3775.VA-ESD.2/1-240)

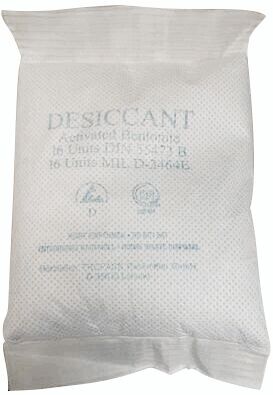

The image shows a small, rectangular pouch made of white material. It has the word "DESICCANT" written on it in blue letters, along with additional information. It is air-permeable and lightweight.
Notice / Inquire

Desiccant VA-ESD bags 2/1

dpvlink:
22932
Weight :
72 g
Width :
70 mm
Length :
150 mm
Properties:
Further product information
Calculate Desiccants needed according DIN 55474
configure_now
Calculate Desiccants needed for bags according MIL-P-116
configure_now


Minimum order:
6 BX
chevron-down
184.55 CHF

excl. 8.1% tax

6 BX
Compare Compare
Notice / Inquire
Product Info

Desiccant VA-ESD bags 2/1

The product Desiccant VA-ESD Bag 2/1 is characterized by its high efficiency in moisture control. Weighing 72 grams per bag and measuring 70 mm in width and 150 mm in length, this desiccant is ideal for use in small packaging, especially when the relative humidity exceeds 50%. The bags are completely dustproof according to DIN 55473 and meet the ESD standard DIN EN 61340-5-1, making them essential for the protection of highly sensitive products.
The desiccant bags are made of non-woven fabric and are treated to be antistatic, which increases safety when handling electronically sensitive components. Each carton contains 240 units, with only full cartons being delivered. The product's shelf life is three years with proper storage, allowing for long-term use.
This product is a reliable choice for technical buyers who need effective protection against moisture in ESD-sensitive environments.
Weight
Weight
72 g
Width
Width
70 mm
Length
Length
150 mm
TME
TME
2/1
Conductivity
Conductivity
conductive
Shelf life
Shelf life
3 years , when stored properly
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 280
Complete Catalog 2023 - 2024
EPApack® ESD packaging solutions
Configurators:
Calculate Desiccants needed according DIN 55474
Configurators:
Calculate Desiccants needed for bags according MIL-P-116

Product Family

Desiccant plastic bag ESD

The desiccant in the VA-ESD plastic bag offers reliable protection in the smallest packaging thanks to its particularly high absorption capacity at high relative humidity (over 50% RH). All bags comply with DIN 55473 and the ESD standard DIN EN 61340-5-1, which guarantees dust-tight and antistatic properties. This makes them ideal for highly sensitive products. When stored properly, the shelf life is 3 years.

The desiccants in this product family differ in size, weight and quantity per packaging unit.


Article image
Article description
Weight
Width
Length
Price
Compare
3775.VA-ESD.1/1-400 - Desiccant VA-ESD bags 1/1
3775.VA-ESD.1/1-400
Desiccant VA-ESD bags 1/1
36 g
70 mm
140 mm
213.05 CHF
3775.VA-ESD.1/3-800 - Desiccant VA-ESD bags 1/3
3775.VA-ESD.1/3-800
Desiccant VA-ESD bags 1/3
12 g
70 mm
100 mm
351.15 CHF
3775.VA-ESD.2/1-240 - Desiccant VA-ESD bags 2/1
3775.VA-ESD.2/1-240
Desiccant VA-ESD bags 2/1
72 g
70 mm
150 mm
184.55 CHF
