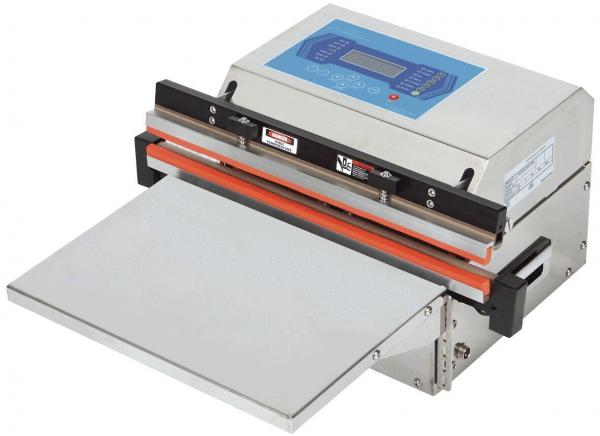

The image shows a sealing machine. It has a large, flat working surface and an upper flap with controls. The machine appears sturdy and is designed for sealing materials.

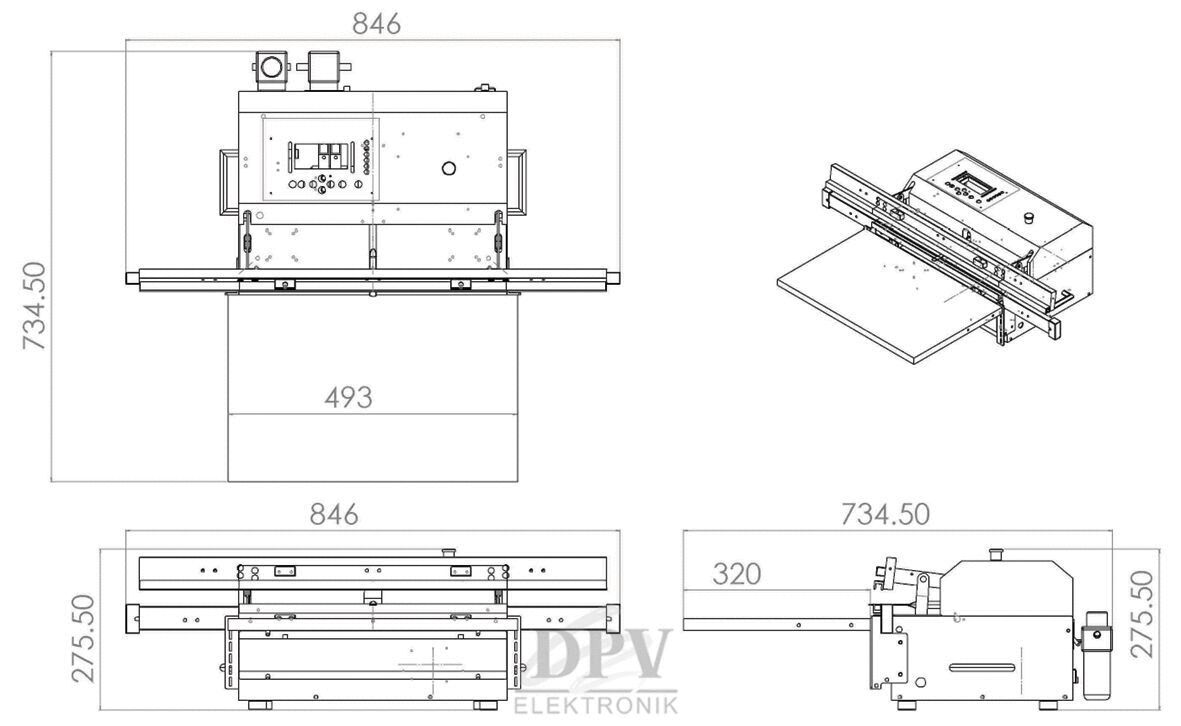

The image displays technical drawings of a device from various perspectives: front view, top view, and side view, with specific dimensions given in millimeters.
Preview: The image shows a sealing machine. It has a large, flat working surface and an upper flap with controls. The machine appears sturdy and is designed for sealing materials.
Preview: The image displays technical drawings of a device from various perspectives: front view, top view, and side view, with specific dimensions given in millimeters.
Vacuum packaging machine type VS800E-D
(Product No.: 3420.800.E)

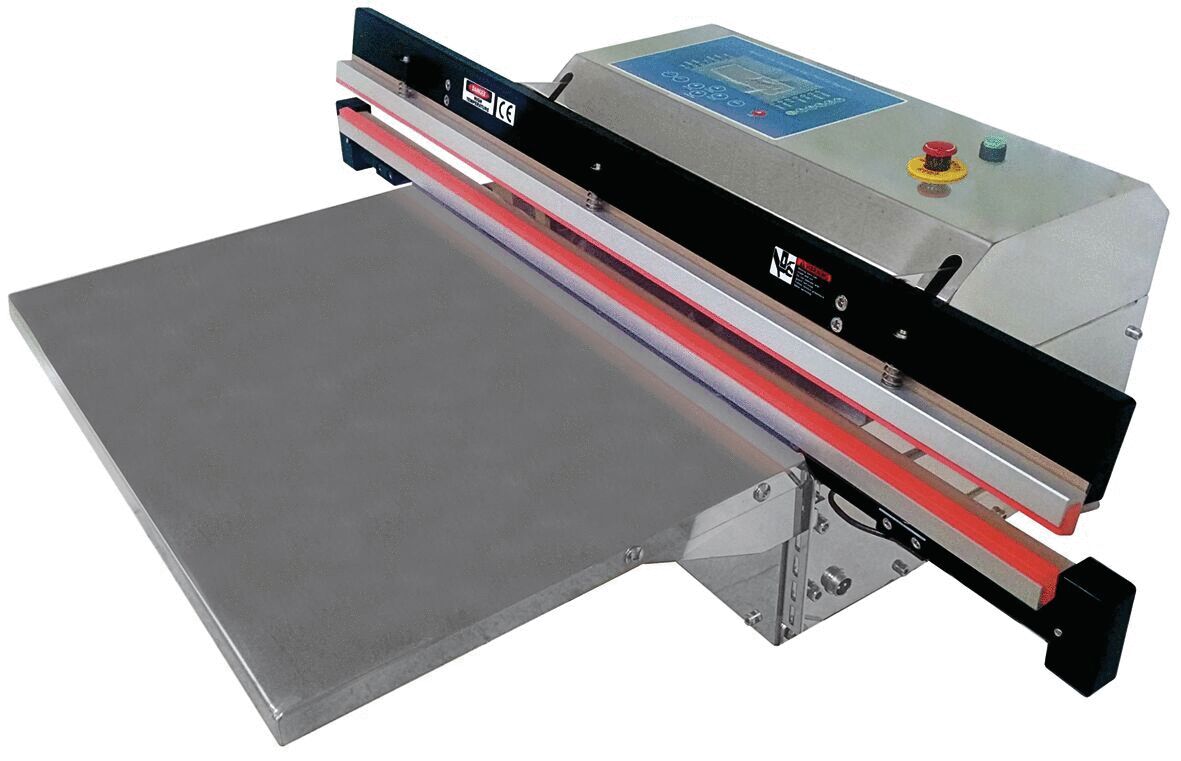

The image shows a sealing machine. It has a large, flat working surface and an upper flap with controls. The machine appears sturdy and is designed for sealing materials.
The image displays technical drawings of a device from various perspectives: front view, top view, and side view, with specific dimensions given in millimeters.
Mobile Preview: The image shows a sealing machine. It has a large, flat working surface and an upper flap with controls. The machine appears sturdy and is designed for sealing materials.
Mobile Preview: The image displays technical drawings of a device from various perspectives: front view, top view, and side view, with specific dimensions given in millimeters.
Notice / Inquire

Vacuum packaging machine type VS800E-D

dpvlink:
21666
Further product information

5,378.10 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum packaging machine type VS800E-D

The vacuum packaging machine model VS800E-D combines efficiency and advanced technology in a compact tabletop unit made of high-quality stainless steel. This model features an ejector vacuum pump and offers fast packaging with reduced gas consumption thanks to the timed back-gassing device. The machine allows for sensor- or time-controlled vacuum generation and features a digital LCD vacuum display. With five programmable settings, it adapts flexibly to various requirements.
The technical specifications include a maximum bag width of 790 mm and a sealing bar length of 800 mm. The dimensions of the machine are 735 x 846 x 276 mm, and it weighs 39 kg. The maximum power consumption varies between 2.2 and 3.4 kW, while the open vacuum flow rate is 185 l/min. The compressed air supply requires about 6.5 bar. With features like double sealing on the top and bottom and the ability to work without a limit on bag length, this vacuum packaging machine offers a versatile solution for professional packaging needs.
Compressed air supply
Compressed air supply
6.5 bar
Sealing bar length
Sealing bar length
800 mm
Height
Height
276 mm
Length
Length
735 mm
Max. bag width
Max. bag width
790 mm
Width
Width
846 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 285
Complete Catalog 2023 - 2024

Product Family

Vacuum packaging machines without chamber

The vacuum packaging machines in this series are available as compact table-top units with re-gassing device and high-quality stainless steel housing. The machines offer the following advantages:

  • fast process
  • less gas consumption
  • no limit to the bag length


During each process, only the relevant bag is gas flushed, which means that the process is completed more quickly with less gas consumption than with vacuum packaging machines with a chamber. This makes the machines easy to use and well suited for small batches.

Technical data:

 Device VS450M-D VS450E-D VS600E-D VS800E-D
 Weight 28 kg 30 kg 32 kg 39 kg
Dimensions 641 x 380 x
 269 mm		 354 x 506 x
 263 mm		 700 x 460 x
 260 mm		 735 x 846 x
 276 mm
 Sealing bar length 450 mm 450 mm 600 mm 800 mm
 Sealing bar width 10 mm 10 mm 10 mm 5 mm
 max. bag width 400 mm 400 mm 590 mm 790 mm
 Vacuum pump Vacuum pump Ejector
 vacuum pump		Ejector
 vacuum pump		 Ejector
 vacuum pump
 Open vacuum flow 25 l/min 124 l/min124 l/min 185 l/min
 Air pressure movement motorized approx. 6.5 bar approx. 6.5 bar approx. 6.5 bar
 Max. power consumption approx. 2.2 kW approx. 2.2 kWapprox. 2.2 kWapprox. 2.2 - 3.4 kW

Features:

  • double sealing (up/down)
  • vacuum pump
  • gas flushing time-controlled
  • sensor- or time-controlled vacuum generation
  • digital LCD vacuum display
  • 5 programs can be saved

Article image
Article description
Sealing bar length
Voltage
Height
Length
Max. bag width
Width
Compressed air supply
Price
Compare
3420.450.M - Vacuum packaging machine type VS450E-D
3420.450.M
Vacuum packaging machine type VS450E-D
450 mm
230 V
250 mm
660 mm
400 mm
380 mm

4,232.80 CHF
3420.450.E - Vacuum packaging machine type VS450E-D
3420.450.E
Vacuum packaging machine type VS450E-D
450 mm
230 V
250 mm
660 mm
400 mm
510 mm
6.5 bar
4,550.00 CHF
3420.600.E - Vacuum packaging machine type VS600E-D
3420.600.E
Vacuum packaging machine type VS600E-D
600 mm
230 V
260 mm
700 mm
590 mm
460 mm
6.5 bar
4,940.00 CHF
3420.800.E - Vacuum packaging machine type VS800E-D
3420.800.E
Vacuum packaging machine type VS800E-D
800 mm

276 mm
735 mm
790 mm
846 mm
6.5 bar
5,378.10 CHF
