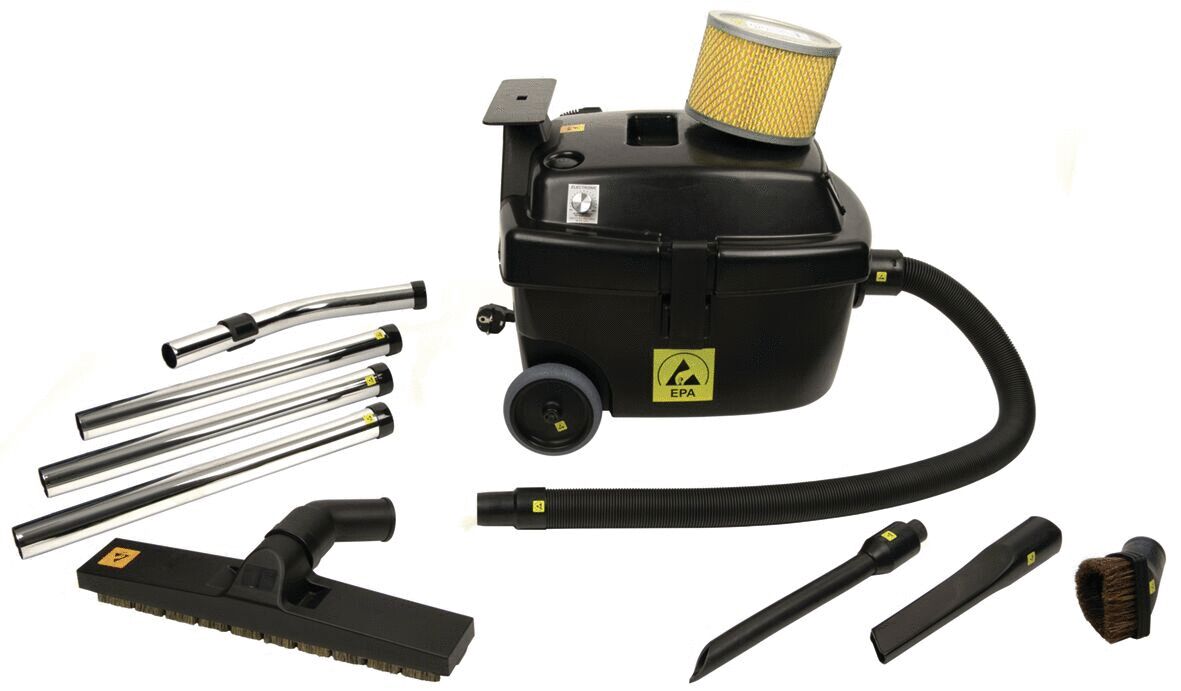

The image shows a black vacuum cleaner with a round casing and a yellow filter on top. Several tubes and nozzles are arranged next to it, which are used for cleaning.
ESD vacuum cleaner type 888-ESD-S-E GS, adjustable
(Product No.: 7380.EPA-VAC.SE)
The image shows a black vacuum cleaner with a round casing and a yellow filter on top. Several tubes and nozzles are arranged next to it, which are used for cleaning.
Notice / Inquire

ESD vacuum cleaner type 888-ESD-S-E GS, adjustable

dpvlink:
19033
Properties:
Further product information

930.80 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD vacuum cleaner type 888-ESD-S-E GS, adjustable

The ESD vacuum cleaner model 888-ESD-S-E GS is an advanced cleaning device, specifically designed for use in ESD protection zones. This model is made from electrostatically conductive polypropylene and features the ESD warning symbol, making it ideal for use in sensitive environments. With a power of 1100 watts at a voltage of 220-240 V and a maximum suction power of 210 mbar, this vacuum cleaner combines efficiency with strong cleaning performance.
The vacuum cleaner is also suitable for cleanroom class ISO 7 according to DIN ISO 14644-1 and dust class M, ensuring compliance with strict cleanliness standards. The noise level remains pleasantly low at 62 dB. The device is very manageable with a weight of about 4.6 kg and a capacity of approximately 12 liters. The dimensions are 390 x 340 x 240 mm.
The package includes a 10 m long connection cable, a 3 m extendable flexible suction hose, a 1.3 m long suction tube, and four different ESD-appropriate attachments. Additionally, a HEPA H14 motor filter and a HEPA H14 AirExit filter are included, contributing to the high filtration performance of the device.
Noise level
Noise level
62 dB
Power
Power
1100 W
Voltage
Voltage
220 - 240 V
Height
Height
240 mm
Length
Length
390 mm
Width
Width
340 mm
Material
Material
polypropylene
Volume
Volume
12 l
Weight
Weight
4.6 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

ESD Brush set 6-piece MICRO complete
Brush set Micro complete PHU-04 ESD
with 3 push-on brushes hard/medium/soft,
and push-on nozzle
dpvlink
2044

39.50 CHF
Show product
The image shows a long, black hose with a wide, round end. The hose has a slight bend and might belong to a tool or a machine.
ESD Flexible rubber nozzle, 300 mm long,...
Rubber nozzle flexible, long PHU-05 ESD
300 mm length, diameter 14 mm
dpvlink
2044

23.00 CHF
Show product
The image displays a narrow, curved longitudinal handle with an attached brush at the end. The handle is black and features a yellow symbol indicating its use.
ESD Flexible rubber nozzle, 300 mm long,...
Rubber nozzle flexible, long PHU-07 ESD
340 mm length, diameter 14 mm
with brush diameter 23 mm, bristles -hard-
dpvlink
2044

31.20 CHF
Show product
The image shows a black tool with a long, straight handle that is slightly curved at the end. At the tip, there is a brush with finer bristles.
ESD Flexible rubber nozzle, 300 mm long,...
Rubber nozzle flexible, long PHU-08 ESD
340 mm length, diameter 14 mm
with brush diameter 23 mm, bristles -medium-
dpvlink
2044

31.20 CHF
Show product
The image shows a long, slender black brush attachment with a curved end. The brush head is white and has fine bristles. At the top end, there is a yellow logo.
ESD Rubber nozzle flexible, length 340 mm,...
Rubber nozzle flexible, long PHU-09 ESD
340 mm length, diameter 14 mm
with brush diameter 23 mm, bristles -soft-
dpvlink
2044

31.20 CHF
Show product
The image shows two black brush attachments. Both have a sturdy handle. One has soft bristles, the other is wide and has a rounded shape with rubber edges.
ESD Attachable brush hard bristles
Push-on brush, PHU-11 ESD -hard-
Bristles -hard-
dpvlink
2044

23.60 CHF
Show product
The image shows two brushes with black handles. One brush has a wide, flat head, while the other is wedge-shaped and narrow. Both have soft bristles.
ESD Attachable brush medium-hard bristles...
Push-on brush, PHU-12 ESD -medium-
Bristle hardness -medium-
dpvlink
2044

23.60 CHF
Show product
The image shows a black, elongated object with a wide, oval opening at one end. The object has a smooth surface and a yellow logo or symbol on the side.
Flat ESD crevice nozzle
Crevice nozzle flat
dpvlink
2044

16.85 CHF
Show product
The image displays a flexible, slotted hose that coils in gentle waves. It features different connectors on each end: one gray and one black with yellow markings.
ESD Hose extension length 85-350 cm
Hose extension PHU-18 ESD
with connection element, length: 85-350 cm
dpvlink
2044

86.65 CHF
Show product
The image shows a long tool with a thin, round end and a wider, flat head. It is black and made of metal or plastic, possibly an insert for a specific type of device.
ESD Rubber nozzle length 430 mm Ø 16 mm
Rubber nozzle soft, extra long PHU-09 ESD
430 mm length, diameter 16 mm
dpvlink
2044

37.55 CHF
Show product
The image displays a metallic tool attachment with a wide, flat base and a cylindrical end. The surface is shiny and reflective, featuring a warning sticker.
ESD Floor nozzle made of aluminium
Floor/upholstery nozzle of aluminum PHU-23 ESD
Width 145 mm
dpvlink
2044

36.00 CHF
Show product
The image shows three air filters. The smallest is cylindrical with a gray rim, the middle one is also cylindrical, larger, and has yellow pleats. Next to it lies a flat, white filter.
Cleanroom filter kit ISO 7
Cleanroom Filter Kit ISO 7, which includes:
1 x MT-851 + 1 x MT-853 + 1 x MT-857
(for cleanroom class ISO 7 according to DIN ISO
14644-1)
suitable for ESD vacuum cleaner (art. No 7380.EPA-VAC.S and 7380.EPA-VAC.SE)
dpvlink
19130

214.45 CHF
Show product

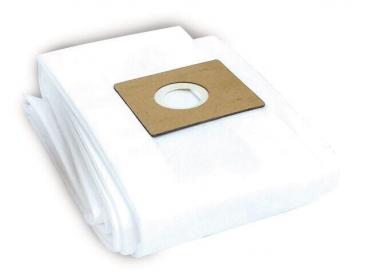

In the picture, there is a stack of white, clean fabric that is rolled up. On top of it is a square piece of cardboard with a round cutout in the center.
Filter bag meltblown / special
Filter bag MT-851, meltblown / special
Plastic filter bag -spécial- / dust class M
Pu = 10 pieces, bag volume 12 liters
(suitable for EPA-VAC. S and EPA VAC.SE)
++ is required for clean room class ISO 4 / ISO 7 according to DIN ISO 14644-1 ++
dpvlink
19130

54.80 CHF
Show product

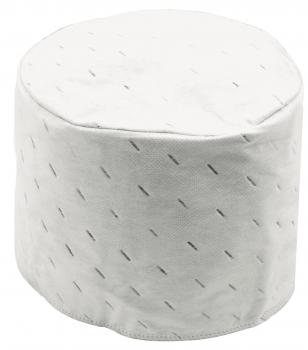

The image shows a round, white pouf with a soft surface. The top is flat and the sides are slightly curved. Small, diagonal lines adorn the surface, creating a textured pattern.
Activated carbon cover for HEPA motor filter...
Activated carbon cover MT-852 for HEPA
motor filter, standard
(suitable for 7380.EPA-VAC. S and SE)
dpvlink
19130

39.45 CHF
Show product

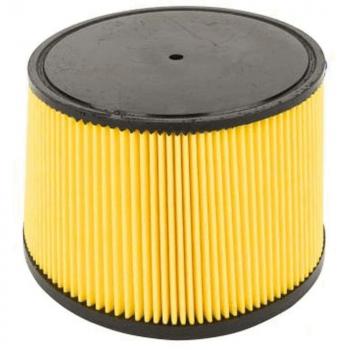

The image shows a cylindrical air filter with a black top and yellow, fin-like structures. The surface is ribbed and has a round base layer.
Motor filter HEPA H14
MT-853 motor filter HEPA H14
(suitable for article 7380.EPA-VAC. S and SE)


++ is required for clean room class ISO 4 and ISO 7 according to DIN ISO 14644-1 ++
dpvlink
19130

96.55 CHF
Show product

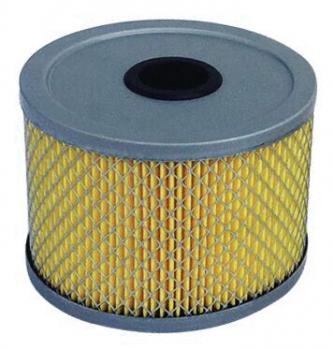

The image shows a cylindrical air filter with a round, gray top and yellow, grid-like material on the side. There is a hole in the center for mounting.
Air filter "Air Exit" HEPA H14
Air filter HEPA H14 "air exit"
(suitable for article 7380.EPA-VAC. S and SE)


++ is required for clean room class ISO 7 according to DIN ISO 14644-1 ++
dpvlink
19130

77.15 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 167
Complete Catalog 2023 - 2024

Product Family

ESD Vacuum cleaner type 888

Conductive vacuum cleaner for the use in ESD protective zones, housing made of volume conductive polypropylene, ESD logo

In compliance with ESD standard DIN EN 61340-5-1

Scope of delivery:
vacuum cleaner incl. 10 m cable, flexible suction hose (extendable to 3 m), 1.3 m suction pipe, 4 different attachments (see figure)

Technical data:
Power:1100 Watt (220 - 240 V)
Max. suction power:max. 210 mbar
Noise level:62 dB (A)
Weight/capacity:4.60 kg / approx. 12 liter
Dimensions:390 x 340 x 240 mm
ISO class:7 (by filter kits)

Article image
Article description
ESD
Noise level
Power
Voltage
Height
Length
Width
Material
Volume
Weight
Price
Compare
7380.EPA-VAC.S - ESD vacuum cleaner type 888-ESD-S GS
7380.EPA-VAC.S
ESD vacuum cleaner type 888-ESD-S GS
62 dB
1100 W
220 - 240 V
240 mm
390 mm
340 mm
polypropylene
12 l
4.6 kg
825.50 CHF
7380.EPA-VAC.SE - ESD vacuum cleaner type 888-ESD-S-E GS, adjustable
7380.EPA-VAC.SE
ESD vacuum cleaner type 888-ESD-S-E GS, adjustable
62 dB
1100 W
220 - 240 V
240 mm
390 mm
340 mm
polypropylene
12 l
4.6 kg
930.80 CHF
