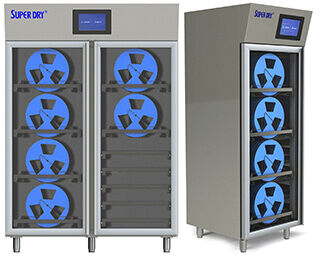

Insulated dry cabinet XSDB-1412-55
(Product No.: TO-XSDB-1412-55)
Mobile Preview: Image
Mobile Preview: Image

Insulated dry cabinet XSDB-1412-55

dpvlink:
28489
Shelves:
10
Volume:
1390 l
Width :
1432 mm
Height :
1930 - 2110 mm
Depth :
808 mm
Further product information


Compare Compare
Notice / Inquire
Product Info

Insulated dry cabinet XSDB-1412-55

The isolated dry storage cabinet XSDB-1412-55 from Totech SuperDry offers an advanced solution for drying moisture-sensitive components. This unit is specifically designed to ensure a continuously controlled humidity level of less than 0.5% RH. With its compact external dimensions of 1432x1930/2110x808 mm and an effective interior space of 1315 x 1504 x 600 mm, the cabinet provides a volume of 1190 liters and is equipped with ten shelves that allow for flexible storage.
The insulation and the painted housing protect the contents from external influences, while the integrated heater allows for stepless regulation up to 40°C. The technical equipment includes a hygrometer, a humidity display with limit value monitoring, and an integrated sensor that offers a measurement accuracy of +/- 0.8% RH. A powerful radial fan ensures forced air circulation, and the drying unit is maintenance-free. In addition, the cabinet features a digital control panel, the Totech Viewer software, and an integrated data logger with an Ethernet interface.
The cabinet complies with the ESD standard DIN EN 61340-5-1 and operates efficiently with an energy consumption of 230 W/h. This product is an ideal choice for technical environments that require the highest precision and reliability.
Shelves
Shelves
10
Volume
Volume
1390 l
Width
Width
1432 mm
Height
Height
1930 - 2110 mm
Depth
Depth
808 mm
Internal depth
685 mm
Internal height
1504 mm
Internal width
Internal width
1315 mm
Power [W]
Power [W]
230 W
Temperature resistance
Temperature resistance
60 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Weight
Weight
230 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

XSDB series - Quick-drying storage cabinets

Efficient drying at <1 % RH and 40 °C.

The XSDB series was developed to meet the highest requirements for handling moisture-sensitive components in accordance with IPC/JEDEC J-STD-033 and 1601. It combines extremely low humidity (<0.5% RH) with a constant temperature of 40 °C to safely restore the floor life time - an energy-efficient alternative to conventional oven baking, with significantly less risk and effort.

The drying cabinets are equipped with the powerful U-5000 drying unit and guarantee an average humidity of <1 % RH - even with regular door openings. Thanks to short regeneration times, an uninterrupted drying process is possible.

The powder-coated housings are made of double-walled steel with 60 mm insulation, which ensures high energy efficiency and stable temperature control. Pull-out shelves and an integrated radial fan ensure even air distribution and optimum drying performance.

The XSDB series is ideal for the precise drying and resetting of components, spools, PCBs, 3D filaments and other moisture-sensitive materials.

Highlights of the XSDB series

  • Insulated housing
  • Door alarm
  • Lockable doors
  • Humidity display with limit value monitoring (RH; °C)
  • Hygrometer
  • Forced air circulation
  • 6 min recovery time after door opening to below 0.5% RH
  • Integrated sensor with a measurement accuracy of +/- 0.8% RH
  • Maintenance-free drying unit with integrated fan
  • Powerful centrifugal fan
  • Heating 40 °C
  • Regulated relative humidity below 0.5%
  • Dynamic regeneration
  • Digital control panel
  • Totech Viewer software
  • Integrated data logger
  • Ethernet interface

Article image
Article description
ESD
Shelves
Volume
Width
Height
Depth
Price
Compare
TO-XSDB-701-55 - Insulated dry cabinet XSDB-1412-55
TO-XSDB-701-55
Insulated dry cabinet XSDB-1412-55
5
490 l
700 mm
1930 - 2110 mm
808 mm
-
TO-XSDB-1412-55 - Insulated dry cabinet XSDB-1412-55
TO-XSDB-1412-55
Insulated dry cabinet XSDB-1412-55
10
1390 l
1432 mm
1930 - 2110 mm
808 mm
-
