LED magnifying lamp MAGNIFYING incl. HD camera 1080p

(Product No.: I-LE-HDWWE5D)

ESD Magnifying lamp HDWWE5D [EN]

ESD Magnifying lamp UVWE5D [EN]

ESD Magnifying lamp WWE5D [EN]

(Product No.: I-LE-HDWWE5D)

LED magnifying lamp MAGNIFYING incl. HD camera 1080p

Name: LED magnifying lamp MAGNIFYING incl. HD camera 1080p
SKU: I-LE-HDWWE5D
Price: 601.70 CHF
Availability: InStock

ArticleNo: I-LE-HDWWE5D

dpvlink:

27449

Diopters:

Illuminant:

LED

Magnification:

2.25x

Color temperature:

3.500 - 6,500 K

Swivel arm/frame:

914 mm

Properties:

Further product information

601.70 CHF
per PCE

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

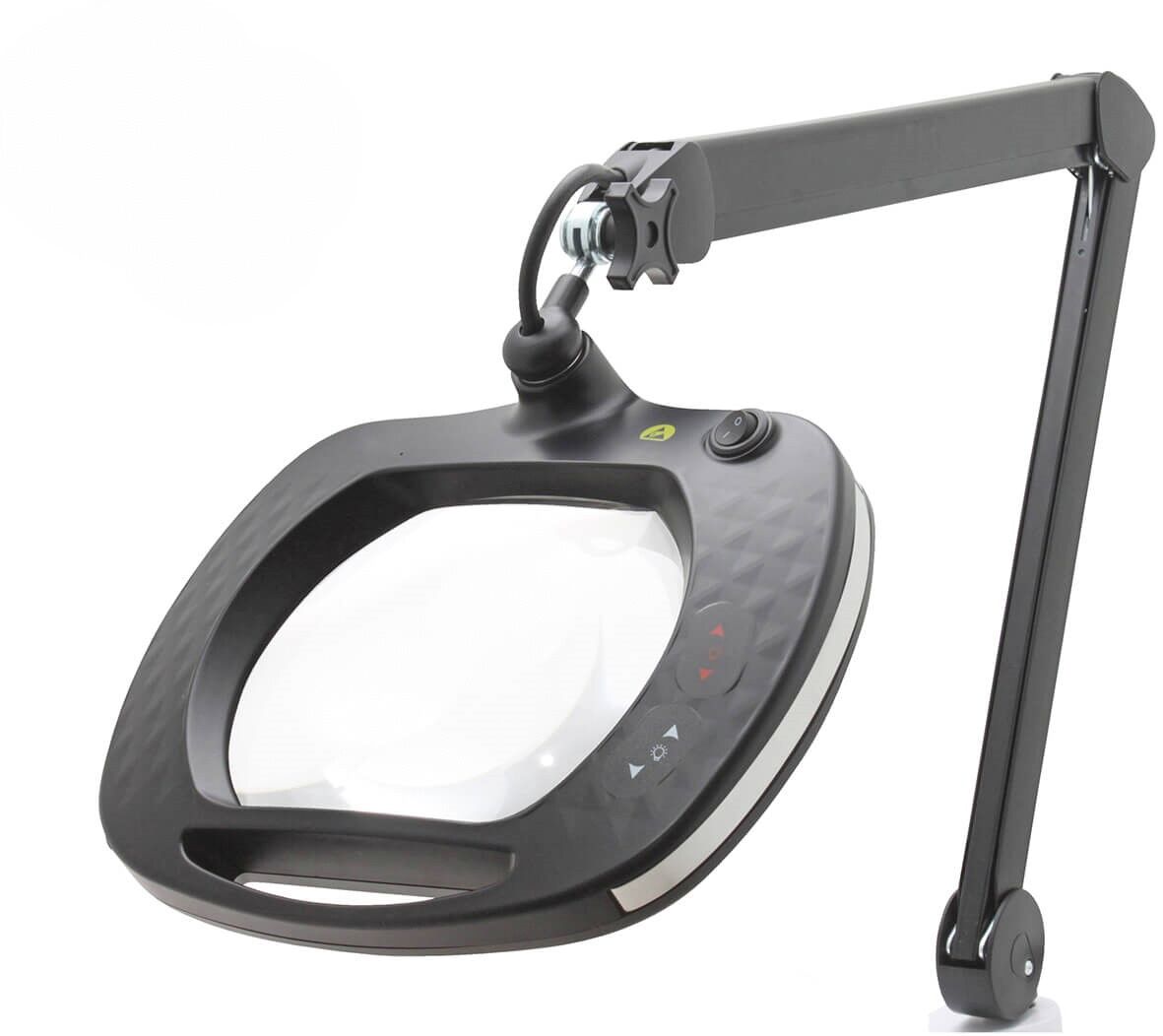

LED magnifying lamp MAGNIFYING incl. HD camera 1080p

The LED magnifying lamp MAGNIFYING by Ideal-tek, model LE-HDWWE5D, is an advanced combination of a high-quality magnification lens and an HD camera with 1080p resolution, which allows for direct image display on HDMI monitors while simultaneously recording onto a 16 GB microSD card. This model features a USB-C output for PC connections and supports a frame rate of 30 FPS.

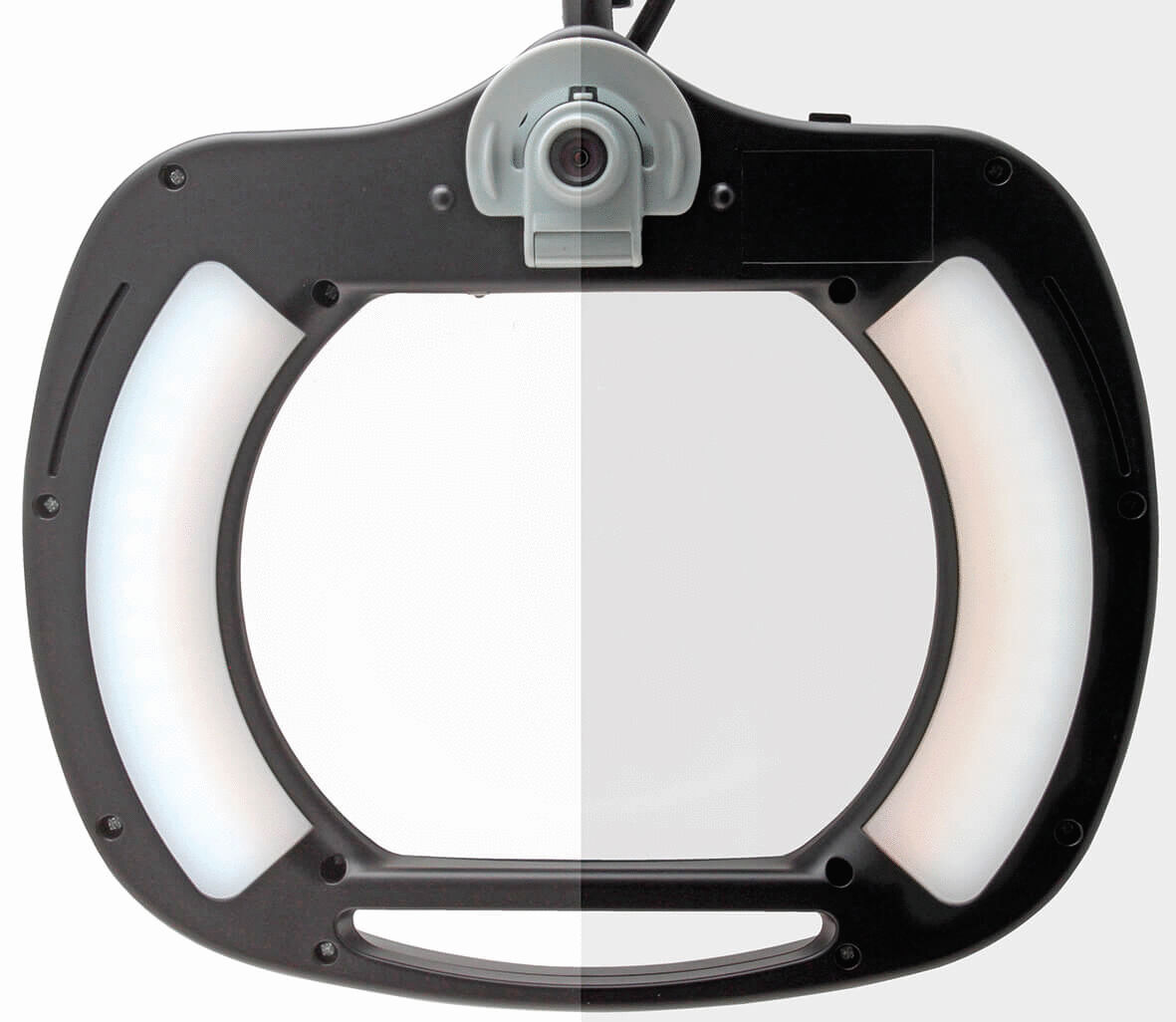

The unit includes a 5-diopter glass lens measuring 7.5 inches x 6.2 inches, providing 2.25x magnification. The ESD-safe coating protects sensitive components from electrostatic discharge, while the fully covered, spring-balanced arm offers a maximum reach of 914 mm. The 60 LEDs with an adjustable color temperature from 3,500 to 6,500 K ensure an even light distribution.

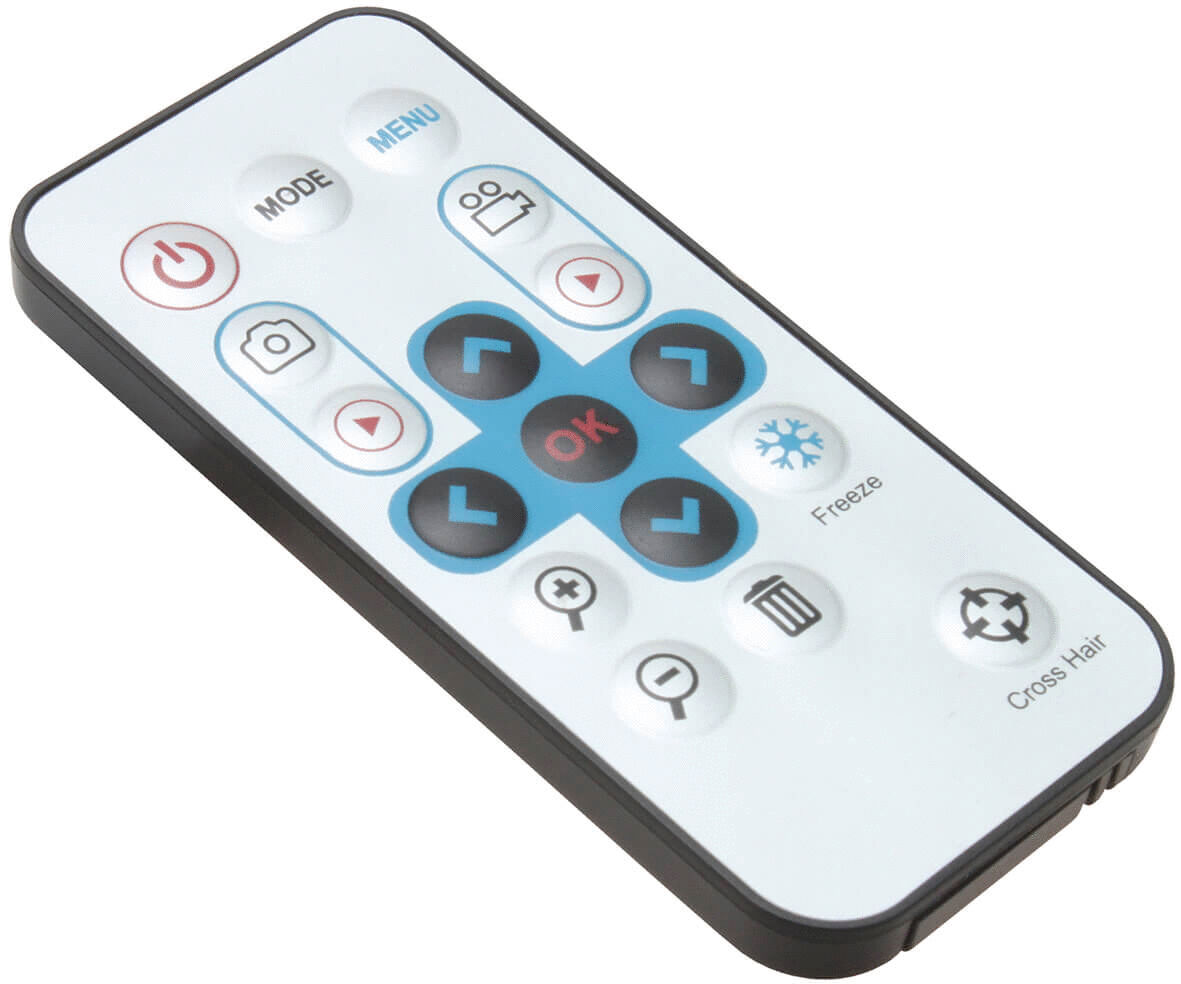

An IR remote control is included for operation, and the plug type F (Schuko) complies with European standards. The device operates at a voltage of 230 V and weighs 2350 g. The color of the lamp is black, and it is recommended to clean the ESD-safe coating only with a soft cotton cloth to avoid compromising its protective function.

Details

Diopters Diopters: 5
Illuminant Illuminant: LED
Magnification Magnification: 2.25x
Color temperature Color temperature: 3.500 - 6,500 K
Swivel arm/frame Swivel arm/frame: 914 mm
Color Color: black
Voltage Voltage: 100 - 240 V
Height Height: 40 mm
Length Length: 290 mm
Width Width: 250 mm
Lighting type Lighting type: side illumination
Luminous color Luminous color: cool white/daylight white
Lens Lens: glass lens
Lens dimensions Lens dimensions: 190x 157 mm
ESD ESD: yes
Weight Weight: 3800 g

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

Magnifier lamp LED / UV MAGNIFYING

MAGNIFYING magnifier light from Ideal-Tek

The Ideal-tek LED magnifier lights have an attractive design and an ESD-safe coating. This prevents damage to sensitive components caused by electrostatic discharge. With a 190 x 158 mm lens and 5 diopters, the magnifying lights provide a large and distortion-free field of view.

Magnifier lights reduce eye strain and fatigue and allow the user to improve their efficiency when inspecting down to the smallest detail. The spring-balanced arm with a swivel range of 360 degrees can be adjusted to any position. A cover on the spring arm prevents fingers from being crushed.

with touch-sensitive brightness control
2.25x magnification / 5 diopters

Version with UV

In addition to the standard LEDs, it also offers ultraviolet LEDs. These operate at 365 nm and can be used to examine protective coatings, tiny cracks, dust and other particles on circuit boards, holograms, documents, identification of gemstones or other materials.

48 adjustable LEDs and 30 UV LEDs
with 365 nm

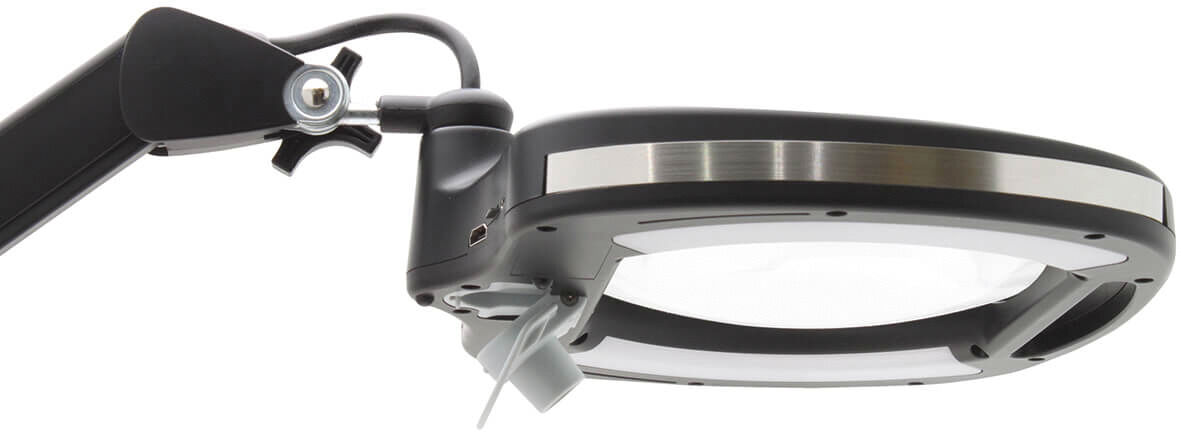

Version with HD camera 1080p

In addition to the standard functions, the version with camera inspection system offers direct image display on an HDMI monitor, as well as image and video recording on a supplied microSD card. Additionally with USB output. Thanks to these functions, team members can observe in real time while the user performs the inspection through the lens.

MicroSD capacity: 16 GB
HMDI and USB-C output
