additional bending wheel for cutting and bending machine TP 6/7
(Product No.: 415.102.400713)
The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
Notice / Inquire

additional bending wheel for cutting and bending machine TP 6/7

dpvlink:
5156
Width :
180 mm
Height :
210 mm
Length :
230 mm
Tape pitch pattern P :
7.62 mm
Further product information

184.90 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

additional bending wheel for cutting and bending machine TP 6/7

The cutting and bending machine TP 6/7 from Olamef is specifically designed for axial components and is distinguished by its high reliability. With a robust construction, this machine enables the cutting and bending of components with connecting wires up to a diameter of 1.3 mm. The machine is particularly efficient due to an additional bending wheel and a fixed pitch of 7.62 mm, which significantly reduces setup times and simplifies the adjustment of various dimensions.
Technically, the machine offers a capacity of about 50,000 components per hour and comes with compact dimensions of 230 mm in length, 180 mm in width, and 210 mm in height. The weight is 5.0 kg, which facilitates transport and handling. This model is ideal for high-production environments where precision and speed are required.
With the product from Olamef, you receive a reliable solution that is designed for durability and efficiency in processing axial components.
Width
Width
180 mm
Height
Height
210 mm
Length
Length
230 mm
Tape pitch pattern P
Tape pitch pattern P
7.62 mm
Components per hour
Components per hour
50,000
Version
Version
fixed grid dimensions
Weight
Weight
5.0 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 515
Complete Catalog 2023 - 2024

Product Family

TP 6/7 fixed pitch

Cutting and bending machine for axial components
The TP 6 cutting and bending machine can be used to cut and bend taped, axial components. The robust design of the machine guarantees a high level of reliability.
Components with connecting wires up to a diameter of 1.3 mm can be processed. A wide range of dimensions can be set quickly and easily.

The machine can be equipped with other bending wheels with a fixed pitch of P = 7.62 mm or 10.16 mm.

Technical data:

Performance:

approx. 50,000 components/hour

Dimensions:

230 x 180 x 210 mm

Weight:

5 kg



TP 6/7 - fixed pitch P = 5.08 mm

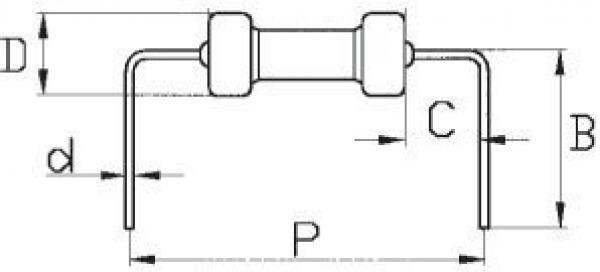

  P B c dD
 Min. mm 5.08 4 0.5 0.40.4
 Max. mm - 10 - 0.64


Article image
Article description
ESD
Width
Height
Length
Tape pitch pattern P
Price
Compare
415.102 - Cutting and bending machine TP 6 / 7 – fixed pitch P = 5.08 mm
415.102
Cutting and bending machine TP 6 / 7 – fixed pitch P = 5.08 mm
180 mm
210 mm
230 mm
5.08 mm
2,081.50 CHF
415.102.400713 - additional bending wheel for cutting and bending machine TP 6/7
415.102.400713
additional bending wheel for cutting and bending machine TP 6/7
180 mm
210 mm
230 mm
7.62 mm
184.90 CHF
415.102.400714 - additional bending wheel for cutting and bending machine TP 6/7
415.102.400714
additional bending wheel for cutting and bending machine TP 6/7
180 mm
210 mm
230 mm
10.16 mm
184.90 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
Cutting and bending machine TP 6 / 7 – fixed...
TP 6 / 7 - cutting and bending machine for
axial components, fixed grid dimensions 5.08 mm
wire thickness 0.4 - 0.6 mm, C = min. 0.5 mm
(Model 20.OL07 art. no.....)
dpvlink
5156

2,081.50 CHF
Show product
