PCB boxes/L-profile holders/Plug-in boards

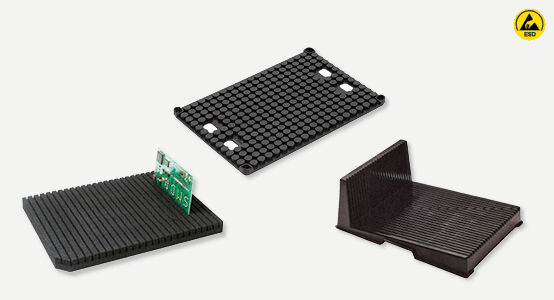

The product group includes various holding systems for upright storage and safe handling of PCBs - including L-stands, plug-in boards with a dimpled structure and standardized PCB holders. Depending on the version, the systems differ in design and fixing mechanism and cover different requirements in electrostatically protected areas (EPA).

All variants enable structured, mechanically gentle organization of electronic assemblies - for transport, interim storage or provision, for example. Manufactured from dissipative materials in accordance with DIN EN 61340-5-1, they help to dissipate electrostatic charges in a controlled manner and prevent ESD-related damage.

The image displays a rectangular, black foam pad with many parallel grooves. On the left side, there is a small green circuit board protruding from the foam.
PCB holder made of PE foam
ESD / Length : 355 mm / Width : 255 mm / Height : 25 mm / Groove number: 25 / Groove width: 3 mm / Groove depth: 12 mm
PCB holder made of PE foam
Dimensions: 355 x 255 x 25 mm, 2 corners sloped
slot width 3 mm, slot depth 12 mm
electrostatically dissipative (DIN EN 61340-5-1)

Product No.: 4550.25.0255.LP
11.35 CHF
excl. 8.1% tax
Show product
The image displays a black, rubberized mat with many small, round bumps. On it lies a green circuit board, which stands out due to its rectangular shape and several patterns.
Plug-in board (knobbed)
ESD
ESD plug-in board (knobbed)
Dimensions: 357 x 257 x 14 mm, knobs round
Diameter: 16 x 6 mm, max. PCB thickness 1.6 mm
electrostatically volume conductive
++ Item no. 2535.000.992 ++

Product No.: 053211
9.60 CHF
excl. 8.1% tax
Show product
The image displays multiple green circuit boards, upright on a black, rubberized holder. The holder features a textured surface made up of small bumps.
Plug-in board (knobbed)
ESD / Length : 557 mm / Width : 357 mm / Height : 22 mm / PCB thickness: 2.5 mm / Knob length: 14 mm / Knob width: 14 mm / Knob height: 8 mm
ESD plug-in board (knobbed)
Dimensions: 557 x 357 x 22 mm, knobs
14 x 14 x 8 mm, max. PCB thickness 2.5 mm
electrostatically volume conductive

Product No.: 053212
30.60 CHF
excl. 8.1% tax
Show product
The image shows a black, rectangular object with a slanted back wall. The surface is ridged, giving it texture. It is often used as a stand or holder.
L-profile holder size 2 / large
ESD / Length : 355 mm / Width : 268 mm / Height : 128 mm
PCB holder "L-profile", size 2
355 x 268 x 128 mm, electrically conductive

Product No.: 052.730
39.70 CHF
excl. 8.1% tax
Show product
The image shows a green circuit board, designed with many small components, wires, and slots. It is tilted on a black, sturdy surface.
PCB holder "tray type 760"
ESD / Length : 500 mm / Width : 175 mm / PCB thickness: 3.0 mm / Spacing: 18.75 mm
PCB holder "tray type 760"
Dimensions: 175 x 500 mm, 20 rows / grid 18.75 mm
Max. PCB thickness 3.0 mm, groove depth 8 mm
Temperature resistance up to 85 °C
electrostatically dissipative (DIN EN 61340-5-1)

Product No.: 052.760
88.30 CHF
excl. 8.1% tax
Show product
The image displays multiple circuit boards of various sizes on a black holder. Next to the boards, there is a technical drawing featuring dimensions and a cross-section.
PCB holder "tray type 751"
ESD
PCB holder "tray type 751"
Dimensions: 140 x 465 mm, 25 rows / grid 15.6 mm
Max. PCB thickness 3 mm, groove depth 7.5 mm
Temperature resistance up to 135 °C
electrostatically dissipative (DIN EN 61340-5-1)

Product No.: 052.751
110.70 CHF
excl. 8.1% tax
Show product
1 to 6 (from a total of 6)
