Quickfill magazine PS-6060
(Product No.: 152.6060)
The image shows a rectangular, sturdy metal frame with several vertical, black slats. It has an open front and a textured back.
The image shows an open computer case made of gray metal. It has a rectangular shape with ventilation slots and multiple bays for components. The top is partially open.
The image shows a computer case made of silver-colored metal. It has an open structure with vertical cooling slots and a compartment that provides space for components.
Mobile Preview: The image shows a rectangular, sturdy metal frame with several vertical, black slats. It has an open front and a textured back.
Mobile Preview: The image shows an open computer case made of gray metal. It has a rectangular shape with ventilation slots and multiple bays for components. The top is partially open.
Mobile Preview: The image shows a computer case made of silver-colored metal. It has an open structure with vertical cooling slots and a compartment that provides space for components.
Notice / Inquire

Quickfill magazine PS-6060

dpvlink:
15102
Width :
400 mm
Length :
460 mm
Height :
563 mm
PCB width:
100 - 310 mm
Width adjustment:
with quick-clamping adjustment
Temperature resistance Insertion:
60 °C
Properties:
Further product information

150.65 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Quickfill magazine PS-6060

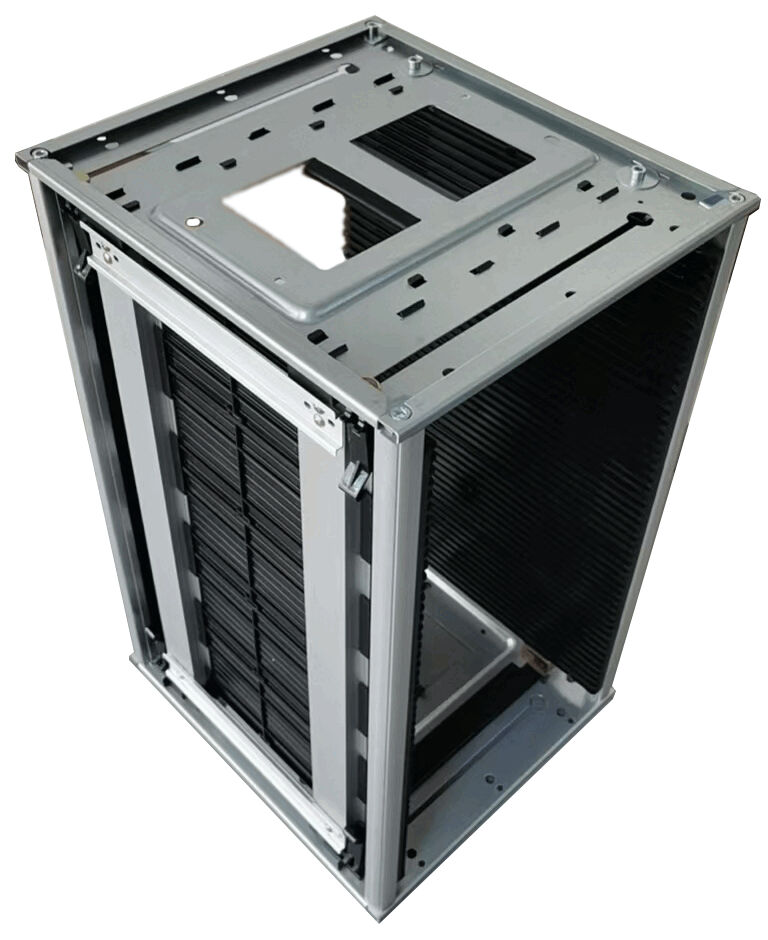

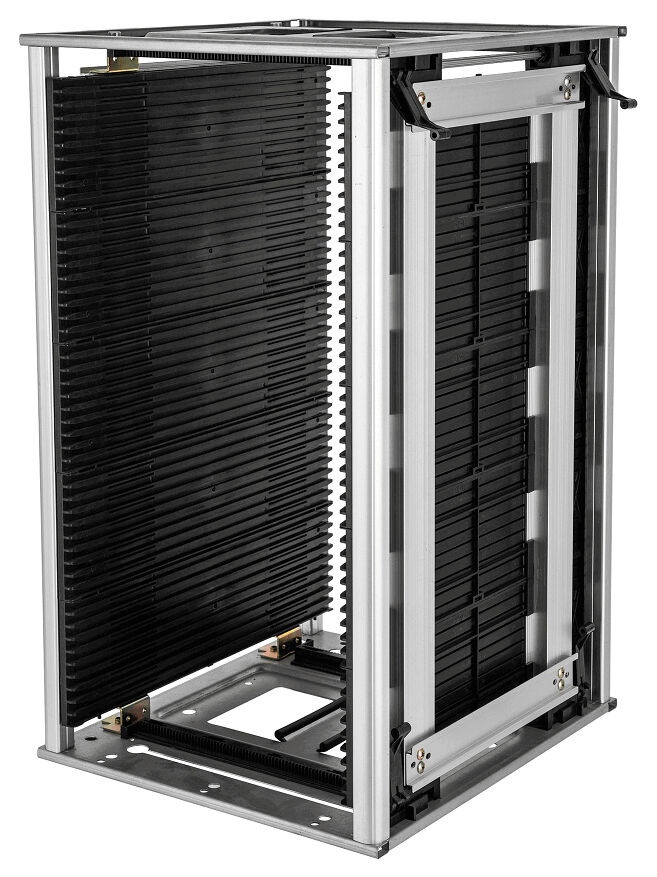

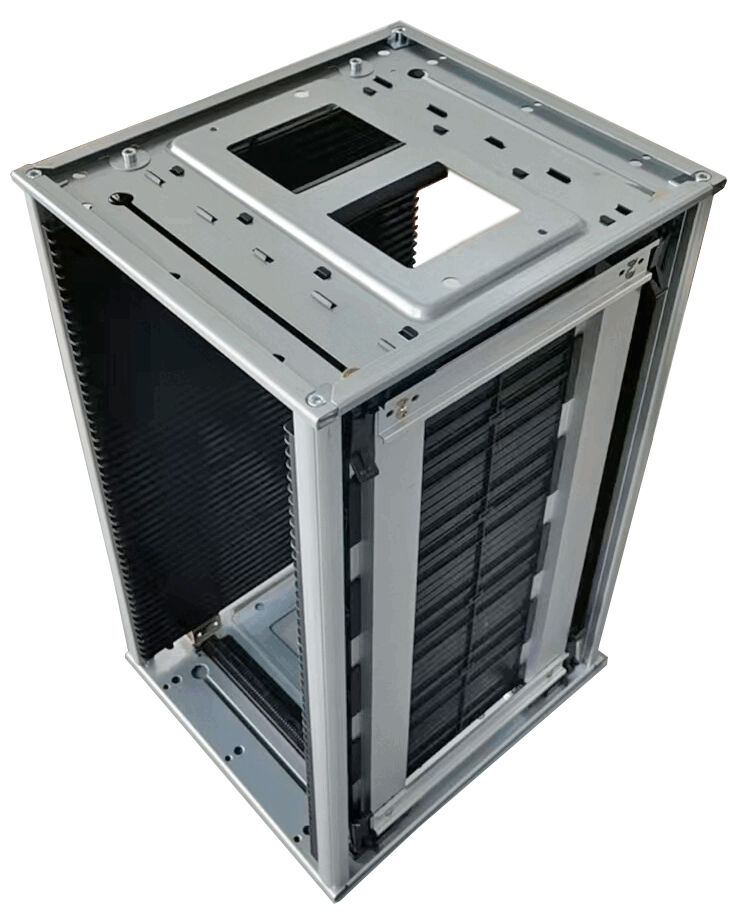

The Quickfill Magazine PS-6060 is distinguished by its stable and robust plastic construction with metal reinforcement, allowing compatible use with the most common placement machines. The width adjustment of the magazine is done via a quick-release adjustment, which securely fixes the PCB widths and prevents wear of moving parts. The magazine has a capacity for 50 PCBs and is made of conductive polystyrene, which is temperature resistant up to 60°C.
The metal parts are made of galvanized iron, making the magazine electrostatically conductive. With a slot pitch of 10mm and a slot width of 5mm, as well as a slot depth of 3.5mm, the magazine offers precise accommodation of the PCBs. The dimensions of the magazine are 400 mm in width, 563 mm in height, and 460 mm in length, and it can accommodate PCBs with a width of 100 to 310 mm.
The Quickfill Magazine PS-6060 is delivered unassembled in a box, including assembly instructions to ensure easy installation.
Width
Width
400 mm
Length
Length
460 mm
Height
Height
563 mm
PCB width
PCB width
100 - 310 mm
Width adjustment
Width adjustment
with quick-clamping adjustment
Temperature resistance Insertion
Temperature resistance Insertion
60 °C
Material
Material
polystyrene
Groove depth
Groove depth
3.5 mm
Groove width
Groove width
5 mm
Type
Type
unassembled
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 358
Complete Catalog 2023 - 2024

Product Family

PCB magazine Quickfill

Material: robust plastic construction with metal reinforcement

Compatibility: suitable for common pick-and-place machines

Width adjustment: quick-clamping adjustment or screw clamping

Capacity: space for 50 PCBs

Fixation: secure locking of the set PCB widths

Resistance:

  • Plastic parts: conductive PS (up to 60°C) or ABS/PC (up to 110°C)
  • Metal parts: galvanized iron


Special features:

  • Electrostatically dissipative
  • Groove spacing: 10 mm
  • No wear on moving parts
  • Delivery: unassembled in a box with assembly instructions
