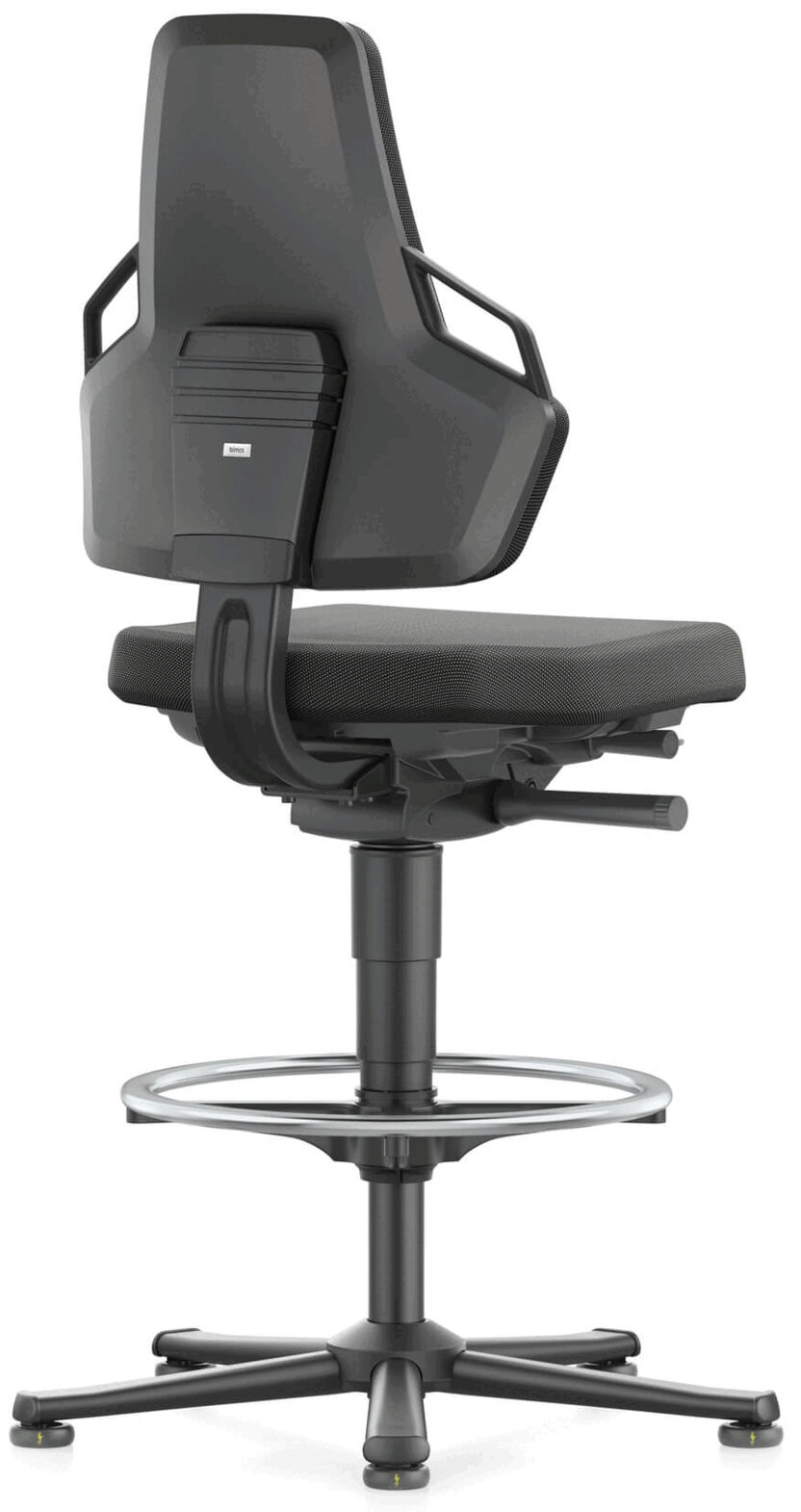

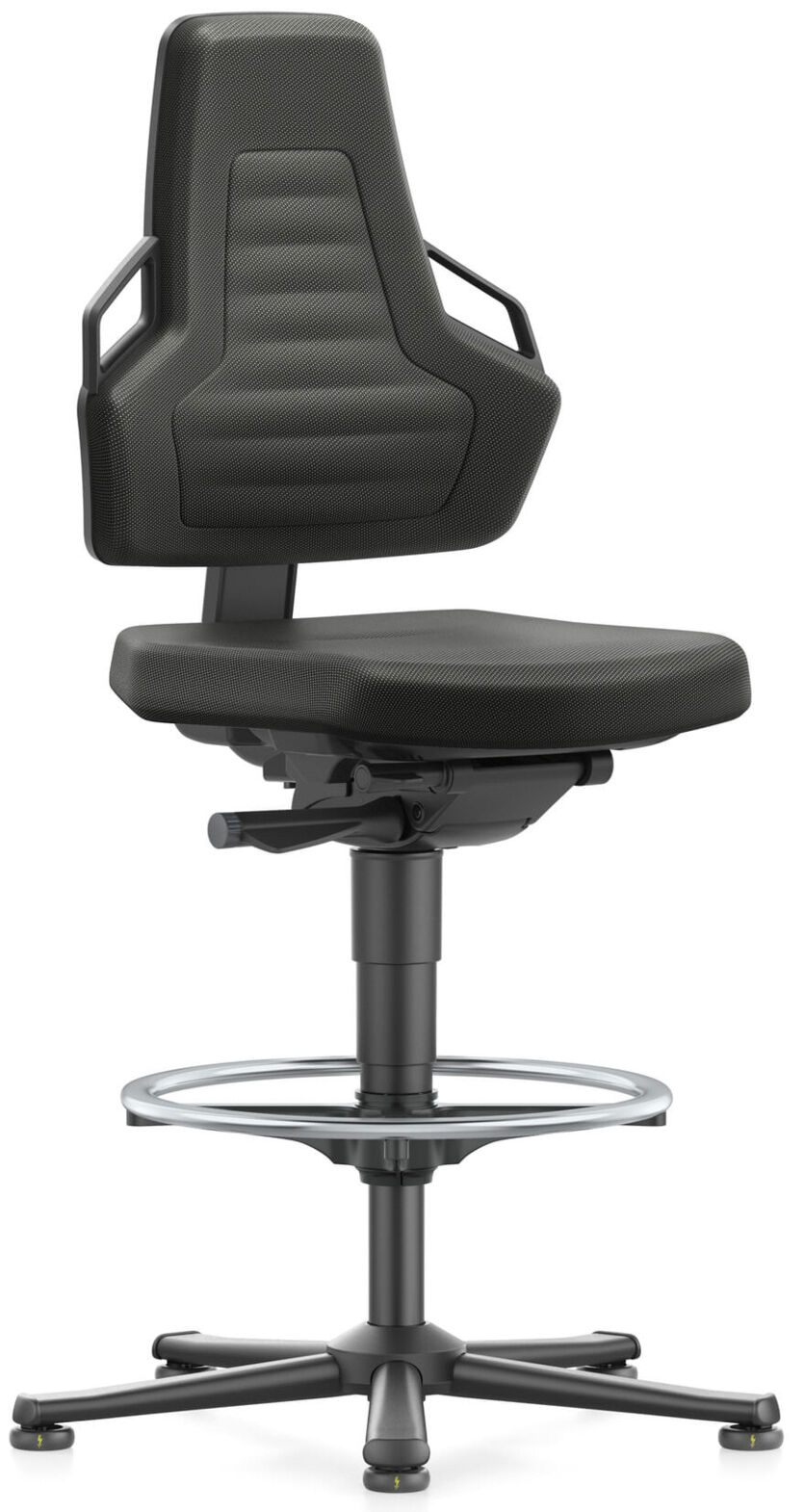

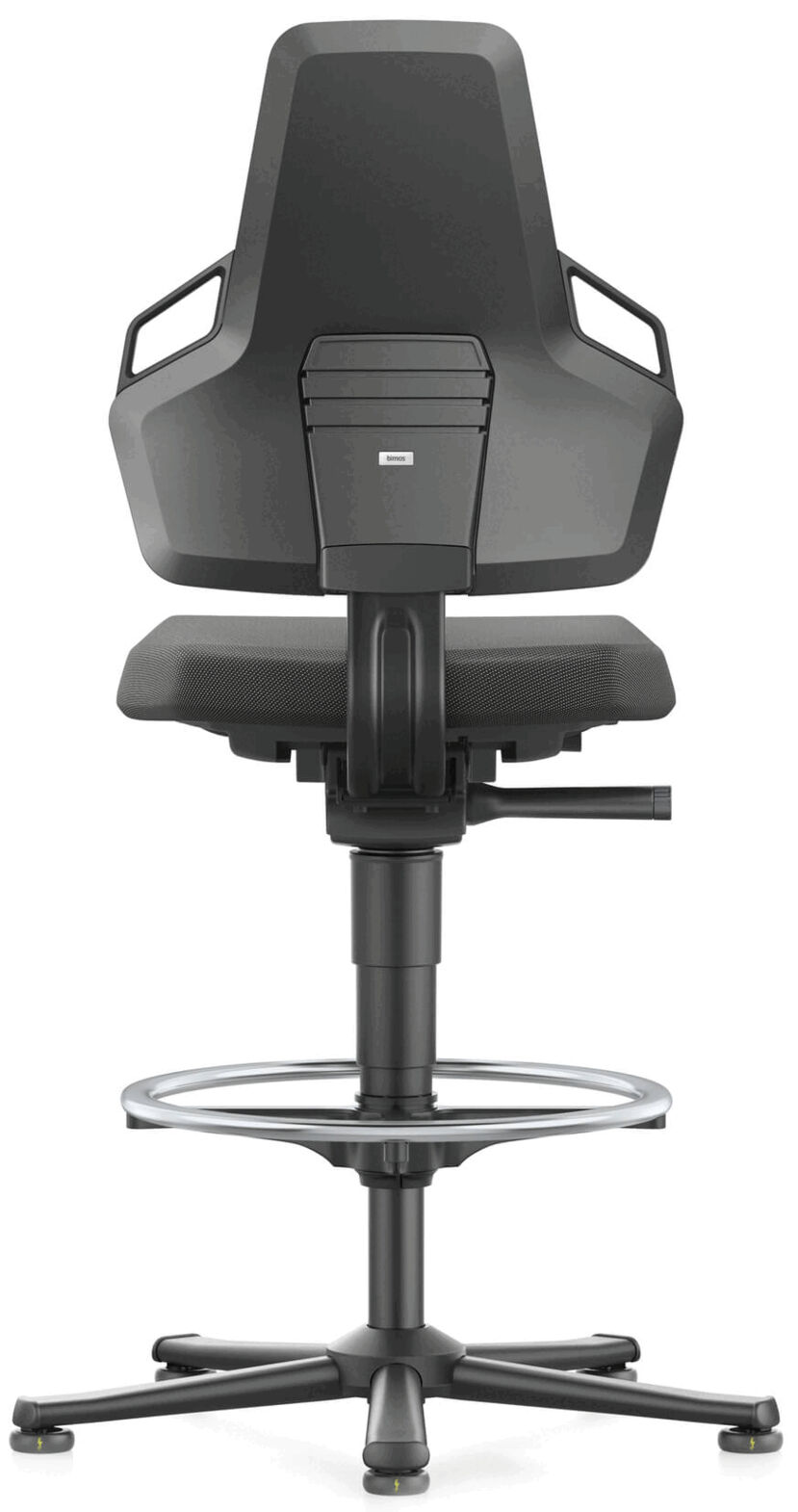

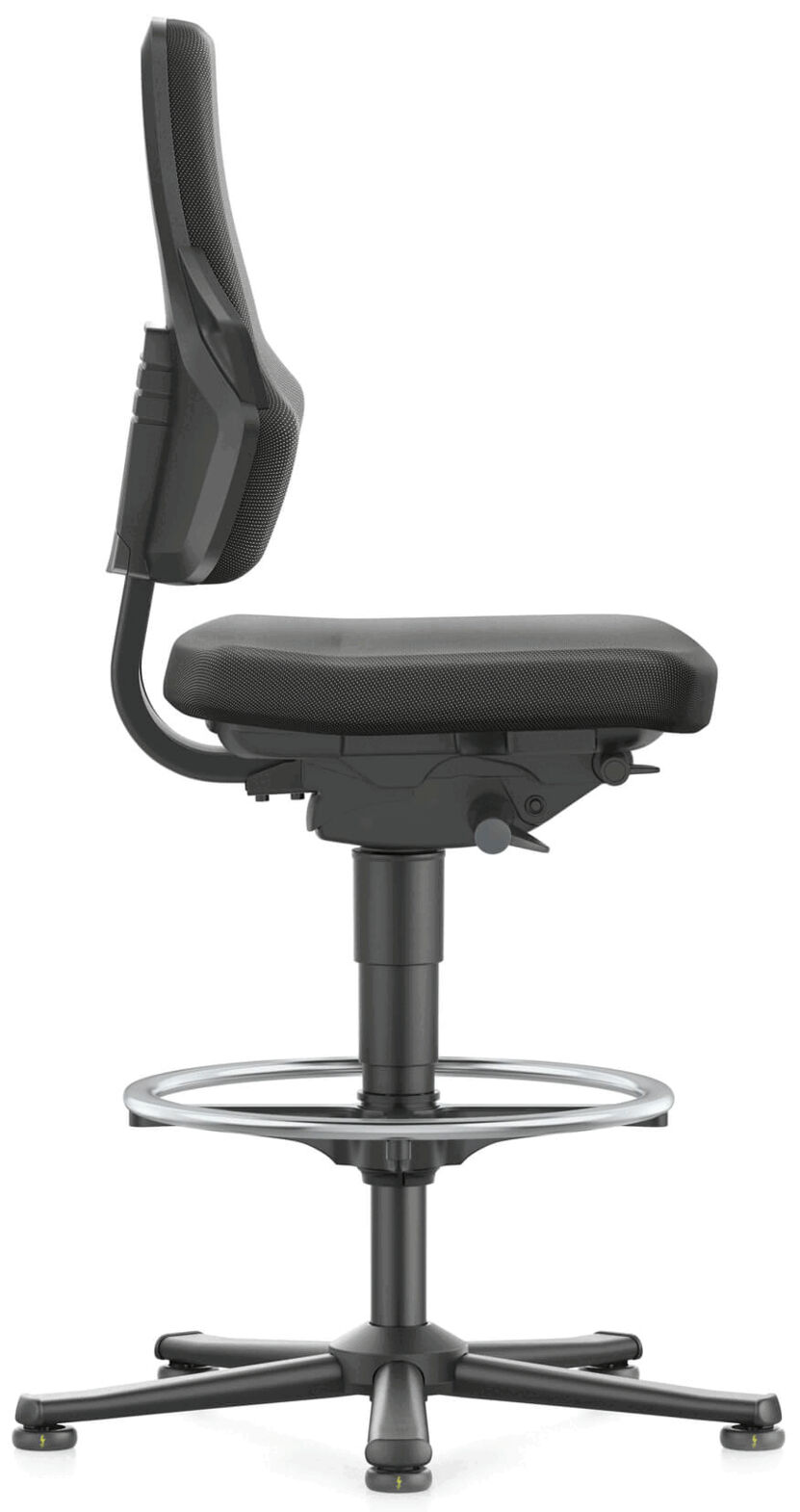

NEXXIT 3 ESD swivel chair Duotec
- Reliable ESD protection by volume conductive plastic and conductive comfort upholstery
- High comfort due to thick upholstering - thus particularly soft
- seat shape specially designed for industrial workplaces to promote the correct posture and a good blood circulation
- ergonomically designed backrest with horizontal stitching to relieve the spinal column and the musclesÂ
- tapered backrest width in the upper zone for optimal liberty of action
- Robust functional handles give practical mobility and protect the cover materials from dirty hands during transport
- Synchronous technology with automatic weight regulation and intuitive one-lever operation - unique feature in industrial environmentÂ
- large adjustment range in the height adjustment
- seat tilt adjustment up to a tilting angle of 6° ensures a seat angle of at least 90° with simultaneous contact with the backrest
- seat depth adjustment and backrest height adjustment for an optimal adaption of the chair to the user's height
- Optionally: 4D armrest (height, width and depth adjustments, pivotable)
- steel base, black
- GS certified and in compliance with the standard DIN 68877
Corresponds to the ESD standard DIN EN 61340-5-1Â
Details
- Cover Cover
- fabric
- Seat height Seat height
- 57 - 82 cm
- Castor type Castor type
- glides, conductive
- Additional equipment Additional equipment
- foot ring
- Armrest Armrest
- without armrest
- Backrest: height Backrest: height
- 53 cm
- Backrest: height adjustment Backrest: height adjustment
- yes
- Backrest: tilt adjustment Backrest: tilt adjustment
- no
- Chair type Chair type
- swivel chair
- Cleanroom Cleanroom
- no
- Fabric color Fabric color
- black
- Max. load capacity Max. load capacity
- 120 kg
- Permenent contact backrest Permenent contact backrest
- yes
- Polished aluminum base Polished aluminum base
- steel black
- Seat height adjustment Seat height adjustment
- yes, lateral lever
- Seat mechanism Seat mechanism
- synchronous technology
- Seat: depth adjustment Seat: depth adjustment
- yes
- Seat: size Seat: size
- 46 x 40 cm
- Seat: tilt adjustment Seat: tilt adjustment
- yes
- Bleeder resistance Bleeder resistance
- 106 Ω
- Series Series
- NEXXIT
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
ESD Swivel chair Bimos NEXXIT
ESD suitability of the NEXXIT
The ESD NEXXIT swivel chair ensures reliable discharge of even the smallest electrostatic voltages with its overall discharge across all components. To achieve this, upholstery, castors or glides, plastics and coated steel parts are all dissipative.
The ESD standard EN 61340-5-1 specifies how low the discharge resistance of a chair must be. The ESD NEXXIT falls below this value and also has an extremely low surface resistance.
The right chair for high and low workstations
Whether high or low workstations, the versions of the ESD NEXXIT are ideal for every work situation. The focus is always on ergonomics, with all the important adjustment options to protect the health of employees.
Ergonomics needs adjustment options
The ESD NEXXIT swivel chair can be easily adapted to different activities and employees and protects against incorrect sitting postures. All relevant functions can be individually adjusted - intuitively and usually with just one movement.
1. Height adjustment
To promote good circulation and prevent tension, there should be a 90° angle between the upper body and legs as well as the upper and lower legs. The seat height is therefore adjusted to the employee's height using the height adjustment mechanism, both for the low and high chair versions.
2. Seat tilt adjustment
The seat tilt adjustment ensures that the seat surface tilts forwards. The angle between the seat and back remains at least 90° even when working at a forward angle. The blood circulation in the body is maintained, the sitting posture is relaxed and the employee can concentrate fully on the task at hand.
3. Seat depth adjustment
The seat depth adjustment adjusts the length of the seat surface by 60 mm to the thighs, allowing it to be adapted to the individual physique of the employee.
4. Backrest height adjustment
The height of the backrest can also be adjusted by 60 mm to support the employee's back precisely in the lumbar region.
5. Synchronous technology
The synchronous technology with automatic weight adjustment adapts automatically to the employee. This ensures a continuously supportive backrest and an active and dynamic sitting experience.
6. 3-step preselection
The opening width of the backrest can be preset in three stages. Depending on the activity, whether working with a high level of effort (level 1), short hand-eye distance (level 2) or a large reach, it can be precisely determined (level 3).
Dissipative materials - covers
Electrostatic charge is generated both on objects and on people. It is therefore important that the materials of the ESD NEXXIT reliably dissipate the electrostatic charge that is carried away by employees and endangers the components into the floor. At the same time, it must be ensured that no new charge is generated on the chair itself. All upholstery used in the ESD area has been developed precisely for this purpose.
1 - Integral form ESD
In some ESD areas, resistant and robust cover materials are required. Integral foam is recommended in these environments. Integral foam is extremely resistant to mechanical influences.
2 - Supertec ESD
Particularly soft, comfortable upholstery consisting of breathable backing material and robust micro-armoring for a slip and cut-resistant surface, hard-wearing and easy to clean. Suitable for all areas of use except in the laboratory. Particularly durable and makes the NEXXIT a worthwhile investment.
3 - Fabric ESD
Fabric is soft and comfortable and ensures a pleasant sitting sensation. It is permeable to air and therefore breathable. Especially in clean environments, such as the ESD area, fabric is a popular cover material and offers employees maximum comfort.
4 - Synthetic leather ESD
The cover material artificial leather has two main advantages: It is extremely easy to clean, washable and resistant to disinfectants. And, alongside fabric, it is one of the softest materials, which ensures a high level of seating comfort.
1 - Integral foam ESD
In some ESD areas, resistant and robust cover materials are required. Integral foam is recommended in these environments. Integral foam is extremely resistant to mechanical influences.
2 - Supertec ESD
Particularly soft, comfortable upholstery consisting of a breathable backing material and robust micro-armoring for a slip- and cut-resistant surface, hard-wearing and easy to clean. Suitable for all areas of use except in the laboratory. Particularly durable and makes the NEXXIT a worthwhile investment.
3 - Synthetic leather ESD
The synthetic leather cover material has two main advantages: It is extremely easy to clean, washable and resistant to disinfectants. And, alongside fabric, it is one of the softest materials, which ensures a high level of seating comfort.
4 - Fabric ESD
Fabric is soft and comfortable and ensures a pleasant sitting experience. It is permeable to air and therefore breathable. Especially in clean environments, such as the ESD area, fabric is a popular cover material and offers employees maximum comfort.
You can rely on the ESD NEXXIT economically
Safety pays off
Thanks to the all-round ESD protection of the NEXXIT, you can count on the best production results. The chair's full discharge capability makes a decisive difference at the ESD workplace and guarantees fault-free components. Employees move more safely in the ESD environment when they know that the chair offers additional protection. Greater freedom also ensures greater satisfaction in the workplace.
Ergonomics scores
Chronic back problems, slipped discs, circulatory disorders - many health problems can be prevented with the adjustment options of the ESD NEXXIT. This has been proven to reduce sick days and also shows your employees that you take their health seriously. Rely on ergonomics for the well-being of your team and your own success.
Act sustainably
TÜV certificate and the Blue Angel show what is important to us with the ESD NEXXIT: it should make a difference in your company thanks to pollutant-free materials, sustainable production and a long product life.
