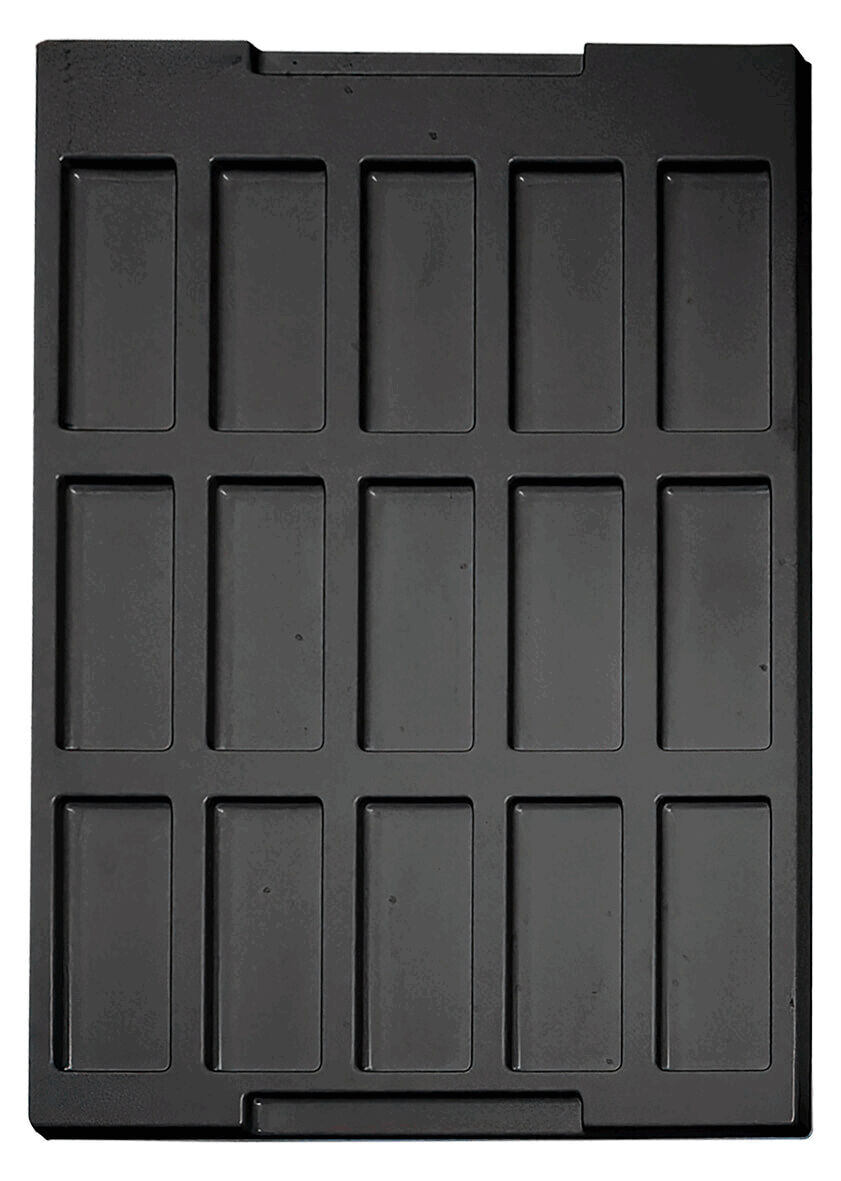

The image displays a gray plastic plate with rectangular indentations. It measures 550 mm in length and 350 mm in width, with an additional elevation of 50 mm and a depression of 135 mm.
Vacuum-formed insert T-233 550 x 350 x 17 mm, 15 compartments ESD
(Product No.: 032.T-233)
The image displays a gray plastic plate with rectangular indentations. It measures 550 mm in length and 350 mm in width, with an additional elevation of 50 mm and a depression of 135 mm.
Notice / Inquire

Vacuum-formed insert T-233 550 x 350 x 17 mm, 15 compartments ESD

dpvlink:
18922
Length :
550 mm
Width :
350 mm
Height :
17 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
10 PCE
20.20 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-233 550 x 350 x 17 mm, 15 compartments ESD

The ESD thermoformed insert T-233 from Licefa, measuring 550 x 350 x 17 mm with 15 compartments, is a high-quality solution for the secure storage and transport of sensitive electronic components. Each compartment measures 135 x 50 x 10 mm, facilitating organized storage. The insert is specifically designed for containers measuring 600 x 400 mm and features a practical handle recess that makes handling easier.
This product is distinguished by its electrical conductivity, certified according to DIN EN 61340-5-1. The surface resistance ranges between 10^3 and 10^5 Ohm, ensuring protection against electrostatic discharges. The use of Liastat, an electrically conductive material, highlights the suitability of this insert for use in ESD protection areas.
Thus, the ESD thermoformed insert T-233 is an ideal choice for technical purchasers who value reliability and protection in the storage and transport of sensitive electronic components.
Length
Length
550 mm
Width
Width
350 mm
Height
Height
17 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
15
Dimensions cavities
Dimensions cavities
135x50x10 mm
Suitable for containers
Suitable for containers
600x400 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 318
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes
