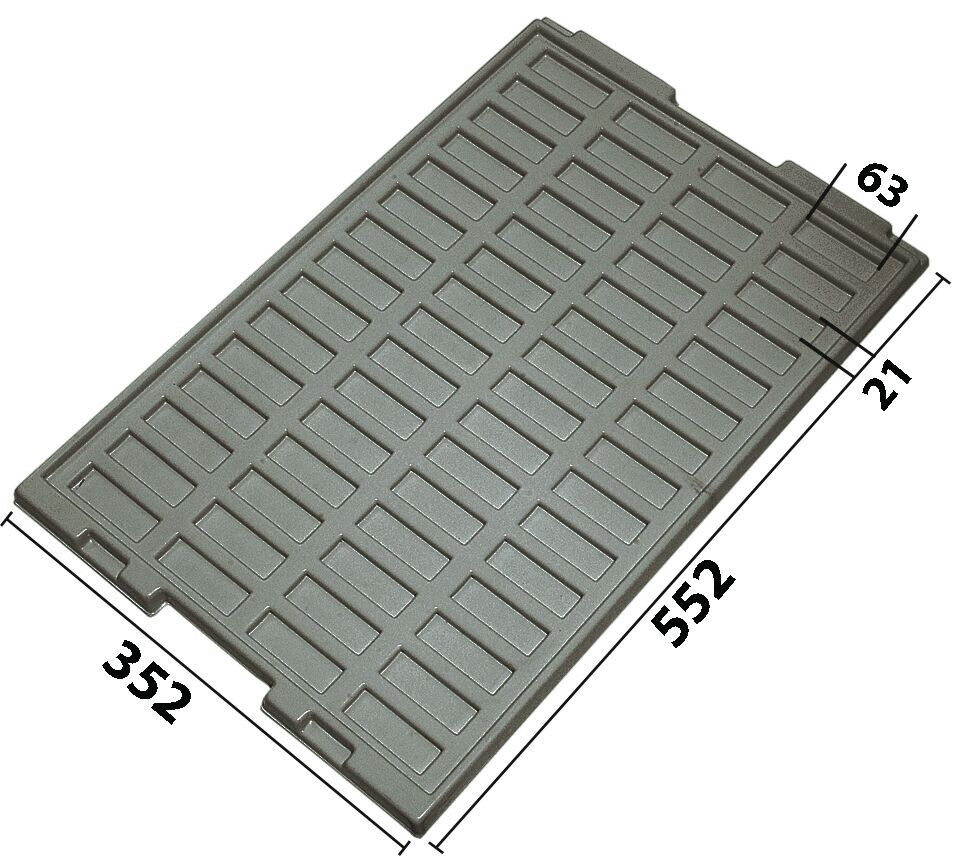

The image shows a gray plastic plate with a rectangular shape. It has many small, recessed rectangles on the surface and measures 552 mm in length and 352 mm in width.
Vacuum-formed insert T-2106 552 x 352 x 17 mm, 60 compartments ESD
(Product No.: 032.T-2106)
The image shows a gray plastic plate with a rectangular shape. It has many small, recessed rectangles on the surface and measures 552 mm in length and 352 mm in width.
Notice / Inquire

Vacuum-formed insert T-2106 552 x 352 x 17 mm, 60 compartments ESD

dpvlink:
18940
Length :
552 mm
Width :
352 mm
Height :
17 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
10 PCE
24.10 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-2106 552 x 352 x 17 mm, 60 compartments ESD

The deep-drawing insert T-2106 from Licefa is specifically designed for the safe storage and transport of sensitive electronic components. With dimensions of 552 x 352 x 17 mm and 60 compartments each measuring 63x21x7 mm, this insert fits perfectly into containers of size 600x400 mm. Thanks to its electrical conductivity, which meets the standards of DIN EN 61340-5-1, it offers optimal protection against electrostatic discharge (ESD).
The insert features practical reversible stacking and a recessed grip that facilitates handling. The surface resistance is between 10^3 and 10^5 Ω, ensuring the safety of sensitive components. These characteristics make the T-2106 an ideal solution for technical buyers who value efficiency and safety.
Length
Length
552 mm
Width
Width
352 mm
Height
Height
17 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
60
Dimensions cavities
Dimensions cavities
63x21x7 mm
Suitable for containers
Suitable for containers
600x400 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 317
Complete Catalog 2023 - 2024
