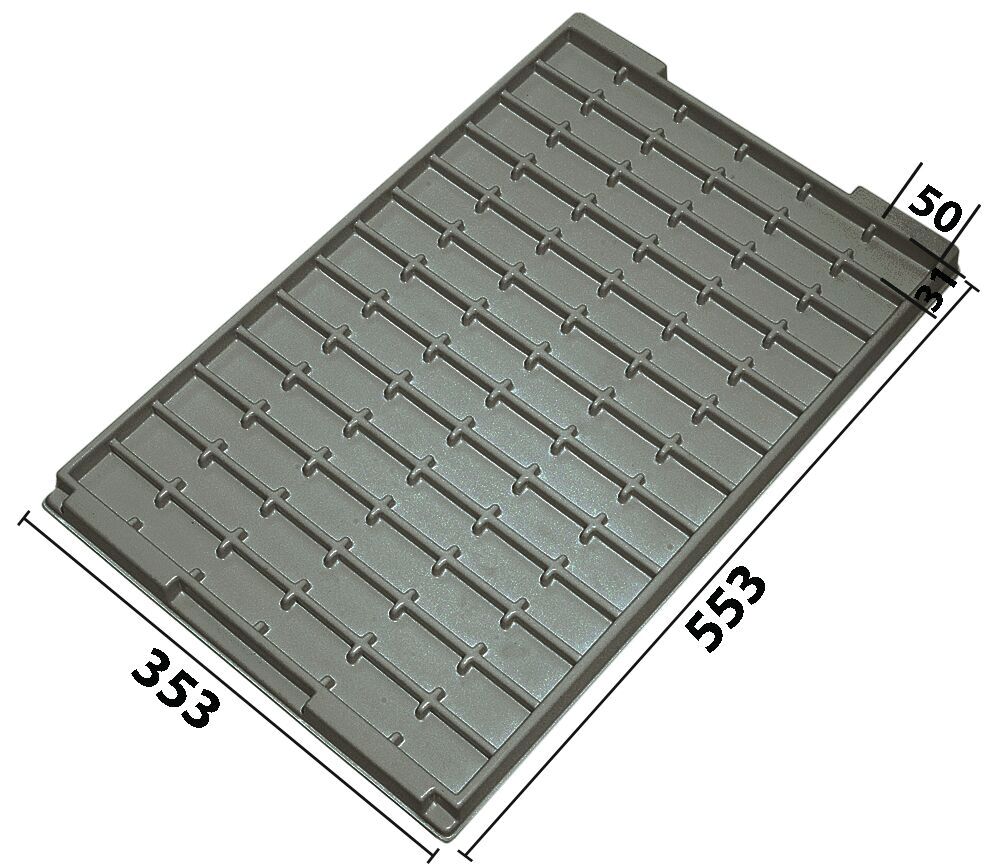

The image displays a rectangular gray plastic tray with many small elongated indentations for storage. Dimensions: 553 mm x 353 mm, height 50 mm. It is sturdy and functional.
Vacuum-formed insert T-245 553 x 353 x 24 mm, 78 compartments ESD
(Product No.: 032.T-245)
The image displays a rectangular gray plastic tray with many small elongated indentations for storage. Dimensions: 553 mm x 353 mm, height 50 mm. It is sturdy and functional.
Notice / Inquire

Vacuum-formed insert T-245 553 x 353 x 24 mm, 78 compartments ESD

dpvlink:
18902
Length :
553 mm
Width :
353 mm
Height :
245 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
10 PCE
24.10 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-245 553 x 353 x 24 mm, 78 compartments ESD

The deep-drawing insert T-245 from Licefa, measuring 553 x 353 x 24 mm with 78 compartments, is an optimal solution for protecting and storing sensitive electronic components. This insert is specifically designed for use in containers sized 600x400 mm and offers effective protection against electrostatic discharges due to its electrical conductivity in accordance with DIN EN 61340-5-1. Each of the 78 compartments measures 50x31x10 mm, allowing for organized and clear storage.
The insert features a practical grip recess and the possibility for reversible stacking, which significantly increases handling comfort. The surface resistance is between 10^3 and 10^5 Ohm, making the insert a safe choice for ESD-compliant storage. Use the deep-drawing insert T-245 from Licefa to efficiently and safely store your sensitive components.
Length
Length
553 mm
Width
Width
353 mm
Height
Height
245 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
78
Dimensions cavities
Dimensions cavities
50x31x10 mm
Suitable for containers
Suitable for containers
600x400 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 316
