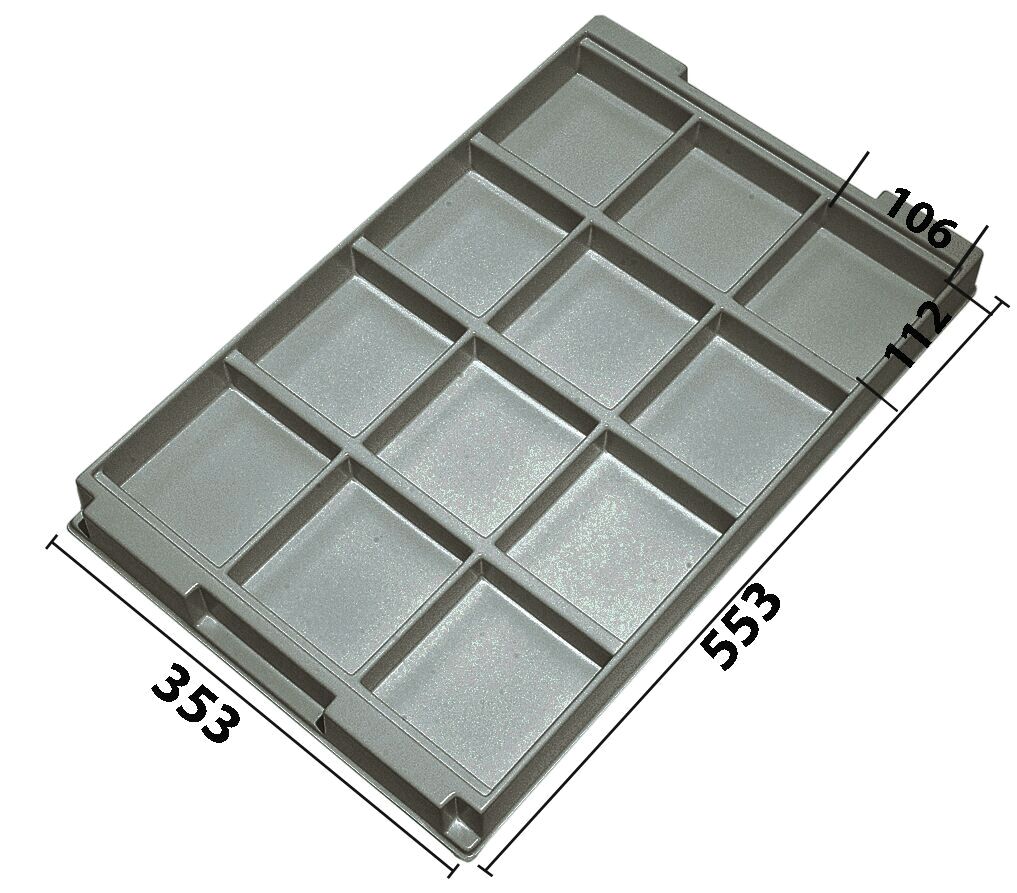

The image shows a rectangular, gray plastic tray with twelve compartments. The compartments are evenly arranged and are used for sorting or storing small items.
Vacuum-formed insert T-246 553 x 353 x 44 mm, 12 compartments ESD
(Product No.: 032.T-246)
The image shows a rectangular, gray plastic tray with twelve compartments. The compartments are evenly arranged and are used for sorting or storing small items.
Notice / Inquire

Vacuum-formed insert T-246 553 x 353 x 44 mm, 12 compartments ESD

dpvlink:
18920
Length :
553 mm
Width :
353 mm
Height :
44 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
10 PCE
24.10 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-246 553 x 353 x 44 mm, 12 compartments ESD

The deep-drawing insert T-246 from Licefa is specifically designed for the safe storage and transport of sensitive electronic components. This insert is made from electrically conductive material that meets the requirements of DIN EN 61340-5-1, with a surface resistance between 10^3 and 10^5 Ohm.
The dimensions of the insert are 553 mm in length, 353 mm in width, and 44 mm in height, making it ideal for containers sized 600x400 mm. It features 12 compartments, each measuring 112x106x35 mm, which allow for organized and protected storage.
The deep-drawing insert also includes a recessed grip that facilitates handling and offers the possibility of reverse stacking, making storage more efficient. These features make the deep-drawing insert T-246 an optimal solution for technical buyers who value protection and organization of their electronic components.
Length
Length
553 mm
Width
Width
353 mm
Height
Height
44 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
12
Dimensions cavities
Dimensions cavities
112x106x35 mm
Suitable for containers
Suitable for containers
600x400 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 318
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Vacuum-formed inserts T-246

Article image
Article description
Length
Width
Height
Price
Compare
032.T-246 - Vacuum-formed insert T-246 553 x 353 x 44 mm, 12 compartments ESD
032.T-246
Vacuum-formed insert T-246 553 x 353 x 44 mm, 12 compartments ESD
553 mm
353 mm
44 mm
24.10 CHF
