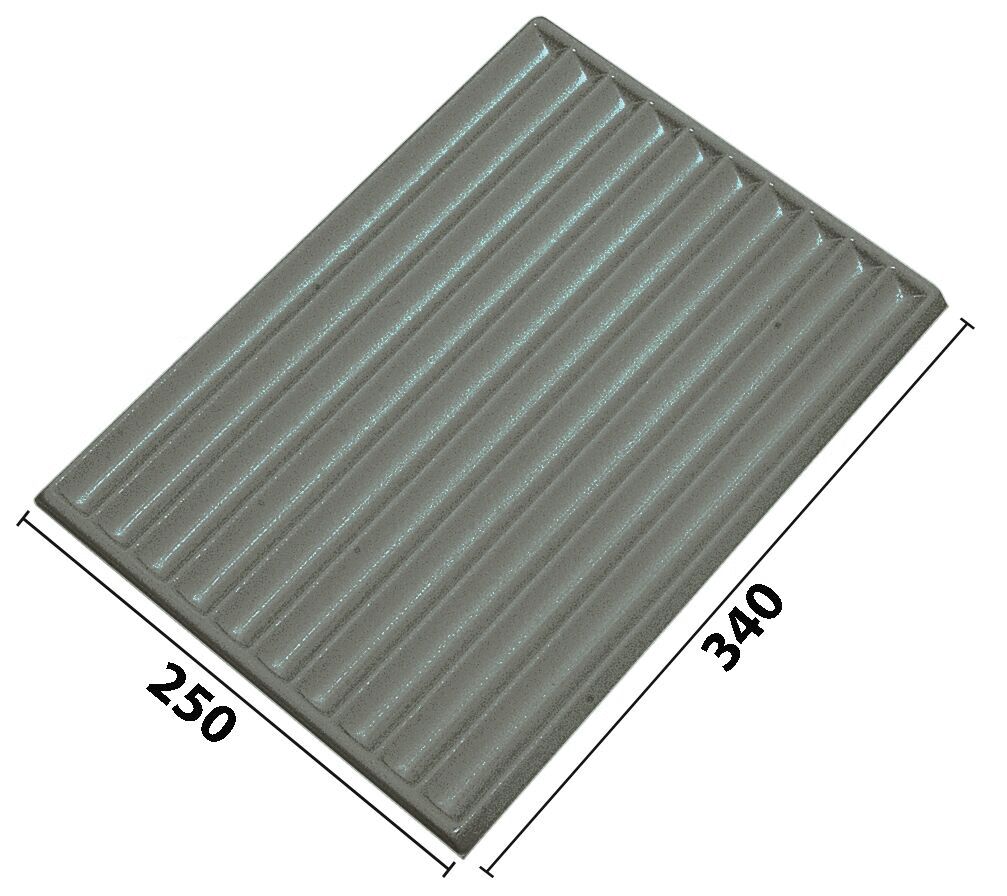

The image shows a rectangular, gray object with elongated, parallel grooves on the surface. It measures 250 mm x 340 mm. The grooves are evenly spaced.
Vacuum-formed insert T-260 340 x 250 x 13 mm, 14 grooves ESD
(Product No.: 032.T-260)
The image shows a rectangular, gray object with elongated, parallel grooves on the surface. It measures 250 mm x 340 mm. The grooves are evenly spaced.

Vacuum-formed insert T-260 340 x 250 x 13 mm, 14 grooves ESD

dpvlink:
18896
Length :
340 mm
Width :
250 mm
Height :
13 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now



Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-260 340 x 250 x 13 mm, 14 grooves ESD

The Licefa deep-drawing insert T-260, with dimensions of 340 x 250 x 13 mm, is distinguished by its special design featuring 14 grooves, which are ideal for storing round parts up to a diameter of 23 x 315 mm. This insert is specifically designed for containers sized 400x300 mm and meets the DIN EN 61340-5-1 standard for electrical conductivity. The surface has a resistance of 10^3 to 10^5 Ohm, making it perfect for the safe storage and transport of sensitive electronic components. The minimum order quantity for this product is 50 pieces.
The deep-drawing insert T-260 offers an efficient solution to ensure the integrity of your electronic components during storage and transit.
Length
Length
340 mm
Width
Width
250 mm
Height
Height
13 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Suitable for containers
Suitable for containers
400x300 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
