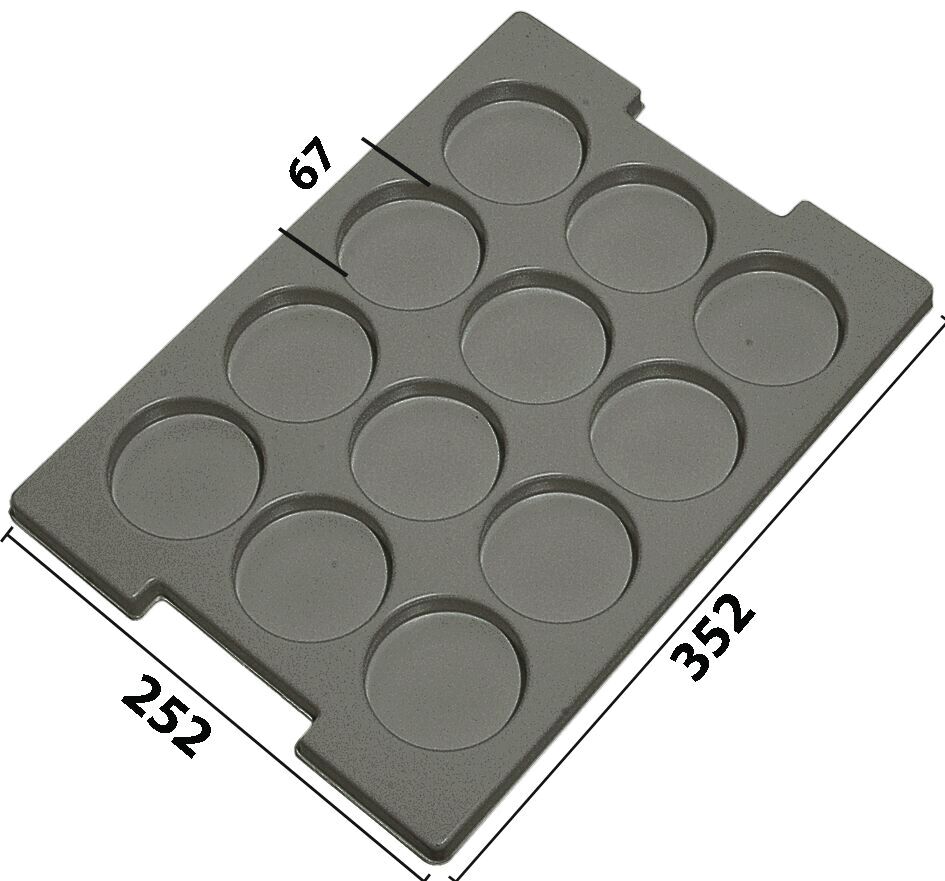

The image displays a rectangular shape with 10 round indentations. The colors are gray, and dimensions are provided along the edges. The shape is suitable for baking or filling.
Vacuum-formed insert T-274 352 x 252 x 17 mm, 12 compartments ESD
(Product No.: 032.T-274)
The image displays a rectangular shape with 10 round indentations. The colors are gray, and dimensions are provided along the edges. The shape is suitable for baking or filling.

Vacuum-formed insert T-274 352 x 252 x 17 mm, 12 compartments ESD

dpvlink:
19006
Length :
352 mm
Width :
252 mm
Height :
17 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now



Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-274 352 x 252 x 17 mm, 12 compartments ESD

The ESD thermoformed insert T-274 from Licefa, measuring 352 x 252 x 17 mm, is specifically designed for the safe storage of sensitive electronic components. The insert features 12 compartments, each with a diameter of 67 mm and a depth of 15 mm, ensuring optimal organization and protection of the components. Made from electrically conductive plastic (Liastat), this product meets the standards of DIN EN 61340-5-1, with a surface resistance between 10^3 and 10^5 Ohm, ensuring safe dissipation of electrostatic charges.
The thermoformed insert fits standard containers of size 400 x 300 mm and is equipped with a practical handle recess that facilitates handling. The minimum order quantity for this product is 50 pieces, enabling efficient procurement for technical buyers. Licefa guarantees high quality and reliability for the storage and transport of sensitive electronic components.
Length
Length
352 mm
Width
Width
252 mm
Height
Height
17 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
12
Dimensions cavities
Dimensions cavities
67x15 mm
Suitable for containers
Suitable for containers
400x300 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 321
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Vacuum-formed inserts T-274

Article image
Article description
Length
Width
Height
Price
Compare
032.T-274 - Vacuum-formed insert T-274 352 x 252 x 17 mm, 12 compartments ESD
032.T-274
Vacuum-formed insert T-274 352 x 252 x 17 mm, 12 compartments ESD
352 mm
252 mm
17 mm
-
Show Compare List (0)
