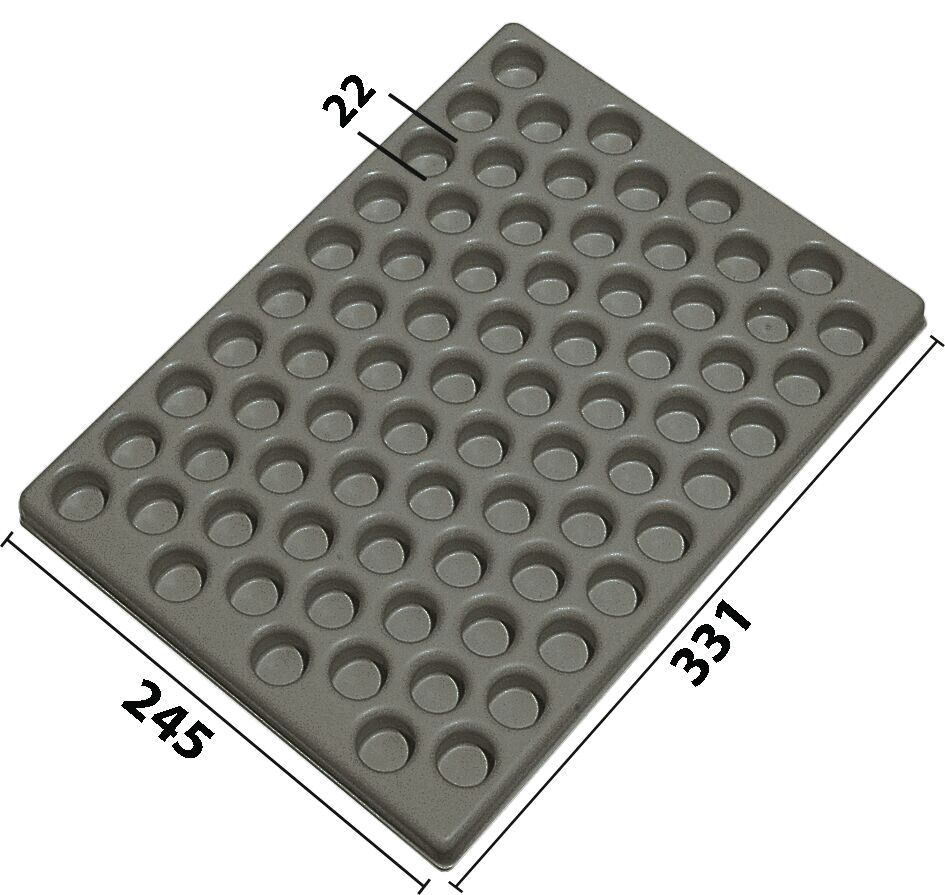

The image shows a rectangular, gray plate with many uniform indentations where small objects can be placed. The plate measures 245 mm x 331 mm and the indentations have a diameter of 22 mm.
Vacuum-formed insert T-287 331 x 245 x 21 mm, 76 compartments ESD
(Product No.: 032.T-287)
The image shows a rectangular, gray plate with many uniform indentations where small objects can be placed. The plate measures 245 mm x 331 mm and the indentations have a diameter of 22 mm.

Vacuum-formed insert T-287 331 x 245 x 21 mm, 76 compartments ESD

dpvlink:
18972
Length :
331 mm
Width :
245 mm
Height :
21 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now



Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-287 331 x 245 x 21 mm, 76 compartments ESD

The deep-drawing insert T-287 from Licefa is a specially developed solution for the secure storage and transportation of sensitive electronic components. This insert is equipped with 76 compartments, each with a diameter of 22 mm and a depth of 20 mm, ideal for accommodating small parts. With dimensions of 331 x 245 x 21 mm, it fits perfectly into containers of size 400x300 mm.
The deep-drawing insert is made from an electrically conductive material that meets the standards of DIN EN 61340-5-1, ensuring a surface resistance between 10^3 and 10^5 Ohm. These features make the insert ideal for applications where electrostatic discharge (ESD) needs to be avoided.
Please note that the minimum order quantity is 50 pieces. By choosing this product, you opt for an efficient and secure solution provided by Licefa, an experienced manufacturer in this field.
Length
Length
331 mm
Width
Width
245 mm
Height
Height
21 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
76
Dimensions cavities
Dimensions cavities
22x20 mm
Suitable for containers
Suitable for containers
400x300 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 319
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Vacuum-formed inserts T-287

Article image
Article description
Length
Width
Height
Price
Compare
032.T-287 - Vacuum-formed insert T-287 331 x 245 x 21 mm, 76 compartments ESD
032.T-287
Vacuum-formed insert T-287 331 x 245 x 21 mm, 76 compartments ESD
331 mm
245 mm
21 mm
-
