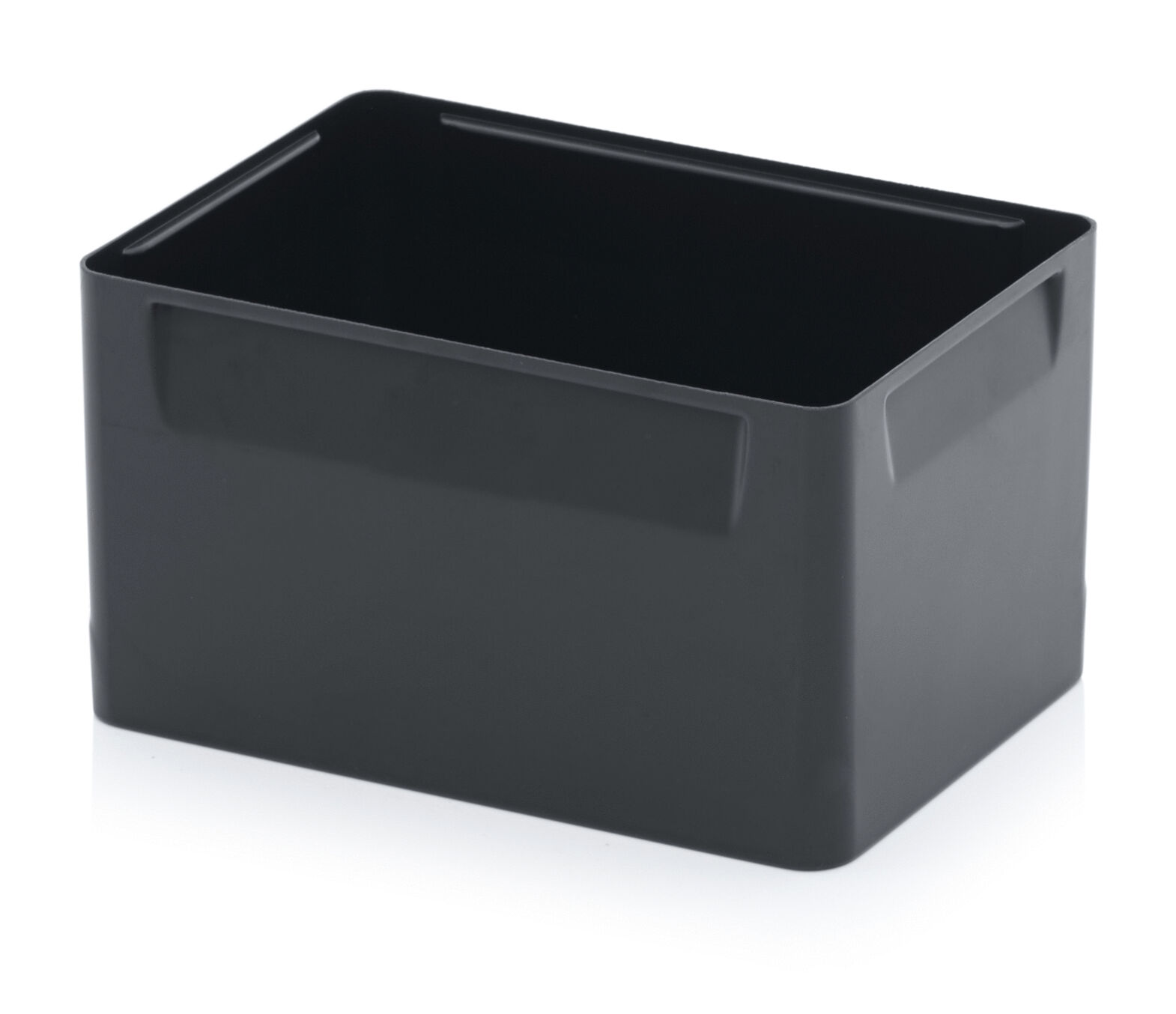

The item is a rectangular, black plastic box with two side handles. It has smooth walls and an open top, suitable for storing items.
Insert box 415 for Euro container Light ESD 600 x 400 mm
(Product No.: 6040.EK415)
The item is a rectangular, black plastic box with two side handles. It has smooth walls and an open top, suitable for storing items.
Notice / Inquire

Insert box 415 for Euro container Light ESD 600 x 400 mm

dpvlink:
17035
Length :
282 mm
Width :
183 mm
Height :
150 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


chevron-down
16.70 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Insert box 415 for Euro container Light ESD 600 x 400 mm

The AUER insert box 415 is specifically designed for Euro containers Light ESD with dimensions of 600 x 400 mm. This model, type EK 4/150 ESD, measures 282 mm in length, 183 mm in width, and 150 mm in height. It is made from electrostatically conductive polypropylene, giving it a specific volume and surface resistance of 10^3 to 10^10 ohms. This meets the ESD standard DIN EN 61340-5-1, making the insert box ideal for applications requiring protection against electrostatic discharge.
Weighing 286 g and in black, the insert box features a practical gripping edge for easy insertion and removal. It is also safely stackable, thanks to a reinforced edge. The combination of functionality and protection makes the insert box 415 an optimal solution for technical and logistical requirements in ESD-sensitive environments.
Length
Length
282 mm
Width
Width
183 mm
Height
Height
150 mm
Color
Color
black
Volume resistance
Volume resistance
103 - 1010 Ω
Stackable
Stackable
yes
Weight
Weight
286 g
Weight
Weight
286 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a black, rectangular tray without a lid. It has raised edges and two side handles for easy handling. The surface is smooth and even.
Euro container Light ESD 600 x 400 x 75 mm...
Euro container Light black outside 600x400x75mm /
inside 560x360x70 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

13.10 CHF
Show product
The image shows a rectangular, flat black plastic tray with open sides and slightly raised edges. It has two side handles for easy handling.
Euro container Light ESD 600 x 400 x 120...
Euro container Light black outside 600x400x120 mm/
inside 560x360x115 mm
electrostatically conductive (DIN EN 61340-5-1)

Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

16.30 CHF
Show product
It is a rectangular, black plastic box with open handles on the sides. The walls are sturdy and the box has no lid. It appears robust and practical.
Euro container Light ESD 600 x 400 x 170...
Euro container Light black outside 600x400x170mm /
inside 560x360x165 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

19.30 CHF
Show product
The image shows a rectangular, black plastic box. It has an open top and two integrated handles on the longer sides. The walls are smooth and sturdy.
Euro container Light ESD 600 x 400 x 220...
Euro container Light black outside 600x400x220 mm/
inside 560x360x215 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

21.20 CHF
Show product
The image shows a rectangular, black plastic box. It has a smooth surface, no lids, and handle openings on the shorter sides for carrying. Ideal for storing items.
Euro container Light ESD 600 x 400 x 270...
Euro container Light black outside 600x400x270mm /
inside 560x360x265 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

24.90 CHF
Show product
The image shows a black, rectangular plastic box without a lid. It has sturdy walls and a simple design, ideal for storing items.
Euro container Light ESD 600 x 400 x 320...
Euro container Light black outside 600x400x320mm/
inside 560x360x315 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

26.85 CHF
Show product
The image shows a rectangular, black plastic box. It has smooth walls, an open top, and is sturdy. The corners are slightly rounded, and the bottom is flat.
Euro container Light ESD 600 x 400 x 420...
Euro container Light black outside 600x400x420 mm/
inside 560x360x415 mm
electrostatically conductive
(DIN EN 61340-5-1)
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15634

33.35 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 304
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Insert for Euro containers 600 x 400 mm

  • for Euro containers with basic dimensions 600 x 400 mm
  • gripping edge for an easy insertion and removal
  • safely stackable due to reinforced edge
  • material: polypropylene

Typical volume resistance 103-1010 Ohm

In compliance with ESD standard DIN EN 61340-5-1

Personalize now




Article image
Article description
ESD
Length
Width
Height
Price
Compare
6040.EK205 - Insert box 205 for Euro container Light ESD 600 x 400 mm
6040.EK205
Insert box 205 for Euro container Light ESD 600 x 400 mm
563 mm
183 mm
50 mm
15.90 CHF
6040.EK210 - Insert box 210 for Euro container Light ESD 600 x 400 mm
6040.EK210
Insert box 210 for Euro container Light ESD 600 x 400 mm
563 mm
183 mm
100 mm
20.75 CHF
6040.EK215 - Insert box 215 for Euro container Light ESD 600 x 400 mm
6040.EK215
Insert box 215 for Euro container Light ESD 600 x 400 mm
563 mm
183 mm
150 mm
20.15 CHF
6040.EK405 - Insert box 405 for Euro container Light ESD 600 x 400 mm
6040.EK405
Insert box 405 for Euro container Light ESD 600 x 400 mm
282 mm
183 mm
50 mm
9.95 CHF
6040.EK410 - Insert box 410 for Euro container Light ESD 600 x 400 mm
6040.EK410
Insert box 410 for Euro container Light ESD 600 x 400 mm
282 mm
183 mm
100 mm
13.10 CHF
6040.EK415 - Insert box 415 for Euro container Light ESD 600 x 400 mm
6040.EK415
Insert box 415 for Euro container Light ESD 600 x 400 mm
282 mm
183 mm
150 mm
16.70 CHF
6040.EK805 - Insert box 805 for Euro container Light ESD 600 x 400 mm
6040.EK805
Insert box 805 for Euro container Light ESD 600 x 400 mm
183 mm
141 mm
50 mm
7.55 CHF
6040.EK810 - Insert box 810 for Euro container Light ESD 600 x 400 mm
6040.EK810
Insert box 810 for Euro container Light ESD 600 x 400 mm
183 mm
141 mm
100 mm
8.50 CHF
6040.EK815 - Insert box 815 for Euro container Light ESD 600 x 400 mm
6040.EK815
Insert box 815 for Euro container Light ESD 600 x 400 mm
183 mm
141 mm
50 mm
12.85 CHF
