Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0
(Product No.: 046.130.1)
The image shows a black, flat box with three pull-out drawers. Each drawer has a ridged pattern and is the same size, suitable for storing small items.
The image shows a small, rectangular black plastic container with a rounded top edge. It has two lateral protrusions and a flat top with a ridge.
Mobile Preview: The image shows a black, flat box with three pull-out drawers. Each drawer has a ridged pattern and is the same size, suitable for storing small items.
Mobile Preview: The image shows a small, rectangular black plastic container with a rounded top edge. It has two lateral protrusions and a flat top with a ridge.
Notice / Inquire

Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0

dpvlink:
5241
Folding boxes:
432
Drawers:
3
Size:
N1 (small)
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


chevron-down
458.25 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

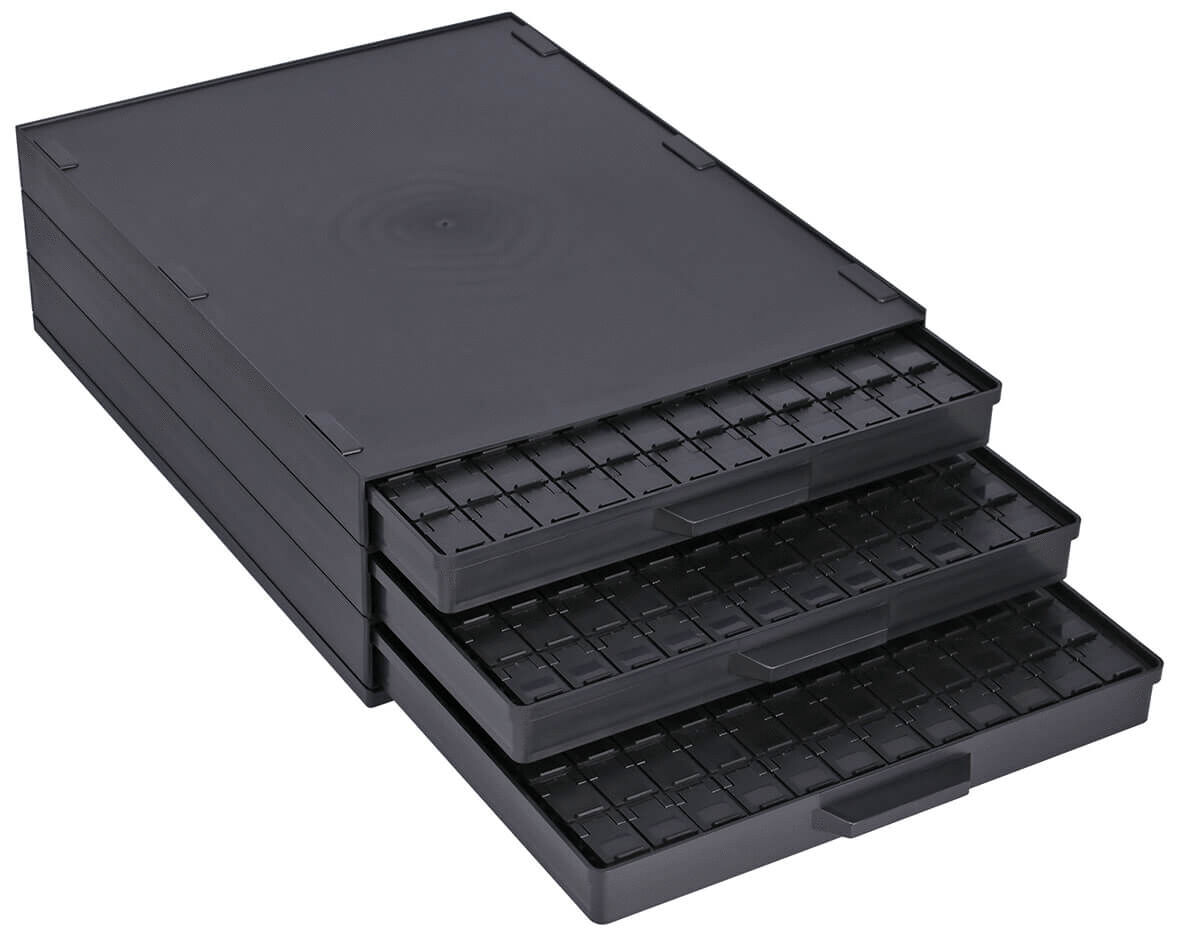

Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0

The complete cabinet produced by Licefa is specifically designed for the clear storage and ready provision of SMD components. This conductive model of size 2.0 is developed according to the ESD standard DIN EN 61340-5-1 and offers electrostatic volume conductivity to protect sensitive electronic components.
The cabinet includes three drawers, each containing 144 folding boxes of type N1 in black color, resulting in a total of 432 boxes. Each box measures 340 mm in length, 250 mm in width, and 22 mm in height. The folding boxes are designed to open easily and close securely, remaining upright when opened. Additionally, labels can be easily attached for marking.
The surface resistance of the boxes ranges from 10^3 to 10^5 Ohms, ensuring the safe storage of electrostatically sensitive components. These features make the cabinet an ideal solution for technical environments that require efficient and safe handling of SMD components.
Folding boxes
Folding boxes
432
Drawers
Drawers
3
Size
Size
N1 (small)
Color
Color
black
Internal height
22 mm
Internal length
340 mm
Internal width
Internal width
250 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Version
Version
with black lid
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Spares

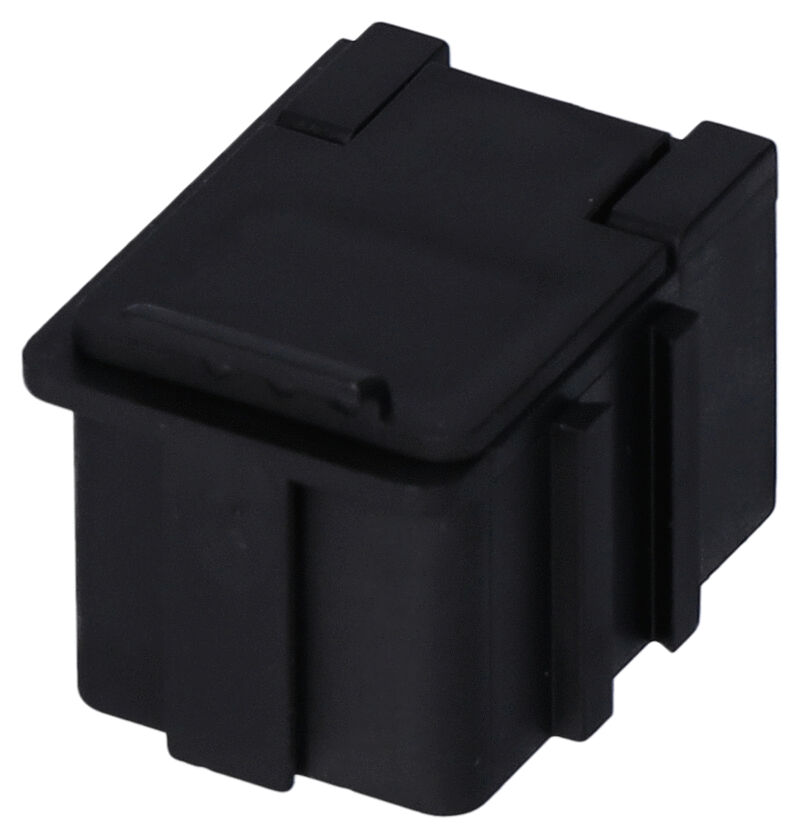

The image shows a small, rectangular black plastic container with a rounded top edge. It has two lateral protrusions and a flat top with a ridge.
SMD folding box size N1 (small), conductive...
SMD folding box N 1, size 1 -small-
16 x 12 x 15 mm inside, electrically conductive
lid + base black,
DIN EN 61340-5-1
dpvlink
791

1.05 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 331
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Complete cabinets with SMD folding boxes

Complete cabinet size 2.0 - conductive, SMD folding boxes
(Drawer inside 340 x 250 x 22 mm) electrostatically volume conductive

Our complete cabinets with SMD hinged boxes offer an optimum solution for the clear and handy storage of SMD components. The drawers are specially designed to perfectly integrate size 2.0 SMD hinged boxes so that you always have your components organized and easily accessible. The drawers are easy to open and close, making it quick to remove and return the SMD hinged boxes.

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
ESD
Folding boxes
Drawers
Size
Price
Compare
046.130.MIX - Cabinet 4 drawers with SMD folding boxes, conductive, size 2.0
046.130.MIX
Cabinet 4 drawers with SMD folding boxes, conductive, size 2.0
268
4
N1, N2, N3, N4
420.75 CHF
046.130.1 - Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0
046.130.1
Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0
432
3
N1 (small)
458.25 CHF
046.130.2 - Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0
046.130.2
Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0
216
3
N2 (medium)
353.30 CHF
046.130.3 - Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0
046.130.3
Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0
108
3
N3 (large)
243.25 CHF
046.130.4 - Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0
046.130.4
Cabinet 3 drawers with SMD folding boxes, conductive, size 2.0
48
3
N4 (maxi)
177.35 CHF
046.130.MIX-LS - Cabinet 4 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
046.130.MIX-LS
Cabinet 4 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
268
4
N1, N2, N3, N4
618.70 CHF
046.130.1-LS - Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
046.130.1-LS
Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
432
3
N1 (small)
779.05 CHF
046.130.2-LS - Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
046.130.2-LS
Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
216
3
N2 (medium)
520.35 CHF
046.130.3-LS - Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
046.130.3-LS
Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
108
3
N3 (large)
342.15 CHF
046.130.4-LS - Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
046.130.4-LS
Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
48
3
N4 (maxi)
232.80 CHF
