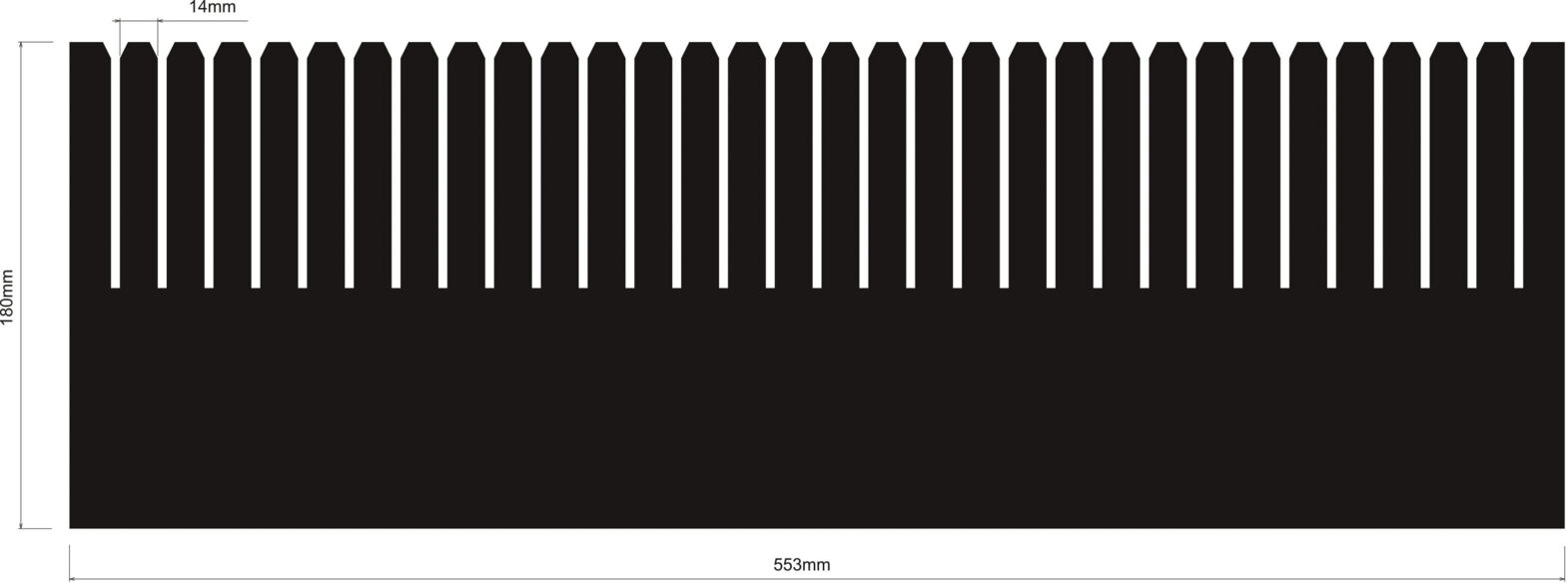

PP Partition length 553 mm / height 180 mm / grid 14 mm ESD
(Product No.: 050.241.180.14.AS)
Notice / Inquire

PP Partition length 553 mm / height 180 mm / grid 14 mm ESD

dpvlink:
4058
Manufacturer:
Grid spacing:
14 mm
Compartments:
30
Slots:
31
External support:
yes
Properties:
Find out more about EPAstore®
Further product information
Printing interlayers / Parting inserts
configure_now
Parting inserts
configure_now


chevron-down
4.70 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

PP Partition length 553 mm / height 180 mm / grid 14 mm ESD

The PP web wall from EPAstore, manufactured by DPV, offers an optimal solution for the transport and storage of electrostatically sensitive components with a length of 553 mm, a height of 180 mm, and a grid of 14 mm. The extruded polypropylene used, featuring a hollow chamber profile, is not only abrasion-resistant and lightweight but also volume conductive according to the ESD standard DIN EN 61340-5-1, ensuring reliable protection against uncontrolled electrostatic discharges.
The web wall is available in black and has a surface weight of 600 g/m². It is specifically designed for Euro containers of size 600 x 400 mm, with a standard thickness of 3 mm; an adjustment to 3.5 mm is possible upon request. With 31 slots and an outer web of approximately 10 mm, this product enables efficient subdivision and secure storage of your components. Additionally, the web wall can be equipped with viewing and grip cutouts to facilitate the removal of components and can be customized and printed according to customer specifications.
Ideal for structured and secure handling of ESD-sensitive components, the PP web wall can be flexibly integrated into existing storage and transport systems.
Grid spacing
Grid spacing
14 mm
Compartments
Compartments
30
Slots
Slots
31
External support
External support
yes
Color
Color
black
Height
Height
180 mm
Length
Length
553 mm
Thickness
Thickness
3 mm
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
<10^6 Ω
Material
Material
polypropylene
Material structure
Material structure
cavity material
Suitable for containers
Suitable for containers
600x400 mm
Weight per unit area [g/m²]
Weight per unit area [g/m²]
600
Find out more about EPAstore®
Pictograms
Material PP
High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.
ESD-compliant
Customizable
Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 310
Complete Catalog 2023 - 2024
EPAstore® ESD Interlayers | Parting inserts - Individual packaging solutions
Configurators:
Printing interlayers / Parting inserts
Configurators:
Parting inserts

Product Family

Standard PP partitions, length 553 mm / height 180 mm

These extruded polypropylene partitions with a cavity profile protect your components and assemblies from uncontrolled electrostatic discharge during storage and transportation. They enable the organized and layered transport and storage of electronic components. In combination with interlayers and Euro containers, they are ideal for transporting ESD-sensitive components. Discover now.

Extruded polypropylene with a cavity profile impresses with its high abrasion resistance and low weight. The material is electrostatically conductive and complies with the ESD standard DIN EN 61340-5-1.

The partitions can be fitted with any number of viewing cut-outs and recessed grips to make it easier to remove the stored components. In addition, the partition walls can be customized and printed to suit any application.



PP partition 553 x 180 x 3 mm, for Euro containers 600 x 400 mm (thickness 3.5 mm on request)



Configure now




Article image
Article description
ESD
Grid spacing
Compartments
Slots
External support
Price
Compare
050.241.180.10.AS - PP Partition length 553 mm / height 180 mm / grid 10 mm ESD
050.241.180.10.AS
PP Partition length 553 mm / height 180 mm / grid 10 mm ESD
10 mm
40
41
yes
5.15 CHF
050.241.180.14.AS - PP Partition length 553 mm / height 180 mm / grid 14 mm ESD
050.241.180.14.AS
PP Partition length 553 mm / height 180 mm / grid 14 mm ESD
14 mm
30
31
yes
4.70 CHF
050.241.180.20 - PP Partition length 553 mm / height 180 mm / grid 20 mm ESD
050.241.180.20
PP Partition length 553 mm / height 180 mm / grid 20 mm ESD
20 mm
24
23
no
3.40 CHF
050.241.180.23.A - PP Partition length 553 mm / height 180 mm / grid 23 mm ESD
050.241.180.23.A
PP Partition length 553 mm / height 180 mm / grid 23 mm ESD
23 mm
20
21
yes
3.45 CHF
050.241.180.34 - PP Partition length 553 mm / height 180 mm / grid 34 mm ESD
050.241.180.34
PP Partition length 553 mm / height 180 mm / grid 34 mm ESD
34 mm
15
14
no
3.35 CHF
050.241.180.43 - PP Partition length 553 mm / height 180 mm / grid 43 mm ESD
050.241.180.43
PP Partition length 553 mm / height 180 mm / grid 43 mm ESD
43 mm
12
11
no
3.20 CHF
050.241.180.52 - PP Partition length 553 mm / height 180 mm / grid 52 mm ESD
050.241.180.52
PP Partition length 553 mm / height 180 mm / grid 52 mm ESD
52 mm
10
9
no
3.00 CHF
050.241.180.66 - PP Partition length 553 mm / height 180 mm / grid 66 mm ESD
050.241.180.66
PP Partition length 553 mm / height 180 mm / grid 66 mm ESD
66 mm
8
7
no
2.85 CHF
050.241.180.76 - PP Partition length 553 mm / height 180 mm / grid 76 mm ESD
050.241.180.76
PP Partition length 553 mm / height 180 mm / grid 76 mm ESD
76 mm
7
6
no
2.75 CHF
050.241.180.84 - PP Partition length 553 mm / height 180 mm / grid 84 mm ESD
050.241.180.84
PP Partition length 553 mm / height 180 mm / grid 84 mm ESD
84 mm
6
7
yes
2.85 CHF
050.241.180.101 - PP Partition length 553 mm / height 180 mm / grid 101 mm ESD
050.241.180.101
PP Partition length 553 mm / height 180 mm / grid 101 mm ESD
101 mm
5
6
yes
2.75 CHF
050.241.180.127 - PP Partition length 553 mm / height 180 mm / grid 127 mm ESD
050.241.180.127
PP Partition length 553 mm / height 180 mm / grid 127 mm ESD
127 mm
4
5
yes
2.65 CHF
050.241.180.170 - PP Partition length 553 mm / height 180 mm / grid 170 mm ESD
050.241.180.170
PP Partition length 553 mm / height 180 mm / grid 170 mm ESD
170 mm
3
4
yes
2.60 CHF
050.241.180.257 - PP Partition length 553 mm / height 180 mm / grid 257 mm ESD
050.241.180.257
PP Partition length 553 mm / height 180 mm / grid 257 mm ESD
257 mm
2
3
yes
2.50 CHF
