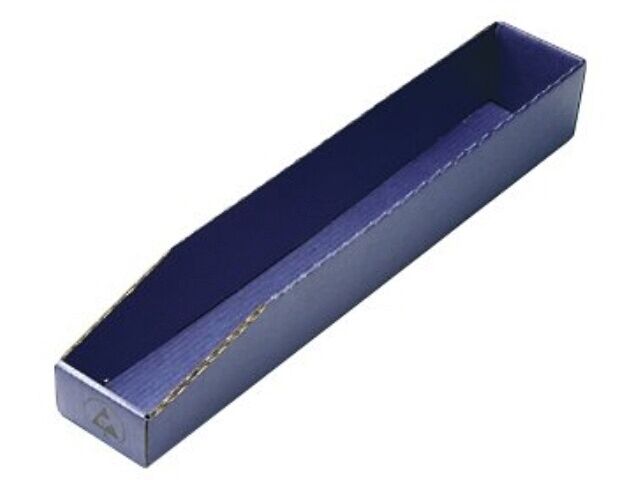

The image shows a narrow, elongated, open box made of cardboard-like material. It is dark blue in color and not very deep. The edges are straight and slightly reinforced.
CORSTAT Storage box for IC bars, open 630x95x95 mm
(Product No.: 5510.095)
The image shows a narrow, elongated, open box made of cardboard-like material. It is dark blue in color and not very deep. The edges are straight and slightly reinforced.
Notice / Inquire

CORSTAT Storage box for IC bars, open 630x95x95 mm

dpvlink:
757
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


5.90 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

CORSTAT Storage box for IC bars, open 630x95x95 mm

This corrugated cardboard IC rod storage box offers an optimal solution for the secure storage and transport of electrostatically sensitive components. The box, coated and sealed for electrostatic conductivity both inside and outside, is certified according to the ESD standard DIN EN 61340-5-1, thus ensuring compliance with relevant safety standards. With an internal dimension of 630x95x95 mm, the box is specifically designed for IC rods.
The high shielding property is enhanced by the ++Safeshield++ protection, and the typical surface resistance is between 10^9 and 10^10 Ohms. The blue color and the warning print contribute to clear labeling. Additionally, the box is recyclable, making it an environmentally friendly choice. The FEFCO code 0423 confirms the construction and quality of the storage box. Ideal for professionals who value safety, compliance, and environmental protection.

Color
Color
blue
Internal height
95 mm
Internal length
630 mm
Internal width
Internal width
95 mm
Conductivity
Conductivity
shielding / dissipative
Electrostatic shielding
Electrostatic shielding
<20 nJ
Surface resistance Rs
Surface resistance Rs
104 - < 1011 Ω
Material
Material
corrugated board
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!
Configurators:
Imprinting / Printing for boxes

Product Family

CORSTAT Storage box for IC bars, open

The IC bar storage box made of corrugated cardboard offers a high level of electrostatic shielding against electrostatic discharges and fields thanks to the Safeshield packaging material. It is suitable for internal storage and external shipping. The storage boxes have the following common properties:

  • reusable
  • blue
  • Inner/outer cover permanently dissipative and abrasion-resistant
  • typical surface resistance inner/outer cover RS = 109 - 1010 Ω
  • High shielding capacity due to conductive inner layer
  • electrostatic shielding < 1 nJ (Energy Bag Test)
  • recyclable
  • in compliance with ESD standard DIN EN 61340-5-1

Article image
Article description
ESD
inside LxWxH
Color
Conductivity
Electrostatic shielding
Surface resistance Rs
Material
Price
Compare
5510.095 - CORSTAT Storage box for IC bars, open 630x95x95 mm
5510.095
CORSTAT Storage box for IC bars, open 630x95x95 mm
630 x 95 x 95 mm
blue
shielding / dissipative
<20 nJ
104 - < 1011 Ω
corrugated board
5.90 CHF
5510.195 - CORSTAT Storage box for IC bars, open 630x195x95 mm
5510.195
CORSTAT Storage box for IC bars, open 630x195x95 mm
630 x 195 x 95 mm
blue

<20 nJ
104 - < 1 x 1011 Ω
corrugated board
7.00 CHF
