DRY-SHIELD protective bags

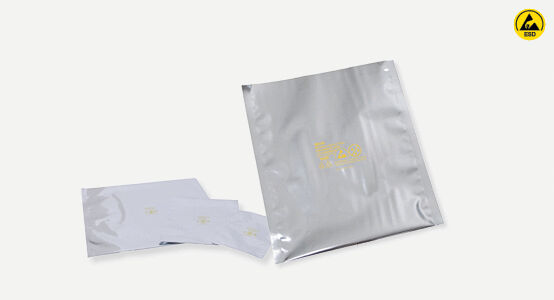

DRY-SHIELD protective bags are moisture-impermeable, metallized barrier bags with a multilayer structure made of dissipative polyethylene, polyester and aluminium-coated polyester film. They offer reliable protection against moisture and electrostatic charge and are therefore suitable for the safe storage and transportation of electrostatically sensitive electronic components.

In combination with desiccants and moisture indicators from EPApack®, protection against moisture and electrostatic charge is guaranteed even under demanding environmental conditions.

The standard imprint includes the ESD marking, the humidity symbol, the type designation, the recycling symbol and the LOT number.

EPApack® - ESD packaging solutions





The image shows several silver packages lying open to the side, and beneath them is a green circuit board with multiple components and chips visible.
TOP
TOP
DRY-Shield ESD protective bag DPV-2000 254 x 305 mm
ESD / Width : 254 mm / Length : 305 mm / Thickness : 0.09 mm / PU: 100 piece
DRY Shield protective bag ESD type DPV-2000
"EPApack" 254 x 305 mm (10 x 12"), shielding bag
with moisture protection, DIN EN 61340-5-1

in compliance with MIL-PRF-81705 and ANSI/ ESD STM11.31

Product No.: D-2000.1012
36.20 CHF
excl. 8.1% tax
  Show product
A silver, smooth foil pouch with golden lettering in the center. The pouch has a hole in one corner for hanging or attaching.
Dri-Shield® 2000 protective bag 3M-SCS 406 x 457 mm
ESD / Width : 406 mm / Length : 457 mm / Thickness : 0.09 mm / PU: 100 piece
3M-SCS Dri-Shield 2000 protective bag 406 x 457 mm
Shielding / barrier bag with moisture protection
(DIN EN 61340-5-1)

+ corresponds to MIL-B81705, EIA 583, ESD S541, EIA625, ANSI/ESD S20. 20 +

Product No.: 3M-700.1618
164.35 CHF
excl. 8.1% tax
  Show product
The image displays a small circuit board in the lower left corner, surrounded by two silver foil bags and a black coil on the right side of the picture.
DRY-SHIELD-JEDEC protective bag 254 x 660 mm
ESD / Width : 254 mm / Length : 660 mm / Thickness : 0.15 mm / PU: 100 piece
Dry-Shield JEDEC protective bags 254 x 660 mm
Shielding / barrier bags with moisture protection
(DIN EN 61340-5-1)

+ correspond to JEDEC-STD-033 B +

Product No.: 3710.DR150.1026
145.90 CHF
excl. 8.1% tax
  Show product
The image shows several silver foil envelopes. Inside one of the envelopes is a black vinyl record. The envelopes vary in size and are partially stacked on top of each other.
DRY-SHIELD protective bag 152 x 660 mm
ESD / Width : 152 mm / Length : 660 mm / Thickness : 0.09 mm / PU: 100 piece
Dry-Shield EMI protective bags 152 x 660 mm
Shielding / barrier bags with moisture protection
(DIN EN 61340-5-1)

+ correspond to MIL B81705 type 1 class 1 +

Product No.: 3710.DR.0626
64.20 CHF
excl. 8.1% tax
  Show product
The image shows three silver packages, two smaller envelopes next to a larger one. The surfaces are shiny and reflect light. They appear hygienic and neutral.
DRY-SHIELD type A shielding bag 406 x 660 mm
ESD / Width : 406 mm / Length : 660 mm / Thickness : 0.09 mm / PU: 100 piece
Dry-Shield protective bag - type A 406 x 660 mm
Shielding bag with protection against moisture
(DIN EN 61340-5-1)

+ corresponds to MIL-B81705 type 1 class 1 +.

Product No.: 3715.DR.1626.A
115.75 CHF
excl. 8.1% tax
  Show product
1 to 5 (from a total of 5)
