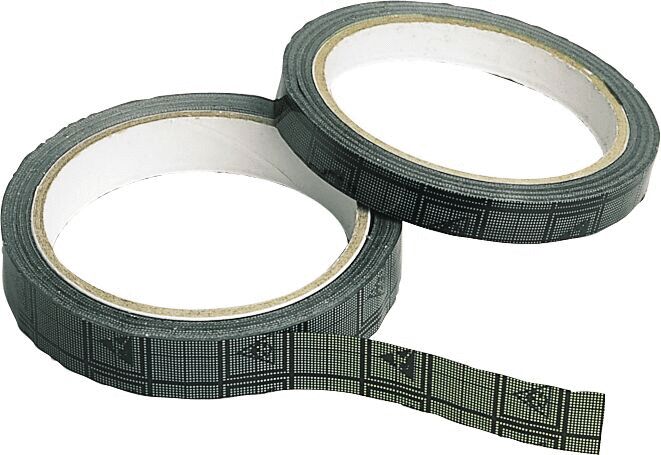

The image shows two rolls of dark tape stacked on top of each other. One roll has a piece of tape unrolled. The tape features a simple, patterned design.
PP Grid Adhesive Tape 48 mm x 36 m
(Product No.: 2820.3462.48)
The image shows two rolls of dark tape stacked on top of each other. One roll has a piece of tape unrolled. The tape features a simple, patterned design.
Notice / Inquire

PP Grid Adhesive Tape 48 mm x 36 m

dpvlink:
1421
Width :
48 mm
Roll length:
36 m
Core diameter:
76 mm
Properties:
Further product information

chevron-down
5.90 CHF
per RO

excl. 8.1% tax

1 RO
Compare Compare
Notice / Inquire
Product Info

PP Grid Adhesive Tape 48 mm x 36 m

The PP grid adhesive tape, with a width of 48 mm and a roll length of 36 m, is specifically designed for use in ESD areas, where work is done with electrostatically sensitive devices and components. This conductive grid tape is characterized by antistatic properties on both the inner and outer surfaces, which are resistant to delamination, peeling, cracking, chipping, or abrasion.
The material consists of polypropylene with a solvent-based acrylic adhesive, and the tape can be stored at ambient temperatures from 0 to 60 °C.

Tensile Strength

  • MD (Machine Direction): 4,000 psi
  • CD (Cross Direction): 11,000 psi

Elongation

  • MD (Machine Direction): 65%
  • CD (Cross Direction): 20%

Antistatic Copolymer Adhesive Layer:

  • 1 × 10⁹ Ω

Conductive Grid Layer:

  • 10⁴ to 10⁵ Ω

Antistatic Copolymer Layer:

  • 8 × 10¹² Ω
Width
Width
48 mm
Roll length
Roll length
36 m
Core diameter
Core diameter
76 mm
Thickness
Thickness
0.049 mm
Bleeder resistance
Bleeder resistance
104 - 105 Ω
Material
Material
polypropylene / Solvent-based acrylic adhesive
ESD
ESD
yes
Ambient temperature (storage conditions)
Ambient temperature (storage conditions)
0 - 60 °C
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Product Family

PP Grid Adhesive tape

Conductive grid tape with ESD marking for use in ESD areas where ESDS (electrostatic discharge sensitive) components and devices are handled. This tape has antistatic inner and outer surfaces, without peeling, flaking, cracking, chipping, or abrasion of the inner layer grid, whose combination offers excellent properties for the most effective prevention of static charge and shielding applications.


Article image
Article description
ESD
Width
Roll length
Core diameter
Price
Compare
2820.3462.12 - PP Grid Adhesive Tape 12 mm x 36 m
2820.3462.12
PP Grid Adhesive Tape 12 mm x 36 m
12 mm
36 m
76 mm
2.35 CHF
2820.3462.18 - PP Grid Adhesive Tape 18 mm x 36 m
2820.3462.18
PP Grid Adhesive Tape 18 mm x 36 m
18 mm
36 m
76 mm
3.40 CHF
2820.3462.24 - PP Grid Adhesive Tape 24 mm x 36 m
2820.3462.24
PP Grid Adhesive Tape 24 mm x 36 m
24 mm
36 m
76 mm
3.30 CHF
2820.3462.48 - PP Grid Adhesive Tape 48 mm x 36 m
2820.3462.48
PP Grid Adhesive Tape 48 mm x 36 m
48 mm
36 m
76 mm
5.90 CHF
