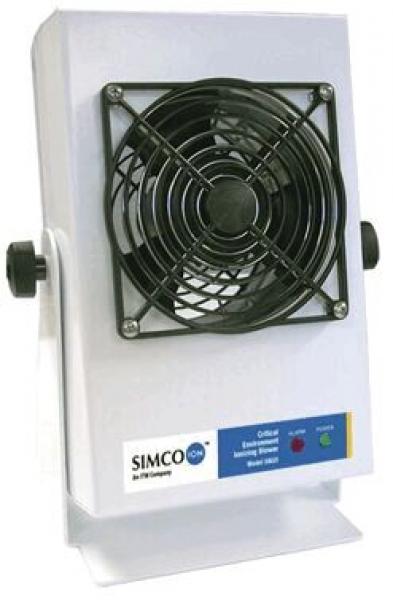

The image shows a white fan with a large, round grille at the front. It has a rotary knob on the side and a small display below, which may indicate the operational status.
Ionizing blower 5802i CXL - mobile tabletop model
(Product No.: 7500.CXL)
The image shows a white fan with a large, round grille at the front. It has a rotary knob on the side and a small display below, which may indicate the operational status.
Notice / Inquire

Ionizing blower 5802i CXL - mobile tabletop model

dpvlink:
24155
Discharge time max.:
1 - 2 s
Ozone generation max.:
0.008 ppm
Properties:
Which cleanroom class is the right one? Find out now!
Further product information

1,356.35 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Ionizing blower 5802i CXL - mobile tabletop model

The Ionensprühgebläse 5802i CXL is a mobile tabletop device designed for high-precision elimination of static charges in ESD-sensitive environments. It provides reliable, quick control of static charges for work areas and small spaces, enabling optimal electrostatic management that minimizes costs and maximizes protection for ESD-sensitive areas. Additionally, it can be connected to FMS systems.

  • Large ionization area: 30 x 150 cm for efficient static neutralization.
  • Intelligent feedback: Sensor in the target area sends real-time data to the internal control system.
  • Rapid fault detection: Immediate notification through FMS about ionization disturbances.
  • Enhanced connectivity: Control box can be connected to optional feedback systems and FMS interfaces.
  • Compact design: Ideal for installation in tight and hard-to-reach areas.
  • Minimal ozone output: Only 0.008 ppm at 15 cm distance.
  • Flexible usage: Tabletop model with 24V DC operation or use via power supply.



Discharge time max.
Discharge time max.
1 - 2 s
Ozone generation max.
Ozone generation max.
0.008 ppm
ISO according to 14644-1
ISO according to 14644-1
4
Coverage
Coverage
300 x 1500 mm
Depth
Depth
61 mm
Height
Height
83 mm
Width
Width
115 mm
Which cleanroom class is the right one? Find out now!
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Product Family

Ionizing blower 5802i CXL - mobile tabletop model

The 5802i CXL Ion Spray Blower is a mobile benchtop unit designed for high-precision static elimination in ESD-sensitive environments. It provides reliable, fast static control for work areas and small spaces, enabling optimal electrostatic management that minimizes costs and maximizes protection for ESD-sensitive areas. It can also be connected to FMS systems.

  • Ionization performance: It uses a steady-state DC ion emission technology that enables self-balancing of the offset voltage to ±3 V (or ±1 V with the optional Novx sensor system). This ensures high-precision protection against electrostatic discharge (ESD).
  • The Novx sensor system enables real-time feedback to maintain balance and adapt to environmental changes.
  • Operational flexibility: The fan supports adjustable fan speeds (low/high) and has alarm functions (LED and optional audible alarms) for high operational safety. It operates effectively in controlled environments such as cleanrooms (certified to ISO 14644-1 Class 4).
  • Specifications: It operates with a discharge time of less than 1 second (±1000V to ±100V) with the collimator installed at a distance of 12 inches from the target. The noise level is between 51 and 62 dB, depending on fan speed, and ozone generation is minimal (0.008 ppm).
  • Design: The unit is compact and lightweight and can be wall or table mounted. It is powered by 24 VDC or is compatible with external AC power supplies.
  • An optional collimator directs the ionized air directly at the target, improving airflow and static neutralization from a greater distance.
  • It also has a sensor input and FMS interfaces
  • The optional auto-clean system reduces maintenance by automatically cleaning the emitter points when switching off and on.
  • Suitable for use in cleanrooms ISO 4 / cleanroom class 10
  • Dimensions: 115 x 83 x 61 mm (WxHxD)
