Drying storage cabinet HSD 1104-52

(Product No.: TO-HSD-1104-52)

(Product No.: TO-HSD-1104-52)

Drying storage cabinet HSD 1104-52

ArticleNo: TO-HSD-1104-52

dpvlink:

27401

Shelves:

Volume:

1179 l

Width :

1200 mm

Height :

1675 mm

Depth :

658 mm

Properties:

Further product information

Compare

Notice / Inquire

Product Info

Drying storage cabinet HSD 1104-52

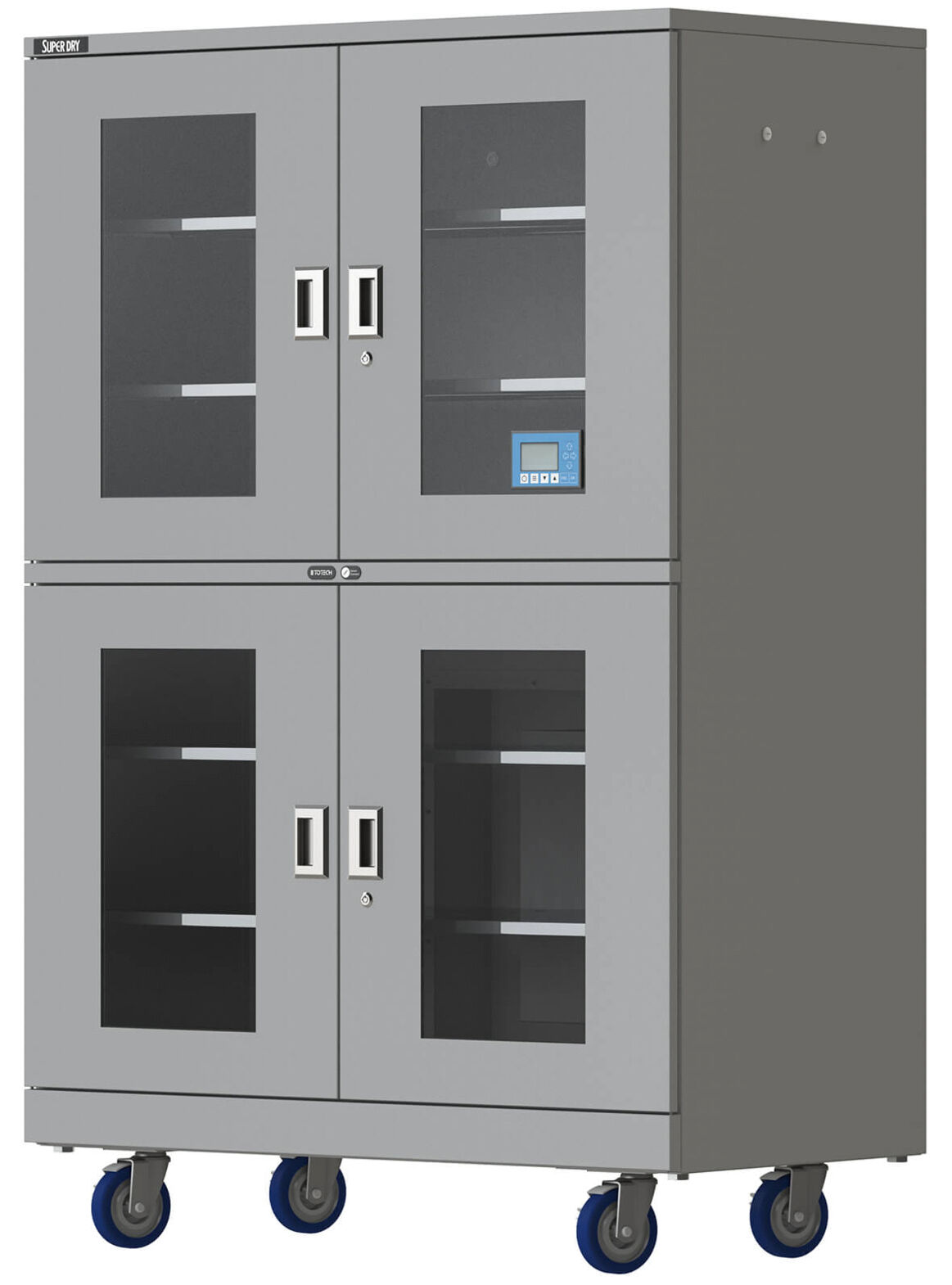

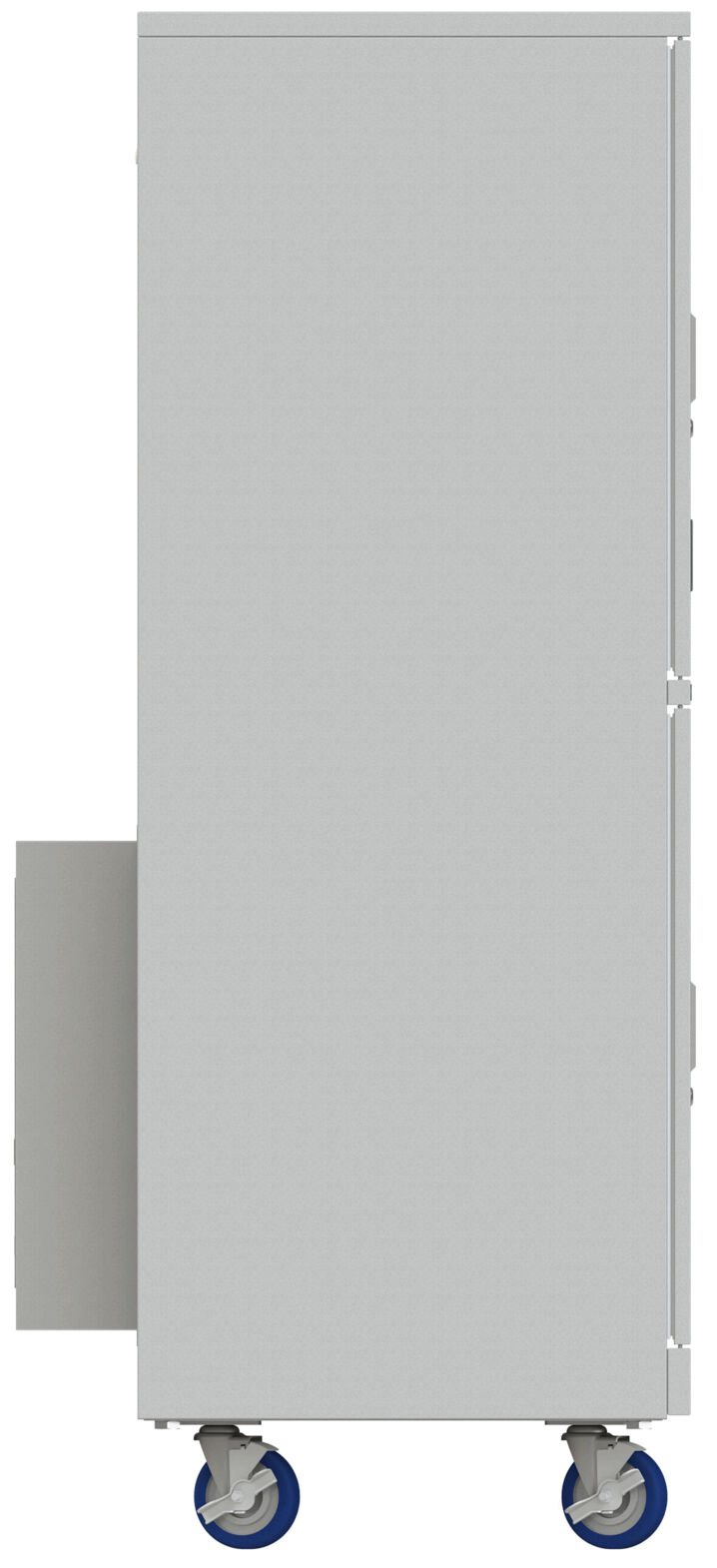

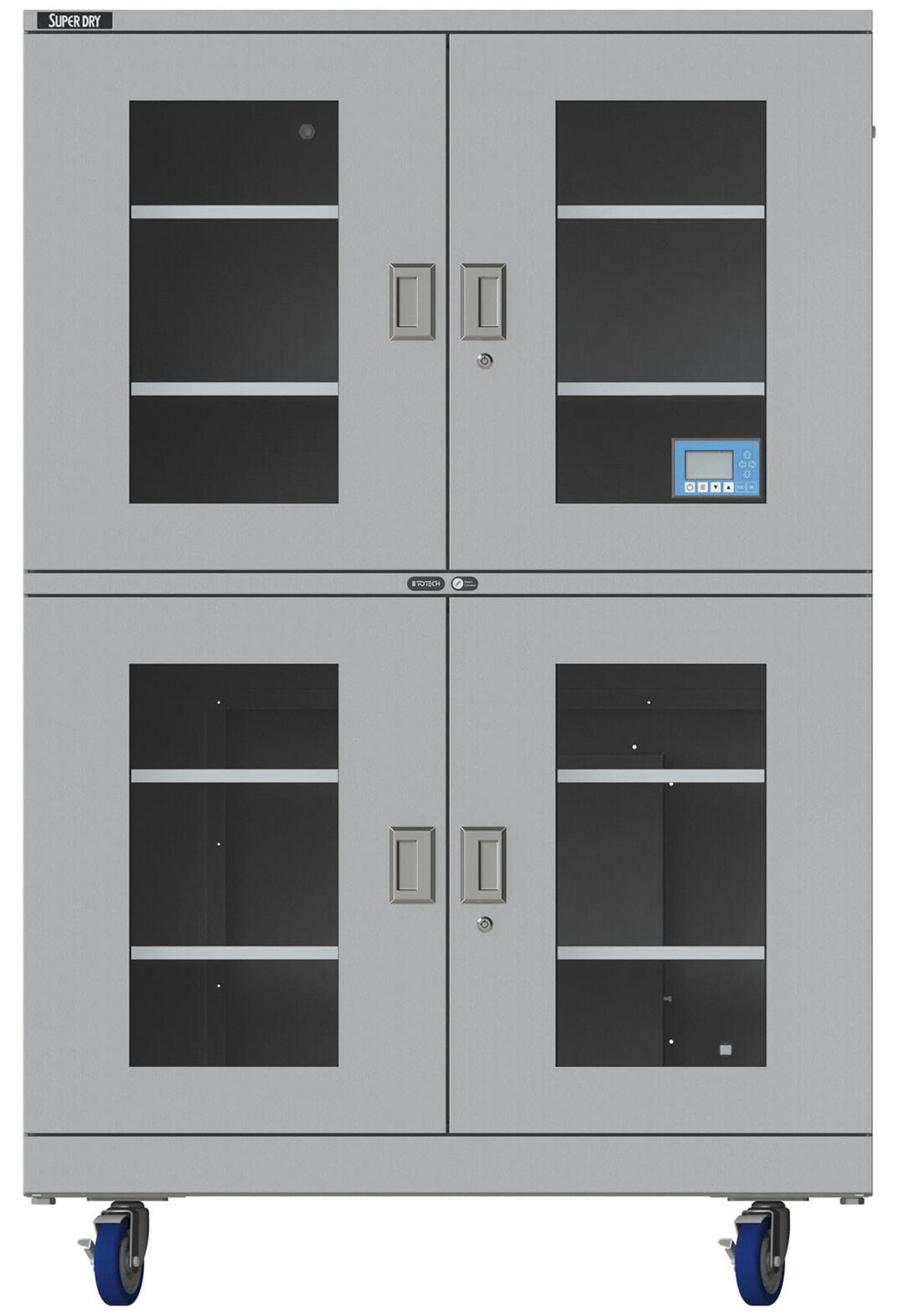

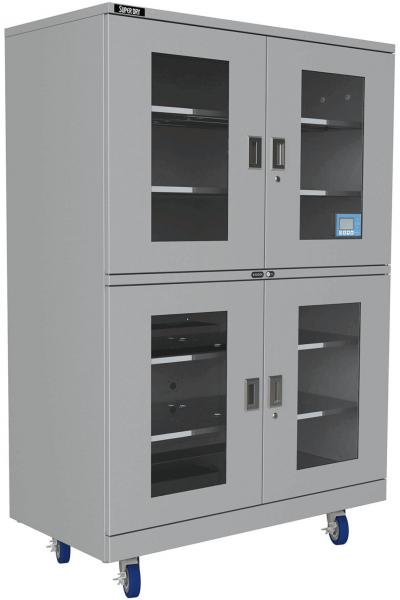

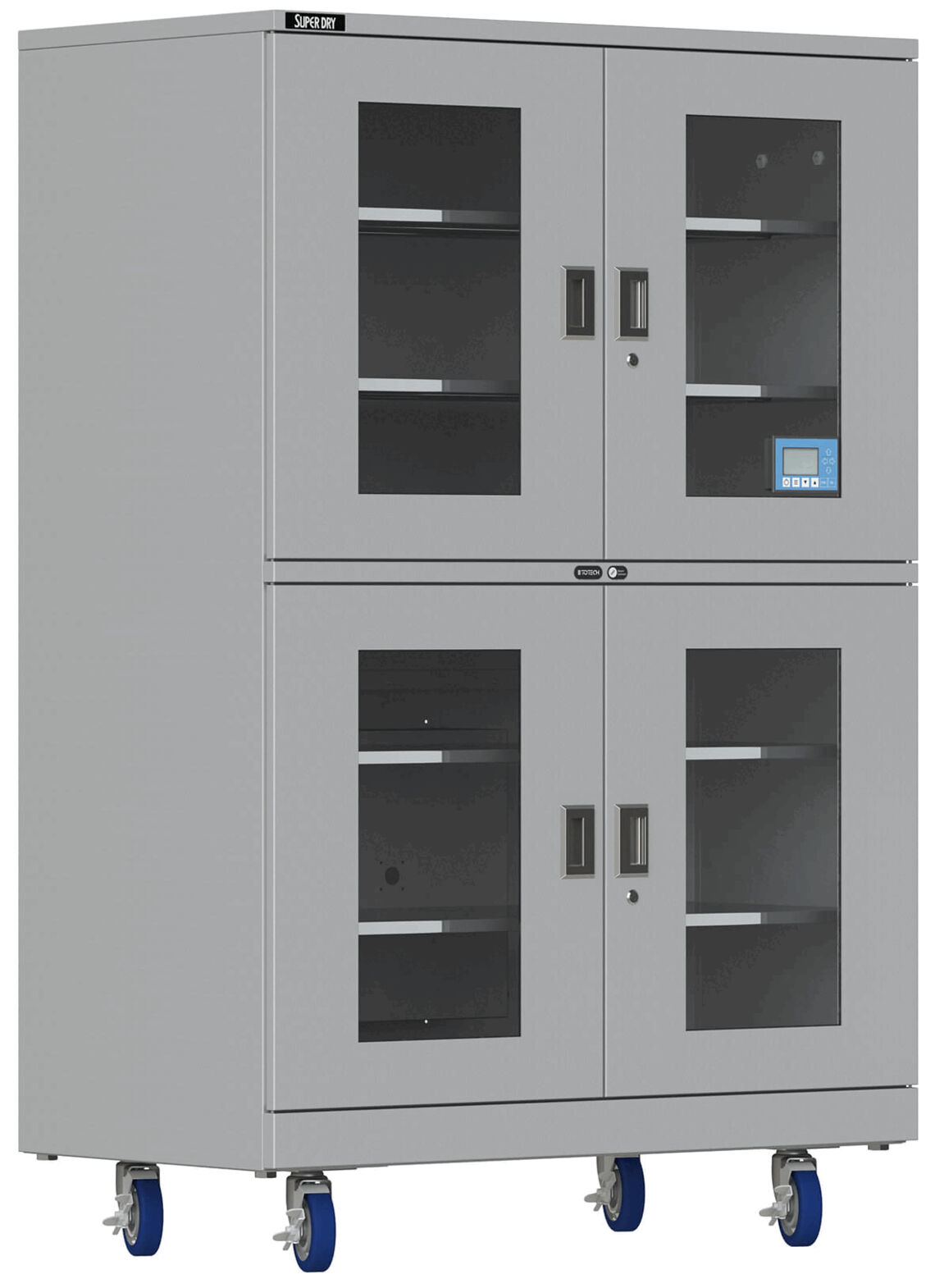

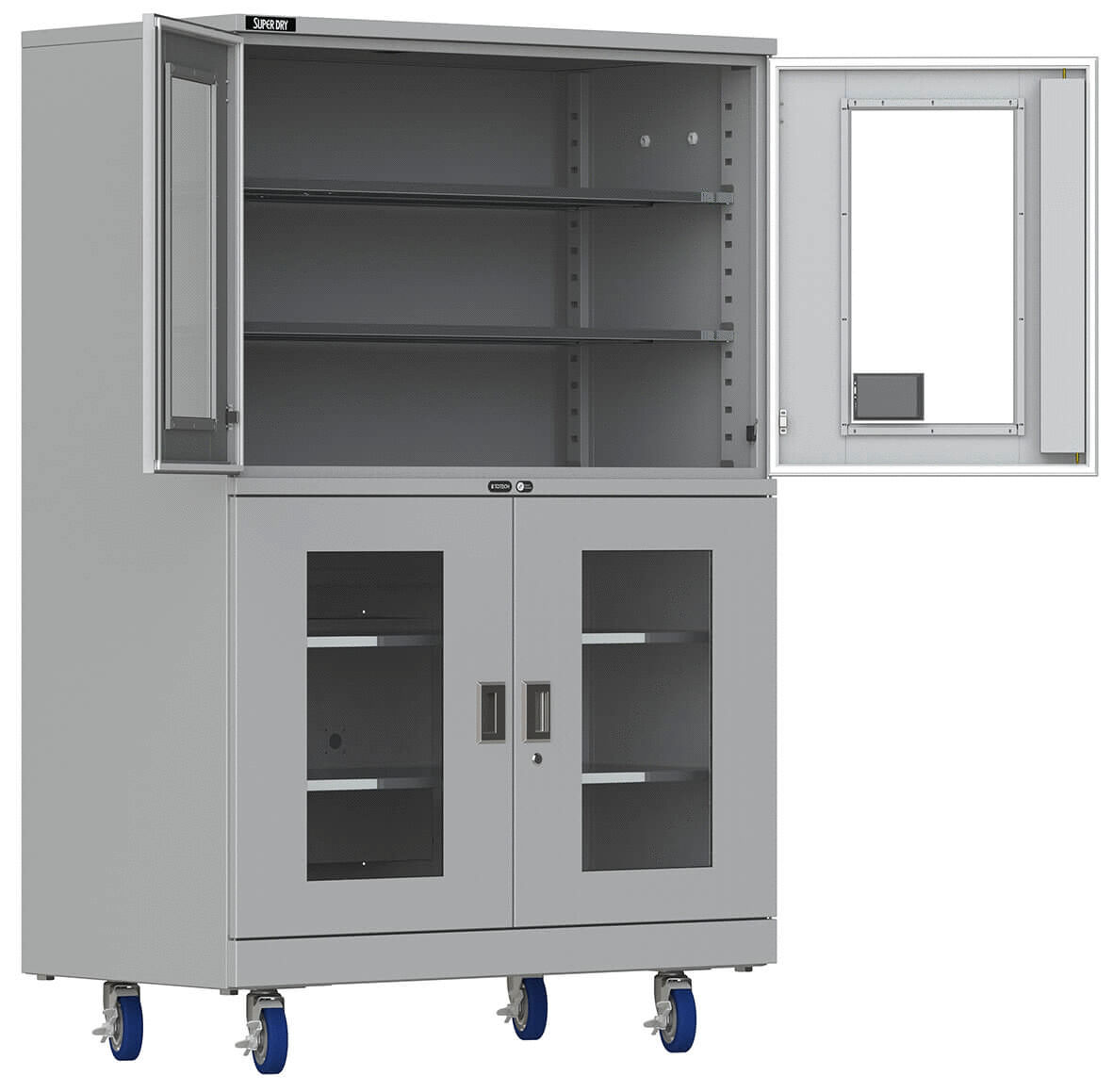

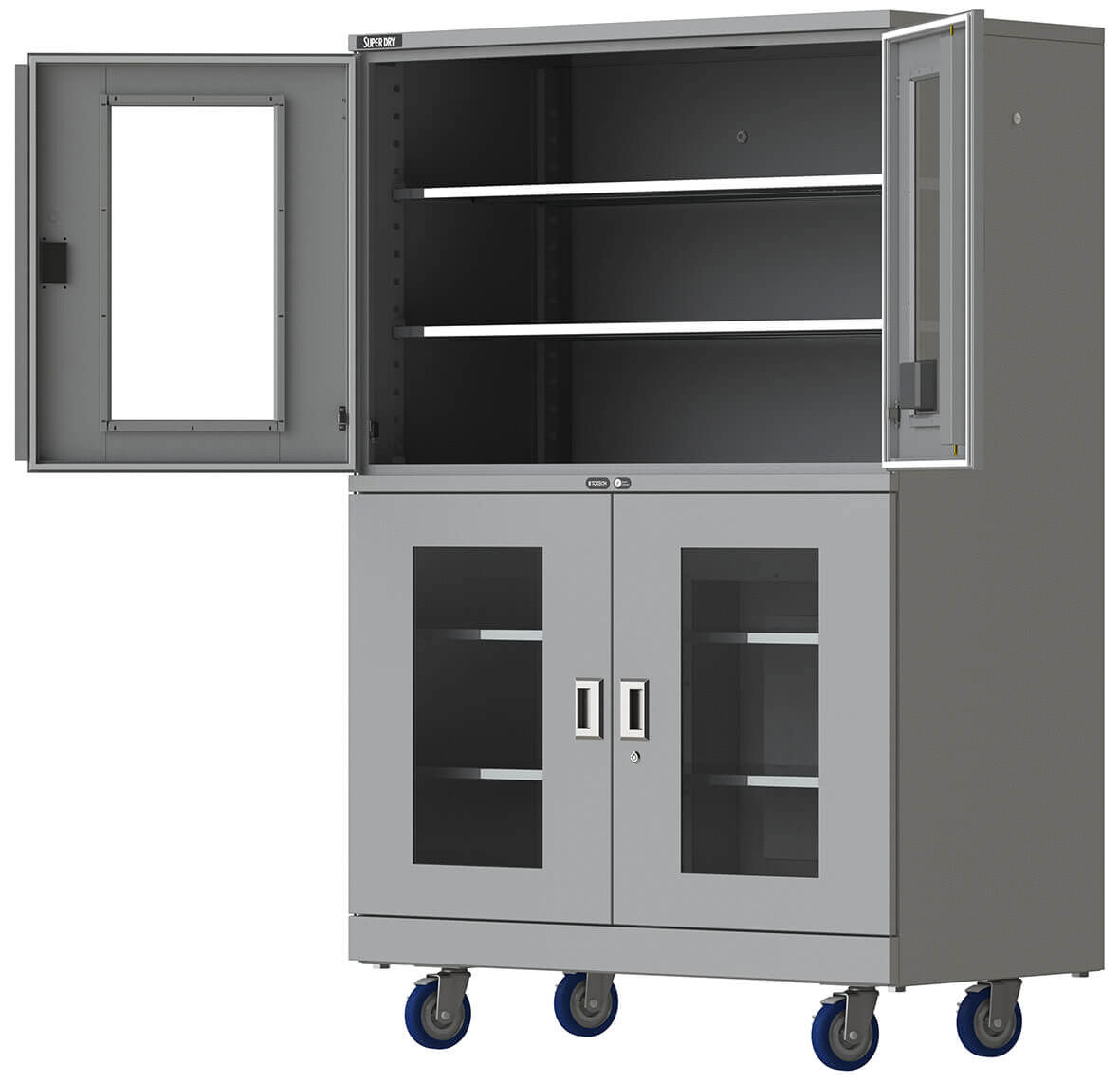

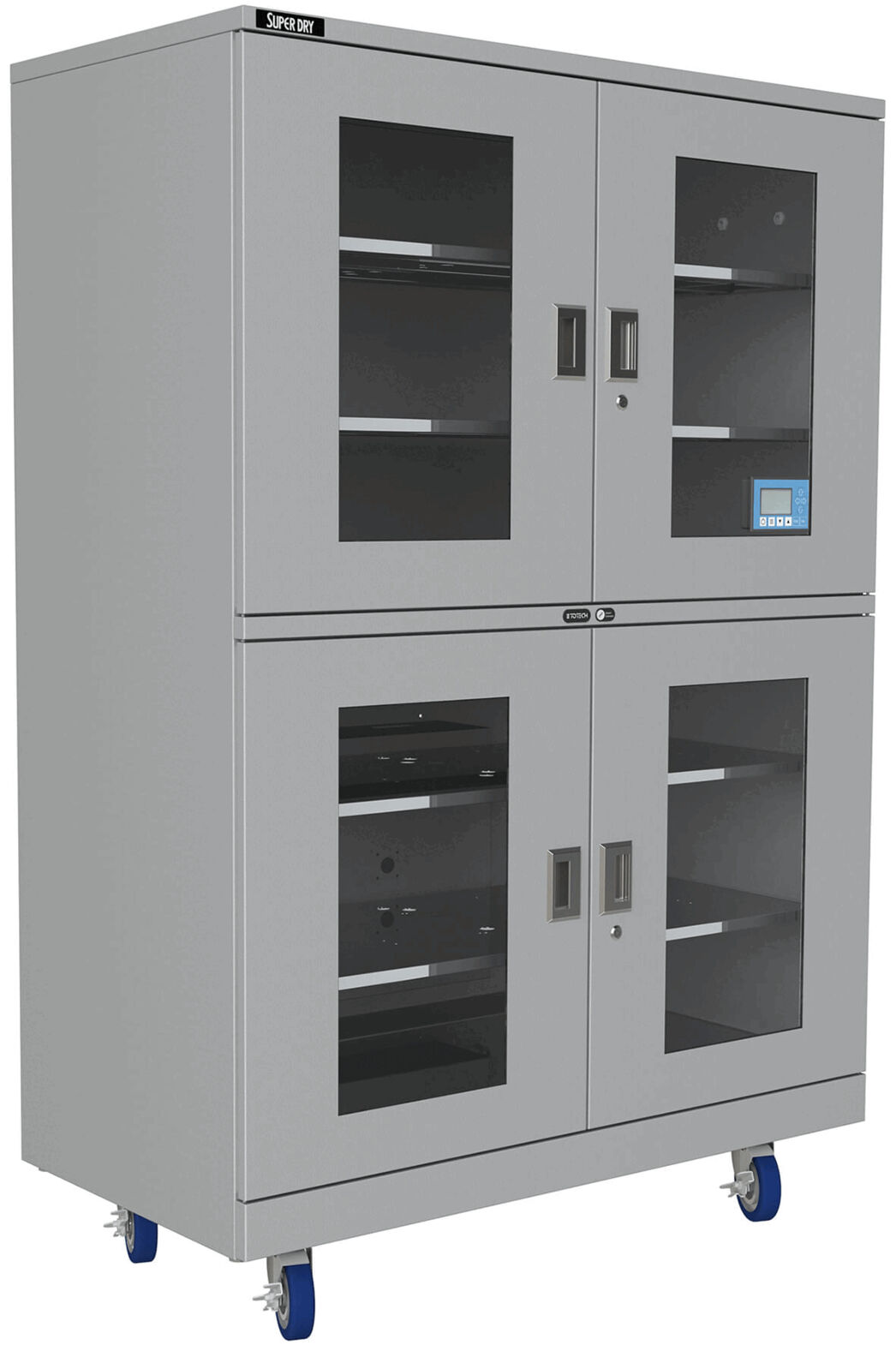

The Totech SuperDry HSD 1104-52 drying cabinet combines functionality and safety for demanding industrial applications. With a robust steel housing and overall dimensions of 1200 mm width, 1675 mm height, and 658 mm depth, this cabinet offers a volume of 1179 liters. The interior dimensions are 1190 mm in width, 1533 mm in height, and 630 mm in depth, allowing a maximum load capacity of 300 kg, with a load capacity of 50 kg per shelf.
The model features five shelves and is equipped with 360° casters that ensure easy maneuverability and have brakes. The doors are lockable and provide Class 1 protection. The drying cabinet is ESD-safe and meets the ESD standard DIN EN 61340-5-1.
Technical highlights include an integrated data logger, Totech Viewer software, and an Ethernet interface for efficient monitoring and management. The drying unit is maintenance-free and keeps the relative humidity consistently below 0.5%. Additional features like forced air circulation and a precise sensor with a measurement accuracy of +/- 0.8% RH optimize functionality. After opening the door, the cabinet reduces humidity to below 1% RH in just 15 minutes.

Details

Shelves Shelves: 5
Volume Volume: 1179 l
Width Width: 1200 mm
Height Height: 1675 mm
Depth Depth: 658 mm
Cable length Cable length: 5.0 m
Internal depth: 630 mm
Internal height: 1533 mm
Internal width Internal width: 1190 mm
Bracket Bracket: steel sheet
Load capacity Load capacity: 300 kg
Weight Weight: 189 kg

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

HSD series drying cabinets - drying from <2 % RH

Thanks to their powerful drying unit, the drying cabinets in the HSD series offer reliable dehumidification of sensitive components and PCBs. They are ideal for applications with frequent access. The integrated dynamic drying unit of the U-5000 series enables a quick recovery of low humidity after door openings and reliably achieves values of ≤ 0.5 % RH. The system regenerates automatically when required.

Humidity, temperature and alarm functions can be monitored and set via a digital display. The cabinets ensure optimum storage conditions below 1 % relative humidity - with efficient use of energy.

Highlight of the HSD series

steel housing
360° castors with brakes
Lockable doors, protection class 1, hard earthed
Maintenance-free drying unit down to below 0.5% RH
ESD-safe
Integrated data logger
Totech Viewer software
Ethernet interface
Limit value monitoring
Digital control panel
Forced air circulation
Integrated sensor with a measuring accuracy of +/- 0.8% RH
15 min recovery time after door opening to below 1% RH

Read more ...

	TO-HSD-1104-52	TO-HSD-1106-52	TO-HSD-1704-52
External dimensions (WxHxD)	1200 x 1675 x 658 mm	1200 x 1675 x 658 mm	1200 x 1675 x 960 mm
Internal dimensions (wxhxd)	1190 x 1533 x 630 mm	1190 x 1533 x 630 mm	1190 x 1533 x 910 mm
Numbers of shelves	5 shelves	5 shelves	5 shelves
Volume	1179 l	1179 l	1700 l
Power consumption	average 46 W/h
Protection class	class 1, hard-grounded
Sensor accuracy	+/- 0.8% RH, +/- 0.2°C
Online function	Access to web interface and LOG data via a standard Ethernet interface
ESD	according to standard IEC 61340-5-1, special ESD coating (10⁵-10¹¹ Ω/sq) conductive glass (inside and outside 10⁵-10¹¹ Ω/sq)
Numbers of doors (lockable, 2 keys included)	4 doors with window	6 doors with window	4 doors with window
Alarm function	Acoustic signal if the door is opened for a longer period of time and/or in the event of increased humidity
Drying unit	U-5000 series	U-5000 series	U-5000 series
Castors	360° adjustable castors with locks	360° adjustable castors with locks	360° adjustable castors with locks
Re-drying time after door opening	<15 min until 5% RH is reached again. (when the door is opened)
Compliance	according to standard: IPC/JEDEC J- STD 033D & IPC-1601
Service	drying unit maintenance-free

Series 2 display
The display is characterized by its ease of use and enables convenient control of the most important functions. It has a multilingual menu that allows flexible use in different languages. Both the current actual value of the relative humidity and the temperature are shown on the display. In addition, the desired humidity setpoint (RH), alarm limits and an alarm delay can be set individually. A key lock protects against unintentional changes to the settings. It is also possible to trigger a manual regeneration of the system.

Drying unit U-5000
External dimensions of the unit (LxWxH)	487 x 487 x 150 mm
Working ambient temperature	10 - 60°C
Power supply	230 V / 50 Hz (120 V / 60 Hz optionally available)
Operation	plug-in unit, no operating option
Weight	14 kg
Power consumption	46 W/h
Protection class	Class 1, hard grounded
Drying capacity	up to 0.1 % rF
