Drying storage cabinet SD+ 1104-22

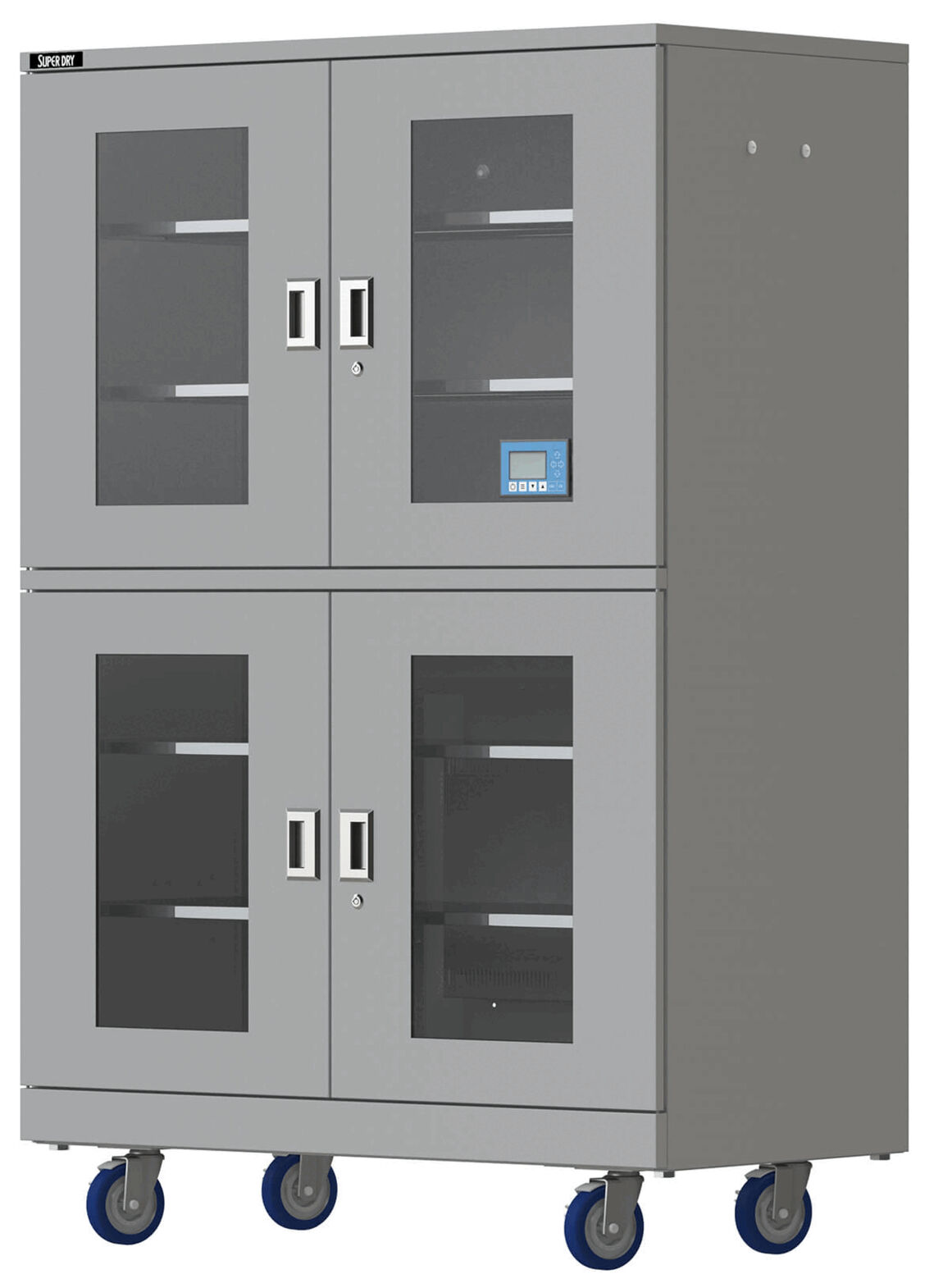

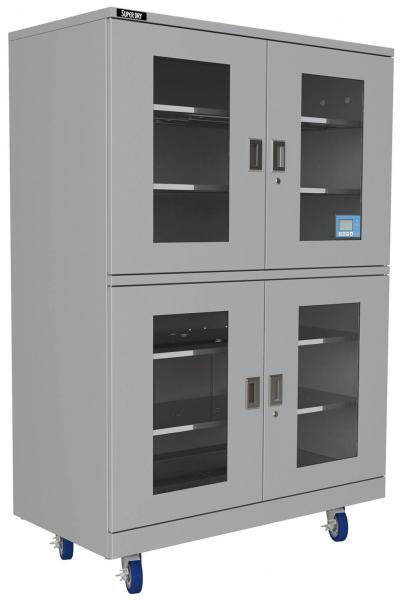

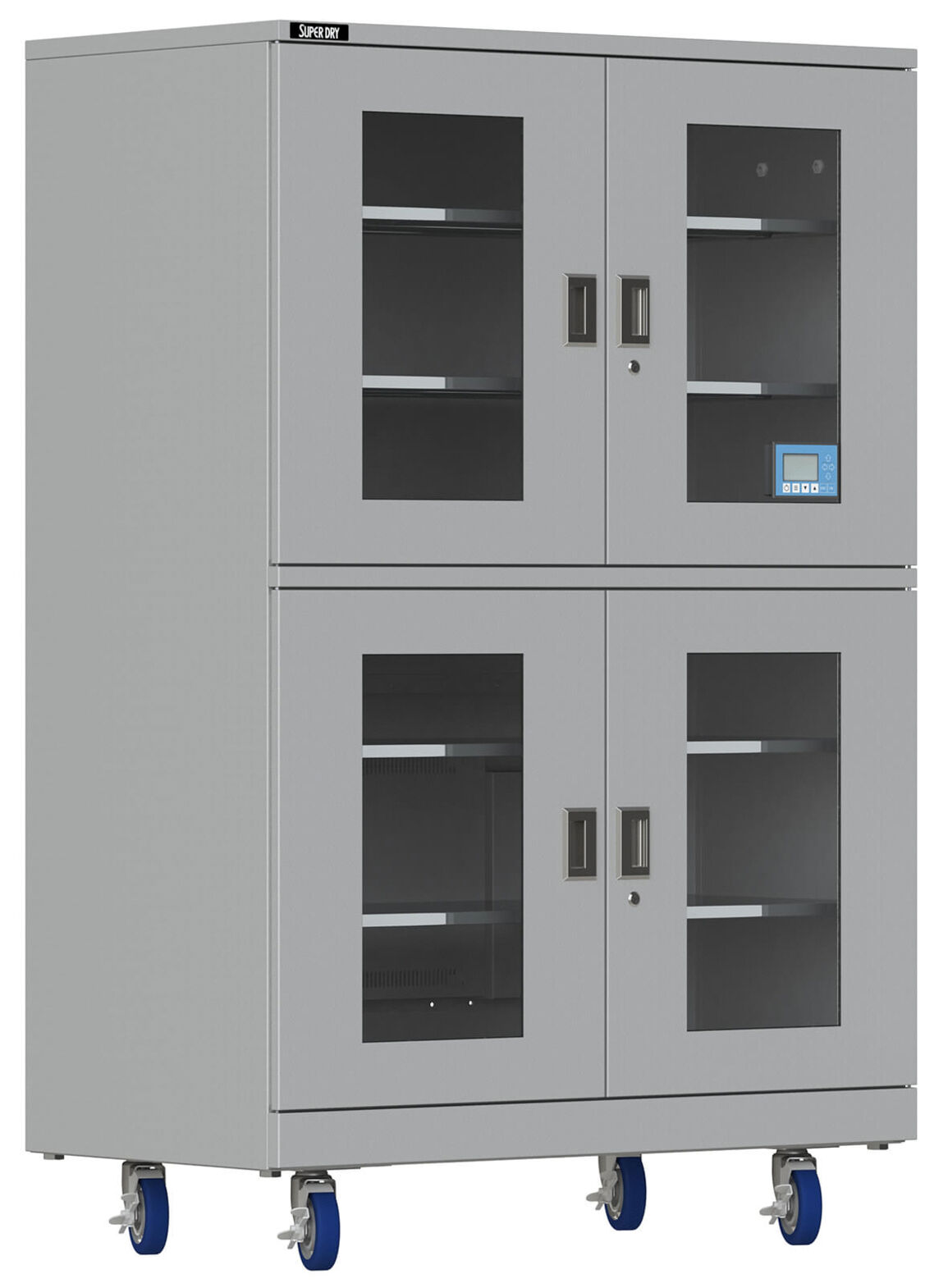

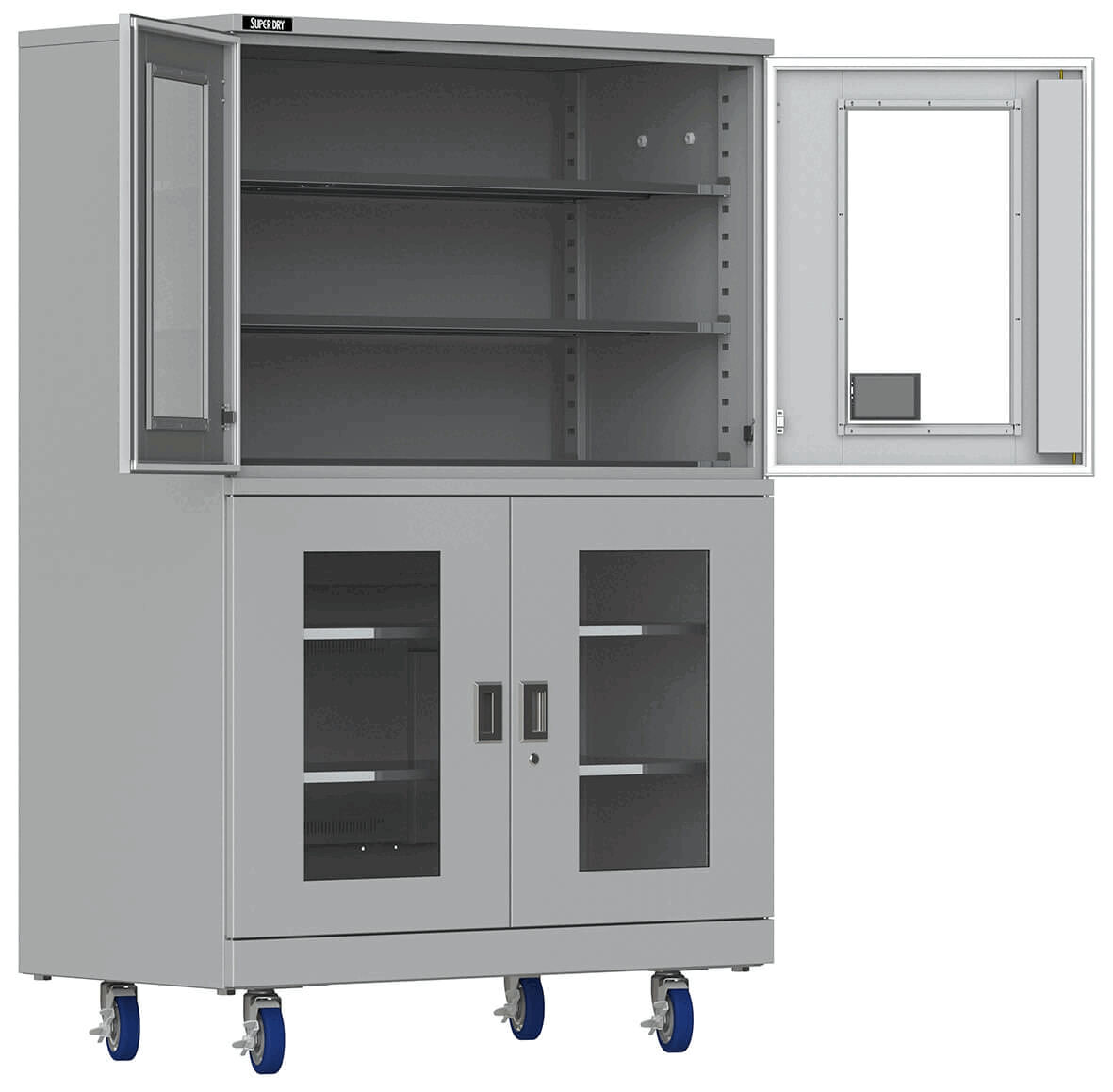

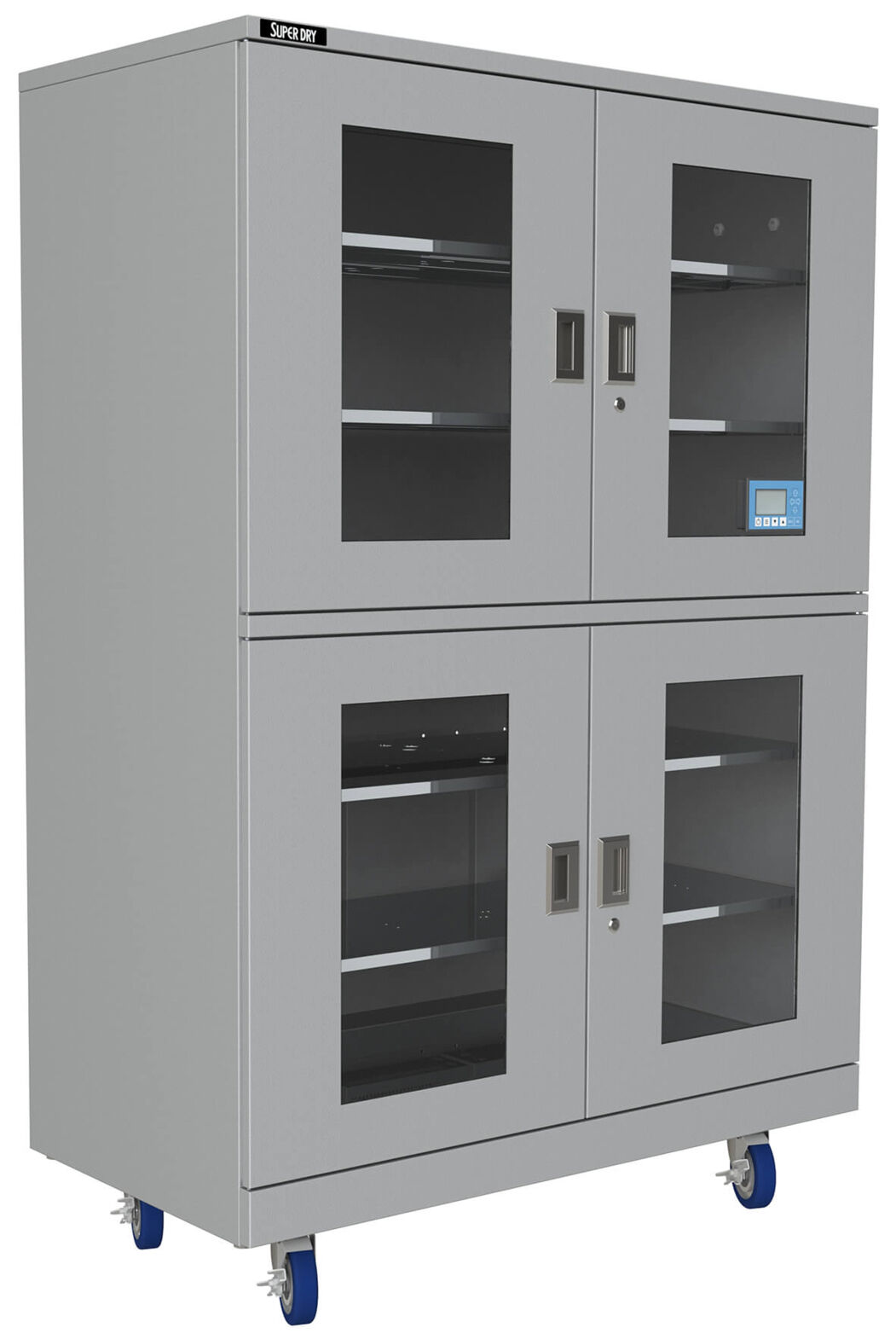

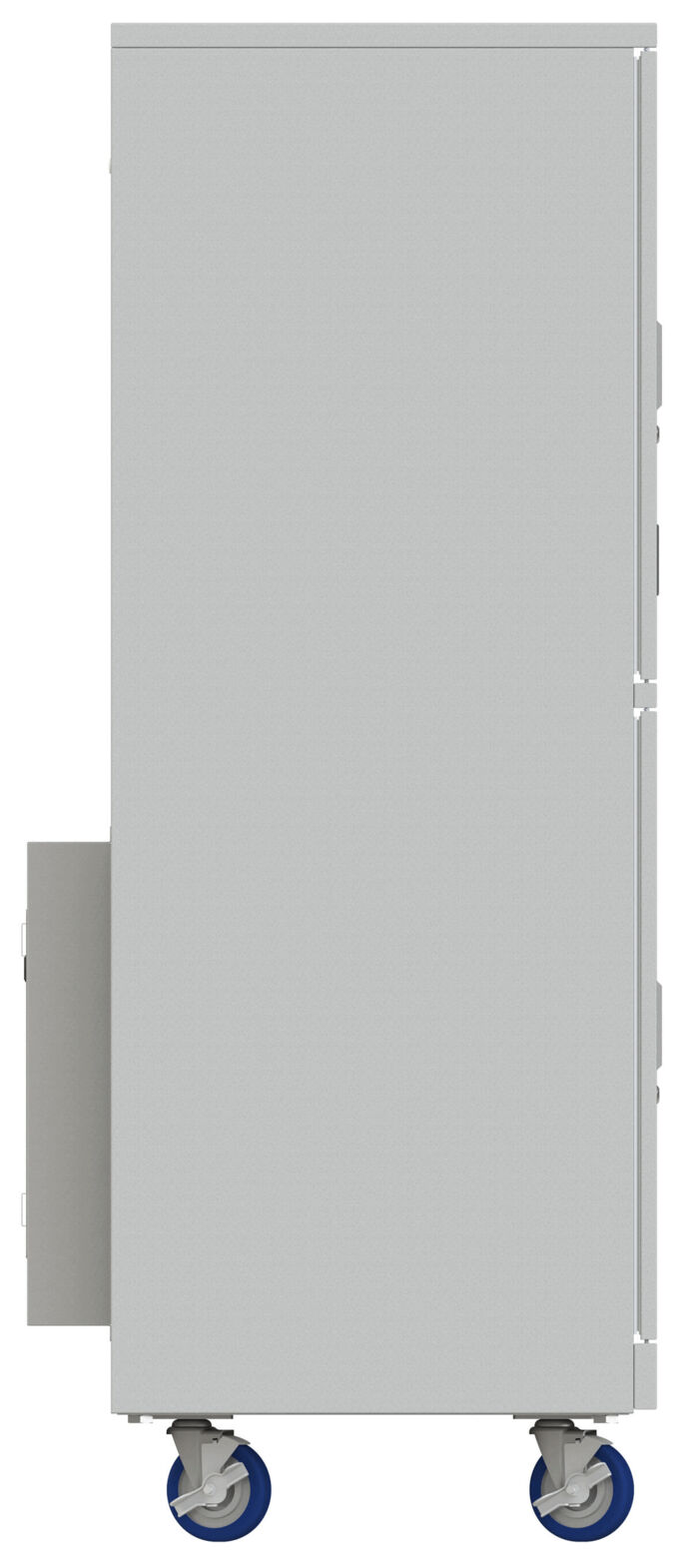

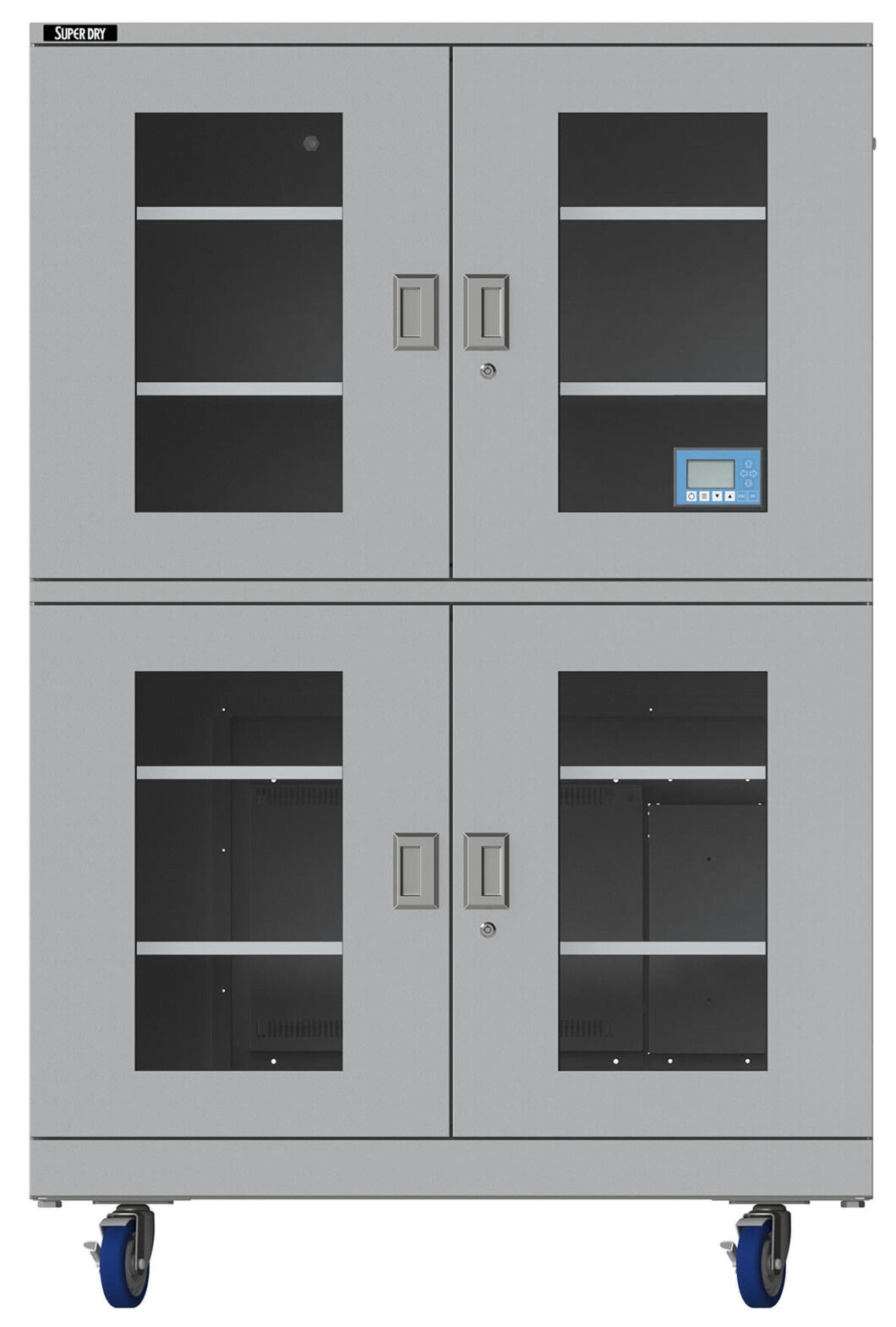

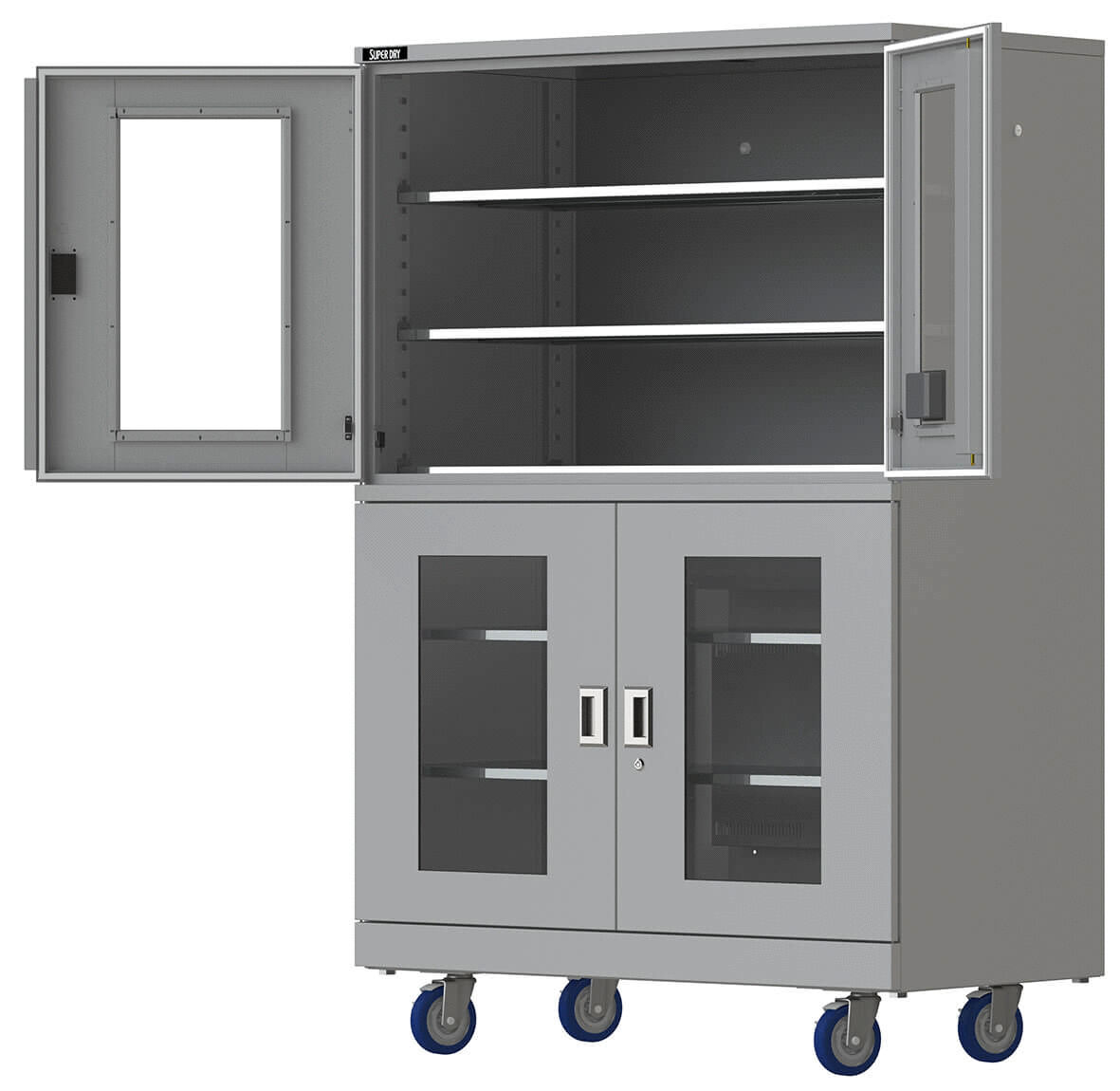

The Totech SuperDry SD+ 1104-22 dry storage cabinet is a high-quality solution for the safe and dry storage of sensitive components. This model features a robust steel casing and a total capacity of 1179 liters, distributed across five shelves each with a load capacity of 100 kg. The total load capacity of the cabinet is 500 kg.The cabinet is equipped with an advanced security system that includes lockable doors of protection class 1 and a hard-grounded construction. For transport within the facility, it has 360° casters with brakes, ensuring easy maneuverability.
Technically, the SD+ 1104-22 offers a maintenance-free dry unit that keeps the relative humidity (RH) constantly below 1%. An integrated sensor ensures a measurement accuracy of +/- 0.8% RH. After opening the door, the cabinet reaches an RH of below 5% within 30 minutes.
Additional features such as the integrated data logger, Totech Viewer software, an Ethernet interface, and a digital control panel with limit value monitoring and forced air circulation complete the profile of this ESD-safe storage cabinet. It meets the ESD standard DIN EN 61340-5-1, making it ideal for use in technically demanding environments.
Details
- Shelves Shelves
- 5
- Volume Volume
- 1179 l
- Width Width
- 1200 mm
- Height Height
- 1675 mm
- Depth Depth
- 658 mm
- Cable length Cable length
- 5.0 m
- Internal depth
- 630 mm
- Internal height
- 1533 mm
- Internal width Internal width
- 1190 mm
- Bracket Bracket
- steel sheet
- Load capacity Load capacity
- 500 kg
- Weight Weight
- 176 kg
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Product Family
Drying storage cabinet SD+
| TO-SD+302-22 | TO-SD+1104-22 | TO-SD+1106-22 | |
External dimensions (WxHxD) | 500 x 1227 x 640 mm | 1200 x 1675 x 658 mm | 1200 x 1675 x 658 mm | |
Internal dimensions (wxhxd) | 490 x 1124 x 602 mm | 1190 x 1533 x 630 mm | 1190 x 1533 x 630 mm | |
Numbers of shelves | 4 shelves, 3 short shelves (468x380 mm) | 5 shelves | 5 shelves | |
Volume | 320 l | 1139 l | 1139 l | |
Power consumption | average 35 W/h | average 70 W/h | ||
Protection class | class 1, hard-grounded | |||
Sensor accuracy | +/- 0.8% RH, +/- 0.2°C | |||
ESD | according to standard IEC 61340-5-1, special ESD coating (105-1011 Ω/sq) conductive glass (inside and outside 105-1011 Ω/sq) | |||
Numbers of doors (lockable, 2 keys included) | 2 doors with window | 4 doors with window | 6 doors with window | |
Alarm function | Acoustic signal if the door is opened for a longer period of time and/or in the event of increased humidity | |||
Drying unit | U-2000 series | 2x U-2000 series | ||
Castors | without castors | 360° castors with locks | 360° castors with locks | |
Re-drying time after door opening | <15 min until 5% RH is reached again. (when the door is opened) | <30 min until 5% RH is reached again. (when the door is opened) | ||
Compliance | according to standard: IPC/JEDEC J- STD 033D & IPC-1601 | |||
Service | The drying unit is maintenance-free. The sensor can be replaced annually with a calibrated sensor so that the ISO standards are met | |||
Dynamic regeneration | Ensures a more constant climate and lower energy consumption | |||
Series 2 display
The display is characterized by its ease of use and enables convenient control of the most important functions. It has a multilingual menu that allows flexible use in different languages. Both the current actual value of the relative humidity and the temperature are shown on the display. In addition, the desired humidity setpoint (RH), alarm limits and an alarm delay can be set individually. A key lock protects against unintentional changes to the settings. It is also possible to trigger a manual regeneration of the system.
Drying unit U-2000 | |
External dimensions of the unit (LxWxH) | 260 x 380 x 100 mm |
Working ambient temperature | 10 - 40°C |
Power supply | 230 V / 50 - 60 Hz (120 V / 60 Hz optionally available) |
Weight | 8.1 kg |
Drying capacity | up to 1 % RH |
