ESD storage trolley tiltable 605 x 405 mm

Name: ESD storage trolley tiltable 605 x 405 mm
SKU: 091.92911
Price: 787.00 CHF
Availability: InStock

ArticleNo: 091.92911

dpvlink:

20580

Depth :

821 mm

Width :

455 mm

Height :

1178 mm

Load capacity :

200 kg

Version:

tiltable

Properties:

Further product information

Version:

787.00 CHF

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

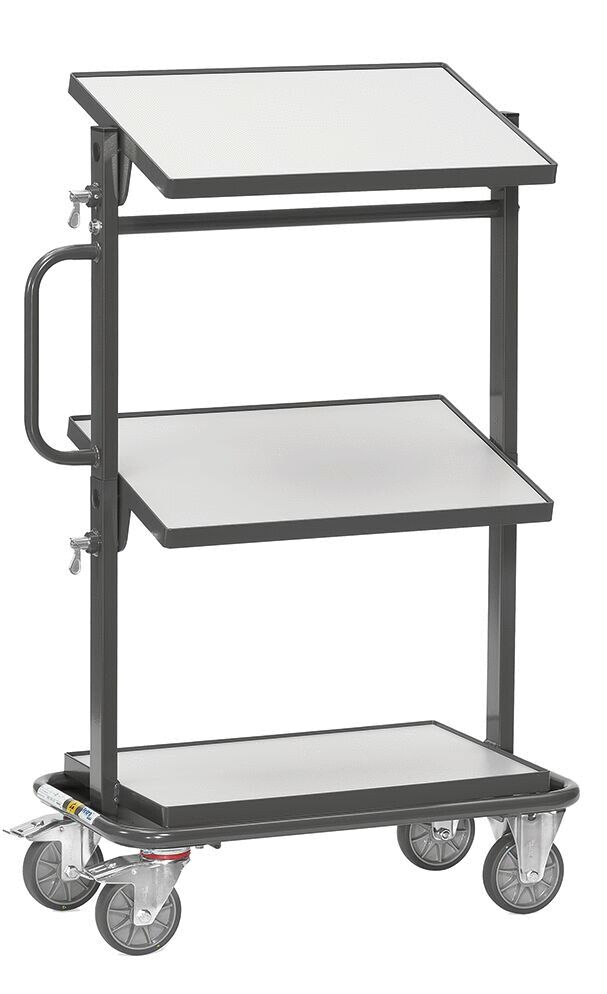

ESD storage trolley tiltable 605 x 405 mm

The ESD utility cart with dimensions of 605 x 405 mm, manufactured by Fetra, is excellently suited for use in ESD-sensitive areas of the electronics industry. This model is characterized by its electrostatic discharge capability, which meets the standards of DIN EN 61340-5-1, and offers an optimal solution for transport, material handling, and order picking tasks.
The construction is made of steel tubing and profile steel, electrostatically dischargeable powder-coated in slate grey (RAL 7015), which ensures high load capacity and durability. The shelves are made from a conductive wood-based material according to DIN 68765, surrounded by a 7 mm high edge. The cart is equipped with four swivel TPE-ESD casters that run on precision groove ball bearings, and two of them are equipped with a lock that securely locks the rotation and swivel movement in accordance with EN 1757-3.
The dimensions of the cart are 455 mm in width and 1178 mm in height. The surface resistance is between 10^5 and 10^7 Ω, confirming the high conductivity. The TPE tires are specifically designed for ESD applications and help to reduce the effort required while ensuring a quiet operation. Optionally, the innovative TOTALSTOP braking system from Fetra is available, which provides additional safety by effectively blocking the swivel movement of the steering rollers.

Details

Depth Depth: 821 mm
Width Width: 455 mm
Height Height: 1178 mm
Load capacity Load capacity: 200 kg
Version Version: tiltable
Wheel Ø Wheel Ø: 125 mm
Color Color: dark grey
Loading bed Loading bed: 605 x 405 mm
Shelf height Shelf height: 209 - 1164 mm
Conductivity Conductivity: dissipative
Surface resistance Rs Surface resistance Rs: 10⁵ - 10⁷ Ω
Material Material: steel
Tires Tires: TPE / ESD
ESD ESD: yes
Shelves Shelves: 3
Weight Weight: 36 kg

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 370

Complete Catalog 2023 - 2024

Product Family

ESD storage trolley with base plate

The ESD storage trolley impresses with its robust design and electrical conductivity, ideal for use in ESD-sensitive areas. The sturdy tubular and sectional steel construction ensures high load-bearing capacity and durability.

Conductive shelves: Shelves made of wood-based panel in accordance with DIN 68765 with edge (7 mm high)
Sturdy construction: Tubular and sectional steel frame, powder-coated in slate gray (RAL 7015)
Smooth-running castors: 4 swivel castors with TPE ESD tyres and precision deep-groove ball bearings, 2 swivel castors with brakes in accordance with EN 1757-3
High load capacity: 50 kg load capacity on the top and middle load surface
Effort-saving and quiet: TPE tires reduce the effort required and ensure quiet running on level floors
PAH-compliant: Fetra TPE castor with protected design and precision deep-groove ball bearings

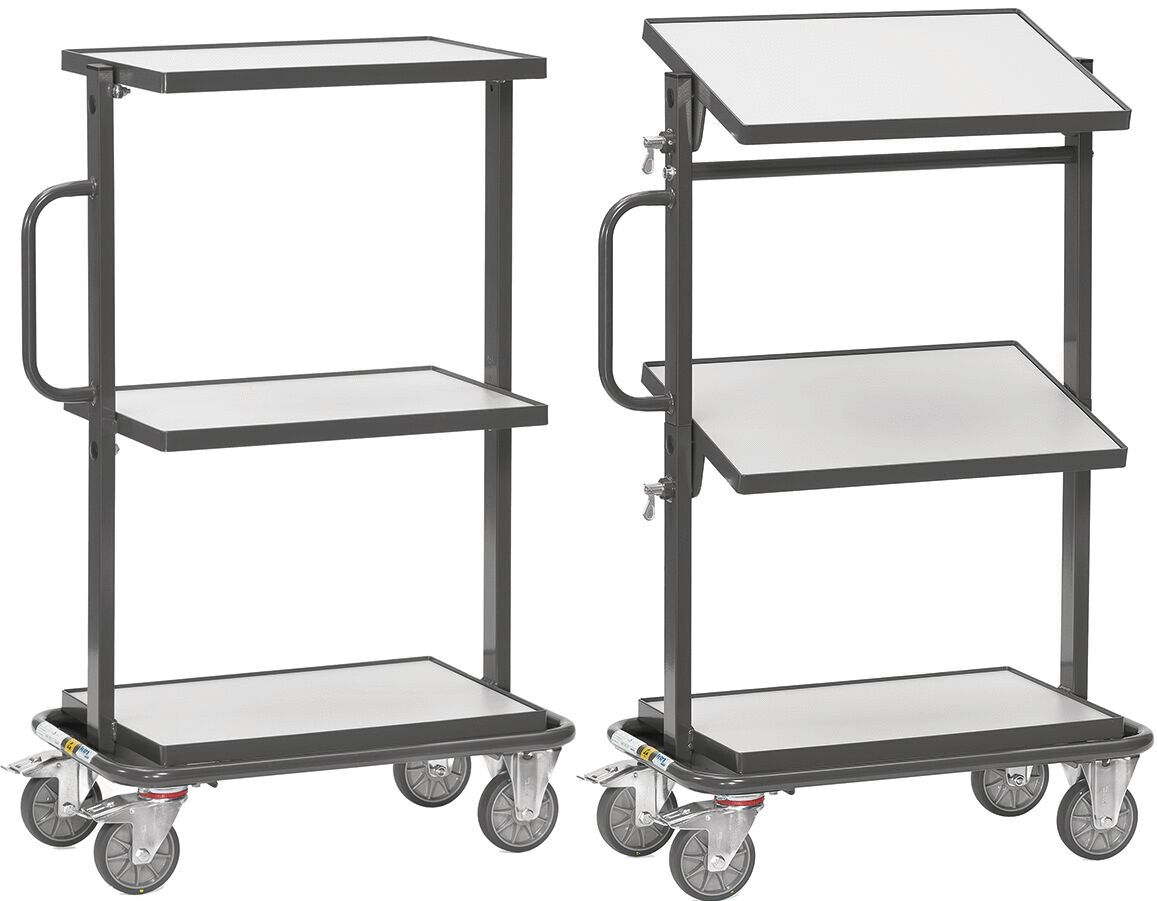

also with inclinable load surfaces

This ESD side trolley is ideal for safe and comfortable transportation in demanding working environments.
