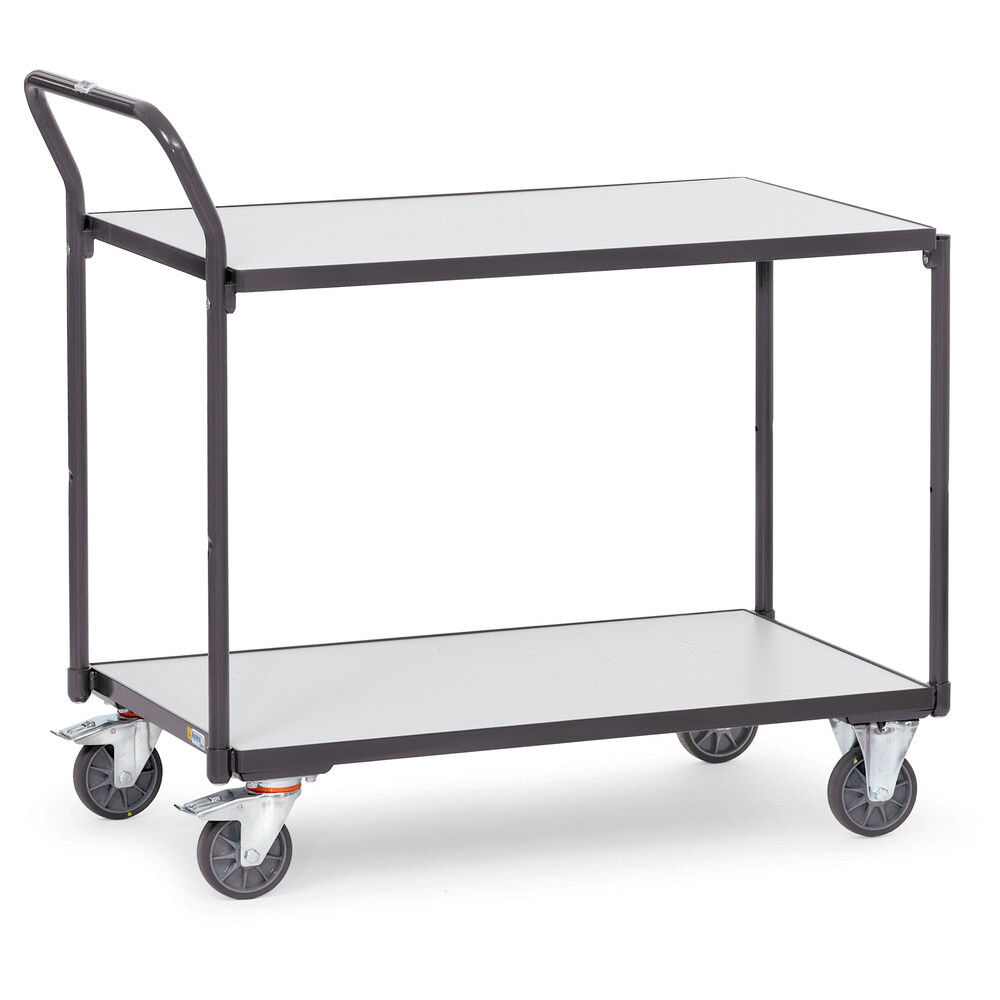

The image shows a simple, two-tiered serving cart with a sturdy, black-painted metal frame and two white shelves. It has four casters and a handle.

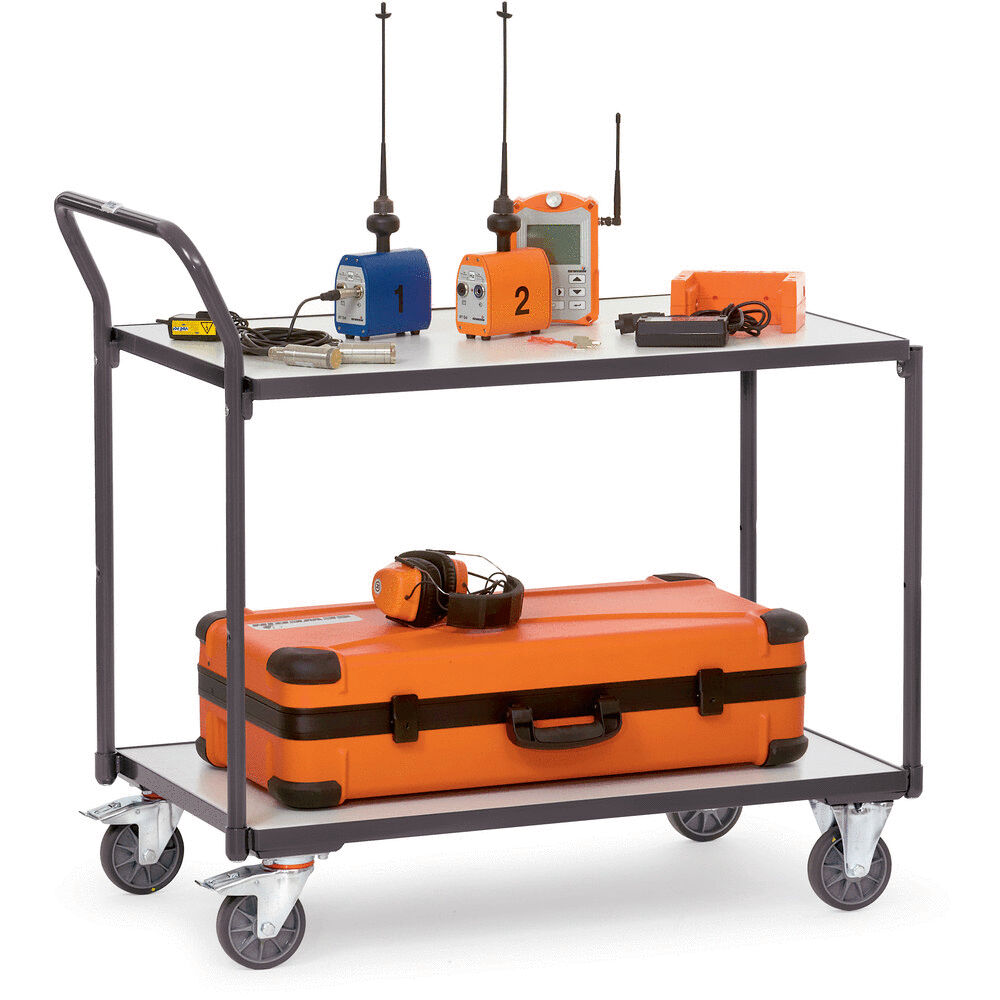

A gray cart on wheels with two levels. On the top, there are various devices in blue and orange, and below is a large, orange suitcase with a black border. The cart has a handle.
Preview: The image shows a simple, two-tiered serving cart with a sturdy, black-painted metal frame and two white shelves. It has four casters and a handle.
Preview: A gray cart on wheels with two levels. On the top, there are various devices in blue and orange, and below is a large, orange suitcase with a black border. The cart has a handle.
2-shelf trolley ESD loading bed 850 x 500 mm
(Product No.: 091.1840)
The image shows a simple, two-tiered serving cart with a sturdy, black-painted metal frame and two white shelves. It has four casters and a handle.
A gray cart on wheels with two levels. On the top, there are various devices in blue and orange, and below is a large, orange suitcase with a black border. The cart has a handle.
Mobile Preview: The image shows a simple, two-tiered serving cart with a sturdy, black-painted metal frame and two white shelves. It has four casters and a handle.
Mobile Preview: A gray cart on wheels with two levels. On the top, there are various devices in blue and orange, and below is a large, orange suitcase with a black border. The cart has a handle.
Notice / Inquire

2-shelf trolley ESD loading bed 850 x 500 mm

dpvlink:
8096
Depth :
980 mm
Width :
509 mm
Height :
1020 mm
Loading bed:
850 x 500 mm
Properties:
Further product information

chevron-down
579.00 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

2-shelf trolley ESD loading bed 850 x 500 mm

The 2-tier trolley from Fetra offers an optimal solution for secure transportation in ESD-sensitive areas of the electronics industry. With a load capacity of 300 kg and dimensions of 850 x 500 mm per shelf, this trolley is particularly robust and functional. Its steel construction ensures stability, and the dark gray powder coating provides a conductive property that meets the ESD standards DIN EN 61340-5-1.
The shelves made of high-quality wood-based material are equipped with a 5 mm high edge, which increases the safety of the transported materials. The overall dimensions of the trolley are 980 mm in depth, 509 mm in width, and 1020 mm in height. The heights of the shelves vary between 207 and 827 mm, allowing for flexible use.
Equipped with two swivel and two lockable fixed castors that are electrically conductive, the trolley offers excellent maneuverability and stability. The surface resistance is between 10^5 and 10^7 Ω, and the TPE/ESD tires ensure reliable conductivity on various floor types.
Optionally, Fetra's innovative TOTALSTOP central braking system is available, which provides additional safety through easy operation with just one footstep and securely locks the swivel motion of the steering castors.
Depth
Depth
980 mm
Width
Width
509 mm
Height
Height
1020 mm
Loading bed
Loading bed
850 x 500 mm
Wheel Ø
Wheel Ø
125 mm
Color
Color
dark grey
Shelf height
Shelf height
207 - 827 mm
Conductivity
Conductivity
dissipative
Surface resistance Rs
Surface resistance Rs
105 - 107 Ω
Material
Material
steel
Tires
Tires
TPE / ESD
ESD
ESD
yes
Shelves
Shelves
2
Load capacity
Load capacity
300 kg
Weight
Weight
30 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 366
Complete Catalog 2023 - 2024

Product Family

2-shelf table trolley ESD

The ESD table trolley is an ideal solution for transportation in ESD-sensitive areas. With its stable and conductive design, it offers safety and reliability while being easy to handle.

  • Electrically conductive: Welded frame made of tubular steel and sectional steel, powder-coated in dark grey
  • High-quality shelves: wood-based panels in accordance with DIN 68765, light gray, with 5 mm high edge
  • Smooth-running castors: 2 swivel castors and 2 fixed castors with roller bearings - 2 castors with locks - electrically conductive
  • Load-bearing and functional: upper loading surface with a load capacity of up to 80 kg

The trolley combines robustness and functionality for professional use in demanding environments.


Article image
Article description
ESD
Depth
Width
Height
Loading bed
Price
Compare
091.1840 - 2-shelf trolley ESD loading bed 850 x 500 mm
091.1840
2-shelf trolley ESD loading bed 850 x 500 mm
980 mm
509 mm
1020 mm
850 x 500 mm
579.00 CHF
091.1841 - 2-shelf trolley ESD loading bed 1000 x 600 mm
091.1841
2-shelf trolley ESD loading bed 1000 x 600 mm
1130 mm
609 mm
1020 mm
1000 x 600 mm
631.00 CHF
