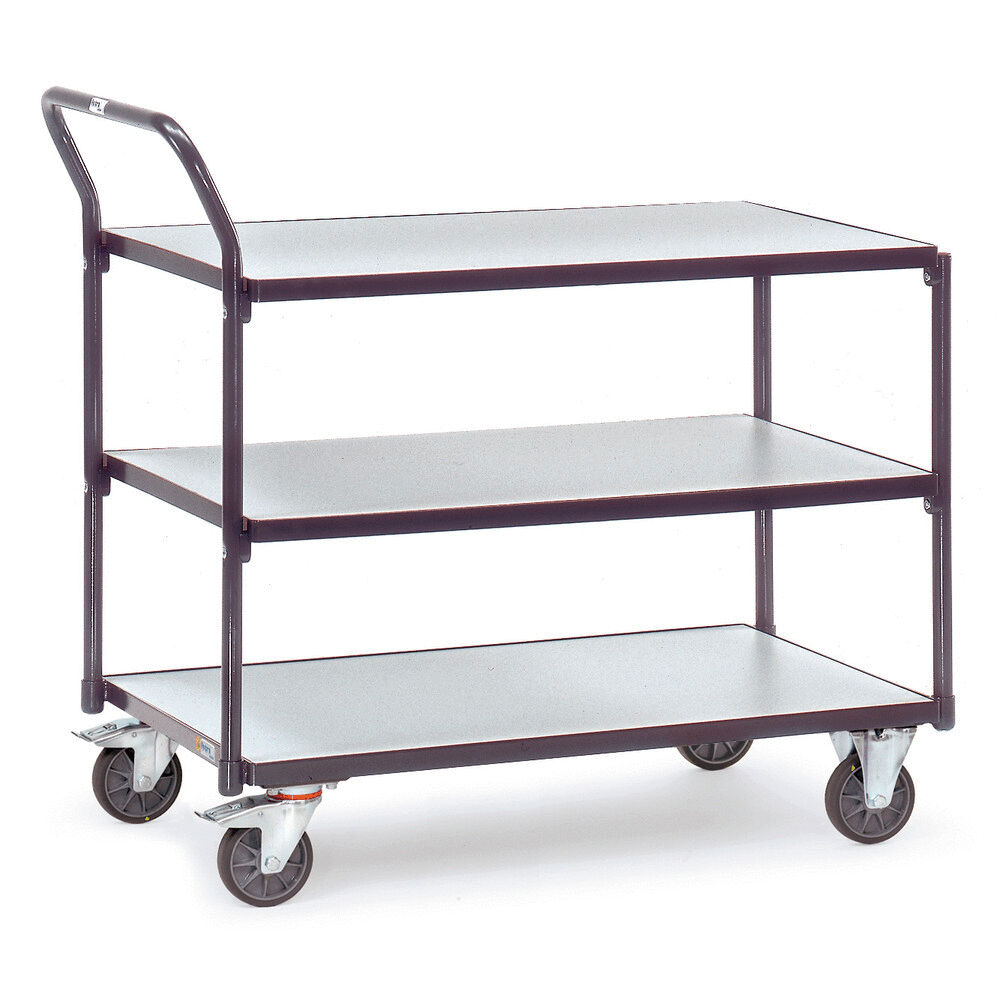

The image shows a cart with three open shelves. It has a sturdy metal frame, a handle at the front, and four wheels for mobility. The shelves are flat and light.
3-shelf trolley ESD loading bed 1000 x 600 mm
(Product No.: 091.1851)
The image shows a cart with three open shelves. It has a sturdy metal frame, a handle at the front, and four wheels for mobility. The shelves are flat and light.
Notice / Inquire

3-shelf trolley ESD loading bed 1000 x 600 mm

dpvlink:
8099
Depth :
1130 mm
Width :
609 mm
Height :
1020 mm
Loading bed:
1000 x 600 mm
Properties:
Further product information

chevron-down
849.00 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

3-shelf trolley ESD loading bed 1000 x 600 mm

The 3-tier cart with a loading area of 1000 x 600 mm, manufactured by Fetra, is specifically designed for use in ESD-sensitive environments. This versatile transport cart is characterized by its robust construction with welded steel tube and profile steel, which is electrically conductive powder-coated. The wooden composite panels of the loading areas are made according to DIN 68765, light gray, and have a 5 mm high edge to secure the load.
The total carrying capacity of the cart is 300 kg, with each of the middle and upper tiers able to bear up to 80 kg. The tier heights vary between 207 and 827 mm, allowing for flexible use. With dimensions of 1130 mm depth, 609 mm width, and 1020 mm height, and a total weight of 54 kg, the cart offers a compact yet spacious solution for transport requirements.
The electrical conductivity is ensured by TPE/ESD tires and a surface resistance of 10^5 - 10^7 Ω. Additionally, the flexible caster system, consisting of two swivel and two fixed casters, ensures easy maneuverability. Safety is guaranteed by locks on the swivel casters, which conform to the standard EN 1757-3. Optionally, Fetra's innovative TOTALSTOP central braking system is available, providing additional safety through central locking.
Depth
Depth
1130 mm
Width
Width
609 mm
Height
Height
1020 mm
Loading bed
Loading bed
1000 x 600 mm
Wheel Ø
Wheel Ø
125 mm
Color
Color
dark grey
Shelf height
Shelf height
207 - 827 mm
Conductivity
Conductivity
dissipative
Surface resistance Rs
Surface resistance Rs
105 - 107 Ω
Material
Material
steel
Tires
Tires
TPE / ESD
Shelves
Shelves
3
Load capacity
Load capacity
300 kg
Weight
Weight
54 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Product Family

3-shelf table trolley ESD

The ESD table trolley is an ideal solution for transportation in ESD-sensitive areas. With its stable and conductive design, it offers safety and reliability while being easy to handle.

  • Electrically conductive: Welded frame made of tubular steel and sectional steel, powder-coated in dark grey
  • High-quality shelves: wood-based panels in accordance with DIN 68765, light gray, with 5 mm high edge
  • Smooth-running castors: 2 swivel castors and 2 fixed castors with roller bearings - 2 castors with locks - electrically conductive
  • Safe and sturdy: swivel castors with locks, in compliance with EN 1757-3
  • Load-bearing and functional: upper loading surface with a load capacity of up to 80 kg

The trolley combines robustness and functionality for professional use in demanding environments.
