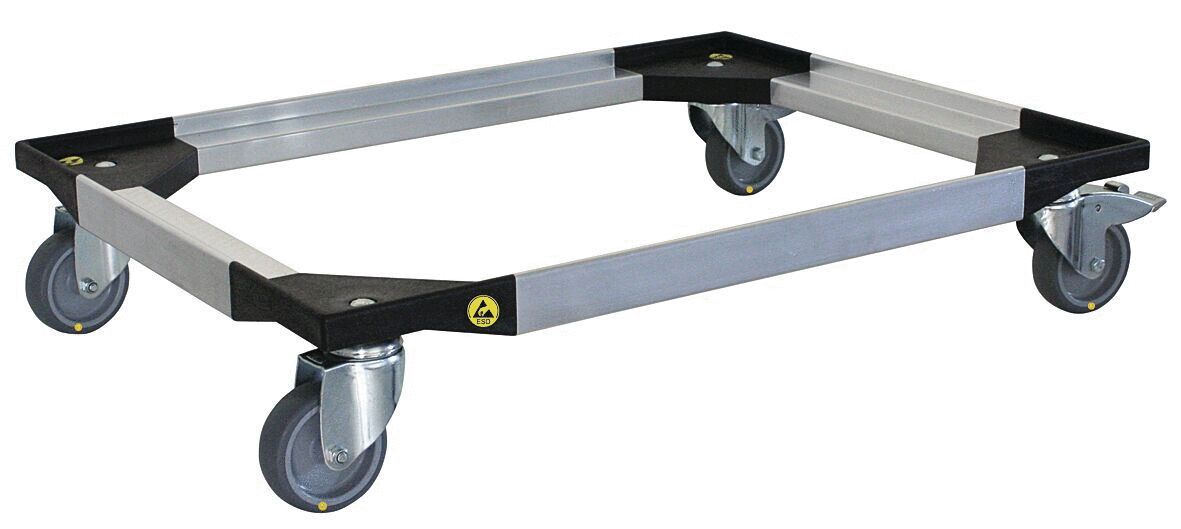

The image shows a rectangular transport platform with four wheels. The frame is made of metal with black corners and two longer sides. The wheels are gray and allow for easy movement.

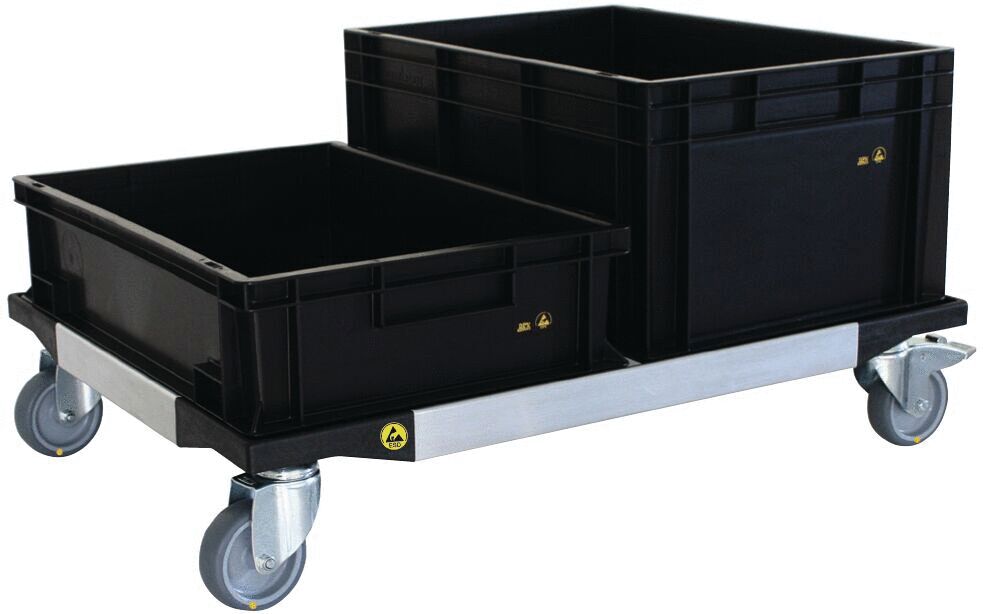

The image shows a cart with two black plastic crates. One crate is larger than the other. The cart has four wheels for easy movement.
Preview: The image shows a rectangular transport platform with four wheels. The frame is made of metal with black corners and two longer sides. The wheels are gray and allow for easy movement.
Preview: The image shows a cart with two black plastic crates. One crate is larger than the other. The cart has four wheels for easy movement.
ESD Transport trolley type 700 Maxi Flex 600x400
(Product No.: 5391.700.0600x0400)
The image shows a rectangular transport platform with four wheels. The frame is made of metal with black corners and two longer sides. The wheels are gray and allow for easy movement.
The image shows a cart with two black plastic crates. One crate is larger than the other. The cart has four wheels for easy movement.
Mobile Preview: The image shows a rectangular transport platform with four wheels. The frame is made of metal with black corners and two longer sides. The wheels are gray and allow for easy movement.
Mobile Preview: The image shows a cart with two black plastic crates. One crate is larger than the other. The cart has four wheels for easy movement.
Notice / Inquire

ESD Transport trolley type 700 Maxi Flex 600x400

dpvlink:
17882
Manufacturer:
Width :
630 mm
Depth :
430 mm
Height :
175 mm
Wheel Ø:
100 mm
Weight:
4.8 kg
Properties:
Further product information
ESD-Transpor trolley Type 700 Maxi FLEX
configure_now


172.00 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Transport trolley type 700 Maxi Flex 600x400

The ESD transport dolly type 700 Maxi FLEX 600x400 by the brand EPAmove, manufactured by DPV, is distinguished by its robust and innovative design, specially developed for the safe transport of Euro containers, magazines, and pallets. This model is made from a heat-treated T66 aluminum hollow chamber profile and has a payload capacity of up to 200 kg with even load distribution.
The external dimensions are 630 x 430 x 175 mm, while the internal dimensions are 605 x 405 x 156 mm, ensuring a perfect fit for standard sizes of Euro containers. Weighing just 4.8 kg, the dolly is lightweight yet exceptionally durable.
The four non-marking ESD swivel casters, two of which have brakes, provide easy maneuverability and stable positioning. The conductive design according to DIN EN 61340-5-1 with conductive ABS plastic parts and aluminum ensures ESD safety during the transport of sensitive goods.
Made in Germany, this transport dolly stands for the highest quality and durability in demanding industrial environments.
Width
Width
630 mm
Depth
Depth
430 mm
Height
Height
175 mm
Wheel Ø
Wheel Ø
100 mm
Weight
Weight
4.8 kg
Wheel/castor type
Wheel/castor type
2 x swivel castor unbraked, 2 x swivel castor braked
Castor type
Castor type
non-marking
Internal depth
405 mm
Internal height
156 mm
Internal width
Internal width
605 mm
Conductivity
Conductivity
conductive
Material
Material
aluminum / polypropylene
ESD
ESD
yes
Payload
Payload
200 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 361
Complete Catalog 2023 - 2024
EPAmove® - ESD transport solutions
Configurators:
ESD-Transpor trolley Type 700 Maxi FLEX

Product Family

ESD Transport trolley type 700 Maxi FLEX standard

The innovative Maxi FLEX transport trolley from DPV's EPAmove® series is lightweight yet extremely resilient. With maximum flexibility thanks to its various sizes, it remains safe and stable when transporting Euro containers, magazines and pallets, for example. Equipped with 4 ESD swivel castors, two of which have brakes.

  • Robust frame made of heat-treated aluminum cavity profile
  • Frame profile encloses the outer edge of the container
  • Black conductive ABS plastic corner pieces
  • Load capacity of up to 200 kg, even load distribution
  • Low tare weight (from approx. 4 kg)
  • 4 non-marking ESD swivel castors (2x with brakes)
  • For standard Euro containers in the sizes
    • 600 x 400 mm / 700 x 400 mm / 800 x 400 mm
    • 800 x 600 mm
    • 1200 x 800 mm



In compliance with the ESD standard DIN EN 61340-5-1

Configure your transport trolley

  1. Aluminum cavity profile
    T66 aluminum, heat-hardened
    according to DIN 1748
  2. Innovative aluminum / plastic construction
  3. Loadable construction up to 200 kg
    Pay-/surface load: max. 200 kg
    (at evenly distributed load)
  4. ESD-compliant according to DIN EN 61340-5-1
    dissipative castors
    conductive ABS plastic parts
    conductive aluminum
  5. Non-marking ESD smooth-running swivel castors
    dissipative castors
    2x castors with locks
  6. Made in Germany
  7. Supporting surface of 50 mm
    on all sides
  8. Frame height 20 mm
    The frame profile comprises the external edge of the container for a safe, slip-resistant position of your containers during transportation

Article image
Article description
ESD
Width
Depth
Height
Wheel Ø
Weight
Price
Compare
5391.700.0600x0400 - ESD Transport trolley type 700 Maxi Flex 600x400
5391.700.0600x0400
ESD Transport trolley type 700 Maxi Flex 600x400
630 mm
430 mm
175 mm
100 mm
4.8 kg
172.00 CHF
5391.700.0700x0400 - ESD Transport trolley type 700 Maxi Flex 700x400
5391.700.0700x0400
ESD Transport trolley type 700 Maxi Flex 700x400
730 mm
430 mm
175 mm
100 mm
5.0 kg
176.30 CHF
5391.700.0800x0400 - ESD Transport trolley type 700 Maxi Flex 800x400
5391.700.0800x0400
ESD Transport trolley type 700 Maxi Flex 800x400
830 mm
430 mm
175 mm
100 mm
5.2 kg
180.55 CHF
5391.700.0800x0600 - ESD Transport trolley type 700 Maxi Flex 800x600
5391.700.0800x0600
ESD Transport trolley type 700 Maxi Flex 800x600
830 mm
630 mm
175 mm
100 mm
5.6 kg
189.30 CHF
5391.700.1200x0800 - ESD Transport trolley type 700 Maxi Flex 1200x800
5391.700.1200x0800
ESD Transport trolley type 700 Maxi Flex 1200x800
1235 mm
835 mm
200 mm
125 mm
7.8 kg
238.40 CHF
