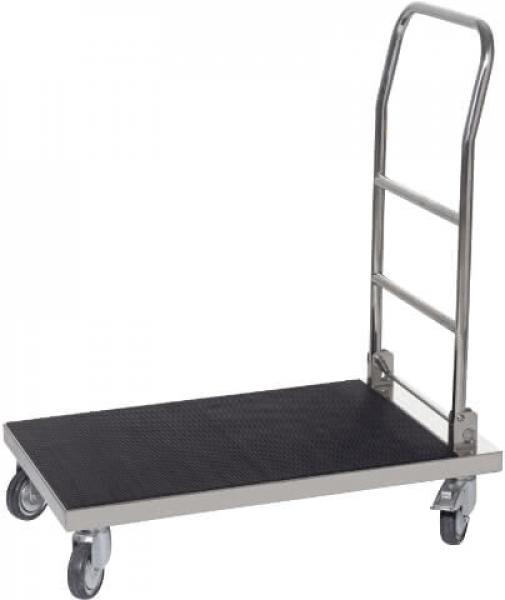

The image shows a dolly with a flat platform and a tall, round handle on one side. The platform has a non-slip surface and four swivel wheels.

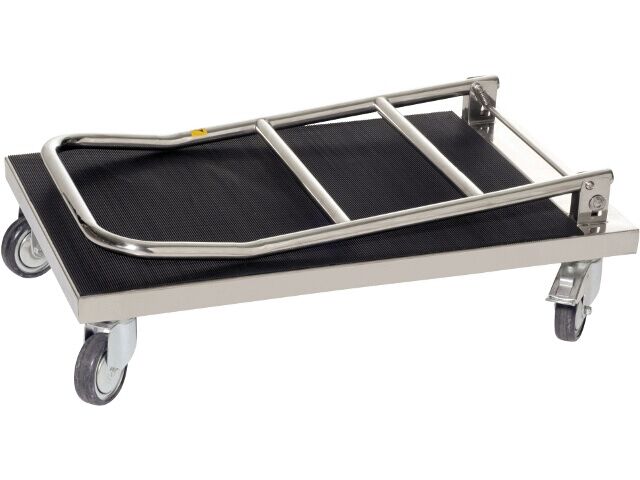

The image shows a flat transport platform with a black covering. It has a metal holder that is collapsible, and four wheels that facilitate movement.
Preview: The image shows a dolly with a flat platform and a tall, round handle on one side. The platform has a non-slip surface and four swivel wheels.
Preview: The image shows a flat transport platform with a black covering. It has a metal holder that is collapsible, and four wheels that facilitate movement.
Transport trolley with folding handle 825 x 520 mm
(Product No.: 5390.KW)
The image shows a dolly with a flat platform and a tall, round handle on one side. The platform has a non-slip surface and four swivel wheels.
The image shows a flat transport platform with a black covering. It has a metal holder that is collapsible, and four wheels that facilitate movement.
Mobile Preview: The image shows a dolly with a flat platform and a tall, round handle on one side. The platform has a non-slip surface and four swivel wheels.
Mobile Preview: The image shows a flat transport platform with a black covering. It has a metal holder that is collapsible, and four wheels that facilitate movement.
Notice / Inquire

Transport trolley with folding handle 825 x 520 mm

dpvlink:
25183
Version:
with folding handle, with ESD anti-slip covering
Length :
850 mm
Width :
520 mm
Load capacity :
100 kg
Properties:
Further product information

424.85 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Transport trolley with folding handle 825 x 520 mm

This high-quality transport cart with a folding handle, made of sturdy stainless steel, provides an efficient solution for the safe transport of materials in ESD-sensitive environments. The dimensions of the cart are 850 mm in length, 520 mm in width, and 950 mm in height, which represents a compact and handy size.
Equipped with four conductive solid rubber wheels (diameter: 100 mm), including two swivel casters with brakes, the cart ensures high maneuverability and stability. The loading area is covered with an ESD anti-slip coating, which ensures a maximum load capacity of 100 kg with evenly distributed weight.
The cart meets the requirements of the ESD standard DIN EN 61340-5-1 and is equipped with a discharge resistance of 10^3 to 10^5 Ω, enabling the safe handling of electronically sensitive components. Additionally, the transport cart is designed for self-assembly, which promotes easy and quick commissioning.
Version
Version
with folding handle, with ESD anti-slip covering
Length
Length
850 mm
Width
Width
520 mm
Load capacity
Load capacity
100 kg
Wheel Ø
Wheel Ø
100 mm
Height
Height
950 mm
Bleeder resistance
Bleeder resistance
103 - 105 Ω
Material
Material
steel
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Transport trolley with folding handle

Article image
Article description
ESD
Version
Length
Width
Load capacity
Price
Compare
5390.KW - Transport trolley with folding handle 825 x 520 mm
5390.KW
Transport trolley with folding handle 825 x 520 mm
with folding handle, with ESD anti-slip covering
850 mm
520 mm
100 kg
424.85 CHF
