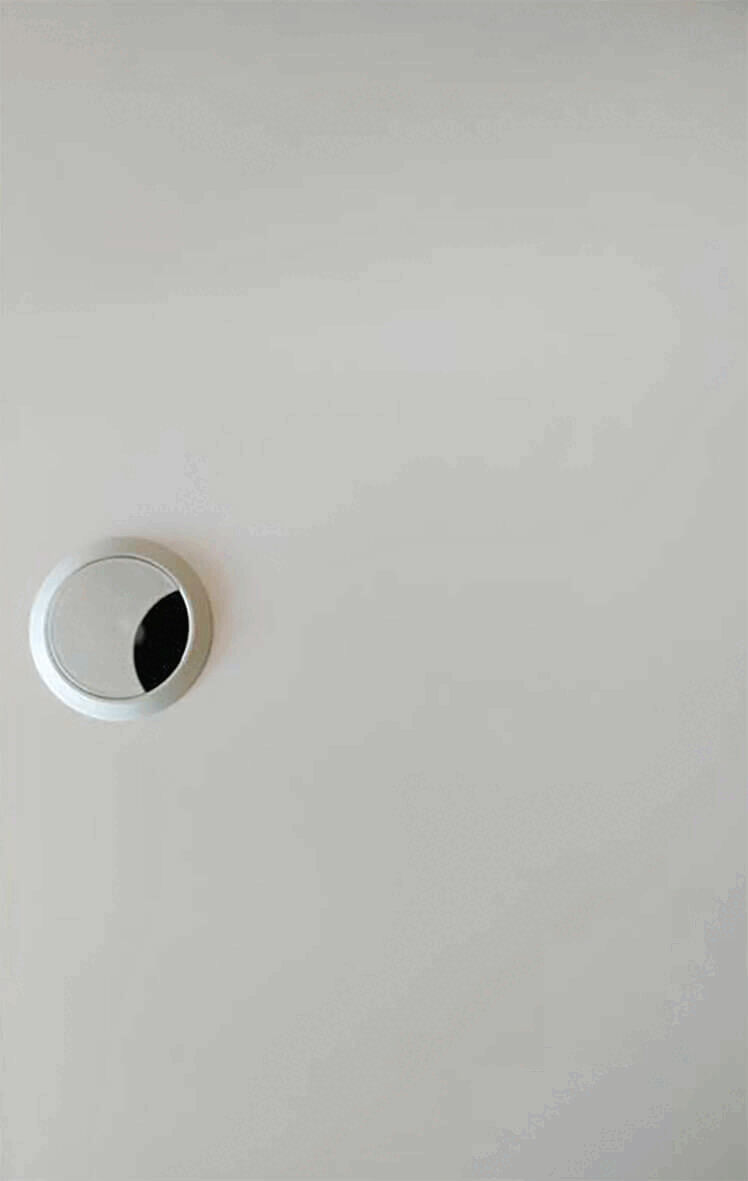

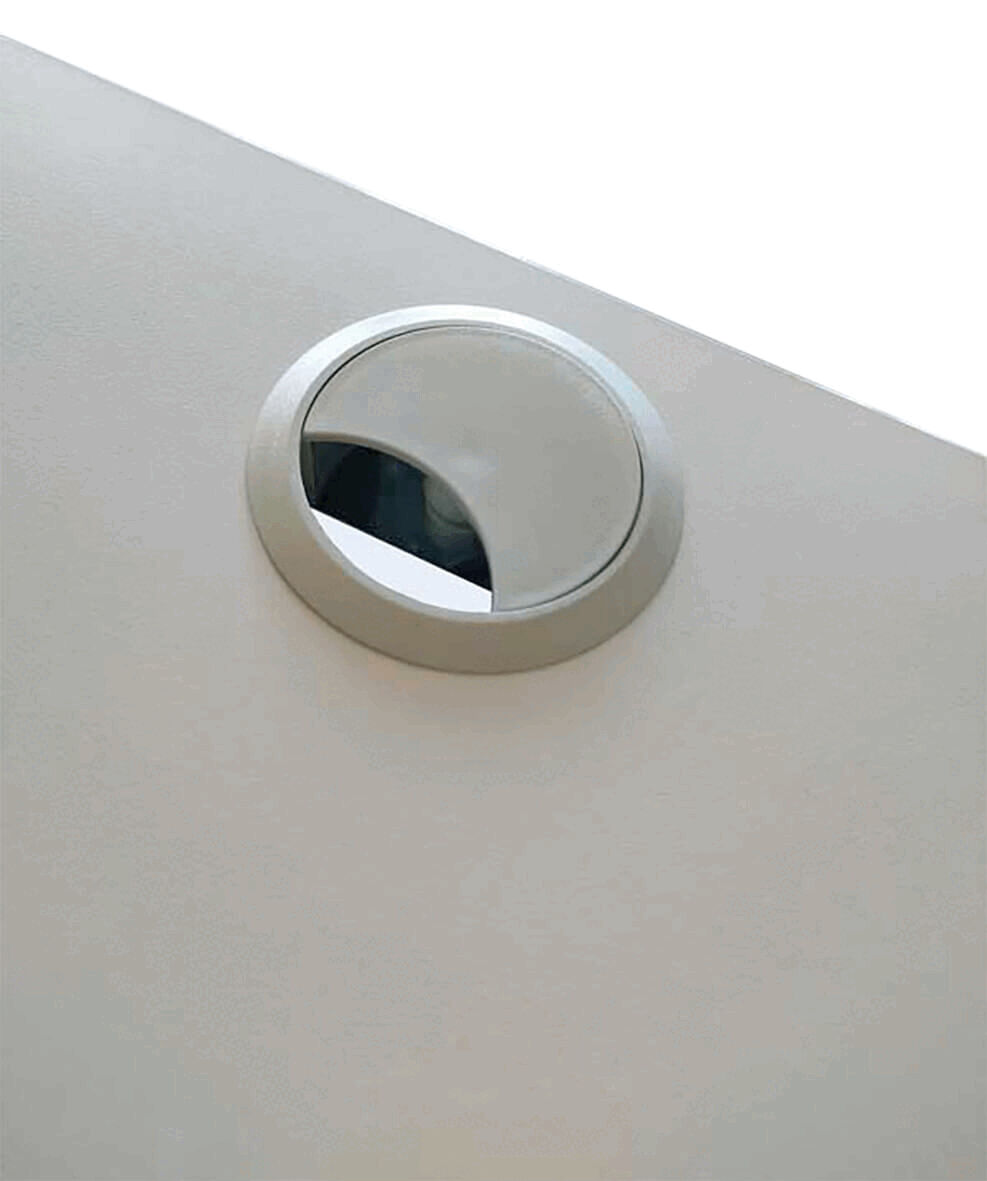

Table plates HPL-ESD custumer-specific

Our custom HPL-ESD worktops are ideal for retrofitting assembly and laboratory workstations. They are electrostatically volume conductive and comply with the ESD standard DIN EN 61340-5-1. The top is made of conductive hard laminate, which is applied to a chipboard and conductively glued. The underside is provided with a counterbalance, and the edges are equipped with a gray plastic edge banding.
The worktops offer a standard thickness of 27 mm, with special thicknesses available upon request. They are available in light gray and are characterized by a smooth, scratch-resistant surface that meets at least Grade 1 according to VGP and at least Grade 2 according to HGP. They are also robust, easy to maintain, durable, and hygienic.
The plates can withstand temperatures up to 100°C and can briefly endure temperatures up to 160°C. The length and width tolerance is +/- 5 mm, and the maximum standard dimensions are 3000 x 1200 mm. Further dimensions are available upon request, as long as safe transport is ensured.
The material HPL (High Pressure Laminate) is normally flammable (fire class D-s2) and offers typical conductivity of less than 10^9 Ω.

Details

Fire behavior Fire behavior: normally inflammable
Fire class Fire class: D-s2
Color Color: light grey
Length max Length max: 3000 mm
Maximum width Maximum width: 1200
Thickness Thickness: 27 mm
Conductivity Conductivity: dissipative
Typical resistance Typical resistance: < 10⁹ Ω
Material Material: HPL (high-pressure laminate)
Surface Surface: laminated
Surface condition Surface condition: smooth
Scratch resistance HGP min. Scratch resistance HGP min.: 2 °
Scratch resistance VGP min. Scratch resistance VGP min.: 1 °
Temperature resistance Temperature resistance: 100 °C

What role do ESD table and shelf coverings play?

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
