PoSy80 base frame with column
(Product No.: PoSy-80S)
The image displays a technical arm. It consists of a bright blue, movable arm with a black handle and is attached to a vertical metal post.
The picture shows a mechanical arm in bright blue with multiple joints. It has a gripping device and is mounted on a sturdy, gray column stand.
Mobile Preview: The image displays a technical arm. It consists of a bright blue, movable arm with a black handle and is attached to a vertical metal post.
Mobile Preview: The picture shows a mechanical arm in bright blue with multiple joints. It has a gripping device and is mounted on a sturdy, gray column stand.
Notice / Inquire

PoSy80 base frame with column

dpvlink:
20459
Properties:
Further product information

1,818.65 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

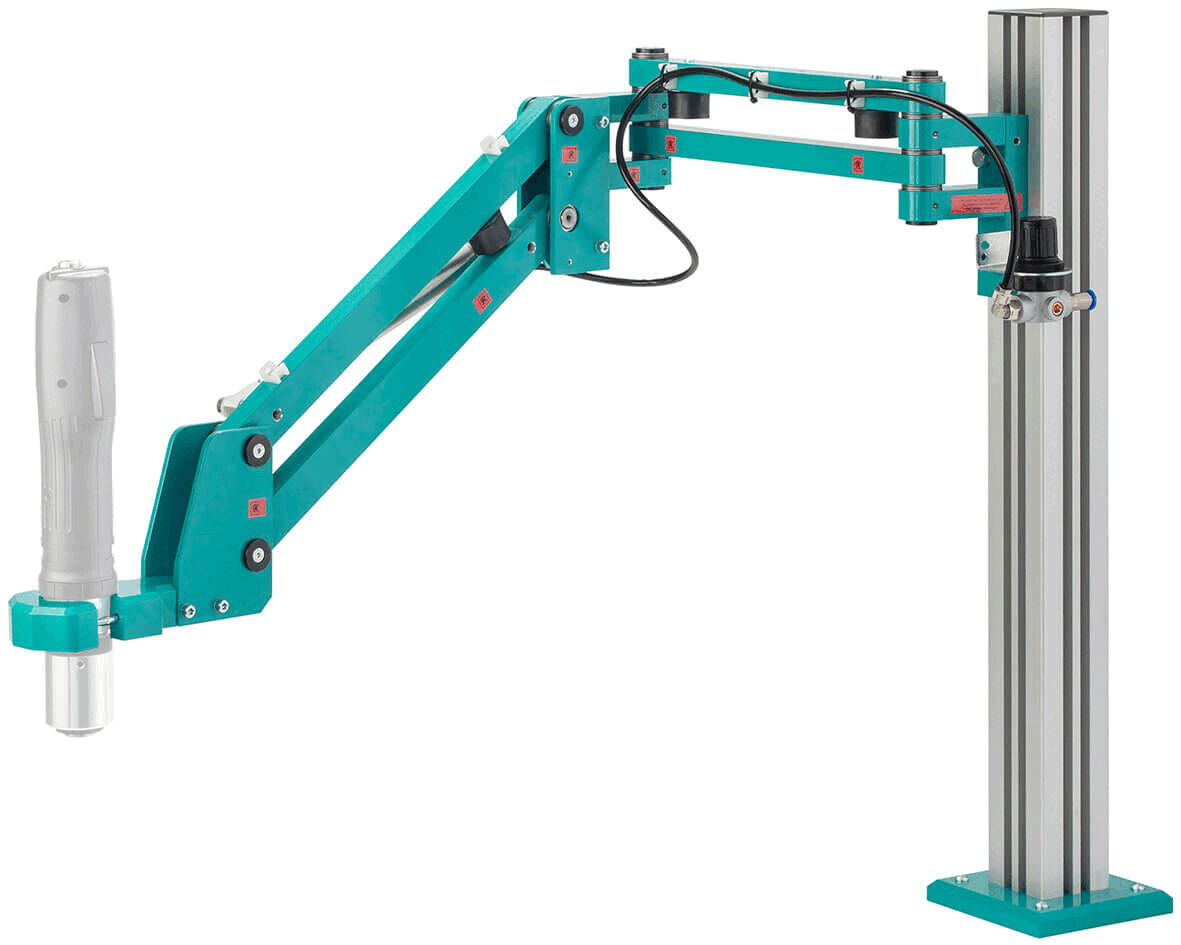

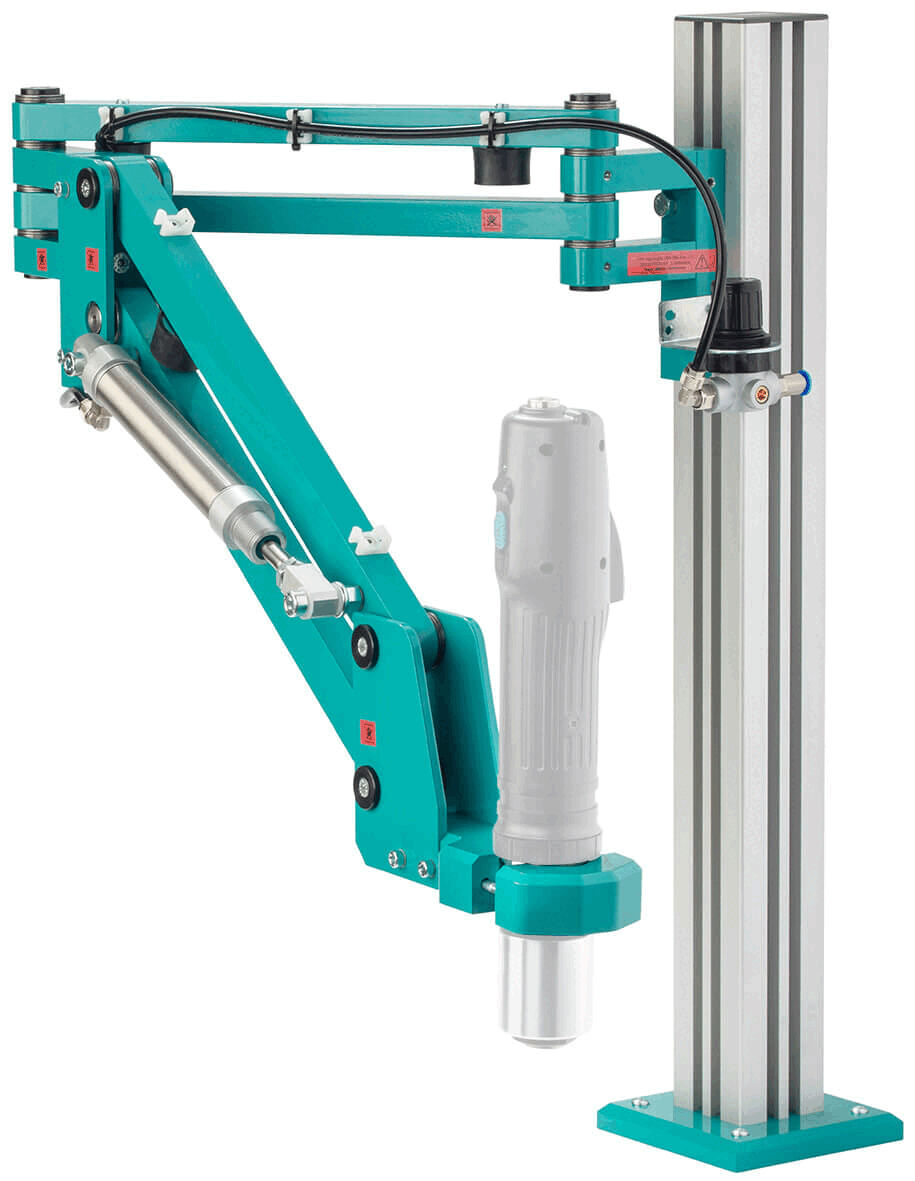

PoSy80 base frame with column

The PoSy80 base frame with column is a high-quality solution for precise tool guidance in industrial applications. This system features a maintenance-free parallel support arm that allows for exact vertical tool guidance while effectively absorbing reaction moments. The construction is extremely torsion-resistant and fully ball-bearing, ensuring long-lasting and reliable performance.
With a span of 850 mm and a maximum load capacity of 80 Nm, the base frame is particularly robust. The tool holder is adjustable and can accommodate tools with diameters from 32 to 45 mm. The integrated pneumatic cylinder can be individually adjusted to different tool weights, allowing for flexible adaptation to various working conditions.
Additionally, the system offers the possibility of being expanded to a 3-axis positioning system. The pneumatic connection is designed with a 6 mm plug connection and is intended for an operating pressure of 6 bar. For mounting, both a column with a base for table mounting and a bracket for wall mounting are provided, enabling versatile use in different environments.
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 448
Complete Catalog 2023 - 2024

Product Family

Parallel support arm with positioning system

The PoSy80 parallel support arm assures a precise  tool guidance when screwing your components.

Maintenance-free parallel support arm with adjustable tool holder. Precise tool guidance facilitates positioning.

  • Extremely torsion-resistant construction
  • Completely mounted on ball bearings
  • Reaction torques are absorbed
  • Compressed air cylinder adjustable to different tool weights
  • Can be extended to a 3-axis positioning system

Article image
Article description
ESD
Price
Compare
PoSy-80S - PoSy80 base frame with column
PoSy-80S
PoSy80 base frame with column
1,818.65 CHF
PoSy-80W - PoSy80 base frame for wall mounting
PoSy-80W
PoSy80 base frame for wall mounting
1,551.45 CHF
