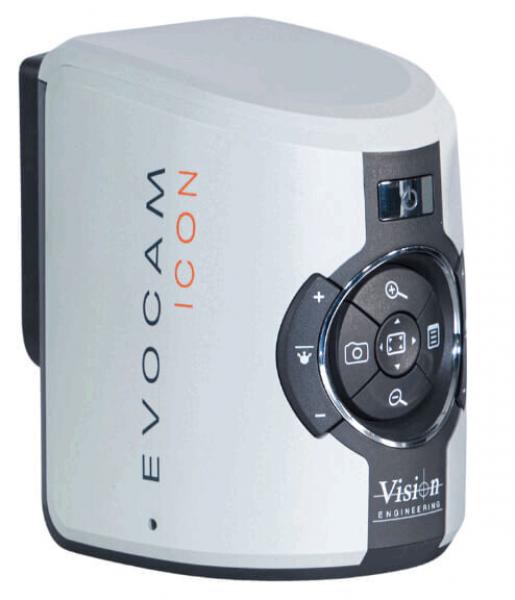

EVO-Cam ICON video microscope head
(Product No.: ECH-007)
The image displays a compact, modern camera in light gray with a circular control panel. On the casing, the words "EVOCAM ICON" and the logo of "Vision Engineering" are visible.
Notice / Inquire

EVO-Cam ICON video microscope head

dpvlink:
29903
Further product information

3,744.00 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

EVO-Cam ICON video microscope head

The EVO-Cam ICON video microscope head from Vision Engineering is a state-of-the-art imaging solution, specifically designed for demanding applications in fields such as electronics, medical devices, and precision engineering. This device stands out for its ability to capture high-resolution images (1920 x 1080) with an optical zoom of up to 30x and a digital zoom of up to 12x, enabling detailed viewing.
With an impressive color temperature of 5,500 K and LED lighting, the microscope provides a clear and consistent view of the object under examination. Ease of use is supported by features such as direct image capture to a USB drive and the option for quick and reliable measurement directly on the screen. Additionally, the microscope can be customized with a variety of stands and lenses to optimally integrate into existing workflows.
The robust design ensures an operating temperature from 5 to 40 °C and a storage temperature from -10 to 60 °C, securing durability and reliability under various environmental conditions. Included in the package are the EVO-Cam ICON video microscope head, incident light, and a USB drive, though lenses must be purchased separately. With its compact dimensions (11 mm width, 16.5 mm height, 14 mm depth) and a power of 72 W, the EVO-Cam ICON is ideal for professionals who need a versatile and powerful microscopy solution.
Power
Power
72 W
Depth
Depth
14 mm
Height
Height
16.5 mm
Width
Width
11 mm
Illuminant
Illuminant
LED
Capture resolution
Capture resolution
1920 x 1080
Digital zoom max.
Digital zoom max.
12x
Light color
Light color
5,500 K
Optical zoom max.
Optical zoom max.
30x
Operating temperature
Operating temperature
5 - 40 °C
Storage temperature
Storage temperature
-10 - 60 °C
Show accessories
Accessories

Accessories

The image shows an electric magnifying device on a sturdy, black stand. It features a round, illuminated area for objects and a camera with controls on top.
Ergo stand with fine/coarse focusing
Ergo stand with corse/fine focus control EVB-010



suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
21623

3,078.00 CHF
Show product
The image displays a black control unit with an oval shape. In the center, there are three buttons arranged in a circle. Above, several labeled buttons are scattered.
Console control
ECX-155 EVO-Cam II Remote control



>>for EVO Cam + EVO Cam II + Makrolite 4K <<
dpvlink
21623

534.00 CHF
Show product
The image shows a camera attached to a vertical, black stand. The stand has a curved base that provides stable support.
Column for arch and table stand, incl. focus...
Column for arch and table stand, incl. focus
for EVO Cam ICON and OPTA
dpvlink
29916

619.20 CHF
Show product
The image shows a straight stand with a round base. In the center, there is a vertical pillar with a device featuring controls attached to it. It appears stable and functional.
Basic arch stand for attachment to column...
Basic arch stand for mounting on a column
for EVO Cam ICON and OPTA
dpvlink
29916

244.80 CHF
Show product
The image shows a device on a stable, rectangular base. Attached to a vertical rod is a screen holder that displays a round control.
Basic table stand for attachment to column...
Basic table stand for mounting on a column
for EVO Cam ICON and OPTA
dpvlink
29916

244.80 CHF
Show product
The image shows a device mounted on a vertical stand. It has a black mount and a round end. The stand is stable and features a curved base.
Adapter for mounting ICON on arch/table stand...
Adapter for mounting ICON on arch
table stand, for EVO Cam ICON
dpvlink
29916

100.80 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

EVO Cam ICON digital microscope

Vision Engineering's EVO Cam ICON digital microscope offers a powerful, versatile, easy-to-use imaging solution that delivers uncompromising optical performance.

Highlights of the EVO Cam ICON

  • High quality images - a 30:1 optical zoom range with up to 725x optical magnification allows you to see the details you need to really understand the subject.
  • Wide field of view - with a field of view of up to 660 mm, you can easily see more of your subject.
  • Long working distance - if you need to perform repair or post-processing tasks under magnification, you'll have plenty of room to handle the tools.
  • Easy image capture - capture high-resolution images at the touch of a button, either directly to a USB memory stick, wirelessly or directly to a PC.
  • Consistency - consistent quality checks across multiple units, multiple users and multiple locations, with 10 customizable presets that can be easily shared.
  • Integrated measurement - provide fast and reliable measurements at multiple points on your property that are critical to safety and performance.
  • Customize - a wide range of tripods, lenses and accessories to ensure your EVO Cam ICON setup fits your workflow, now and in the future.

Powerful
EVO Cam ICON increases the accuracy and efficiency of your inspection with impressive clarity and detail. The high-quality camera, sensor, custom lenses and advanced software features combine to deliver impressive image quality. With an optical zoom range of 30:1 and up to 725x magnification, you can easily see all the details. The digital zoom extends this range even further, while Full HD video, manual and automatic focusing ensure razor-sharp images at all times. The powerful processing functions enable rapid image capture and analysis, making your inspection processes faster and more efficient.

Flexible
EVO Cam ICON offers exceptional flexibility, making it a compelling solution for a variety of environments. Configure 10 presets for faster transitions between tasks or operators. Easily integrate additional devices by sharing settings. Customize the system to your workspace and application with a comprehensive range of tripods, lenses and other accessories. EVO Cam ICON easily adapts to your evolving inspection needs, quality requirements and industry standards.

Intuitive
Thanks to its clear design and user interface, EVO Cam ICON is easy and efficient to use and integrates seamlessly into your workflow. EVO Cam ICON is ready to use in minutes. Simply switch on the camera to view and capture Full HD images. The intuitive on-screen controls and various language options ensure that you can quickly find your way around with minimal training.
Application area

Software options:

 DimensionOne

 DimensionTwo

 ViPlus

Image capture

 ✓

 ✓

 ✓

Inscription

 ✓

 ✓

 ✓

Measurement on the screen

 ✓

 ✓

 ✓

Overlay

 ✓

Reporting

 ✓

 ✓

 ✓

Focus stacking

 ✓

Kantenerkennung

 ✓

 ✓

Formerkennung

 ✓

Areas of application

Electronics
In electronics manufacturing, EVO Cam ICON allows you to view connections and solder joints with high magnification and exceptional clarity. This improves both the accuracy and speed of rework and inspection.

Medical devices
Medical device manufacturing is a highly regulated industry. When you choose EVO Cam ICON as your digital microscope solution, you get outstanding clarity to detect subtle deviations and capture high-resolution images for traceability and compliance reporting.

Precision engineering
If you design, manufacture and maintain machines and components with tight tolerances and high accuracy, EVO Cam ICON delivers exceptional image quality, allowing you to easily inspect and measure your parts for compliance with required specifications.


Article image
Article description
Illuminant
Capture resolution
Digital zoom max.
Light color
Optical zoom max.
Support
Working distance
Power
Depth
Height
Width
Operating temperature
Storage temperature
Price
Compare
ICO2501 - EVO-Cam ICON video microscope with Ergo table stand
ICO2501
EVO-Cam ICON video microscope with Ergo table stand
LED
1920 x 1080
12x
5,500 K
30x
Ergo stand
500 mm






6,822.00 CHF
ICO2502 - EVO-Cam ICON video microscope with multiaxis stand
ICO2502
EVO-Cam ICON video microscope with multiaxis stand
LED
1920 x 1080
12x
5,500 K
30x
multi-axis stand
500 mm






7,196.40 CHF
ICO2503 - EVO-Cam ICON video microscope with double-arm column stand
ICO2503
EVO-Cam ICON video microscope with double-arm column stand
LED
1920 x 1080
12x
5,500 K
30x
Double-arm column stand
500 mm






5,185.20 CHF
ICO2504 - EVO-Cam ICON video microscope with arc stand
ICO2504
EVO-Cam ICON video microscope with arc stand
LED
1920 x 1080
12x
5,500 K
30x
Arch Stand
500 mm






4,708.80 CHF
ICO2505 - EVO-Cam ICON video microscope with column table stand
ICO2505
EVO-Cam ICON video microscope with column table stand
LED
1920 x 1080
12x
5,500 K
30x
table stand
500 mm






4,708.80 CHF
ECH-007 - EVO-Cam ICON video microscope head
ECH-007
EVO-Cam ICON video microscope head
LED
1920 x 1080
12x
5,500 K
30x


72 W
14 mm
16.5 mm
11 mm
5 - 40 °C
-10 - 60 °C
3,744.00 CHF
