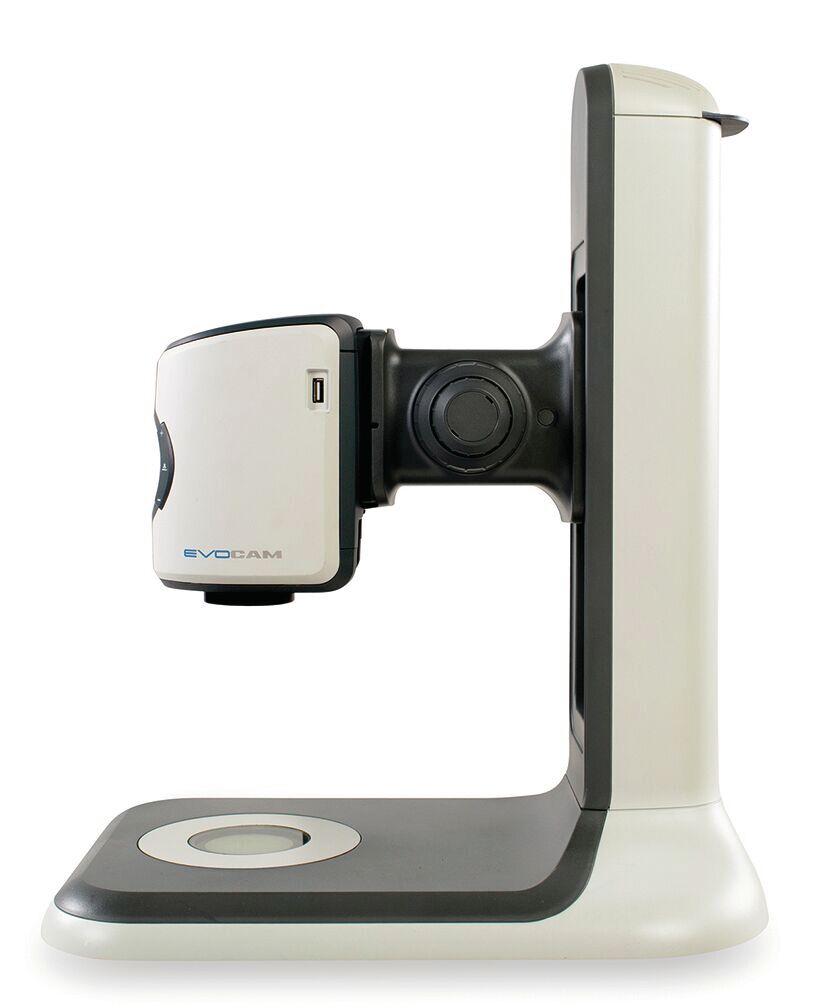

EVO Cam II with Ergo stand

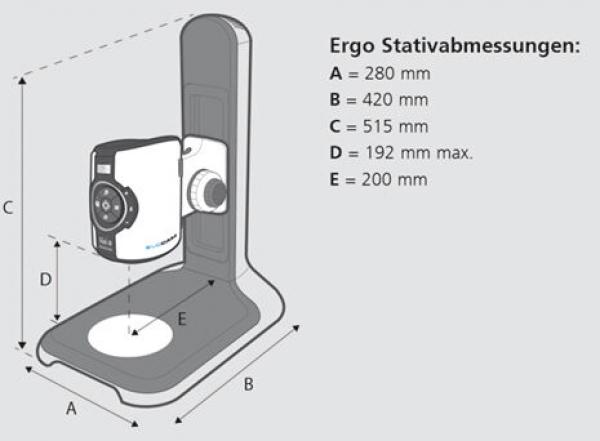

The EVO Cam II, manufactured by Vision, is an advanced video microscope specifically designed for technical inspections and precision tasks. This basic equipment includes the camera head with LED incident light and a USB stick, as well as the Ergo tripod with fine and coarse focusing, which provides a stable and adjustable platform.The system is characterized by its compact dimensions of 280 mm width, 515 mm height, and 420 mm depth, and requires a power of 72 W at a voltage of 100 - 240 V. The LED lighting ensures clear visibility without heat development with a color temperature of 5500 K. The EVO Cam II offers an impressive recording resolution of 1920 x 1080 and supports a digital zoom of up to 12x as well as an optical zoom of up to 30x. The working distance is 192 mm, which significantly facilitates the handling and examination of objects.
This system is ideal for professionals looking for a reliable, precise, and user-friendly solution for their visual inspection needs.
Details
- Support Support
- Ergo stand
- Optical zoom max. Optical zoom max.
- 30x
- Digital zoom max. Digital zoom max.
- 12x
- Working distance Working distance
- 192 mm
- Height Height
- 515 mm
- Depth Depth
- 420 mm
- Power Power
- 72 W
- Voltage Voltage
- 100 - 240 V
- Width Width
- 280 mm
- Illuminant Illuminant
- LED
- Capture resolution Capture resolution
- 1920 x 1080
- Light color Light color
- 5500 K
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
EVO Cam II digital microscope
Intuitive, easy setup
EVO Cam II has two user levels to ensure that users can always use the right functions & tools. Clear user interface - On-screen feature description provides users with information about the controls in one of 10 pre-installed languages.
Easy team setup - Ensure multiple EVO Cam systems are all configured identically by exporting settings from your master and sharing with the team. Save your settings files for later retrieval.
Powerful and effective tools ensure consistency, efficiency and ease of use of your system
Improve operator throughput and quality standards with the right, simple and effective features:
Instant sample comparison between the difference of a stored sample and the sample being analyzed. The 30:1 zoom ratio means that magnifications from 10x to 300x can be accessed with a single objective.
Use hotkeys and shortcuts to quickly access functions.
Save your most frequently used camera settings with up to ten presets. Select the optional remote control to improve user convenience and provide faster access to preset system settings.
Use overlays for comparisons, instructions or measurements by placing a transparent image over the sample view.
Adjust the zoom range to ensure correct inspection settings.
Easily capture and share images with Wi-Fi - ideal for multiple users to quickly view and download images.
Simple measurements
Perform simple measurements with virtual XY measurement lines or the scalable grid, directly on the screen. Calibration tracking over the zoom range allows measurement at different points in the zoom range.
Exceptional image quality in Full HD resolution without image delay
EVO Cam II's wide range of precision lenses and wide-angle lenses allow you to customize your own application-specific solutions so that you can concentrate fully on the image. With two automatic and one manual exposure modes, with depth of field control, you can determine how much the subject should be in focus.
Brightness reference levels set the desired parameters for the automatic exposure function. The automatic white balance and the extension of the dynamic range increase the performance of the system. Achieving maximum image sharpness is additionally supported by the latest sensor with backlighting.
Technical data
Camera | Full-HD |
Incident light | 8-point LED ring light. Color temperature 5500 K |
Control | On/off, zoom +/-, overview mode, ring light illumination, transmitted light illumination, image capture |
Output | HDMI, USB 3, USB 2, WiFi |
Camera
Camera zoom | 30:1 |
Digital zoom | 12:1 |
Camera resolution | 1920 x 1080 |
Sensor | 1/2,8" CMOS (backlit) |
Frame rate | 50 fps & 60 fps (switchable) |
File format | PNG, JPEG+, JPEG, JPEG- |
Functions
Optional license | Focus stacking (max. depth 110 mm) |
Inspection | Image comparison, overlays, supervisor mode, configurable zoom range, import/export settings |
Documentation | Image acquisition, time stamp |
Measurements | Virtual measuring lines (movable in the X-axis, Y-axis, diagonal - point-to-point), scalable grid, overlays, calibration mode |
General functions | Image capture, image playback mode, noise reduction, lighting parameters |
Illumination control | Automatic, aperture priority, manual |
Focusing | Automatic, manual |
Quick access buttons (front keypad) | Presets, white balance, key lock, exposure auto/man, focus auto/man |
Functions in supervisor mode | Image capture, zoom, lighting control, overlay on/off, metering lines on/off, Grid On/Off, presets 1-10, image comparison On/Off, image playback, focus stacking |
Programmable presets | 10 (save, import/export) |
Image capture/saving | USB stick or via PC connection |
Languages | English, French, German, Spanish, Italian, Portuguese, Russian, Chinese, Japanese, Korean |
Image mode | Automatic white balance, black and white mode, dynamic range, noise reduction, infrared mode |
