TEK-FLEX-XY FHD digital microscope
(Product No.: I-TEK.FLEX-XY)

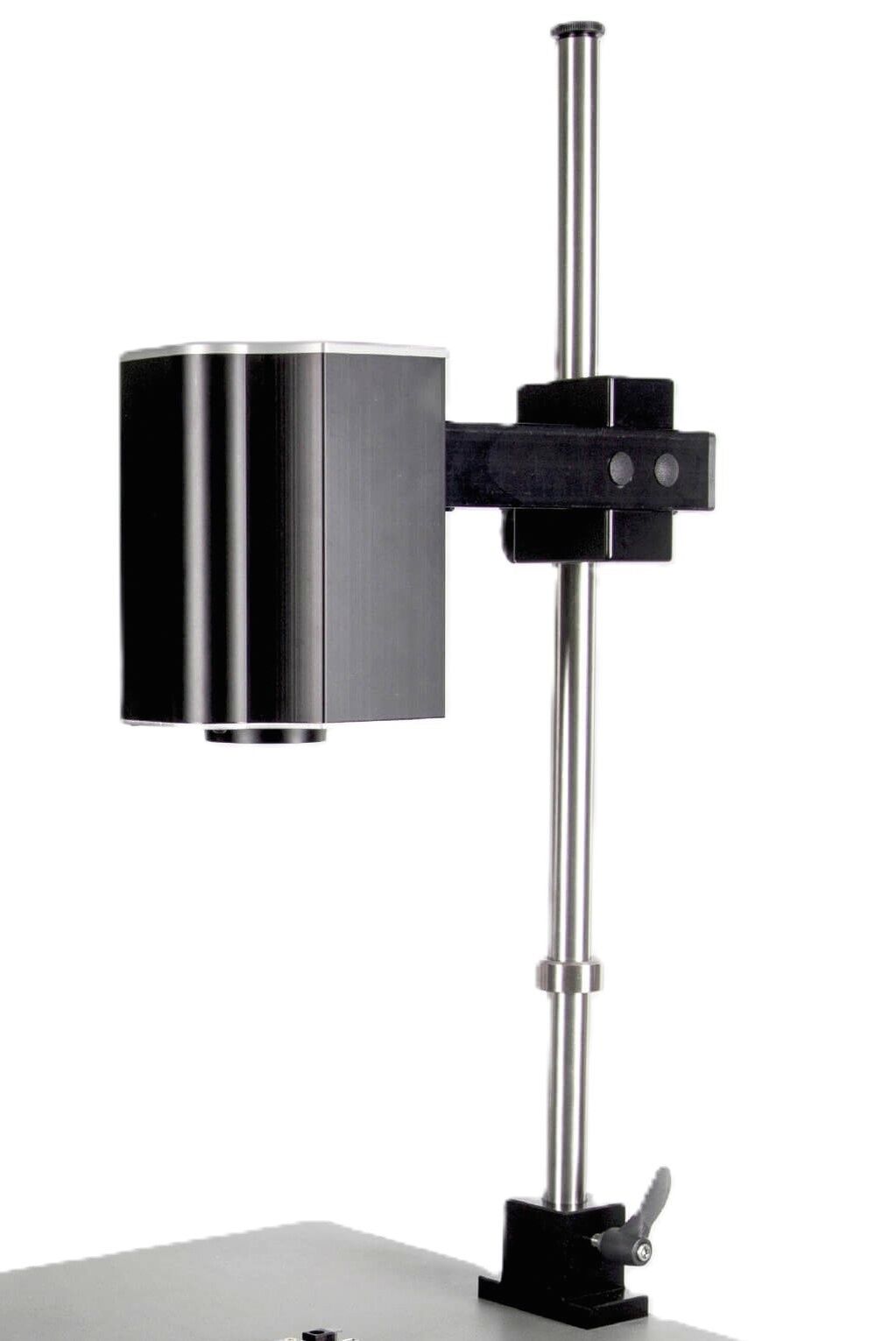

The image shows a device consisting of a vertical metal pipe and a black box. The box is mounted on top and could be a microphone or a camera.

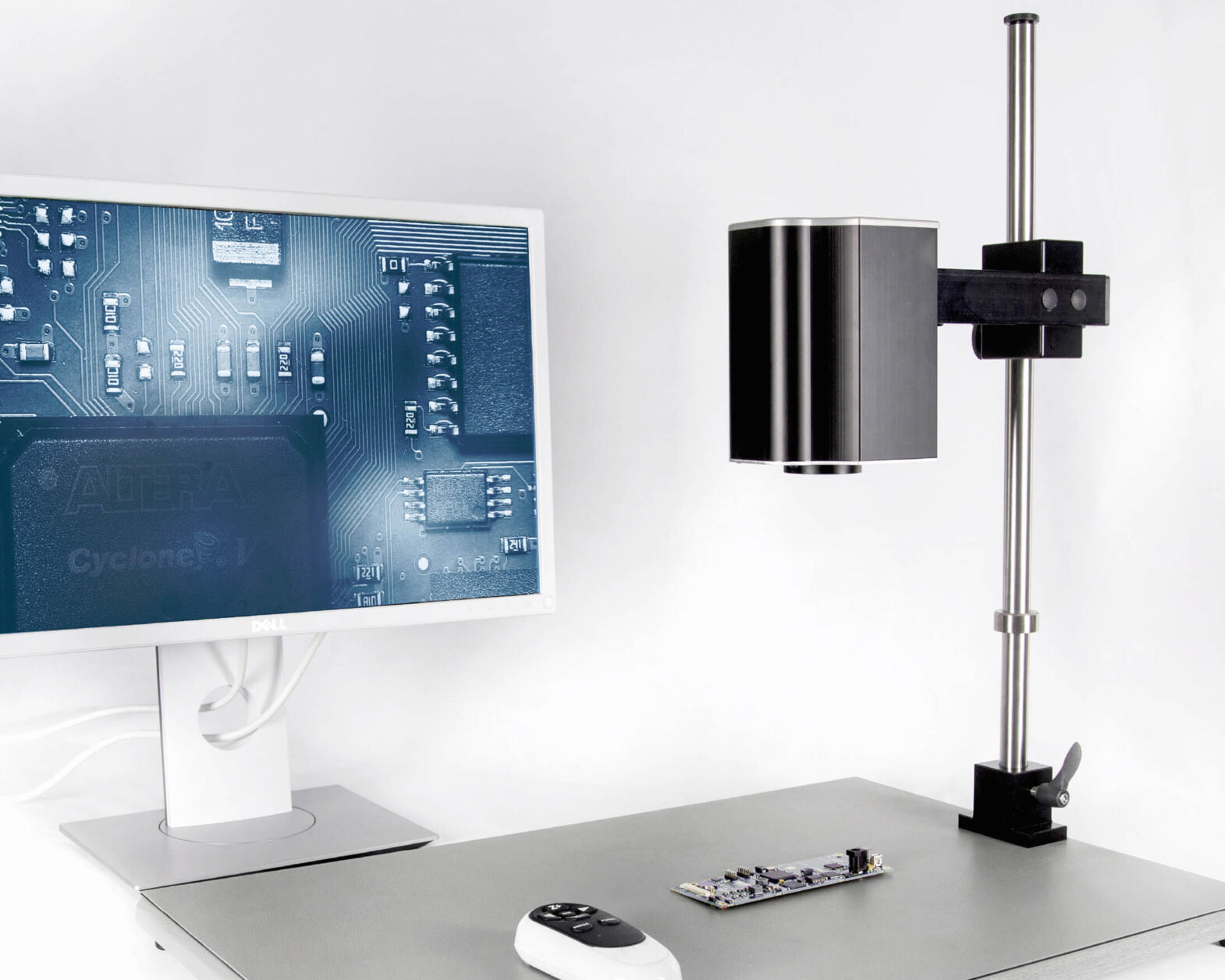

On a table, there is a monitor displaying a technical diagram. Above a small component, a black camera hovers, attached to a mount.
The image shows a technical workstation with a camera hovering over a circular area. Below it is a circuit board. The camera can be moved in various directions.

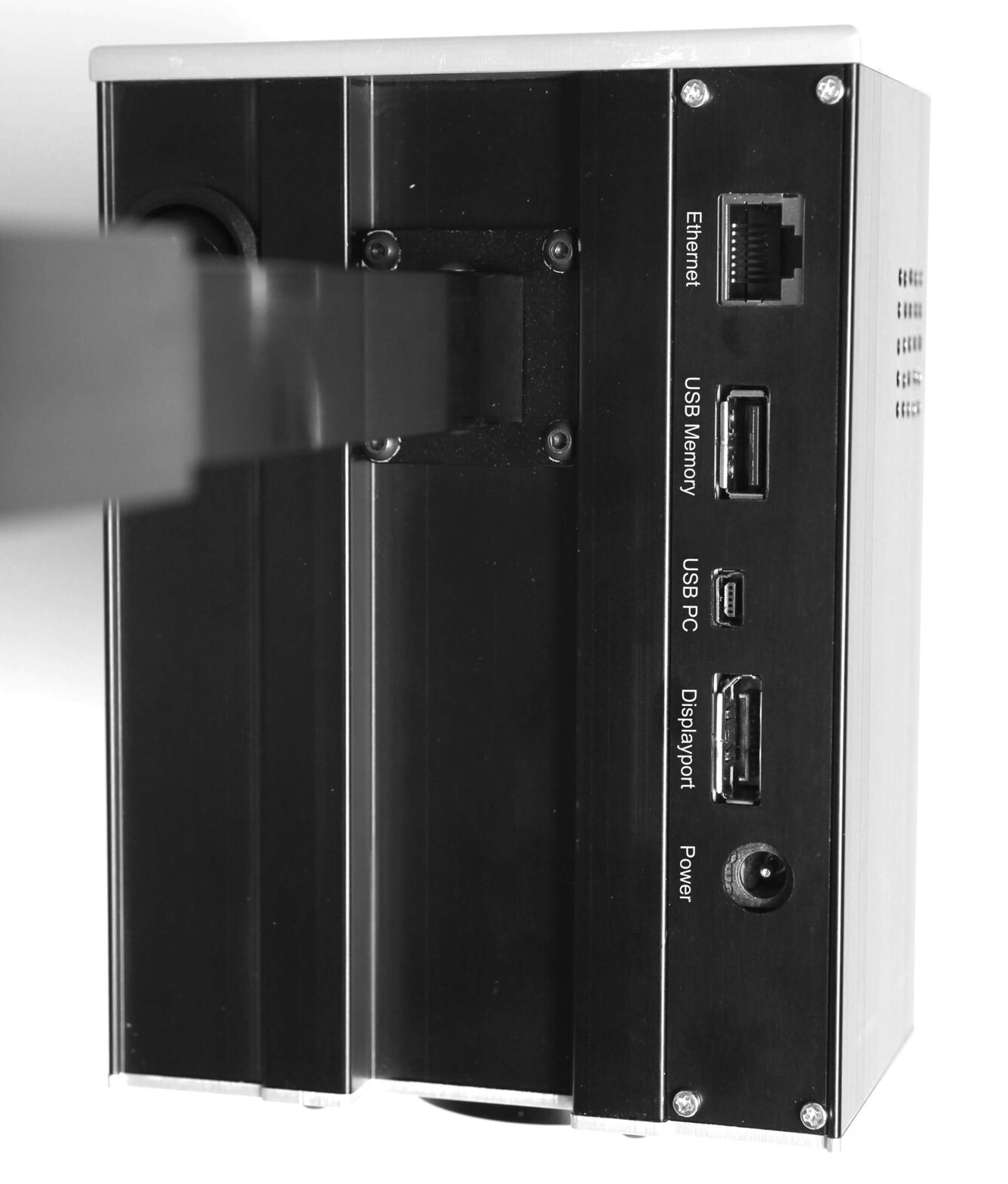

The image shows the back of a device with several connection ports: Ethernet, USB (for storage and PC), DisplayPort, and power supply. The surface is black and metallic.

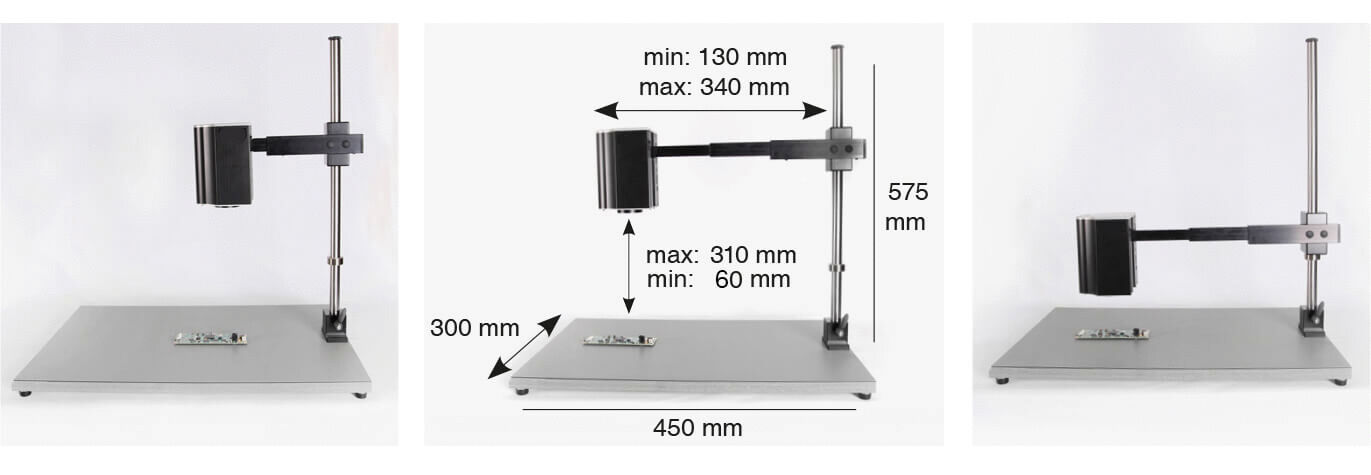

The image displays an adjustable device with a base and an arm that holds a black mount. The dimensions are listed: height up to 575 mm, arm adjustable from 130 mm to 340 mm.
Mobile Preview: The image shows a device consisting of a vertical metal pipe and a black box. The box is mounted on top and could be a microphone or a camera.
Mobile Preview: On a table, there is a monitor displaying a technical diagram. Above a small component, a black camera hovers, attached to a mount.
Mobile Preview: The image shows a technical workstation with a camera hovering over a circular area. Below it is a circuit board. The camera can be moved in various directions.
Mobile Preview: The image shows the back of a device with several connection ports: Ethernet, USB (for storage and PC), DisplayPort, and power supply. The surface is black and metallic.
Mobile Preview: The image displays an adjustable device with a base and an arm that holds a black mount. The dimensions are listed: height up to 575 mm, arm adjustable from 130 mm to 340 mm.

TEK-FLEX-XY FHD digital microscope

dpvlink:
30069
Further product information

NEW

Compare Compare
Notice / Inquire
Product Info

TEK-FLEX-XY FHD digital microscope

The TEK-FLEX-XY FHD Digital Microscope from ideal-tek is an advanced optical bench inspection system, known for its high image quality and flexibility. This microscope offers an impressive optical magnification of 46x and a digital magnification of up to 140x on a 27" monitor. It is specifically designed for the inspection industry and allows for precise inspections even in compact spaces thanks to its telescopic camera arm.
The system features an adjustable Z-axis ranging from 310 mm to 60 mm and delivers distortion-free 1080p FHD images without any time delay. The robust construction is ESD-safe and offers both manual and fast autofocus. Additional features include a wireless remote control, real-time image transmission via DisplayPort, measuring software for the PC via USB port, and the ability to save images directly to a USB stick without using a PC.
With dimensions of 300 mm width, 600 mm height, and 500 mm length, and an input voltage of 100 - 240 V/AC and an output voltage of 12 V/DC, the microscope is both ergonomically and technically up-to-date. The accompanying software allows for efficient image and video editing and performing measurements directly on the PC.
Input voltage
Input voltage
100 - 240 V/AC
Output voltage DC
Output voltage DC
12 V/DC
Height
Height
600 mm
Length
Length
500 mm
Width
Width
300 mm
Capture resolution
Capture resolution
1920 x 1080
Magnification
Magnification
140x
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

TEK-FLEX-XY FHD digital microscope

Get exceptionally sharp images for inspections, failure analysis and more with TEK-FLEX-XY.
TEK-FLEX-XY from ideal-tek is a high-resolution optical table-top inspection system with a telescopic arm for precise XY positioning and an adjustable Z-axis height from 310 mm to 60 mm. The camera offers an optical magnification of 46x (27“ monitor) and a digital magnification of up to 140x (92x recommended - 27” monitor). The ESD-safe TEK-FLEX-XY is equipped with both manual focus and impressively fast autofocus and delivers high-quality, distortion-free 1080p FHD images with excellent depth of field and no delay. LED lights ensure shadow-free illumination. The large working distance of 310 mm enables the inspection of a wide range of objects. TEK-FLEX-XY must be connected to a monitor.

Highlights of TEK-FLEX-XY

  • Less physical strain than binocular microscopes
  • User-friendly system
  • Longer working distances, no risk of PCB contact. Sufficient clearance for assembly, repair and rework
  • Autofocus frees the hands and enables fast inspection of objects at different heights and magnifications
  • Greater depth of field for easier and faster work
  • Remote control of magnification, focus, brightness, etc.
  • Save images directly to USB stick, no PC required
  • Ethernet connection for simultaneous use of screens
  • ESD-safe



DisplayPort output: live streaming of images on your monitor (FHD 1920x1080)

Using the remote control, you can zoom in and out, turn the autofocus on and off, fine-tune the focus and much more - all at the touch of a button. Simply connect the DisplayPort cable and get started.



Save your pictures directly to a USB stick

Snapshot mode. No computer required. Simply connect a USB stick to your TEK-FLEX-XY and press the MODE button on the remote control for a few seconds.



USB output: Live streaming of images on your PC (FHD 1920x1080)

Use the software toolbar to draw, take measurements, compare images and much more. The software is pre-installed on the supplied USB stick or you can download the latest version from our website (DOWNLOAD section). No drivers, no product keys required - just install and run.

Ethernet connection

The Ethernet connection enables simultaneous screen sharing via the same IP address.

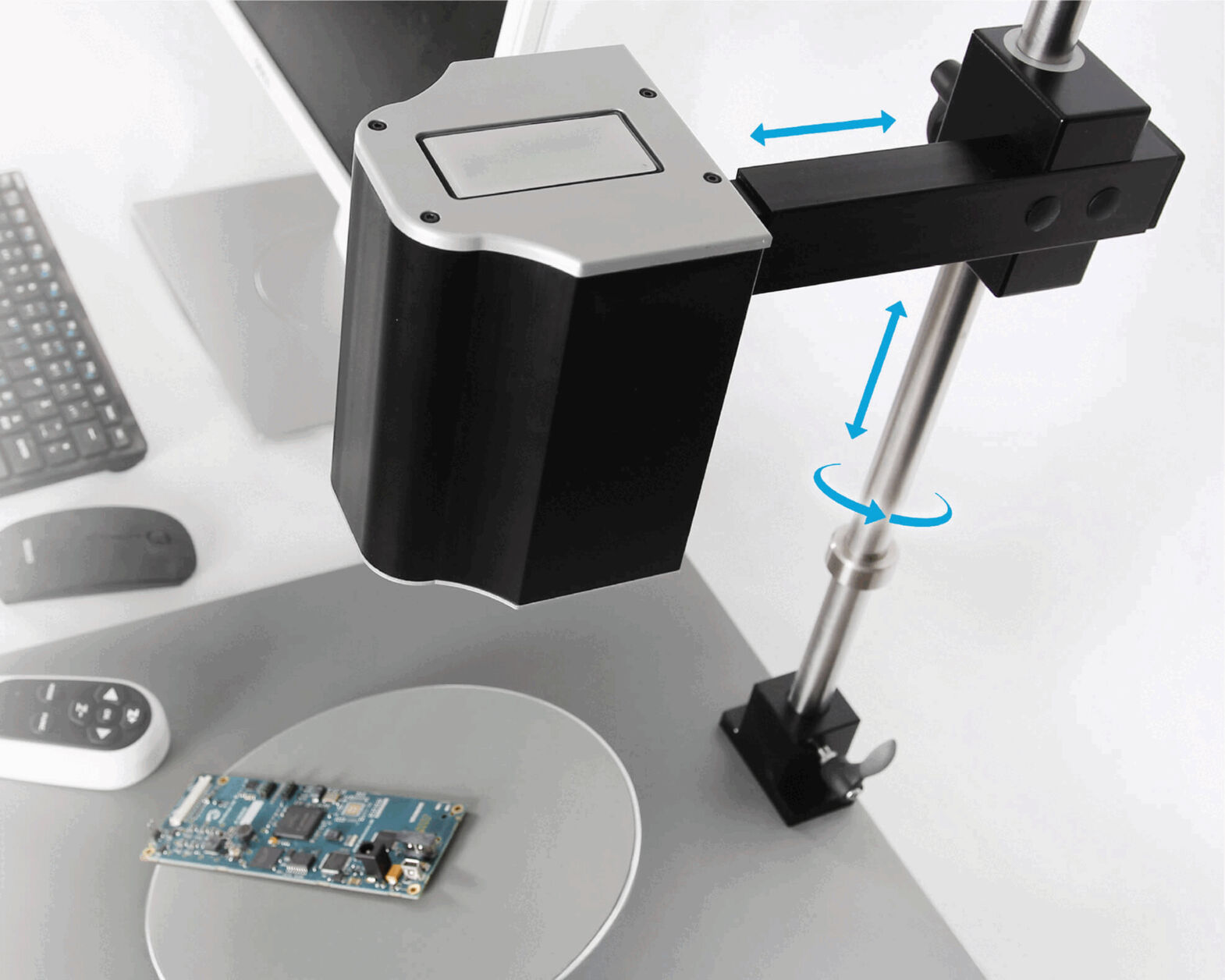

Telescopic movement

The telescopic movement of the camera arm has been specially developed for the inspection industry and enables efficient operation in compact spaces.


Technical data:

  • adjustable working distance
  • FHD camera 1920x1080
  • Wireless remote control
  • Auto or manual focus
  • Independent images in real time (DisplayPort)
  • Measurement software for PC (USB port)
  • Ethernet connection for screen sharing
  • Direct storage of images on USB stick - no PC required
  • Ergonomic
  • ESD-safe



SOFTWARE TEK-FLEX-XY

(remove the previous version of the software before installing this version and restart the PC).
No drivers, no product keys required, just install and run.
With the TEK-FLEX-XY software you can control the device from the PC, take pictures and videos, perform measurements and draw on the objects to be tested. For detailed information, read the full user manual.
