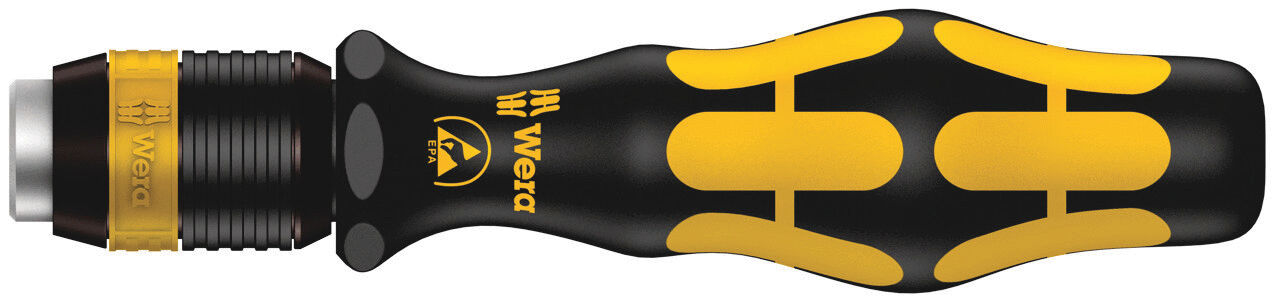

The image shows a screwdriver with an ergonomic, yellow-black handle. The handle has a non-slip surface and a special shape for better grip and control during use.

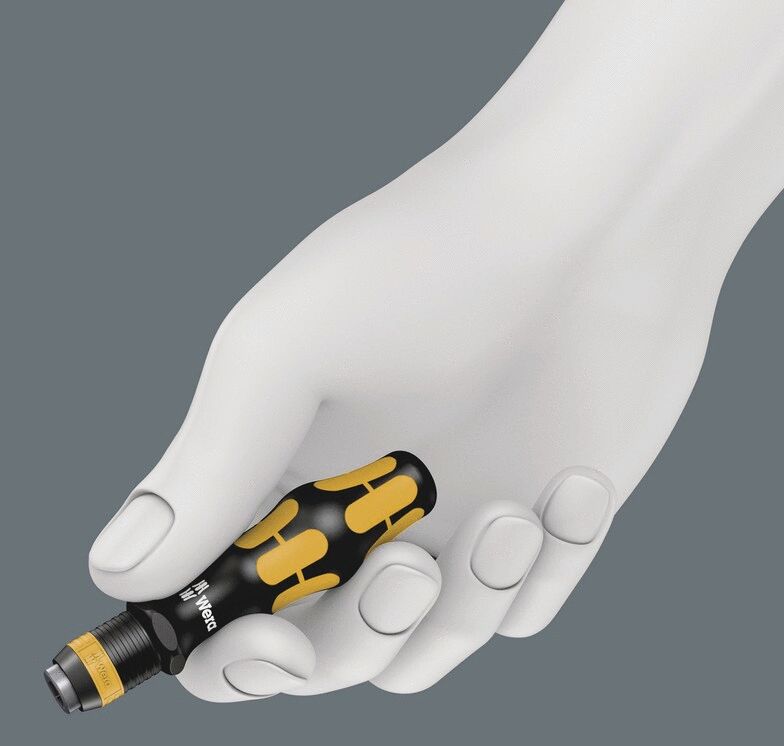

A white hand holds a black screwdriver with yellow accents. The background is gray. The hand has a natural shape and the fingers are slightly bent.

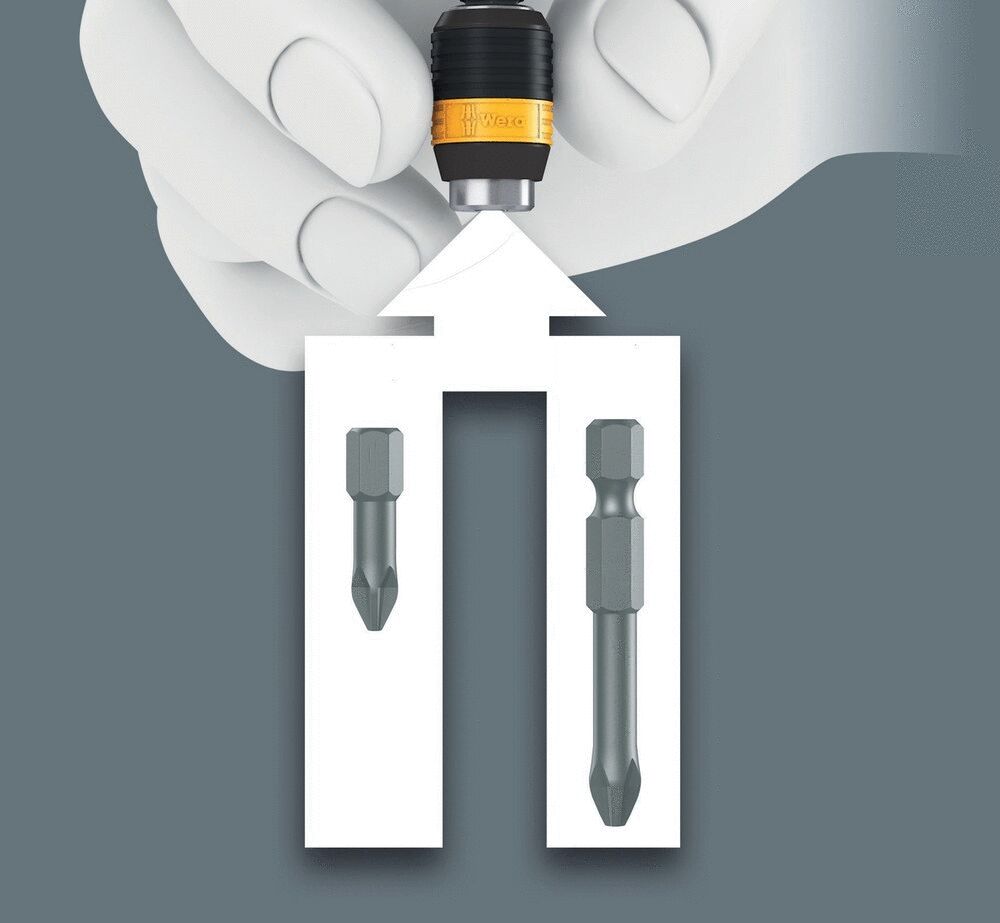

The image shows a hand holding a nozzle with a yellow ring. Below is a white, rectangular shape with two gray bits on the sides that look like tools.

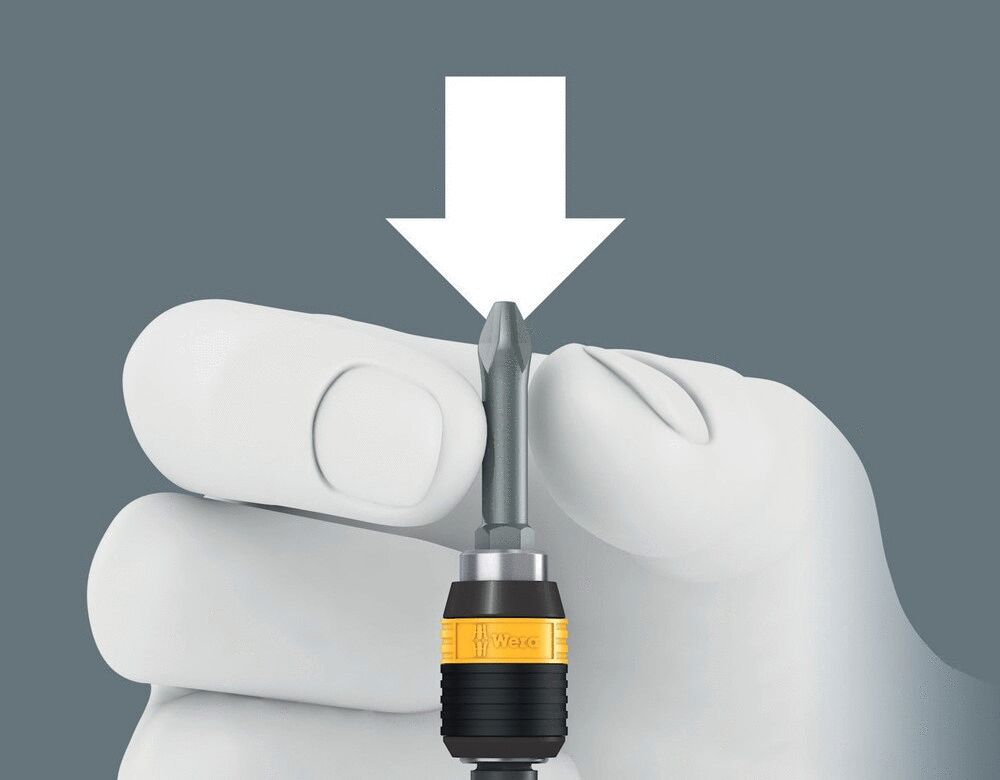

The image shows a hand in a white glove holding a screwdriver with a gray bit and a yellow handle. Above the hand is a downward-pointing arrow.

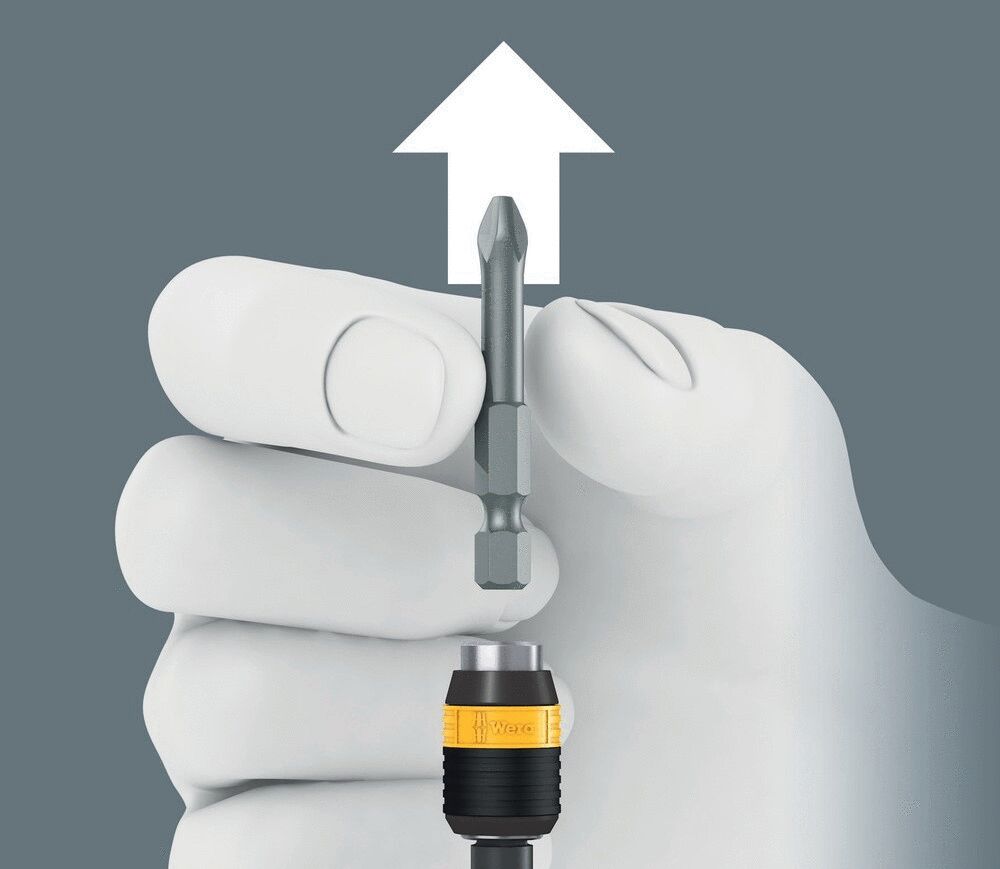

A gray background, on which a hand is holding a screwdriver with a magnetic attachment. Above the hand, an arrow points upward, indicating an action or direction.
Preview: The image shows a screwdriver with an ergonomic, yellow-black handle. The handle has a non-slip surface and a special shape for better grip and control during use.
Preview: A white hand holds a black screwdriver with yellow accents. The background is gray. The hand has a natural shape and the fingers are slightly bent.
Preview: The image shows a hand holding a nozzle with a yellow ring. Below is a white, rectangular shape with two gray bits on the sides that look like tools.
Preview: The image shows a hand in a white glove holding a screwdriver with a gray bit and a yellow handle. Above the hand is a downward-pointing arrow.
Preview: A gray background, on which a hand is holding a screwdriver with a magnetic attachment. Above the hand, an arrow points upward, indicating an action or direction.
813 R Bit holder
(Product No.: WE-813R-ESD)
The image shows a screwdriver with an ergonomic, yellow-black handle. The handle has a non-slip surface and a special shape for better grip and control during use.
A white hand holds a black screwdriver with yellow accents. The background is gray. The hand has a natural shape and the fingers are slightly bent.
The image shows a hand holding a nozzle with a yellow ring. Below is a white, rectangular shape with two gray bits on the sides that look like tools.
The image shows a hand in a white glove holding a screwdriver with a gray bit and a yellow handle. Above the hand is a downward-pointing arrow.
A gray background, on which a hand is holding a screwdriver with a magnetic attachment. Above the hand, an arrow points upward, indicating an action or direction.
Mobile Preview: The image shows a screwdriver with an ergonomic, yellow-black handle. The handle has a non-slip surface and a special shape for better grip and control during use.
Mobile Preview: A white hand holds a black screwdriver with yellow accents. The background is gray. The hand has a natural shape and the fingers are slightly bent.
Mobile Preview: The image shows a hand holding a nozzle with a yellow ring. Below is a white, rectangular shape with two gray bits on the sides that look like tools.
Mobile Preview: The image shows a hand in a white glove holding a screwdriver with a gray bit and a yellow handle. Above the hand is a downward-pointing arrow.
Mobile Preview: A gray background, on which a hand is holding a screwdriver with a magnetic attachment. Above the hand, an arrow points upward, indicating an action or direction.
Notice / Inquire

813 R Bit holder

dpvlink:
18139
Handle length:
90 mm
Properties:
Further product information

19.35 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

813 R Bit holder

The Wera 813 R Bits-Handholder offers a high-quality solution for electrostatically safe work. With an electrical surface resistance between 10^6 and 10^9 ohms, this tool effectively protects components from damage due to static discharges. Equipped with the Rapidaptor quick-release chuck, the Bits-Handholder allows for fast bit changes without additional tools. The ergonomically shaped Kraftform Plus handle improves handling and prevents the formation of blisters and calluses. This handle also features hard zones for fast working and soft zones for optimal torque transmission.
The technical specifications include a handle length of 90 mm, a width and height of 22 mm each, and a shank length of 10 mm. The handle offers roll-off protection and the total weight of the handholder is 39 g. The 813 R is designed for bits with a 1/4" hexagonal drive according to DIN ISO 1173-C 6.3 and E 6.3 and complies with the ESD standard DIN EN 61340-5-1. The receptacle is designed for 1/4" (6.35 mm) and the handholder is specifically suitable for Type B bits.
This product combines safety, efficiency, and comfort to meet the demands of professional applications.
Handle length
Handle length
90 mm
Height
Height
22 mm
Length
Length
90 mm
Shank length
Shank length
10 mm
Width
Width
22 mm
Handle type
Handle type
Kraftform with roll protection
suitable bit type
suitable bit type
Typ B
Screwdriver type
Screwdriver type
bit holder
Socket
Socket
1/4" 6.35 mm
Weight
Weight
39 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 427
Complete Catalog 2023 - 2024

Product Family

WERA 813 R Bit holder ESD

Article image
Article description
ESD
Handle length
Price
Compare
WE-813R-ESD - 813 R Bit holder
WE-813R-ESD
813 R Bit holder
90 mm
19.35 CHF
Show Compare List (0)
