ESD Micro Torque Screwdriver 1460

Name: ESD Micro Torque Screwdriver 1460
SKU: WE-1460ESD
Price: 194.80 CHF
Availability: InStock

ArticleNo: WE-1460ESD

dpvlink:

18128

Screwdriver type:

bit holder

Socket:

4.0 mm

Torque range:

0.02 - 0.06 Nm

Properties:

Further product information

194.80 CHF

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

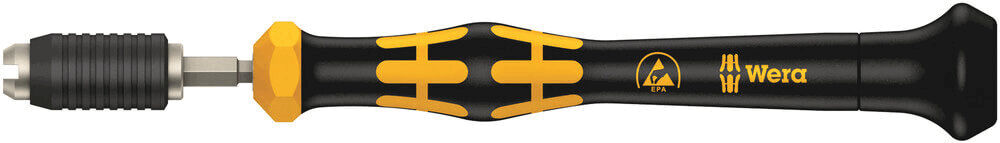

ESD Micro Torque Screwdriver 1460

The ESD Micro Torque Screwdriver 1460 from Wera is a precise tool specifically developed for torque-controlled fine screw connections. This model is ideal for use on electrostatically sensitive components found in smartphones, cameras, or medical devices. The screwdriver meets the ESD standard DIN EN 61340-5-1 and offers an electrical surface resistance of ≤ 109 Ohm.
With a length of 131 mm and a torque range from 0.02 to 0.06 Nm, which is preset at the factory to 0.035 Nm, this tool enables precise settings for consistent torque values. The handle of the screwdriver is designed to prevent rolling and features a rotating cap for quick turning movements. The integrated rapid-turn zone and the power zone with soft zones support high tightening torques without additional effort.
The bit holder is compatible with 4 mm Halfmoon and HIOS drives, making the screwdriver versatile. The bit fixation is quick and secure through an automatic locking mechanism. To change bits, simply slide the sleeve forward. Additionally, a free-spinning operating sleeve ensures easy handling during the screwing process.
This model is not only suitable for manual applications but also for use with machine screws, making it an essential tool in any technical equipment.

Details

Screwdriver type Screwdriver type: bit holder
Socket Socket: 4.0 mm
Torque range Torque range: 0.02 - 0.06 Nm
Length Length: 131 mm
ESD ESD: yes
suitable bit type suitable bit type: Halfmoon 4.0 mm/Type C4 Wings
max. Nm max. Nm: 0.035 Nm

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

External hexagon

The external hexagon head is one of the most common head shapes for screws and bolts. It has a hexagonal shape and is designed so that it can be turned with a wrench, socket wrench or ring wrench.
