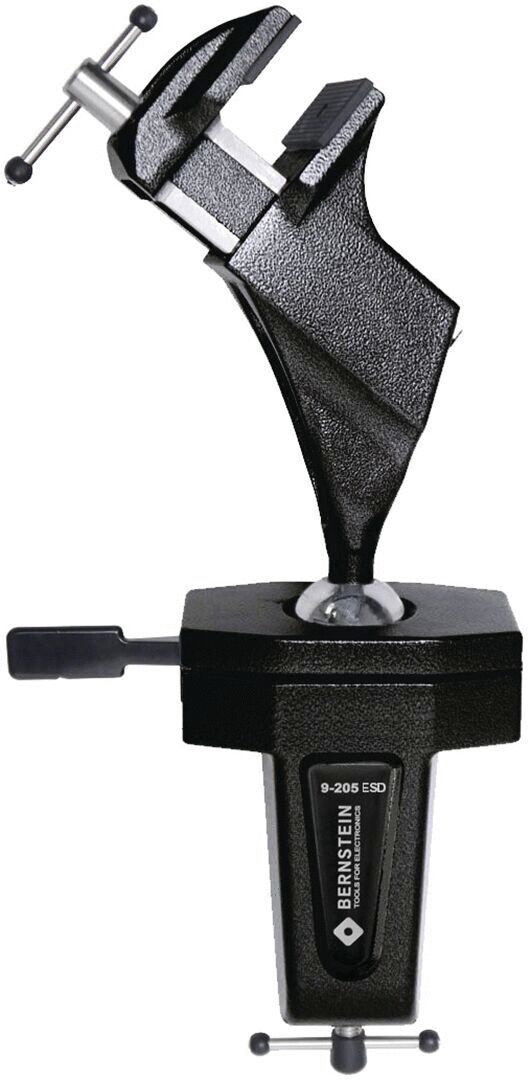

The image shows a black clamp with a fixed bracket and a movable clamp. It is used for securing workpieces during drilling or cutting.

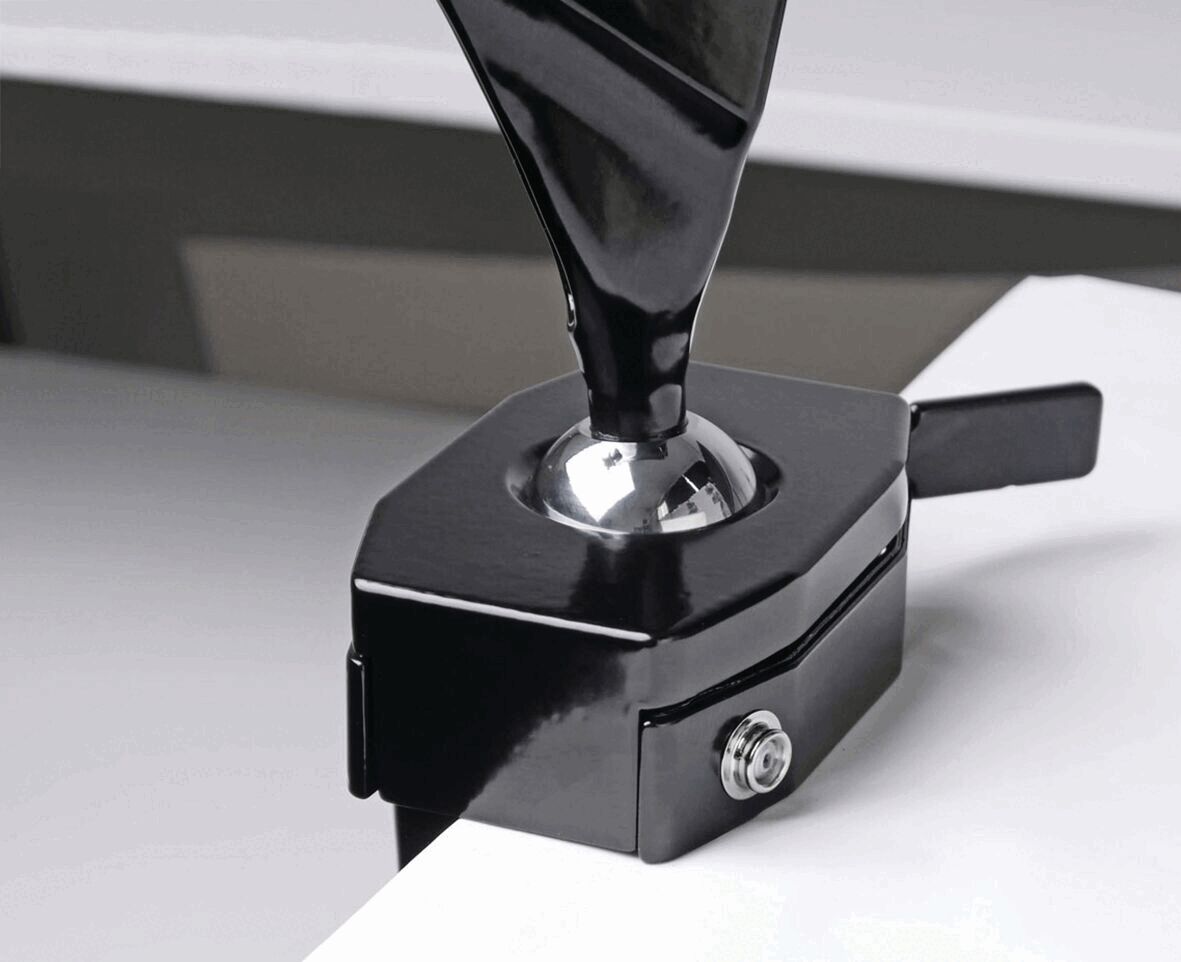

The image shows a black clamp with a ball at the top end. The clamp has a lever on the side and is used to hold objects securely. The surface appears smooth and shiny.
The image shows a rotatable mount or holder for a device that can move around various axes. It is a black, permanently installed base with rotational movements in various directions.

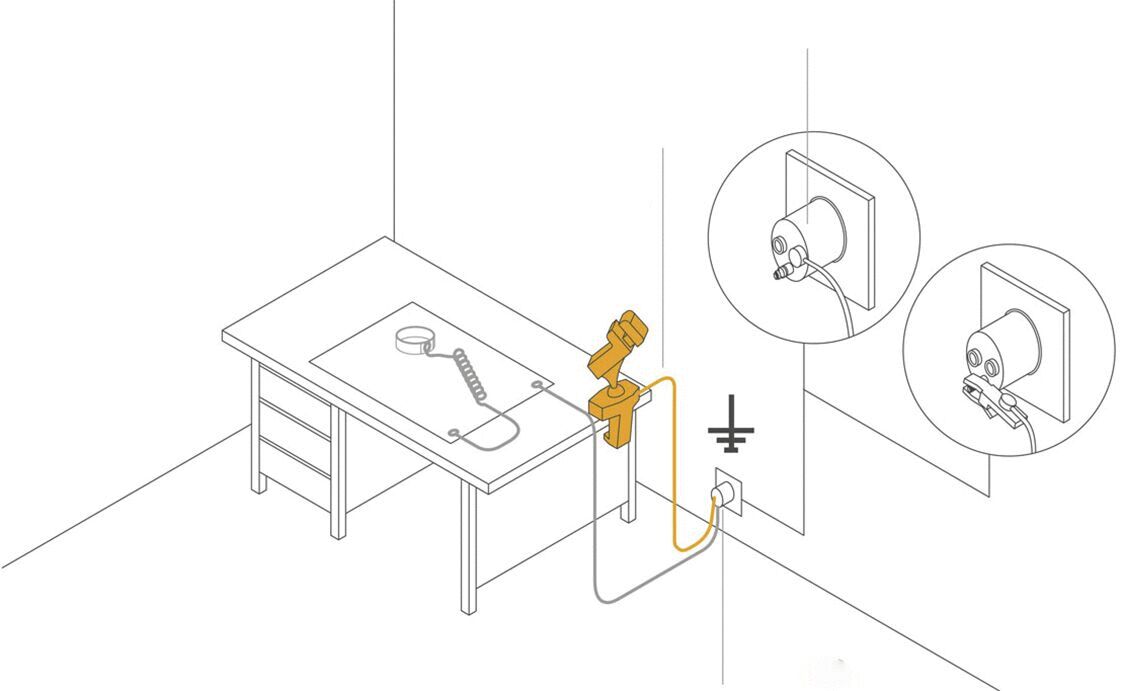

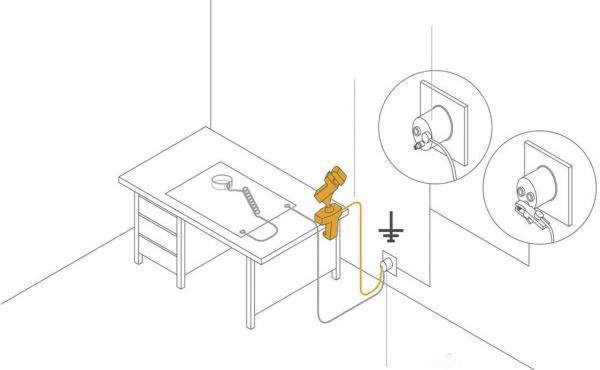

The image shows a table with tools. On a wall, there is an outlet connected to a cable. Two circles display different views of the outlets.

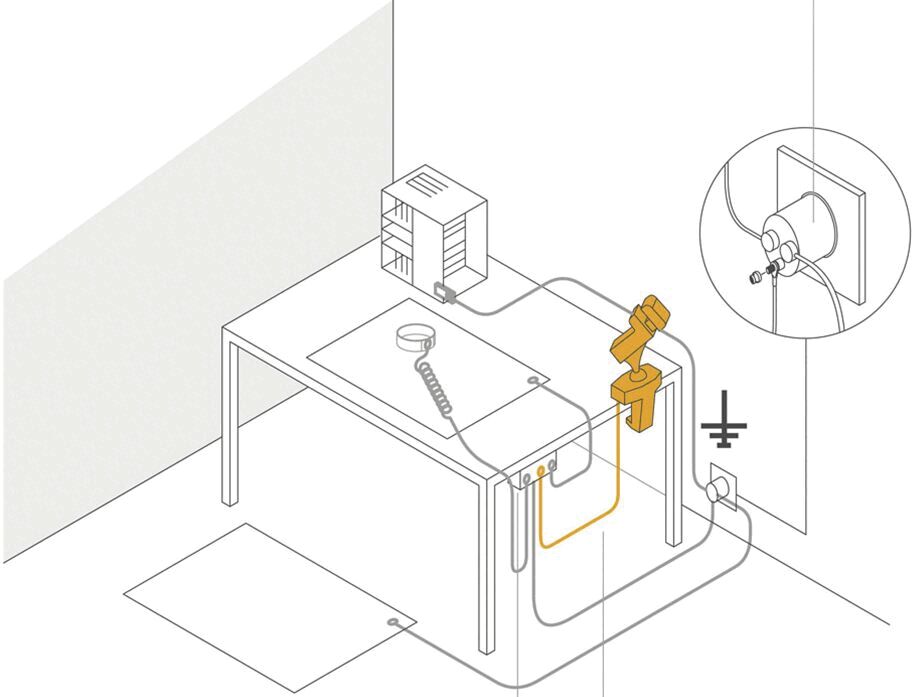

The image shows a table with a machine, a container, and a robotic arm. Cables connect the devices. An outlet is depicted on the side.
Preview: The image shows a black clamp with a fixed bracket and a movable clamp. It is used for securing workpieces during drilling or cutting.
Preview: The image shows a black clamp with a ball at the top end. The clamp has a lever on the side and is used to hold objects securely. The surface appears smooth and shiny.
Preview: The image shows a rotatable mount or holder for a device that can move around various axes. It is a black, permanently installed base with rotational movements in various directions.
Preview: The image shows a table with tools. On a wall, there is an outlet connected to a cable. Two circles display different views of the outlets.
Preview: The image shows a table with a machine, a container, and a robotic arm. Cables connect the devices. An outlet is depicted on the side.
Spannfix BERNSTEIN ESD small vise with table clamp mounting
(Product No.: 9-205.ESD)
The image shows a black clamp with a fixed bracket and a movable clamp. It is used for securing workpieces during drilling or cutting.
The image shows a black clamp with a ball at the top end. The clamp has a lever on the side and is used to hold objects securely. The surface appears smooth and shiny.
The image shows a rotatable mount or holder for a device that can move around various axes. It is a black, permanently installed base with rotational movements in various directions.
The image shows a table with tools. On a wall, there is an outlet connected to a cable. Two circles display different views of the outlets.
The image shows a table with a machine, a container, and a robotic arm. Cables connect the devices. An outlet is depicted on the side.
Mobile Preview: The image shows a black clamp with a fixed bracket and a movable clamp. It is used for securing workpieces during drilling or cutting.
Mobile Preview: The image shows a black clamp with a ball at the top end. The clamp has a lever on the side and is used to hold objects securely. The surface appears smooth and shiny.
Mobile Preview: The image shows a rotatable mount or holder for a device that can move around various axes. It is a black, permanently installed base with rotational movements in various directions.
Mobile Preview: The image shows a table with tools. On a wall, there is an outlet connected to a cable. Two circles display different views of the outlets.
Mobile Preview: The image shows a table with a machine, a container, and a robotic arm. Cables connect the devices. An outlet is depicted on the side.
Notice / Inquire

Spannfix BERNSTEIN ESD small vise with table clamp mounting

dpvlink:
6943
Jaw width:
50 mm
ESD :
yes
Color:
black
Surface resistance Rs:
107 - 108 Ω
Properties:
Further product information

chevron-down
236.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Spannfix BERNSTEIN ESD small vise with table clamp mounting

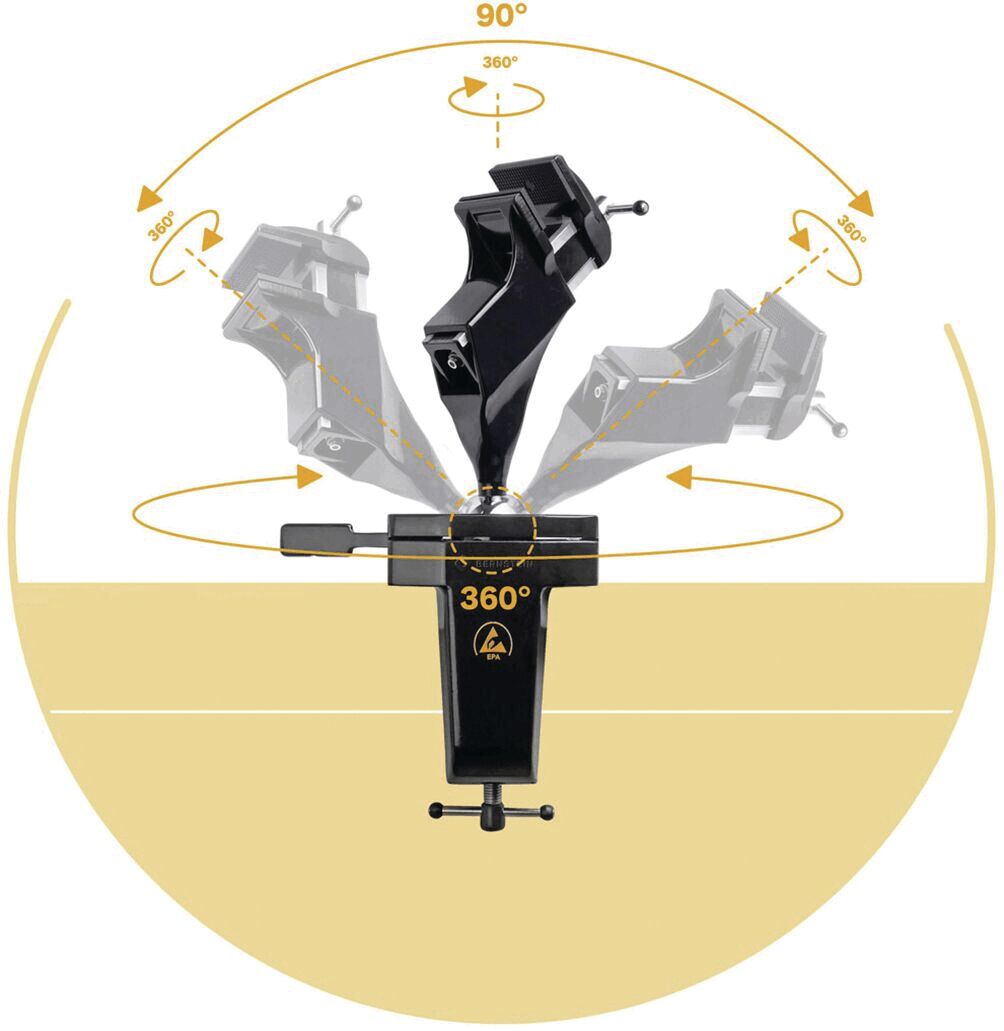

The BERNSTEIN ESD Mini-Vise with Table Clamp Attachment is characterized by its high flexibility and strong holding power. This model offers a stepless adjustability of the joint head, which can rotate 360° and tilt +/- 45°, allowing for precise work in almost any position. The ball clamping secures the head without locking and ensures a firm hold.
The installation of the vise is quick and easy thanks to the table clamp attachment, suitable for workbenches with up to 80 mm tabletop thickness. The ESD version of the vise is conductive and available in black, making it ideal for use in electrostatically sensitive environments.
Produced by Bernstein, this mini-vise provides reliable and long-lasting performance for professional applications.
Jaw width
Jaw width
50 mm
ESD
ESD
yes
Color
Color
black
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
Jaws
Jaws
plastic, exchangeable
Clamping depth
Clamping depth
38 mm
Clamping pressure
Clamping pressure
150 kilopond
Opening of jaws
Opening of jaws
70 mm
Weight
Weight
1450 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 528
Complete Catalog 2023 - 2024

Product Family

Spannfix BERNSTEIN small vise with table clamp mounting

The Spannfix BERNSTEIN small vice offers stable and flexible fastening for precise work. Thanks to its simple assembly and stepless adjustability, it adapts perfectly to various workbenches with a tabletop thickness of up to 80 mm.

Compatibility: for workbenches with a maximum table top thickness of 80 mm

Installation: quick and easy to fit

Functionality: steplessly adjustable


Article image
Article description
ESD
Jaw width
ESD
Color
Surface resistance Rs
Price
Compare
9-205.ESD - Spannfix BERNSTEIN ESD small vise with table clamp mounting
9-205.ESD
Spannfix BERNSTEIN ESD small vise with table clamp mounting
50 mm
yes
black
107 - 108 Ω
236.20 CHF
9-205 - Spannfix BERNSTEIN small vise with table clamp mounting
9-205
Spannfix BERNSTEIN small vise with table clamp mounting
50 mm
no
grey

215.80 CHF
