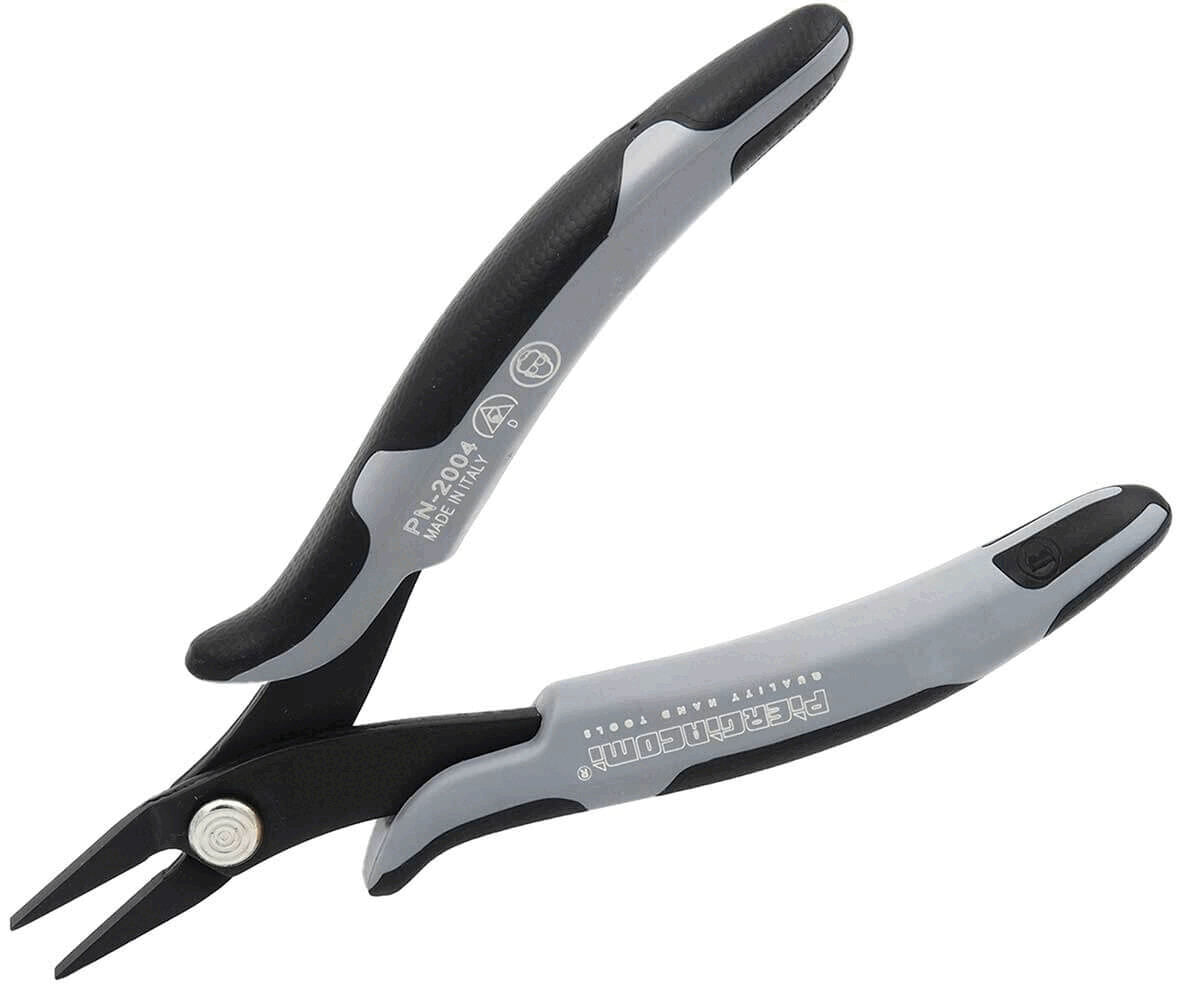

The image shows a pair of pliers with long, narrow cutting surfaces. The grip areas are ergonomically designed and made of gray rubber with black accents.
The image shows a schematic representation of a rectangle. The width is 20 units, the height 16 units. Below the rectangle, there are two black rectangular shapes and dimension lines with values 1 and 3 displayed.
Preview: The image shows a pair of pliers with long, narrow cutting surfaces. The grip areas are ergonomically designed and made of gray rubber with black accents.
Preview: The image shows a schematic representation of a rectangle. The width is 20 units, the height 16 units. Below the rectangle, there are two black rectangular shapes and dimension lines with values 1 and 3 displayed.
Short flat-nosed pliers PN-2004.D ESD
(Product No.: PN-2004.D)
The image shows a pair of pliers with long, narrow cutting surfaces. The grip areas are ergonomically designed and made of gray rubber with black accents.
The image shows a schematic representation of a rectangle. The width is 20 units, the height 16 units. Below the rectangle, there are two black rectangular shapes and dimension lines with values 1 and 3 displayed.
Mobile Preview: The image shows a pair of pliers with long, narrow cutting surfaces. The grip areas are ergonomically designed and made of gray rubber with black accents.
Mobile Preview: The image shows a schematic representation of a rectangle. The width is 20 units, the height 16 units. Below the rectangle, there are two black rectangular shapes and dimension lines with values 1 and 3 displayed.
Notice / Inquire

Short flat-nosed pliers PN-2004.D ESD

dpvlink:
2157
Head type/size:
short
Gripping surface:
smooth
Head shape:
short / flat nose
Jaw length:
16 mm
Type of pliers:
Flat-nose pliers
Properties:
Further product information

12.55 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Short flat-nosed pliers PN-2004.D ESD

The flat-nose pliers PN-2004.D from Piergiacomi are specifically designed for precise component handling. With a total length of 146 mm and a jaw length of 16 mm, this tool is ideal for fine and detailed work. The pliers feature flattened jaws and a smooth gripping surface, ensuring safe handling without damaging the workpieces.
The short and flat head shape allows for excellent maneuverability in tight spaces. The tip of the pliers is 2.0 mm wide, while the thickness or diameter is 3.0 mm. This model is ESD-safe, qualifying it for work on electrostatically sensitive components. Weighing only 78 g, the pliers are lightweight and reduce fatigue during extended use. Ideal for technical professionals in the electronics and precision mechanics industries.
Head type/size
Head type/size
short
Gripping surface
Gripping surface
smooth
Head shape
Head shape
short / flat nose
Jaw length
Jaw length
16 mm
Type of pliers
Type of pliers
Flat-nose pliers
Length
Length
146 mm
Thickness/diameter
Thickness/diameter
3.0 mm
Tip width
Tip width
2.0 mm
ESD
ESD
yes
Weight
Weight
78 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Flat-nose pliers
Both jaws of flat-nose pliers are flat and usually parallel to each other. They therefore offer a high degree of stability when holding flat or angular materials.
Smooth gripping surface
Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Piergiacomi ESD flat-nosed pliers

Piergiacomi ESD flat-nose pliers are the ideal choice for precise and safe gripping and holding in ESD areas (EPA). Made in Italy from high-quality carbon steel and with an anti-reflective phosphate coating, they offer a clear view of the workpiece. The ergonomic dolphin handle made of slip-resistant material ensures a secure grip. The integrated return spring reduces the force required and increases efficiency.

These flat nose pliers comply with the IEC 61340-5-1 standard and are ideal for daily use.


Article image
Article description
ESD
Head type/size
Gripping surface
Head shape
Jaw length
Type of pliers
Price
Compare
PN-2003.D - Short flat-nosed pliers PN-2003.D ESD
PN-2003.D
Short flat-nosed pliers PN-2003.D ESD
short
serrated
short / flat nose
16 mm
Flat-nose pliers
12.55 CHF
PN-2004.D - Short flat-nosed pliers PN-2004.D ESD
PN-2004.D
Short flat-nosed pliers PN-2004.D ESD
short
smooth
short / flat nose
16 mm
Flat-nose pliers
12.55 CHF
PN-2007.D - Long flat-nosed pliers PN-2007.D ESD
PN-2007.D
Long flat-nosed pliers PN-2007.D ESD
long
serrated
long / flat nose
28 mm
Flat-nose pliers
12.60 CHF
PN-2008.D - Long flat-nosed pliers PN-2008.D ESD
PN-2008.D
Long flat-nosed pliers PN-2008.D ESD
long
smooth
long / flat nose
28 mm
Flat-nose pliers
12.60 CHF
PN-5003.D - Short flat-nosed pliers PN-5003.D ESD
PN-5003.D
Short flat-nosed pliers PN-5003.D ESD
short
serrated
short / flat nose
19 mm
Flat-nose pliers
19.70 CHF
PN-5004.D - Short flat-nosed pliers PN-5004.D ESD
PN-5004.D
Short flat-nosed pliers PN-5004.D ESD
short
smooth
short / flat nose
19 mm
Flat-nose pliers
19.55 CHF
PN-5007.D - Long flat-nosed pliers PN-5007.D ESD
PN-5007.D
Long flat-nosed pliers PN-5007.D ESD
regular
serrated
long / flat nose
25 mm
Flat-nose pliers
19.70 CHF
PN-5008.D - Long flat-nosed pliers PN-5008.D ESD
PN-5008.D
Long flat-nosed pliers PN-5008.D ESD
regular
smooth
long / flat nose
25 mm
Flat-nose pliers
19.55 CHF
PNB-2007.D - Angled flat-nosed pliers PNB-2007.D ESD
PNB-2007.D
Angled flat-nosed pliers PNB-2007.D ESD
regular
serrated
angled
16 mm
Flat-nose pliers
15.35 CHF
PNB-2017.D - Angled, rounded flat-nosed pliers PNB-2017.D ESD
PNB-2017.D
Angled, rounded flat-nosed pliers PNB-2017.D ESD
regular
serrated
angled / rounded
16 mm
Flat-nose pliers
16.10 CHF
PN-2017.D - Long needle-nosed pliers PN-2017.D
PN-2017.D
Long needle-nosed pliers PN-2017.D
long
serrated
long / rounded
28 mm
Flat-nose pliers
13.65 CHF
PN-2018.D - Long needle-nosed pliers PN-2018.D
PN-2018.D
Long needle-nosed pliers PN-2018.D
long
smooth
long / rounded
28 mm
Flat-nose pliers
13.65 CHF
