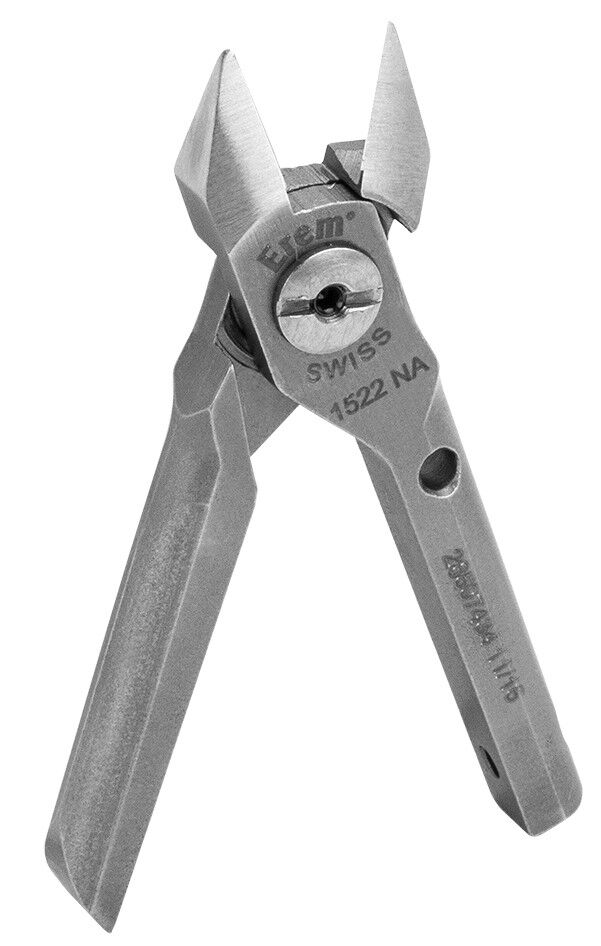

The image shows a pair of metal pliers with two long, narrow handles. The jaws of the pliers are pointed and slightly curved, ideal for gripping and cutting wires.

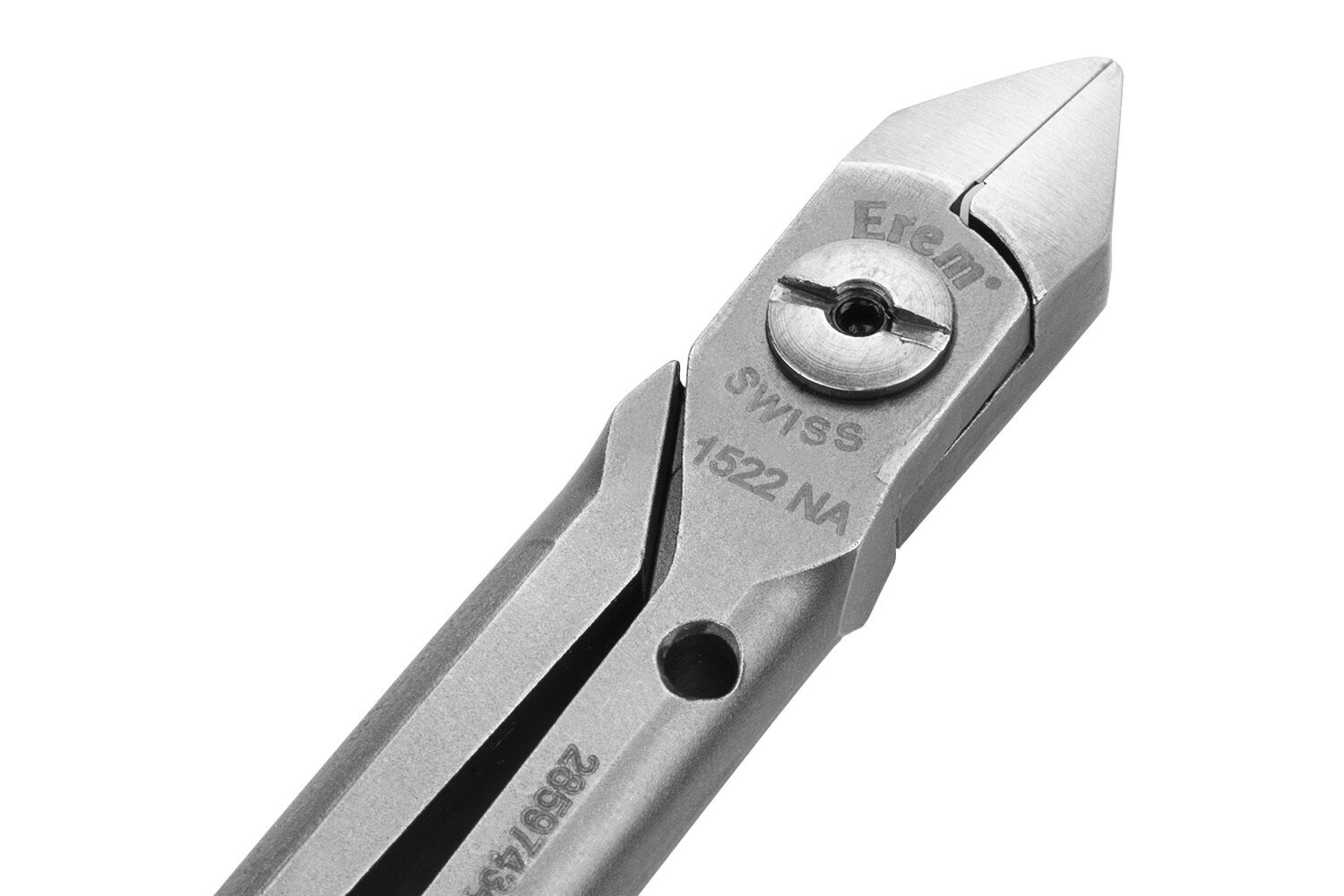

The image shows a silver pair of pliers with sharp, pointed blades. The pliers have a sturdy handle and a central screw for adjustment. They appear precise and robust.

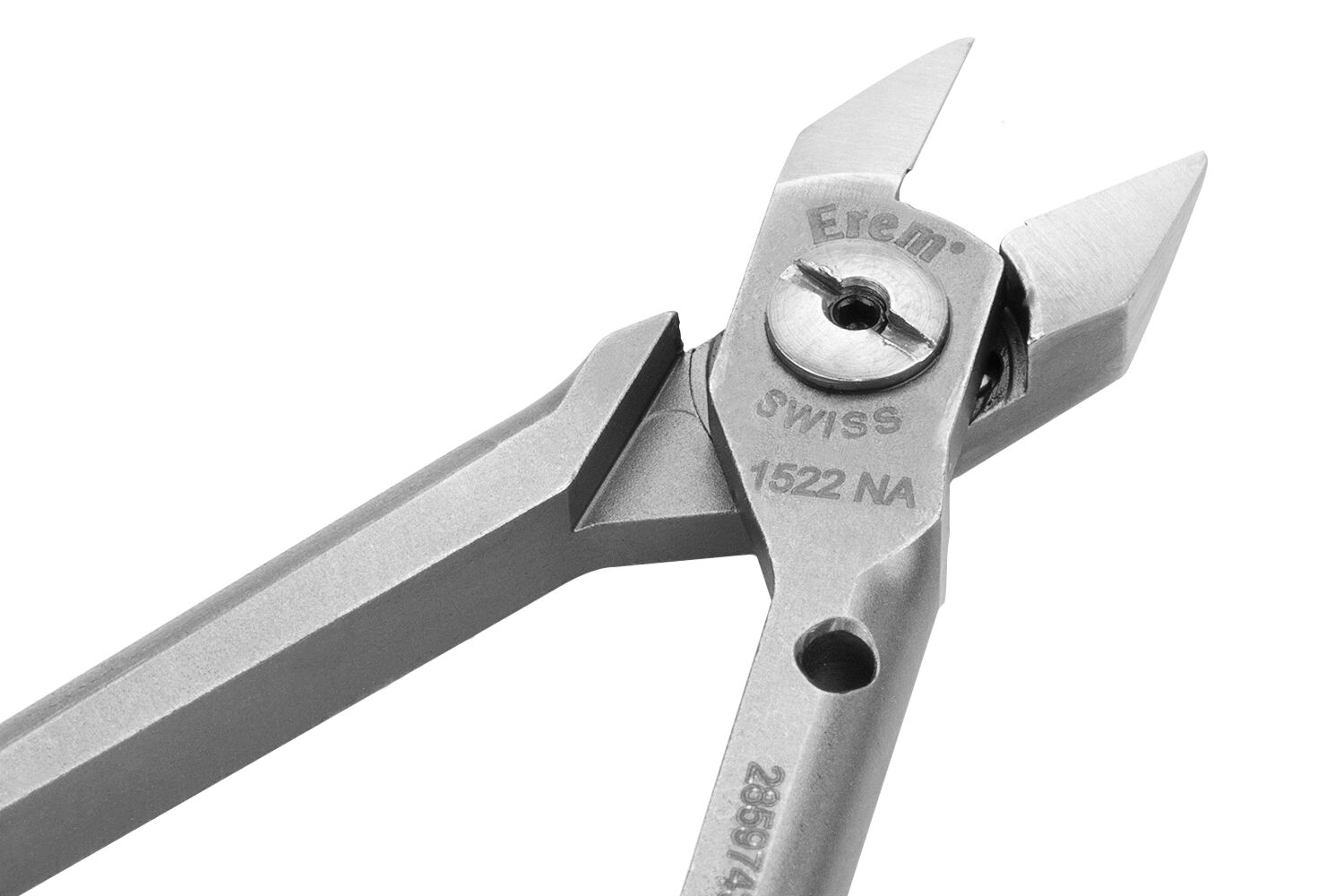

The image shows a silver pair of tongs with a pointed, sharp edge. It has a vertical screw in the middle and a smooth, metallic surface that slightly shines.
Preview: The image shows a pair of metal pliers with two long, narrow handles. The jaws of the pliers are pointed and slightly curved, ideal for gripping and cutting wires.
Preview: The image shows a silver pair of pliers with sharp, pointed blades. The pliers have a sturdy handle and a central screw for adjustment. They appear precise and robust.
Preview: The image shows a silver pair of tongs with a pointed, sharp edge. It has a vertical screw in the middle and a smooth, metallic surface that slightly shines.
Cutting head 1522NA
(Product No.: 1522NA)
The image shows a pair of metal pliers with two long, narrow handles. The jaws of the pliers are pointed and slightly curved, ideal for gripping and cutting wires.
The image shows a silver pair of pliers with sharp, pointed blades. The pliers have a sturdy handle and a central screw for adjustment. They appear precise and robust.
The image shows a silver pair of tongs with a pointed, sharp edge. It has a vertical screw in the middle and a smooth, metallic surface that slightly shines.
Mobile Preview: The image shows a pair of metal pliers with two long, narrow handles. The jaws of the pliers are pointed and slightly curved, ideal for gripping and cutting wires.
Mobile Preview: The image shows a silver pair of pliers with sharp, pointed blades. The pliers have a sturdy handle and a central screw for adjustment. They appear precise and robust.
Mobile Preview: The image shows a silver pair of tongs with a pointed, sharp edge. It has a vertical screw in the middle and a smooth, metallic surface that slightly shines.
Notice / Inquire

Cutting head 1522NA

dpvlink:
6018
Properties:
Further product information

210.60 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Cutting head 1522NA

The cutting head 1522NA from Weller Erem is distinguished by its precisely beveled head shape, which allows optimal access even in tight areas. This high-quality tool is specifically designed for cutting soft steel wires as well as copper wire and cables, offering a flush cut without a burr (facet) and a maximum cutting thickness of 1.45 mm. The blade and jaw length of 7.6 mm each, along with a head width of 11 mm, enable precise and clean cuts.
The side cutter is made from robust tool steel and features ESD safety, making it suitable for electrostatically sensitive applications. With a total length of 69 mm, the cutting head 1522NA is compact and efficient in handling. This tool represents a reliable solution for technical professionals who demand the highest standards of precision and quality.
Max Ø soft
Max Ø soft
1.45 mm
Blade length
Blade length
7.62 mm
Length [mm]
Length
69 mm
Material
Material
Tool steel
ESD
ESD
yes
Bevel
Bevel
without bevel
Head shape
Head shape
oblique
Head width
Head width
11 mm
Jaw length
Jaw length
7.6 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Pictograms
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 499
Complete Catalog 2023 - 2024

Product Family

Cutting head 1522NA

Article image
Article description
ESD
Max Ø soft
Blade length
Length [mm]
Material
ESD
Bevel
Head shape
Head width
Jaw length
Type of pliers
Price
Compare
1522NA - Cutting head 1522NA
1522NA
Cutting head 1522NA
1.45 mm
7.62 mm
69 mm
Tool steel
yes
without bevel
oblique
11 mm
7.6 mm
Diagonal cutting pliers
