Soldering and desoldering tips

Weller soldering and desoldering tips stand for quality, precision and durability. They are optimally matched to Weller soldering tools and ensure efficient heat transfer for every soldering task. The range includes numerous shapes and sizes for a wide variety of applications - from electronics production to repair. Weller offers different tip technologies for diverse applications -

MS soldering tips (MIL-SPEC) are also available, which have been specially developed for the highest requirements in safety-critical areas such as the military and aviation. Unlike conventional soldering tips, they are only compatible with MS soldering tools.

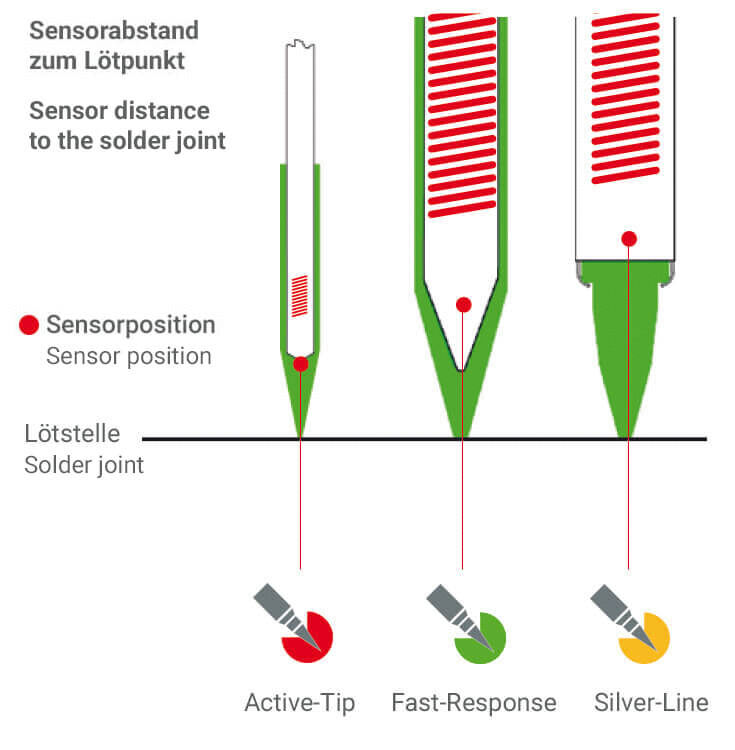

The advantages of the 3 different Weller tip technologies?

Only Weller offers 3 different technologies to provide customers with exactly the right tool for their application. With this technology, soldering tasks that were previously not so easy to solve can finally be realized.

Active-Tip technology (RT, RTW)

  • for optimum performance
  • Fast and easy soldering tip change
  • For miniature soldering jobs that cannot be done with standard tools.
  • Fast heat-up and reaction time



An optimum technology in which the heating element and the sensors are firmly integrated in the soldering tip. This enables a fast reaction time when the soldering temperature is lowered. With this tool, the power is always brought to the soldering point.

Fast response technology (XNT, XT, XHT)

  • for maximum performance
  • maximum results are achieved with this technology. More cost-effective alternative to Active Tip technology. Wide range of soldering tips
  • for universal applications with the highest demands



These tools offer you real alternatives to Active Tip technology, with maximum performance and a cost-effective range of soldering tips. Soldering tip geometry with shaft adapted to sensor position.

Silver-Line technology (LT)

  • for good performance
  • for very good results, a wide range of cost-effective tips is available
  • for universal applications



The heating element has a flat surface on which the precisely flat surface of the soldering tip rests. This enables very effective heat transfer, which has been awarded the seal of quality.

Why original soldering tips from Weller?

  • Tool protection - optimum architecture protects the soldering iron from irreparable damage
  • Optimal performance characteristics - excellent heat transfer and best solder joints
  • Cost savings - consistent performance reduces rework



Weller soldering tips are always designed according to the latest market requirements at the Weller Research and Development Center in Germany. At Weller, the soldering tip and heating element form a single unit and therefore a perfect heating system for producing high-quality solder joints. Combined with the right soldering iron, it guarantees the optimum tool.

  • High-quality copper core - for effective heat transfer to the solder joint
  • Galvanized iron coating - determines the service life of the soldering tip
  • Soldering surface - pre-tinned, prevents oxidation
  • Corrosion-resistant nickel coating - is the bonding layer between iron and chrome
  • Special chrome coating - limits the wetting area





Our Brands

Weller
The image shows a soldering iron with a narrow, pointed metal tip and a non-slip, black handle. The handle has a textured surface for better grip.
Preview: The image shows a soldering iron with a narrow, pointed metal tip and a non-slip, black handle. The handle has a textured surface for better grip.
Preview: The image displays a pen-like tool with a metallic tip and a non-slip, black rubberized grip. It features a point and a connection for a device.
RTM soldering tips conical
Soldering tip conical RTM 002 C
Head size: 0.2 mm / Soldering tip shape: tapered / suitable soldering iron: WXMP / WMRP / Length : 20 mm
Soldering tip conical RTM 008 C
Head size: 0.8 mm / Soldering tip shape: tapered / suitable soldering iron: WMRP / WXMP / Length : 19 mm

2 Products
Product No.: 544.601.99
28.45 CHF
excl. 8.1% tax
to the product family
The image shows a tool with a silver, conically shaped end and a rubberized, non-slip grip. It has a slender shape and a side blade.
Preview: The image shows a tool with a silver, conically shaped end and a rubberized, non-slip grip. It has a slender shape and a side blade.
Preview: The image shows a screwdriver with a non-slip, rubberized handle and a narrow, metallic blade. The handle surface has a wavy pattern for better grip.
Preview: The image shows a gray tool handle with a ridged rubber surface. At one end, there is a flat screwdriver. The handle is oval and ends in a point.
Preview: The image shows a tool that looks like a narrow pen. It has a rubberized grip with grooves for better hold and a pointed, metal working surface at the front.
Preview: The image shows a screwdriver with a long, narrow metal tip and a rubberized, ergonomic handle. The handle has a textured surface for better grip.
Preview: The image shows a writing instrument with a slender, metallic tip and a rubberized grip. The grip is black with grooves and the tip is pointed and silver.
RTM Chisel-shaped tip
Soldering tip chisel-shaped RTM 013 S
Head size: 1.3 x 0.4 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WMRP / WXMP / Length : 20 mm
Soldering tip chisel-shaped RTM 015 S
Head size: 1.5 x 0.4 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WMRP / WXMP / Length : 19 mm
Soldering tip chisel-shaped RTM 022 S
Head size: 2.2 x 0.4 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WMRP / WXMP / Length : 19 mm
Soldering tip chisel-shaped RTM 008 S
Head size: 0.8 x 0.4 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WMRP / WXMP / Length : 24 mm
Soldering tip chisel-shaped RTM 036 S
Head size: 3.6 x 0.9 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WMRP / WXMP / Length : 19 mm
Soldering tip chisel-shaped RTM 004 S
Head size: 0.4 x 0.15 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WMRP / WXMP / Length : 20 mm

6 Products
Product No.: 544.603.99
from 28.45 CHF
excl. 8.1% tax
to the product family
The image shows a silver, conically shaped metal nail with a flat head. The tip is slightly darkened, and the body has a smooth surface.
Preview: The image shows a silver, conically shaped metal nail with a flat head. The tip is slightly darkened, and the body has a smooth surface.
Preview: The image shows a conical, metallic object that is wider on one side and tapers to a point on the other. The surface is smooth and has a slightly shiny silver tone.
Preview: The image displays a conical, metallically shiny object with a rounded tip. The lower half is gray, providing a matte contrast to the smooth, silver upper part.
Preview: The image displays a metallic cone with a sharp tip and a wider base. The surface is shiny and reflects light. It is a simple, elegant object.
Preview: The image shows a metal pin with a pointed, angled front and a flat, round head. It is silver-colored and has a smooth surface that reflects light.
LT Soldering tip chisel-shaped
Soldering tip chisel-shaped LT H
Soldering tip size (head): 0.8 x 0.4 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped LT H
Soldering tip size (head): 0.8 x 0.4 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: loose / Package size: 10 piece
Soldering tip chisel-shaped LT A
Soldering tip size (head): 1.6 x 0.7 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped LT A
Soldering tip size (head): 1.6 x 0.7 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: loose / Package size: 10 piece
Soldering tip chisel-shaped LT B
Soldering tip size (head): 2.4 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped LT B
Soldering tip size (head): 2.4 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: loose / Package size: 10 piece
Soldering tip chisel-shaped LT C
Soldering tip size (head): 3.2 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped LT C
Soldering tip size (head): 3.2 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: loose / Package size: 10 piece
Soldering tip chisel-shaped LT D
Soldering tip size (head): 4.6 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped LT D
Soldering tip size (head): 4.6 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: loose / Package size: 10 piece

10 Products
Product No.: 544.437.10
from 5.60 CHF
excl. 8.1% tax
  to the product family
The image shows a metallic pointed cone that is wider at the base and tapers towards the top. The surface is shiny and reflects light, giving it a smooth appearance.
LT Soldering tip round sloped
Soldering tip round sloped LT F
Soldering tip size (head): 1.2 mm / Soldering tip shape: round , sloped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece
XNT Soldering tip round sloped LT F
Soldering tip size (head): 1.2 mm / Soldering tip shape: round , sloped / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: loose / Package size: 10 piece

2 Products
Product No.: 544.408.10
from 5.60 CHF
excl. 8.1% tax
  to the product family
The image shows a conical metal pin with a rounded tip. It has a flat, wide head and a smooth, silver surface.
LT Gullwing tip
Solder deposit tip LT GW
Soldering tip size (head): 3.2 mm / Soldering tip shape: gullwing / suitable soldering iron: WP 80 / FE 75 / Length : 18 mm / Packing: individually / Package size: 1 piece
Solder deposit tip LT GW
Soldering tip size (head): 3.2 mm / Soldering tip shape: gullwing / suitable soldering iron: WP 80 / FE 75 / Length : 18 mm / Packing: loose / Package size: 10 piece

2 Products
Product No.: 544.410.10
from 6.60 CHF
excl. 8.1% tax
  to the product family
The image depicts a conical, silver metal object. It has a wide, flat base and tapers to a point at the top. The surface appears smooth and shiny.
Preview: The image depicts a conical, silver metal object. It has a wide, flat base and tapers to a point at the top. The surface appears smooth and shiny.
Preview: The image shows a conical metal object with a pointed, sharply tapering tip and a wider, round base. It is silvery and shiny. The object is lying at an angle on a white surface.
Preview: The image shows a conical, metallic object with a pointed shape. The surface shines silver, while the tip has a matte, gray color.
Preview: The image shows a small, conical metal pin. It has a smooth, silver surface and a wider base. The tip is rounded and slightly recessed.
LT Soldering tip round
Soldering tip round LT 1
Soldering tip size (head): 0.25 mm / Soldering tip shape: round / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece
Soldering tip round LT 1
Soldering tip size (head): 0.25 mm / Soldering tip shape: round / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: loose / Package size: 10 piece
Soldering tip round LT 1A
Soldering tip size (head): 0.5 mm / Soldering tip shape: round / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece
Soldering tip round LT AS
Soldering tip size (head): 1.6 mm / Soldering tip shape: round / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece
Soldering tip round LT CS
Soldering tip size (head): 3.2 mm / Soldering tip shape: round / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece

5 Products
Product No.: 544.435.10
from 5.60 CHF
excl. 8.1% tax
  to the product family
The image shows an electrical switch with two long metal guides. The switch has a rubberized surface and a rotary knob that can be set to the position
Soldering tip RTW 2
Head size: 0.7 x 0.4 mm / Soldering tip shape: bent 45° / suitable soldering iron: WXMT / WMRT / Length : 22 mm
RTW 2 pair of soldering tips 0.7 x 0.4 mm, 45 °
(suitable for WMRT)

Product No.: 544.652.99
65.30 CHF
excl. 8.1% tax
Show product
The image shows a conical, silver-colored metal object. It has a wide, flat base and tapers to a point at the top. The surface is smooth and shiny.
Preview: The image shows a conical, silver-colored metal object. It has a wide, flat base and tapers to a point at the top. The surface is smooth and shiny.
Preview: The image shows a tapered, silver metal object with a flat base on one side. The other side is narrow and pointed, suitable for precise applications.
Preview: The image shows a conical, metallic drill bit. It tapers to a point at one end, while the other end has a wide base. The surface is shiny and silver.
LT Soldering tip chisel-shaped long
Soldering tip chisel-shaped long LT K
Soldering tip size (head): 1.2 x 0.4 mm / Soldering tip shape: chisel-shaped , long / suitable soldering iron: WP 80 / FE 75 / Length : 20 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped long LT K
Soldering tip size (head): 1.2 x 0.4 mm / Soldering tip shape: chisel-shaped , long / suitable soldering iron: WP 80 / FE 75 / Length : 20 mm / Packing: loose / Package size: 10 piece
Soldering tip chisel-shaped long LT L
Soldering tip size (head): 2.0 x 1.0 mm / Soldering tip shape: chisel-shaped , long / suitable soldering iron: WP 80 / FE 75 / Length : 20 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped long LT L
Soldering tip size (head): 2.0 x 1.0 mm / Soldering tip shape: chisel-shaped , long / suitable soldering iron: WP 80 / FE 75 / Length : 20 mm / Packing: loose / Package size: 10 piece
Soldering tip chisel-shaped long LT M
Soldering tip size (head): 3.2 x 1.2 mm / Soldering tip shape: chisel-shaped , long / suitable soldering iron: WP 80 / FE 75 / Length : 20 mm / Packing: individually / Package size: 1 piece

5 Products
Product No.: 544.438.99
from 5.60 CHF
excl. 8.1% tax
to the product family
The image shows a tool with a smooth, silver metal part and a dark gray, ridged rubber handle. It has a special shape with a narrow tip at the end.
Gullwing tip RTM 020 G
Head size: 2.0 x 1.2 mm / Soldering tip shape: gullwing / suitable soldering iron: WMRP / WXMP / Length : 21 mm
RT-10 GW /RTM 020 G Gullwing tip

Product No.: 544.610.99
28.45 CHF
excl. 8.1% tax
Show product
The image shows a metallic capsule with a pointed, gray tip. It has a cylindrical shape and is tilted on a white background. The surface is shiny.
Preview: The image shows a silver, pointed object that looks like a pencil without wood. It has a round base and a conical tip. It might represent a special writing or drawing tool.
Preview: It is a silver, conical object with a sharp tip. It is cylindrical and has a flat base at one end. The surface is smooth and shiny.
Preview: The image shows a silver metal capsule in the shape of an elongated cylinder that tapers to a point at one end. The other end is flat and round. The surface is smooth.
Preview: The image shows a metallic capsule with a pointed, gray tip. It has a cylindrical shape and is tilted on a white background. The surface is shiny.
Preview: The image shows a silver metal cylinder with a flat end. The cylinder has a slightly rounded edge and appears sturdy, suitable for technical applications.
Preview: The image shows a slim, silver metal object with a pointed tip and a cylindrical body. The lower part has a flat edge.
Preview: The image shows a silver metal cylinder with a flat, broadly shaped tip and a slightly rounded end. The cylinder is lying at an angle on a white surface.
Preview: The image shows an elongated, silver metal cylinder with a flattened, hexagonal tip. The body is smooth, without visible patterns or handles.
Preview: The image shows a silver screwdriver with a flat, wide end. The handle is cylindrical and fits well in the hand. The edge is slightly rounded.
XT Soldering tip chisel-shaped
Soldering tip chisel-shaped XT A
Soldering tip size (head): 1.6 x 0.7 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 120 / WXP 120 / Length : 37 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XT H
Soldering tip size (head): 0.8 x 0.4 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 120 / WXP 120 / Length : 37 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XT AL
Soldering tip size (head): 1.6 x 1.0 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 120 / WXP 120 / Length : 40 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XT B
Soldering tip size (head): 2.4 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 120 / WXP 120 / Length : 36 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XT B SL
Soldering tip size (head): 2.5 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 120 / WXP 120 / Length : 36.3 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XT C
Soldering tip size (head): 3.2 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 120 / WXP 120 / Length : 36 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XT D
Soldering tip size (head): 4.6 x 0.8 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 120 / WXP 120 / Length : 35 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XT E
Soldering tip size (head): 5.9 x 1.2 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 120 / WXP 120 / Length : 35 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XT M
Soldering tip size (head): 3.2 x 1.2 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 120 / WXP 120 / Length : 40 mm / Packing: individually / Package size: 1 piece

9 Products
Product No.: 544.704.99
10.25 CHF
excl. 8.1% tax
to the product family
The image shows a silver, metallic nozzle that is slightly tilted forward. It has a round base and ends in a narrow, conical opening.
Preview: The image shows a silver metal tip with a thin, forward-bending shape. It has a wide, flat base on one side and is attached to a tool.
Preview: The image shows a silver, metallic nozzle that is slightly tilted forward. It has a round base and ends in a narrow, conical opening.
Preview: The image shows a metallic tip, slender and slightly curved. It has a smooth, silver surface and a fine, pointed bevel. The base is wider, tapering upwards.
LT Soldering tip round bent
Soldering tip round bent LT 4X
Soldering tip size (head): 1.2 mm / Soldering tip shape: round , bent 30° / suitable soldering iron: WP 80 / FE 75 / Length : 16.5 mm / Packing: individually / Package size: 1 piece
Soldering tip round bent LT AX
Soldering tip size (head): 1.6 mm / Soldering tip shape: round , bent 30° / suitable soldering iron: WP 80 / FE 75 / Length : 14.1 mm / Packing: individually / Package size: 1 piece
Soldering tip round bent LT 1X
Soldering tip size (head): 2.0 mm / Soldering tip shape: round , bent 30° / suitable soldering iron: WP 80 / FE 75 / Length : 13 mm / Packing: individually / Package size: 1 piece

3 Products
Product No.: 544.427.99
11.50 CHF
excl. 8.1% tax
to the product family
The image displays a silver metallic object in a conical shape. It has a pointed, narrow tip and a wider, flat base. The object could be a pen or a tool.
Preview: The image shows a sharp metal pin with a wide, flat end. The shape resembles a cone that tapers towards the top. The surface is shiny and silver-colored.
Preview: The image displays a silver metallic object in a conical shape. It has a pointed, narrow tip and a wider, flat base. The object could be a pen or a tool.
LT Soldering tip round tapered
Soldering tip round conical LT 1L
Soldering tip size (head): 0.2 mm / Soldering tip shape: round , tapered / suitable soldering iron: WP 80 / FE 75 / Length : 26 mm / Packing: individually / Package size: 1 piece
Soldering tip round conical LT S
Soldering tip size (head): 0.4 mm / Soldering tip shape: round , tapered / suitable soldering iron: WP 80 / FE 75 / Length : 20 mm / Packing: individually / Package size: 1 piece
Soldering tip round conical LT S
Soldering tip size (head): 0.4 mm / Soldering tip shape: round / suitable soldering iron: WP 80 / FE 75 / Length : 20 mm / Packing: loose / Package size: 10 piece

3 Products
Product No.: 544.406.10
from 5.60 CHF
excl. 8.1% tax
  to the product family
The image shows a silver, cylindrical object with a conical tip. The body is smooth and round, the tip is slightly rounded and has a dark color.
Preview: The image depicts a silver marker with a wide, flat tip. The body is cylindrical and shiny, while the tip is gray and rounded.
Preview: It is a metallic tool that is cylindrical and has a flat, beveled edge on one end. The surface is smooth and shiny. Ideal for precision work.
Preview: The image displays a silver, cylindrical object with a slim, elongated end. It has a smooth surface and could be a tool or a kitchen utensil.
Preview: The image shows a silver, cylindrical object that is flattened at one end. It appears like a small metal cylinder or a type of drill without a visible tip.
Preview: The image shows a metallic pen with a rounded end coated in gray material. The body is cylindrical and has a smooth surface.
Preview: The image shows a silver, cylindrical object with a sharp, conical tip. It has a smooth, metallic surface and is lying horizontally on a flat surface.
Preview: The image shows a silver, cylindrical object with a conical tip. The body is smooth and round, the tip is slightly rounded and has a dark color.
XNT Soldering tip chisel-shaped
Soldering tip chisel-shaped XNT A
Head size: 1.6 x 0.4 mm / Soldering tip shape: chisel-shaped , straight / suitable soldering iron: WXP 65 / WTP 90 / Length : 28 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XNT D
Head size: 4.0 x 0.8 mm / Soldering tip shape: chisel-shaped , straight / suitable soldering iron: WXP 65 / WTP 90 / Length : 28 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XNT 6
Head size: 1.6 x 0.4 mm / Soldering tip shape: chisel-shaped , straight / suitable soldering iron: WXP 65 / WTP 90 / Length : 29.5 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XNT B
Head size: 2.4 x 0.8 mm / Soldering tip shape: chisel-shaped , straight / suitable soldering iron: WXP 65 / WTP 90 / Length : 27 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XNT C
Head size: 3.2 x 0.8 mm / Soldering tip shape: chisel-shaped , straight / suitable soldering iron: WXP 65 / WTP 90 / Length : 27 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XNT H
Head size: 0.8 x 0.4 mm / Soldering tip shape: chisel-shaped , straight / suitable soldering iron: WXP 65 / WTP 90 / Length : 28 mm / Packing: individually / Package size: 1 piece
Soldering tip chisel-shaped XNT K
Head size: 1.2 x 0.4 mm / Soldering tip shape: chisel-shaped , straight / suitable soldering iron: WXP 65 / WTP 90 / Length : 28 mm / Packing: individually / Package size: 1 piece

7 Products
Product No.: 544.860.99
8.40 CHF
excl. 8.1% tax
to the product family
The image shows a silver metal spike with a conical, sharp end and a wider base. The surface is smooth and shiny, with a slight shadow underneath.
Soldering tip chisel-shaped LT 1SC
Soldering tip size (head): 0.15 x 0.4 mm / Soldering tip shape: chisel-shaped / suitable soldering iron: WP 80 / FE 75 / Length : 15 mm / Packing: individually / Package size: 1 piece
LT-1SC soldering tip 0.15 mm /
0.4 mm chisel-shaped
+++ suitable for lead-free solder +++

Product No.: 544.494.99
6.45 CHF
excl. 8.1% tax
Show product
The image depicts a silver, pointed body that resembles a tool. It has a simple, smooth surface and is elongated. The upper part is narrower and pointed.
Preview: The image shows a silver tool with a sharp, slightly curved tip. It has a slender, round handle and is typical for precise work or details.
Preview: The image depicts a short, cylindrical object made of metal. One end is rounded and gray, while the other part is shiny and silver. It could be a tool or a part of a device.
Preview: The image shows a silver pen with a sharp, gray tip. The body is elongated and smooth, ideal for precise writing or drawing.
Preview: The image depicts a silver, pointed body that resembles a tool. It has a simple, smooth surface and is elongated. The upper part is narrower and pointed.
XNT Soldering tip round
Soldering tip round XNT 1XL long
Soldering tip size (head): 0.2 mm / Soldering tip shape: round , angled / suitable soldering iron: WXP 65 / WTP 90 / Length : 42.8 mm
Soldering tip round XNT CS
Soldering tip size (head): 3.2 mm / Soldering tip shape: round / suitable soldering iron: WXP 65 / WTP 90 / Packing: individually / Package size: 1 piece
Soldering tip round XNT AS
Soldering tip size (head): 1.6 mm / Soldering tip shape: round / suitable soldering iron: WXP 65 / WTP 90 / Packing: individually / Package size: 1 piece
Soldering tip round XNT 1
Soldering tip size (head): 0.5 mm / Soldering tip shape: round / suitable soldering iron: WXP 65 / WTP 90 / Length : 27 mm / Packing: individually / Package size: 1 piece

4 Products
Product No.: 544.850.99
from 8.40 CHF
excl. 8.1% tax
to the product family
The image displays a sleek, silver pen with a sharp, metallic tip. The body is cylindrical and shiny, perfect for precise writing or drawing.
Soldering tip round slim XNT 1S
Soldering tip size (head): 0.2 mm / Soldering tip shape: round , slim / suitable soldering iron: WXP 65 / WTP 90 / Length : 28.5 mm / Packing: individually / Package size: 1 piece
XNT 1 S round slim 0.20 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!

Product No.: 544.852.99
8.40 CHF
excl. 8.1% tax
Show product
1 to 16 (from a total of 112)
