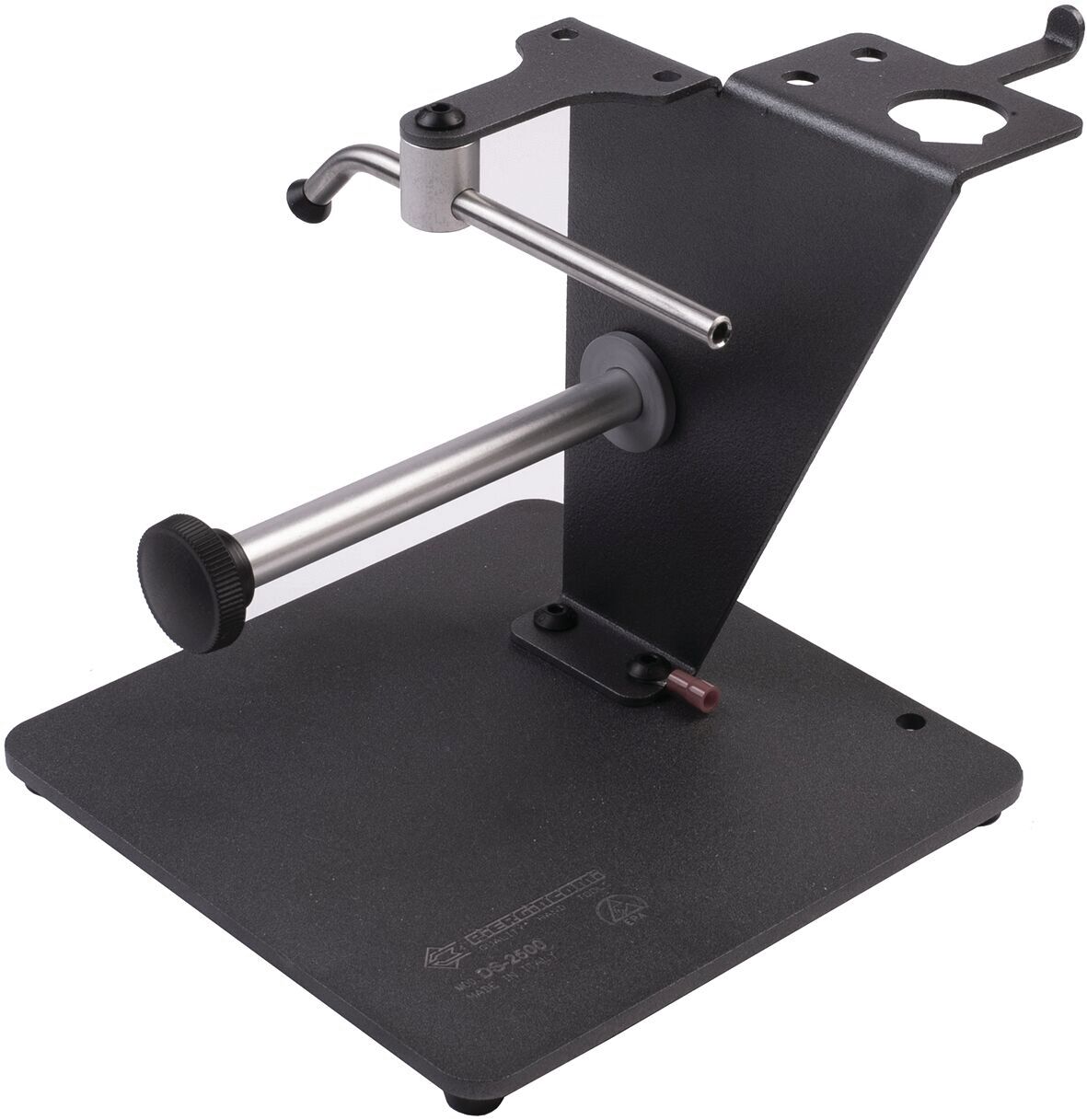

The image shows a sturdy holder made of black metal. It has a rectangular base, a vertical stand, and a horizontal arm designed for holding devices.
Solder tin dispenser ESD DS-2500
(Product No.: P-DS2500.ESD)
The image shows a sturdy holder made of black metal. It has a rectangular base, a vertical stand, and a horizontal arm designed for holding devices.
Notice / Inquire

Solder tin dispenser ESD DS-2500

dpvlink:
17637
Properties:
Further product information

40.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Solder tin dispenser ESD DS-2500

The Piergiacomi ESD DS-2500 solder reel holder is specifically designed for use in ESD-sensitive environments. This model features an integrated guide and a tool holder, making it particularly practical for professional use. The holder is suitable for solder reels with a core diameter of more than 11 mm, a maximum solder wire diameter of 2 mm, a reel length of up to 100 mm, and a weight of up to 2.5 kg.
The structure of the holder allows for the solder wire to be cleanly unwound from the spool, thus keeping the work area free from solder debris. With the optional DS2500 ABD accessory, a second spool can be attached. At the rear of the device, there is a holder for various hand tools that may be needed during soldering tasks, such as desoldering guns, tweezers, pliers, or screwdrivers.
The dimensions of the solder reel holder are 150 mm in width, 155 mm in height, and 190 mm in length. The holder is coated with an ESD-safe powder coating that provides additional protection against static discharges.
Height
Height
155 mm
Length
Length
190 mm
Width
Width
150 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 623
Complete Catalog 2023 - 2024

Product Family

DS 2500 Solder tin dispenser

The DS 2500 solder dispenser with guide tube keeps the workplace tidy and reduces solder waste. They also offer space for various useful hand tools such as tweezers, screwdrivers or pliers. They also have an ESD powder coating. The solder dispensers are available in different versions: They already have a second reel or can be fitted with a second reel using an additional device.

The dispensers are suitable for solder rolls with the following dimensions:

  • core diameter > 11 mm
  • max. solder wire diameter 2 mm
  • weight up to 2.5 kg
  • length 100 mm


Article image
Article description
Height
Length
Width
Price
Compare
P-DS2500.ESD - Solder tin dispenser ESD DS-2500
P-DS2500.ESD
Solder tin dispenser ESD DS-2500
155 mm
190 mm
150 mm
40.15 CHF
P-DS25002-B.ESD - Solder tin dispenser ESD DS-25002B for 2 reels
P-DS25002-B.ESD
Solder tin dispenser ESD DS-25002B for 2 reels
300 mm
190 mm
150 mm
70.35 CHF
P-DS2500-K.ESD - Solder tin dispenser ESD DS-2500-K incl. tool holder
P-DS2500-K.ESD
Solder tin dispenser ESD DS-2500-K incl. tool holder
255 mm
190 mm
150 mm
81.90 CHF
P-DS2500-AB.ESD - Solder tin reel holder ESD for second reel
P-DS2500-AB.ESD
Solder tin reel holder ESD for second reel



32.20 CHF
