Self-adjusting crimping pliers with square crimping
(Product No.: K-975308.190)
The image shows a cable cutter pliers with red and blue rubber grips. The pliers have a black blade with a curve and a small adjustment device on the top.
The image shows a red and black crimping tool. It has two handles that are ergonomically shaped, and a black blade with a round insertion element. The pliers are used for electrical connections.
The image shows a cable cutter aligned with a wire featuring red insulation. The cutter includes a testing standard with numbers indicating size.
The image shows a detailed view of a tool. A black casing with metallic elements and a red-marked screw is depicted. Additionally, a cable is visible that is inserted into the tool.
Mobile Preview: The image shows a cable cutter pliers with red and blue rubber grips. The pliers have a black blade with a curve and a small adjustment device on the top.
Mobile Preview: The image shows a red and black crimping tool. It has two handles that are ergonomically shaped, and a black blade with a round insertion element. The pliers are used for electrical connections.
Mobile Preview: The image shows a cable cutter aligned with a wire featuring red insulation. The cutter includes a testing standard with numbers indicating size.
Mobile Preview: The image shows a detailed view of a tool. A black casing with metallic elements and a red-marked screw is depicted. Additionally, a cable is visible that is inserted into the tool.
Notice / Inquire

Self-adjusting crimping pliers with square crimping

dpvlink:
8993
Length :
190 mm
Capacity:
0.08 - 10.0 mm²
AWG:
28 - 8
Further product information

188.50 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

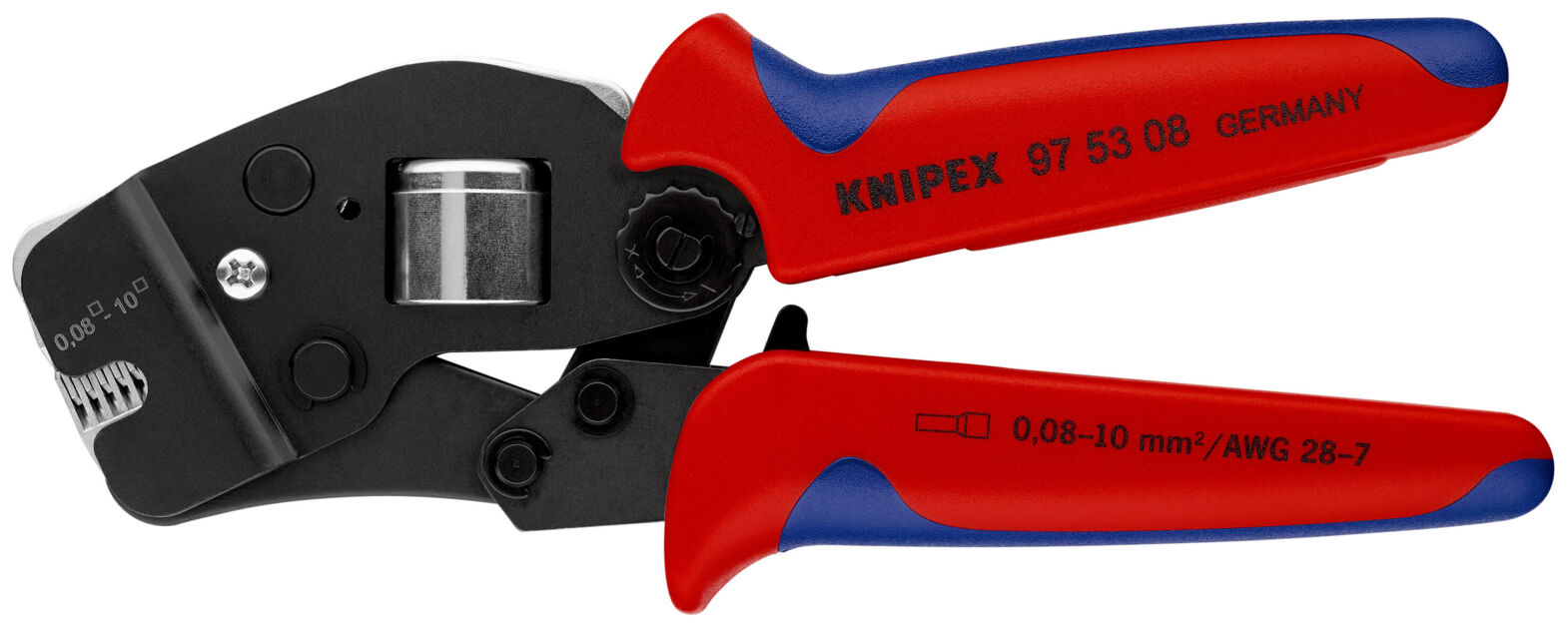

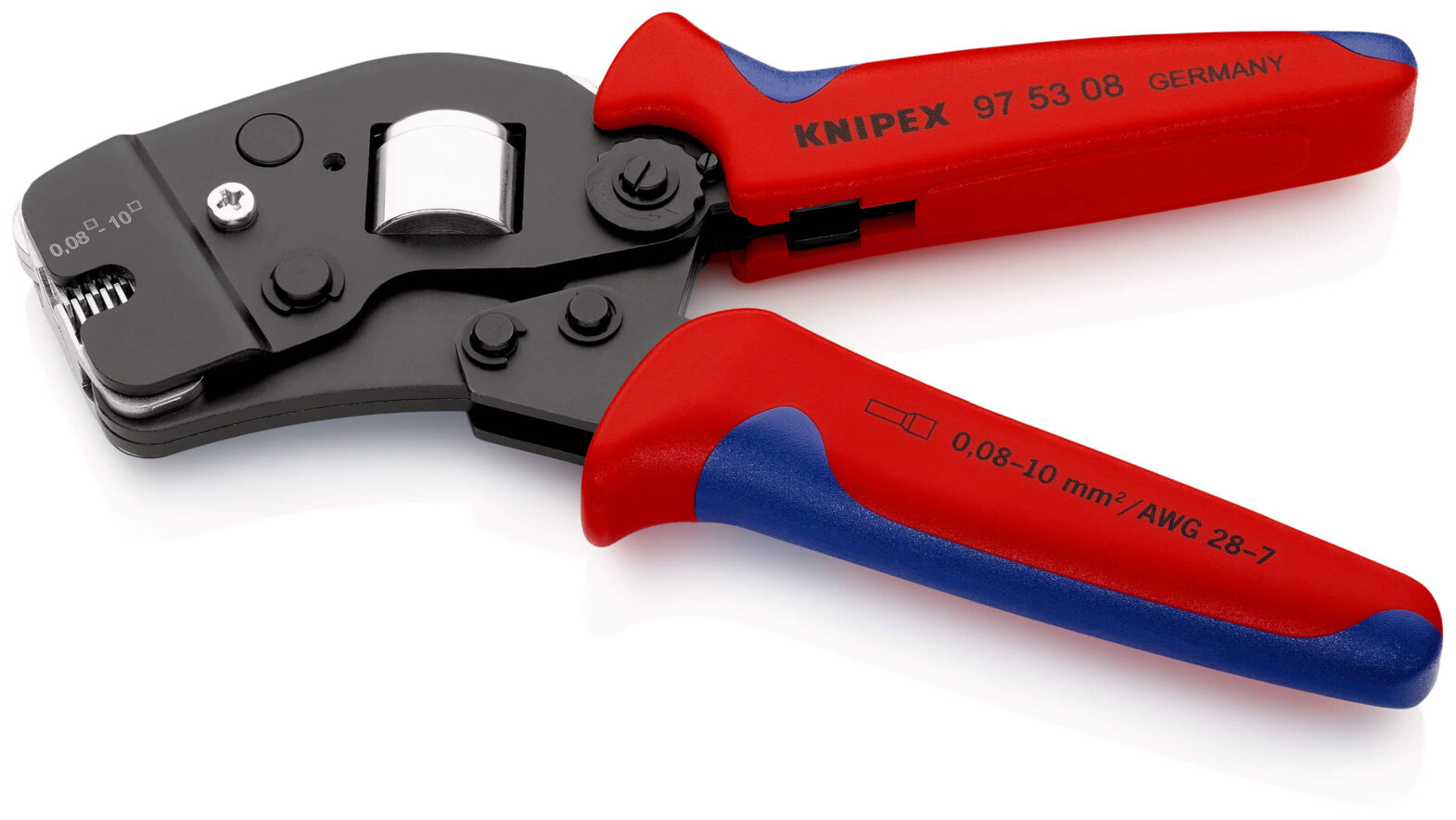

Self-adjusting crimping pliers with square crimping

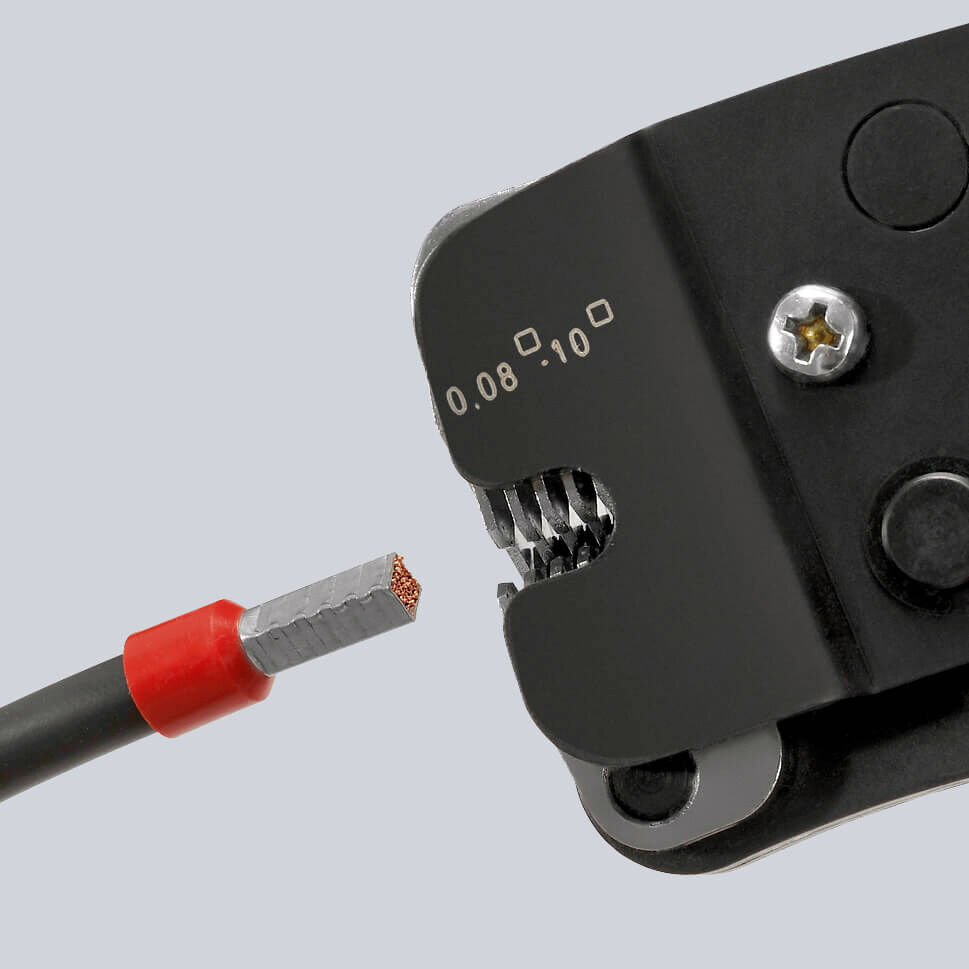

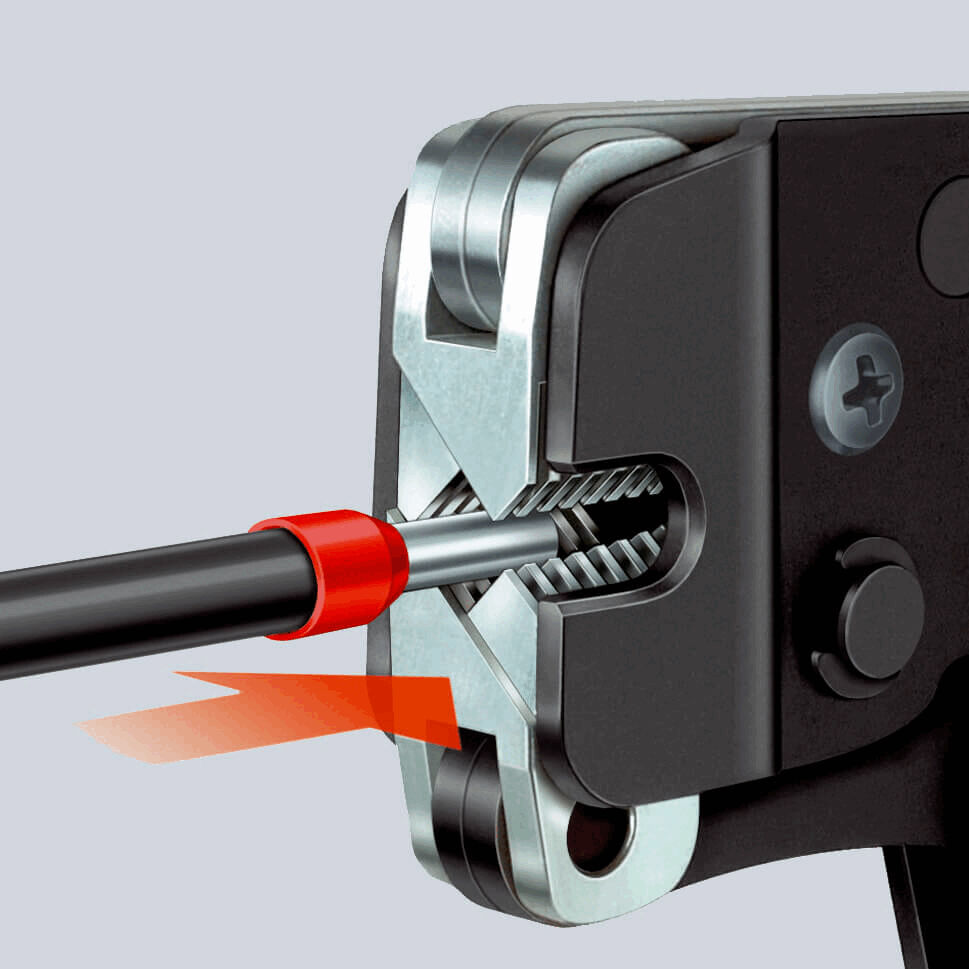

The self-adjusting crimping tool from KNIPEX, model 97 53 08, is specifically designed for crimping ferrules according to DIN 46228 Part 1 + 4. This high-quality tool allows for crimping ferrules in a range from 0.08 to 10.0 mm² without the risk of crimping errors, as the tool automatically adjusts to the appropriate profile size. The frontal insertion of the ferrules and an optional lateral feed up to 2.5 mm² make handling easier and increase precision.
The crimping tool is characterized by a consistently high crimping quality, supported by a releasable forced lock and a factory-set precise crimp pressure calibration. The ergonomic design and the low weight of 477 g ensure high user comfort and fatigue-free working, even with large conductor cross-sections.
With a length of 190 mm, a width of 75 mm, and a height of 20 mm, the tool is compact and robust, made from burnished material for durability and reliability. The tool is not ESD-safe, which should be considered when used in corresponding environments.
Knipex guarantees with this model a reliable and standard-compliant connection of ferrules, which is especially important for professional applications in electrical installations.
Length
Length
190 mm
Capacity
Capacity
0.08 - 10.0 mm²
AWG
AWG
28 - 8
Max Ø soft
Max Ø soft
0,.32-3.26 mm
Height
Height
20 mm
Width
Width
75 mm
Material
Material
burnished
ESD
ESD
no
Weight
Weight
477 g
