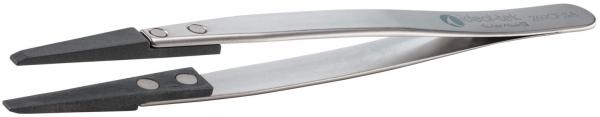

The image shows a pair of pliers with two long, narrow gripping surfaces. It is made of metallic material with a smooth surface and has black rubber inserts at the tips for better grip.
The image displays a technical drawing. The top features a narrowly tapered body with a width of 3.00 mm, while the bottom presents a flatter view with a height of 0.80 mm and two small elements.
Preview: The image shows a pair of pliers with two long, narrow gripping surfaces. It is made of metallic material with a smooth surface and has black rubber inserts at the tips for better grip.
Preview: The image displays a technical drawing. The top features a narrowly tapered body with a width of 3.00 mm, while the bottom presents a flatter view with a height of 0.80 mm and two small elements.
ESD tweezers with plastic tip 269CF.SA
(Product No.: I-269CF.SA)
The image shows a pair of pliers with two long, narrow gripping surfaces. It is made of metallic material with a smooth surface and has black rubber inserts at the tips for better grip.
The image displays a technical drawing. The top features a narrowly tapered body with a width of 3.00 mm, while the bottom presents a flatter view with a height of 0.80 mm and two small elements.
Mobile Preview: The image shows a pair of pliers with two long, narrow gripping surfaces. It is made of metallic material with a smooth surface and has black rubber inserts at the tips for better grip.
Mobile Preview: The image displays a technical drawing. The top features a narrowly tapered body with a width of 3.00 mm, while the bottom presents a flatter view with a height of 0.80 mm and two small elements.
Notice / Inquire

ESD tweezers with plastic tip 269CF.SA

dpvlink:
11524
Tweezer type:
universal tweezers
Tip form:
straight
Gripping surface:
smooth
Handle surface:
smooth
Tip type characteristics:
thick, blunted, strong
Properties:
Further product information

18.90 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD tweezers with plastic tip 269CF.SA

The ESD tweezer 269CF.SA by ideal-tek, made in Switzerland, combines precise handling with technical sophistication. The tweezer is made from stainless steel, and the tip consists of a high-quality plastic blend of Polyamide 66 and 30% carbon fiber, which offers high mechanical strength and very good chemical resistance. The ESD safety is particularly noteworthy, enabling the handling of sensitive electronic components.
The tweezer has a length of 130 mm and features a smooth, straight tip with a width of 3.0 mm and a length of 25 mm. This combination allows for precise manipulation of the smallest components without the risk of scratches, making it ideal for areas such as micromechanics and electronic assembly. The tweezer is heat stabilized up to 130°C for continuous use and can withstand temperatures up to 190°C for short periods.
The surface of the tweezer is sandblasted, which ensures low friction and excellent wear resistance. The surface resistance is 102 Ω. Despite its robustness, the tweezer weighs only 17 g, which allows for fatigue-free working. Note that the tweezer is not resistant to strong acids, alkalis, hot water, or steam.
Tweezer type
Tweezer type
universal tweezers
Tip form
Tip form
straight
Gripping surface
Gripping surface
smooth
Handle surface
Handle surface
smooth
Tip type characteristics
Tip type characteristics
thick, blunted, strong
Height
Height
17 mm
Length
Length
130 mm
Thickness/diameter
Thickness/diameter
0.8 mm
Tip length
Tip length
25 mm
Tip width
Tip width
3.0 mm
Width
Width
10 mm
Tip opening gap
Tip opening gap
10 mm
Material
Material
stainless steel
Surface
Surface
sandblastered
Tip
Tip
Plastic
ESD
ESD
yes
twezzers code
twezzers code
269
Weight
Weight
17 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Smooth gripping surface
Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 395
Complete Catalog 2023 - 2024

Product Family

Ideal-tek ESD tweezers with plastic tips 00

Ideal-tek tweezers with plastic tips are versatile tools that offer precision and control for various tasks. Their lightweight and non-conductive design makes them ideal for delicate work. The plastic tips also ensure gentle handling and reduce the risk of scratching or damaging delicate surfaces. These tweezers are ESD-safe and suitable for use in electrostatically protected areas. They are not resistant to strong acids, alkalis, hot water or steam.
