Main page » Products » Tweezers » Individual tweezers » Ergonomic precision tweezers 5.SA.DN

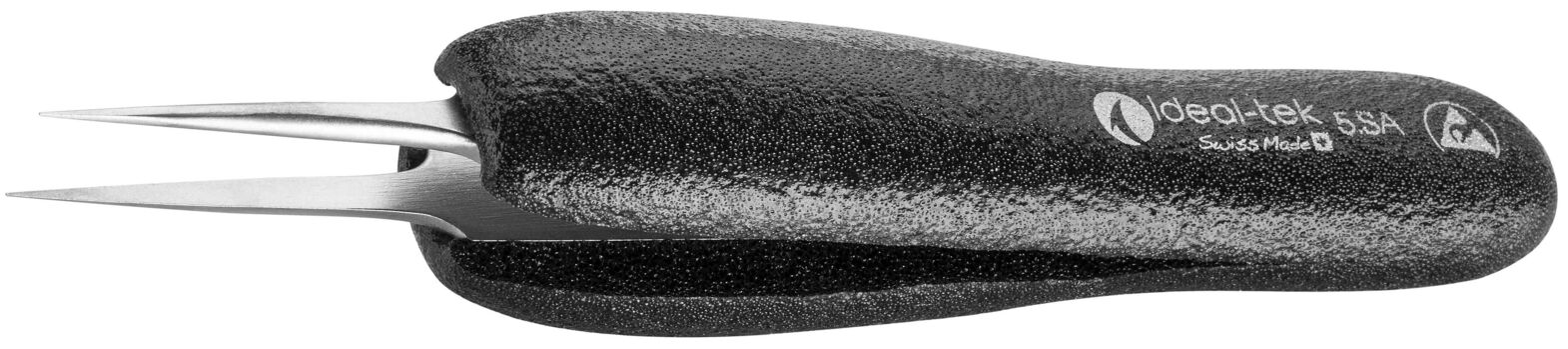

Preview: The image shows a black tweezer with two pointed, narrow pincers. The handle is slightly curved and textured to provide a good grip.

Preview: The image shows two geometric shapes: a pointed object with dimensions 0.30 mm and 0.25 mm. Next to it is the note "Dimensions mm".

Ergonomic precision tweezers 5.SA.DN

(Product No.: I-5.SA.DN)

Mobile Preview: The image shows a black tweezer with two pointed, narrow pincers. The handle is slightly curved and textured to provide a good grip.

Mobile Preview: The image shows two geometric shapes: a pointed object with dimensions 0.30 mm and 0.25 mm. Next to it is the note "Dimensions mm".

(Product No.: I-5.SA.DN)

Ergonomic precision tweezers 5.SA.DN

Name: Ergonomic precision tweezers 5.SA.DN
SKU: I-5.SA.DN
Price: 18.75 CHF
Availability: InStock

ArticleNo: I-5.SA.DN

dpvlink:

12475

Tweezer type:

precision tweezers

Tip form:

straight

Gripping surface:

smooth

Handle surface:

serrated

Tip type characteristics:

fine, sharp

Properties:

Further product information

18.75 CHF

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

Ergonomic precision tweezers 5.SA.DN

The ergonomic precision tweezer 5.SA.DN by ideal-tek is specifically designed for demanding applications in electronics manufacturing, where precision and ESD protection are required. With its straight, fine, and sharp stainless steel tip, which has a width of only 0.3 mm and a thickness of 0.25 mm, it allows for extremely precise work.
The total length of the tweezer is 115 mm, with a height of 17 mm and a width of 15 mm. The handle is covered with ESD-safe PVC foam, which not only has dissipative properties but also provides an ergonomic and secure grip due to its grooved surface.
This high-quality, Swiss Made tool weighs 16 g and is ideal for handling sensitive electronic components, where static discharges must be avoided. The combination of precise manufacturing and ergonomic design makes this tweezer an indispensable tool in any technical operation.

Details

Tweezer type Tweezer type: precision tweezers
Tip form Tip form: straight
Gripping surface Gripping surface: smooth
Handle surface Handle surface: serrated
Tip type characteristics Tip type characteristics: fine, sharp
Height Height: 17 mm
Length Length: 115 mm
Thickness/diameter Thickness/diameter: 0.25 mm
Tip width Tip width: 0.3 mm
Width Width: 15 mm
B [mm] B [mm]: 8 mm
Material Material: PVC foam
Surface Surface: ESD-foam
Tip Tip: stainless steel
ESD ESD: yes
Weight Weight: 16 g

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Smooth gripping surface

Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 403

Complete Catalog 2023 - 2024

Product Family

Ideal-tek Ergonomic tweezers of PVC foam (DN)

Ideal-tek foam tweezers feature ergonomic grip pads made of ESD black foam (DN), which increase user comfort and reduce finger strain when working with ESD-sensitive components or small static objects in various industries. As they are electrically static and dissipative, precision tweezers with soft foam are ideal for repetitive picking and positioning during sample preparation and for working with electronics.

The very soft and elastic foam is tear-resistant, abrasion-resistant and resistant to chemicals (oils, greases, fuels, acids, cleaning agents and soaps, alcohols). Ergonomic foam tweezers offer a longer service life and at the same time increase comfort for fingers and hands.
