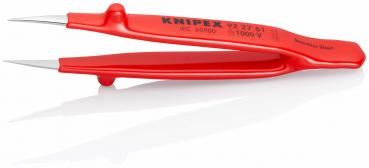

The image shows a red pair of pliers with sharp, curved grippers. The handles are ergonomically shaped and labeled. The pliers are suitable for precise work.

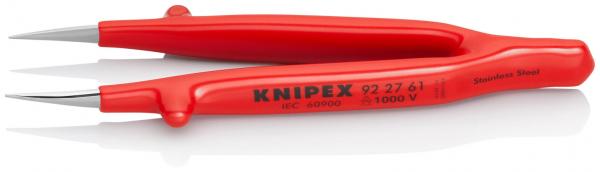

The image displays a red pliers with two long, pointed tips. It features an ergonomic handle and a label with the KNIPEX brand along with technical specifications.

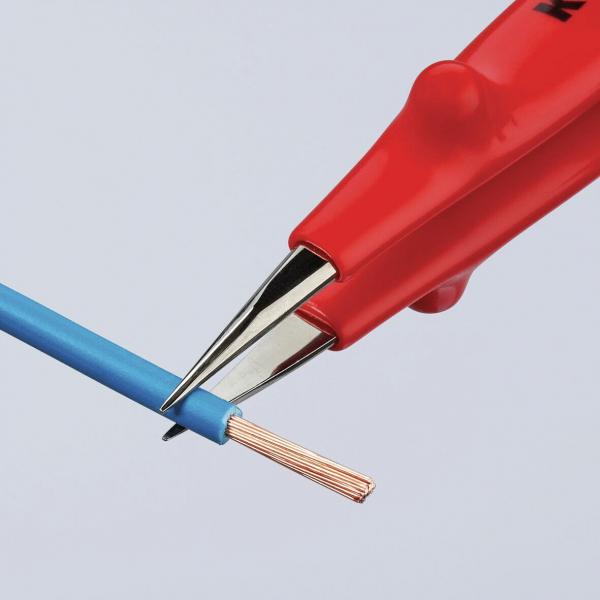

In the image, there is a red pair of pliers gripping a blue wire. The wire is partially stripped, and copper wires are visible underneath.

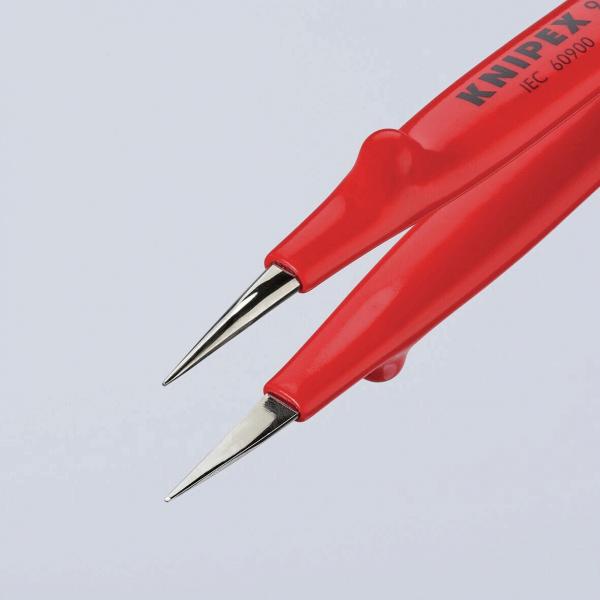

The image shows a specially shaped pliers with a red handle. The pliers have two long, pointed ends suitable for gripping and holding objects.
Preview: The image shows a red pair of pliers with sharp, curved grippers. The handles are ergonomically shaped and labeled. The pliers are suitable for precise work.
Preview: The image displays a red pliers with two long, pointed tips. It features an ergonomic handle and a label with the KNIPEX brand along with technical specifications.
Preview: In the image, there is a red pair of pliers gripping a blue wire. The wire is partially stripped, and copper wires are visible underneath.
Preview: The image shows a specially shaped pliers with a red handle. The pliers have two long, pointed ends suitable for gripping and holding objects.
Precision tweezers 922761
(Product No.: K-922761)
The image shows a red pair of pliers with sharp, curved grippers. The handles are ergonomically shaped and labeled. The pliers are suitable for precise work.
The image displays a red pliers with two long, pointed tips. It features an ergonomic handle and a label with the KNIPEX brand along with technical specifications.
In the image, there is a red pair of pliers gripping a blue wire. The wire is partially stripped, and copper wires are visible underneath.
The image shows a specially shaped pliers with a red handle. The pliers have two long, pointed ends suitable for gripping and holding objects.
Mobile Preview: The image shows a red pair of pliers with sharp, curved grippers. The handles are ergonomically shaped and labeled. The pliers are suitable for precise work.
Mobile Preview: The image displays a red pliers with two long, pointed tips. It features an ergonomic handle and a label with the KNIPEX brand along with technical specifications.
Mobile Preview: In the image, there is a red pair of pliers gripping a blue wire. The wire is partially stripped, and copper wires are visible underneath.
Mobile Preview: The image shows a specially shaped pliers with a red handle. The pliers have two long, pointed ends suitable for gripping and holding objects.
Notice / Inquire

Precision tweezers 922761

dpvlink:
8810
Tweezer type:
universal tweezers
Tip form:
straight
Gripping surface:
smooth
Handle surface:
smooth
Tip type characteristics:
fine, pointed
Properties:
Further product information

30.35 CHF
per PCE

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Precision tweezers 922761

The precision tweezers 922761 from KNIPEX are specifically designed for the finest assembly work in the electronics industry, offering optimal grip thanks to their extra fine, straight tips and matte gripping surfaces. This universal tweezer is made from high-quality stainless steel, which not only provides high toughness but also excellent corrosion resistance in various environments.
The handles of the tweezers are dip-insulated, making them suitable for work on electrical installations up to 1000 V and are VDE-tested, according to DIN EN 60900 IEC 60900. Additionally, the antimagnetic surface prevents electromagnetic damage, making it ideal for a wide range of applications. The tweezers measure 125 mm in length, 13 mm in height, and have a tip width of only 0.5 mm with a weight of 19 g. The combination of fine tip and smooth gripping and handling surfaces allows for precise work under various conditions.
Tweezer type
Tweezer type
universal tweezers
Tip form
Tip form
straight
Gripping surface
Gripping surface
smooth
Handle surface
Handle surface
smooth
Tip type characteristics
Tip type characteristics
fine, pointed
Height
Height
13 mm
Length
Length
125 mm
Thickness/diameter
Thickness/diameter
0.5 mm
Tip width
Tip width
0.5 mm
Width
Width
32 mm
Material
Material
steel
Surface
Surface
anti-magnetic
ESD
ESD
no
Weight
Weight
19 g
Weight
Weight
19 g
Pictograms
Smooth gripping surface
Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 388
Complete Catalog 2023 - 2024

Product Family

Knipex VDE Precision tweezers insulated

The Knipex VDE precision tweezers are suitable for the finest assembly work on electrical systems. Made of high-quality stainless steel with anti-magnetic properties to prevent electromagnetic damage. They are tested to IEC 60900 and are suitable for applications in the electronics industry.

  • Immersion-insulated handles for working on electrical systems: safety up to 1000 V
  • Suitable for a wide range of requirements and applications in the electronics industry
  • Antimagnetic to prevent electromagnetic damage
  • High-quality stainless steel: high toughness and very good corrosion resistance to a wide range of atmospheric environments and many corrosive materials
  • Tested to IEC 60900

Article image
Article description
ESD
Tweezer type
Tip form
Gripping surface
Handle surface
Tip type characteristics
Degree of bending
Price
Compare
K-922761 - Precision tweezers 922761
K-922761
Precision tweezers 922761
universal tweezers
straight
smooth
smooth
fine, pointed

30.35 CHF
K-922762 - Precision tweezers 922762
K-922762
Precision tweezers 922762
universal tweezers
straight
serrated
smooth
pointed

30.35 CHF
K-923764 - Precision tweezers 923764
K-923764
Precision tweezers 923764
precision tweezers
angled
serrated
smooth
beveled/blunted, strong
30 °
30.70 CHF
K-926763 - Precision tweezers 926763
K-926763
Precision tweezers 926763
precision tweezers
straight
serrated
smooth
blunted, strong

30.35 CHF
